Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

14 part groups · 3 illustrations

Illustrations

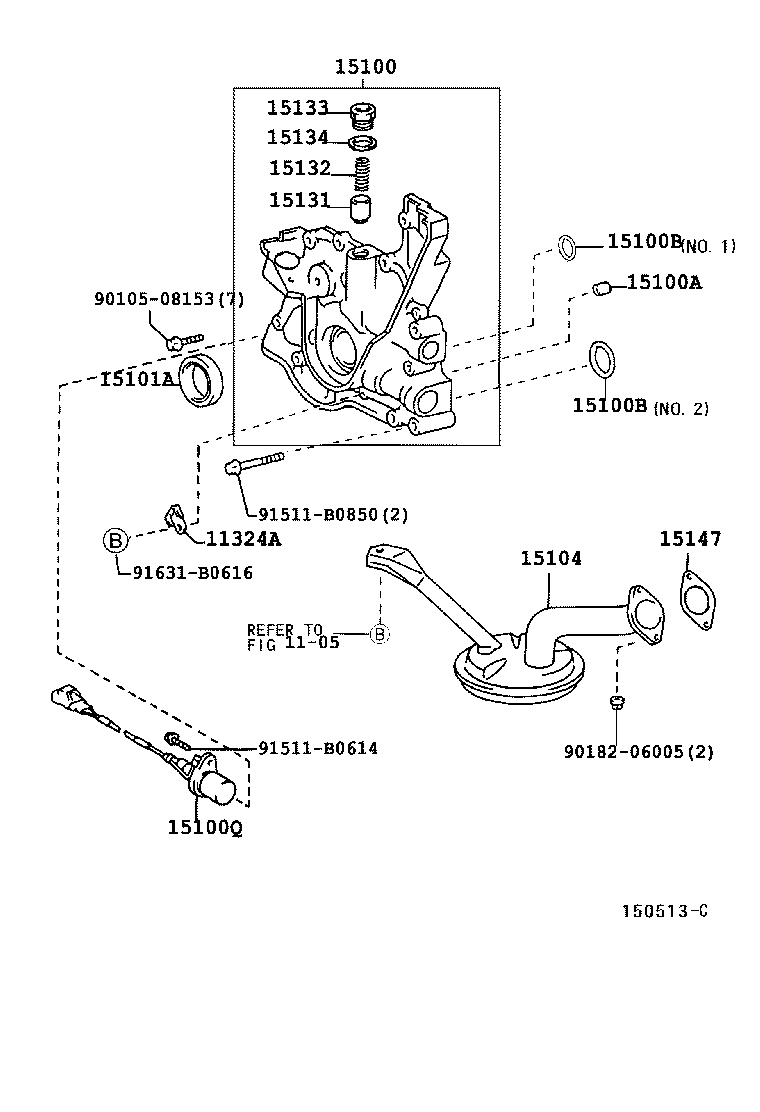

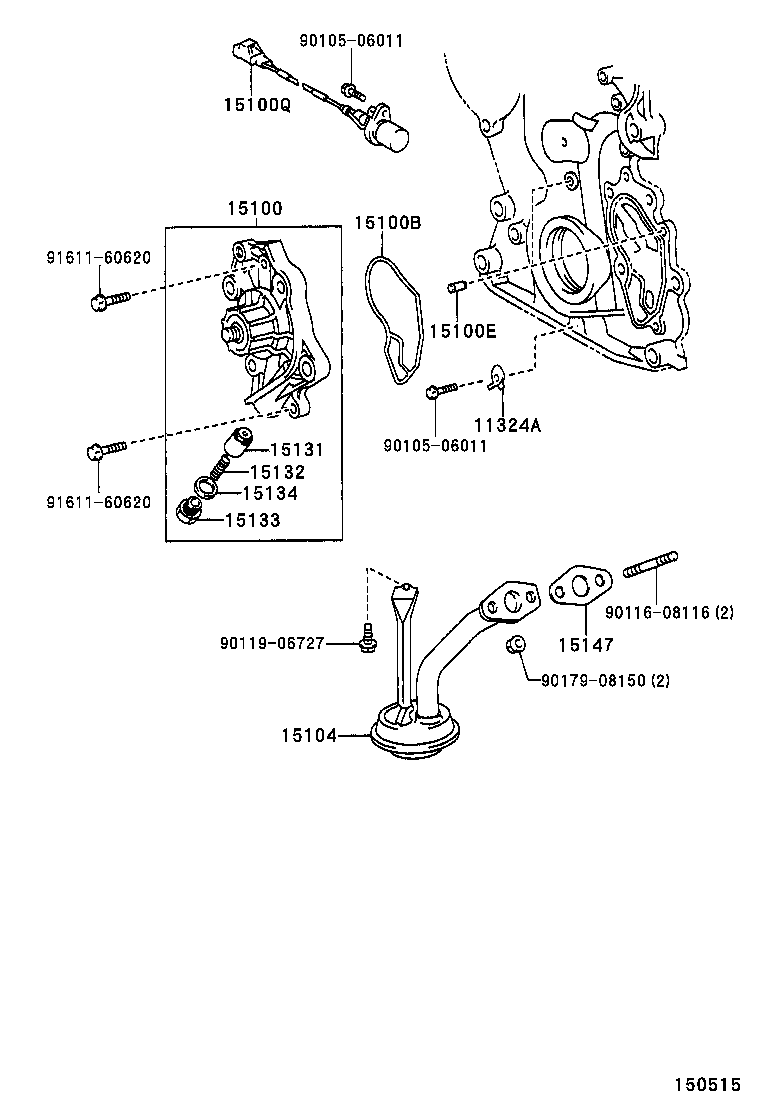

Figure 150291B 150291B 1999-01 → 2001-07 Figure 150515 150515 2001-07 → — Figure 150513C 150513C 2001-07 → —

Part groups

PNCDescription
11324A Plate, Timing Belt
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100E Pin, Straight (FOR OIL PUMP SET)
15100Q Sensor, Crank Position
15101A Seal(FOR CRANKSHAFT)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
