Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

17 part groups · 2 illustrations

Illustrations

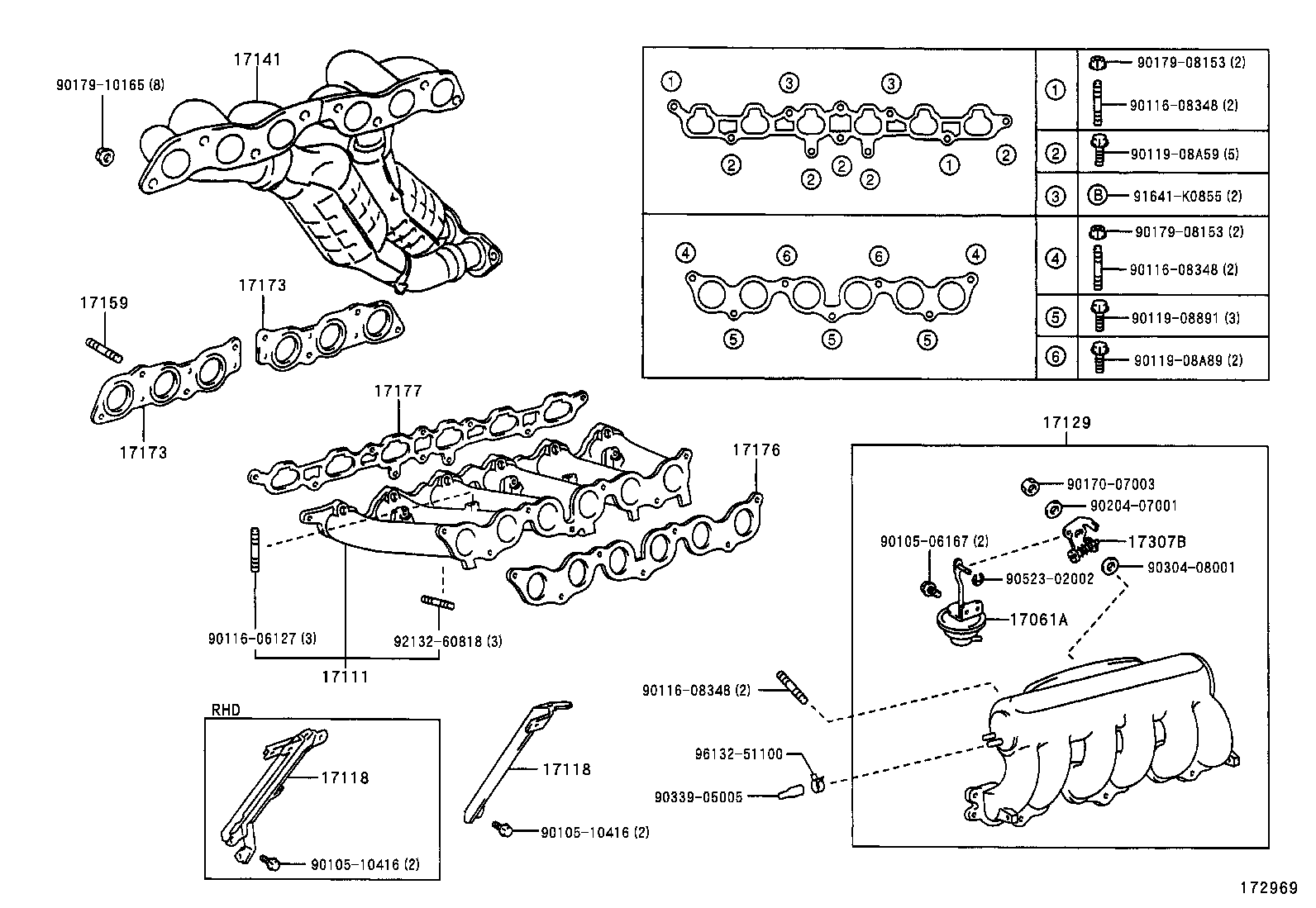

Figure 171942B 171942B 1999-01 → — Figure 172969 172969 2001-07 → —

Part groups

PNCDescription
17061A Diaphragm Sub-assy
17111 Manifold, Intake
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17300 Valve Assy, Intake Air Control
17307B Lever Sub-assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
22267A Bracket, Throttle Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
