Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 2 illustrations

Illustrations

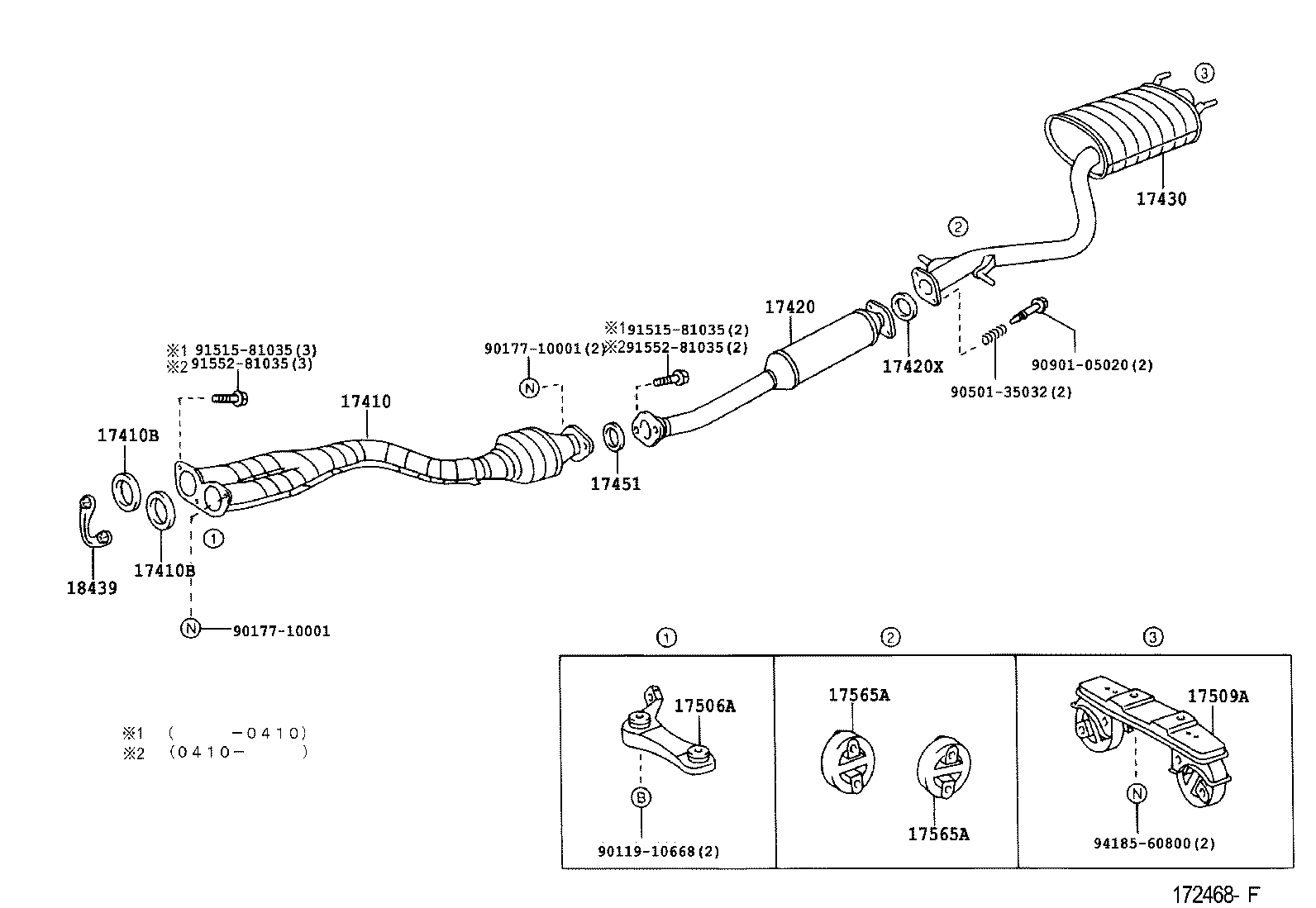

Figure 171940D 171940D 1999-01 → — Figure 172468F 172468F 2001-07 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17565A Support, Exhaust Pipe, NO.4
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
