Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

23 part groups · 2 illustrations

Illustrations

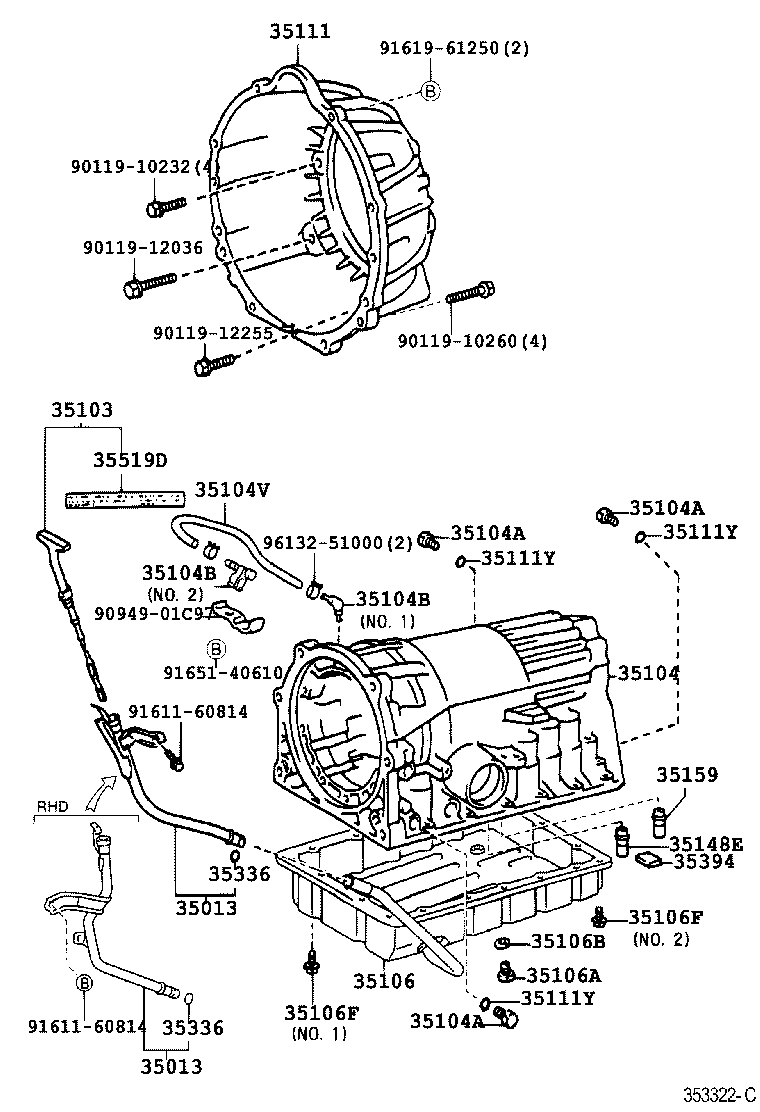

Figure 353468B 353468B 1999-01 → — Figure 353322C 353322C 2001-07 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
33119B Plate, Stiffener, LH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111A Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35143 Cover, Transmission Case, Rear
35144 Gasket, Transmission Case Rear Cover
35148E Gasket, Brake Drum, NO.2
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
