Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04

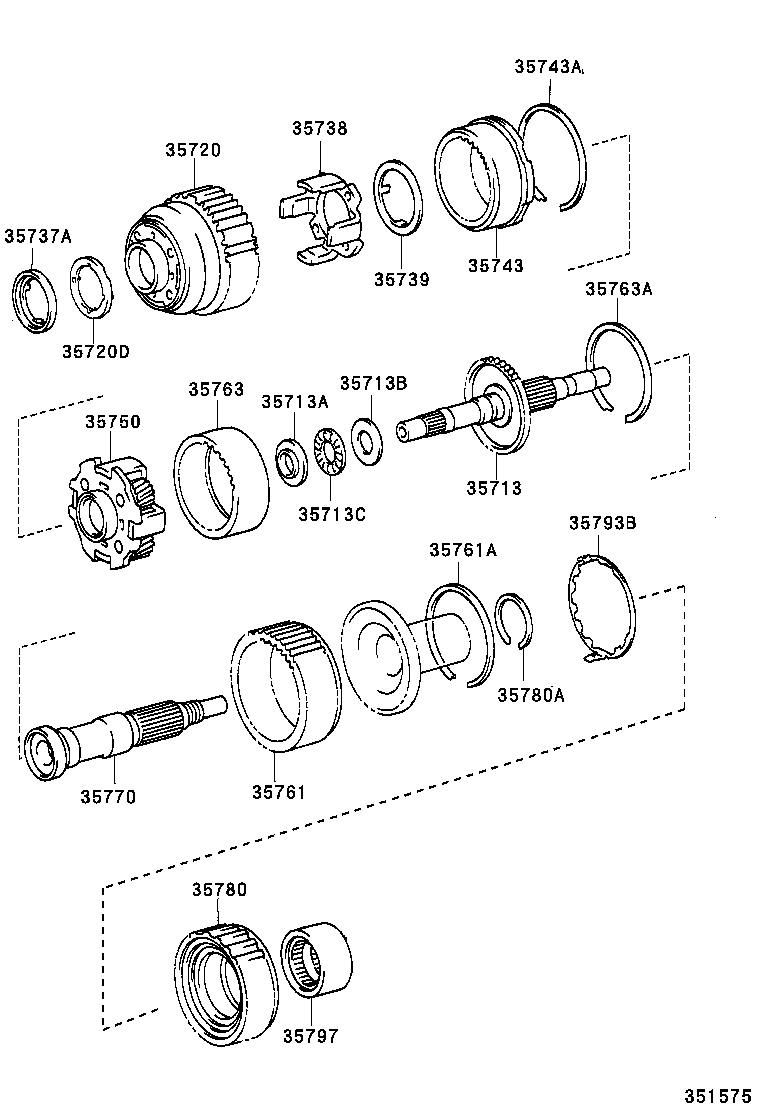

Planetary Gear, Reverse Piston & Counter Gear(ATM)

35 part groups · 2 illustrations

PNC	Description
35074	Gear Sub-assy, Rear Planetary Ring
35074A	Ring, Set (FOR REAR PLANETARY RING GEAR)
35074C	Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR REAR)
35074D	Bearing, Thrust (FOR REAR PLANETARY RING GEAR REAR)
35481V	Ring OR Spacer (FOR ATM SPEEDMETER DRIVE GEAR)
35704B	Gear Sub-assy, Front Planetary
35708	Shaft Sub-assy, Intermediate
35713	Shaft, Intermediate
35713A	Race, Thrust Bearing, NO.1 (FOR INTERMEDIATE SHAFT)
35713B	Race, Thrust Bearing, NO.2 (FOR INTERMEDIATE SHAFT)
35713C	Bearing, Thrust Needle Roller (FOR INTERMEDIATE SHAFT)
35720	Gear Assy, Front Planetary
35720D	Washer (FOR FRONT PLANETARY GEAR)
35735A	Ring, Planetary Output Shaft Oil Seal
35737A	Washer, Planetary Carrier Thrust, NO.1
35738	Washer, Planetary Carrier Thrust, NO.2
35739	Washer, Planetary Carrier Thrust, NO.3
35743	Gear, Front Planetary Ring
35743A	Ring, Shaft Snap (FOR FRONT PLANETARY RING GEAR)
35748	Ring, Intermediate Shaft Sleeve Oil Seal
35750	Gear Assy, Center Planetary
35760	Gear Assy, Rear Planetary
35761	Gear, Rear Planetary Ring
35761A	Ring, Hole Snap (FOR REAR PLANETARY RING GEAR)
35763	Gear, Center Planetary Ring
35763A	Ring, Snap(FOR CENTER PLANETARY RING GEAR)
35770	Shaft Assy, Output
35770A	Bearing, Thrust (FOR OUTPUT SHAFT)
35770B	Race, Thrust Bearing (FOR OUTPUT SHAFT)
35780	Clutch Assy, 1 Way NO.2
35780A	Ring, Snap (FOR 1 WAY CLUTCH)
35792	Clutch, 1 Way, NO.2
35792B	Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2)
35793B	Retainer, 1 Way Clutch
35797	Race, 1 Way Clutch Inner
