Valve Body & Oil Strainer (ATM)

139 part groups · 6 illustrations

Illustrations

356891B 1999-01 → 2001-07

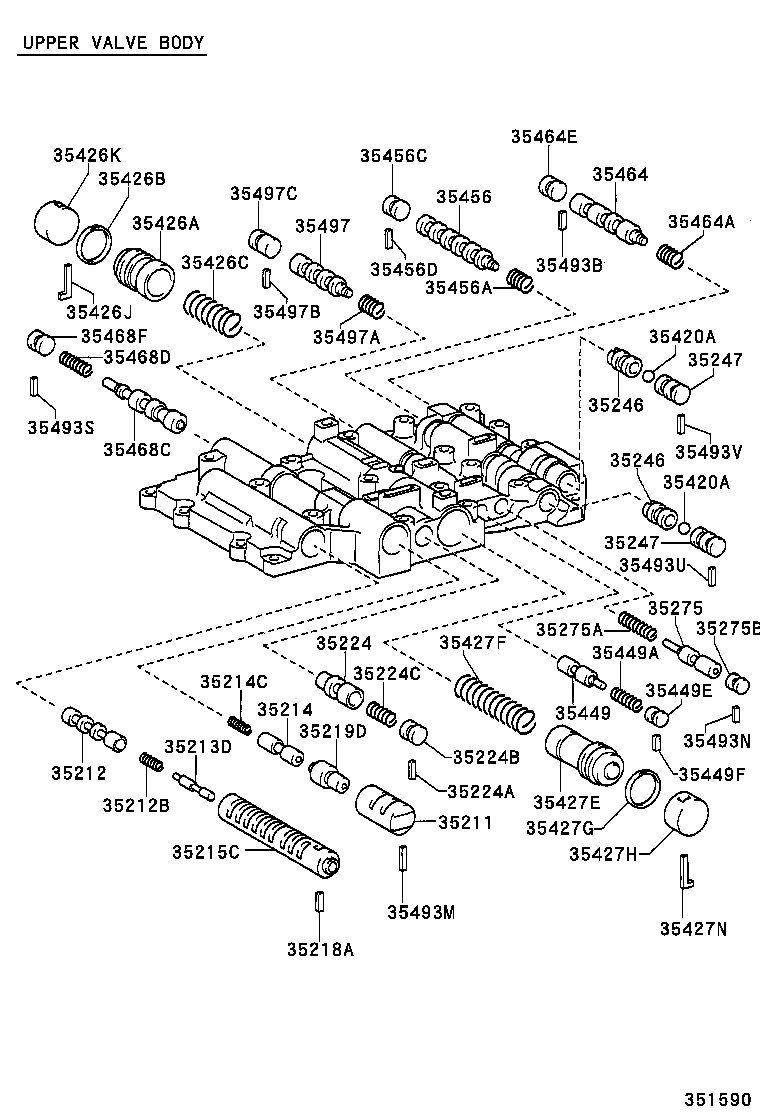

351590 1999-01 → 2001-07

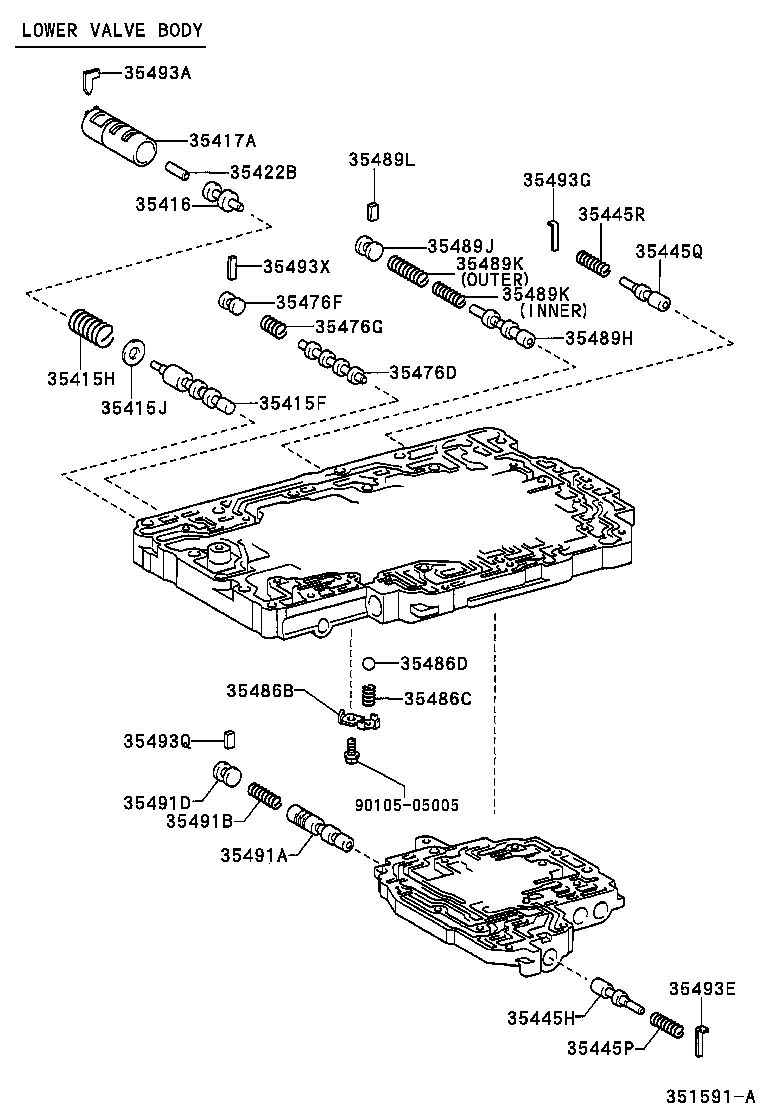

351591A 1999-01 → 2001-07

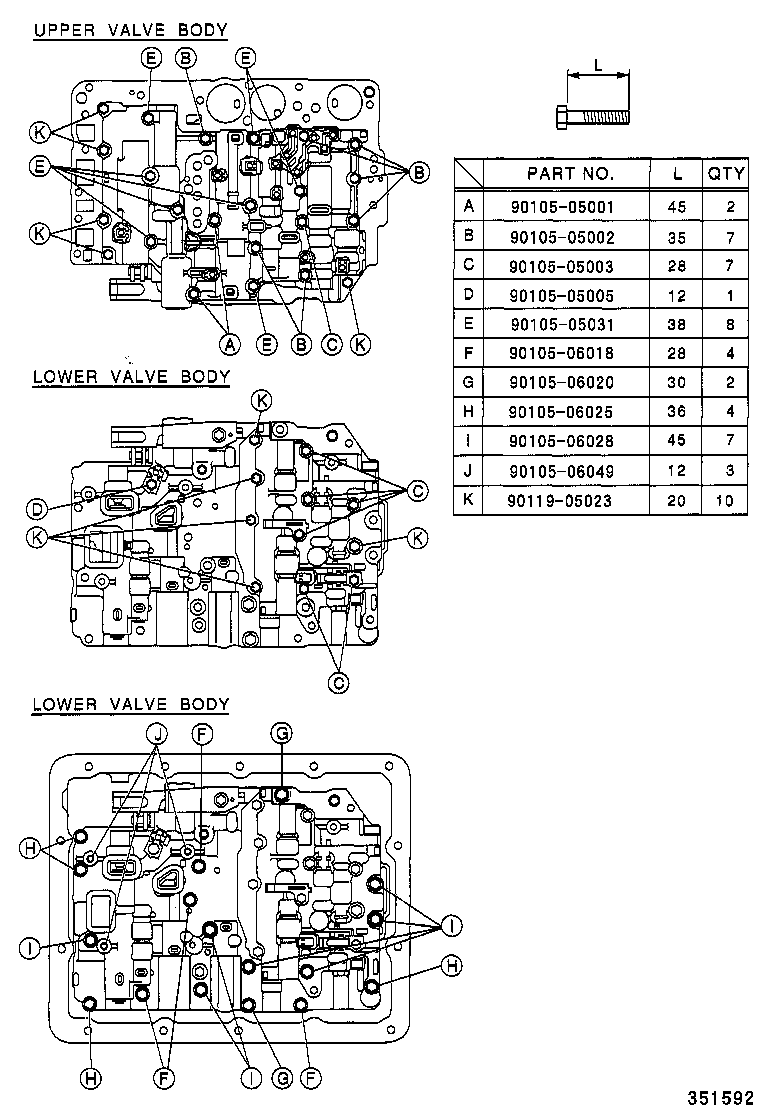

351592 1999-01 → 2001-07

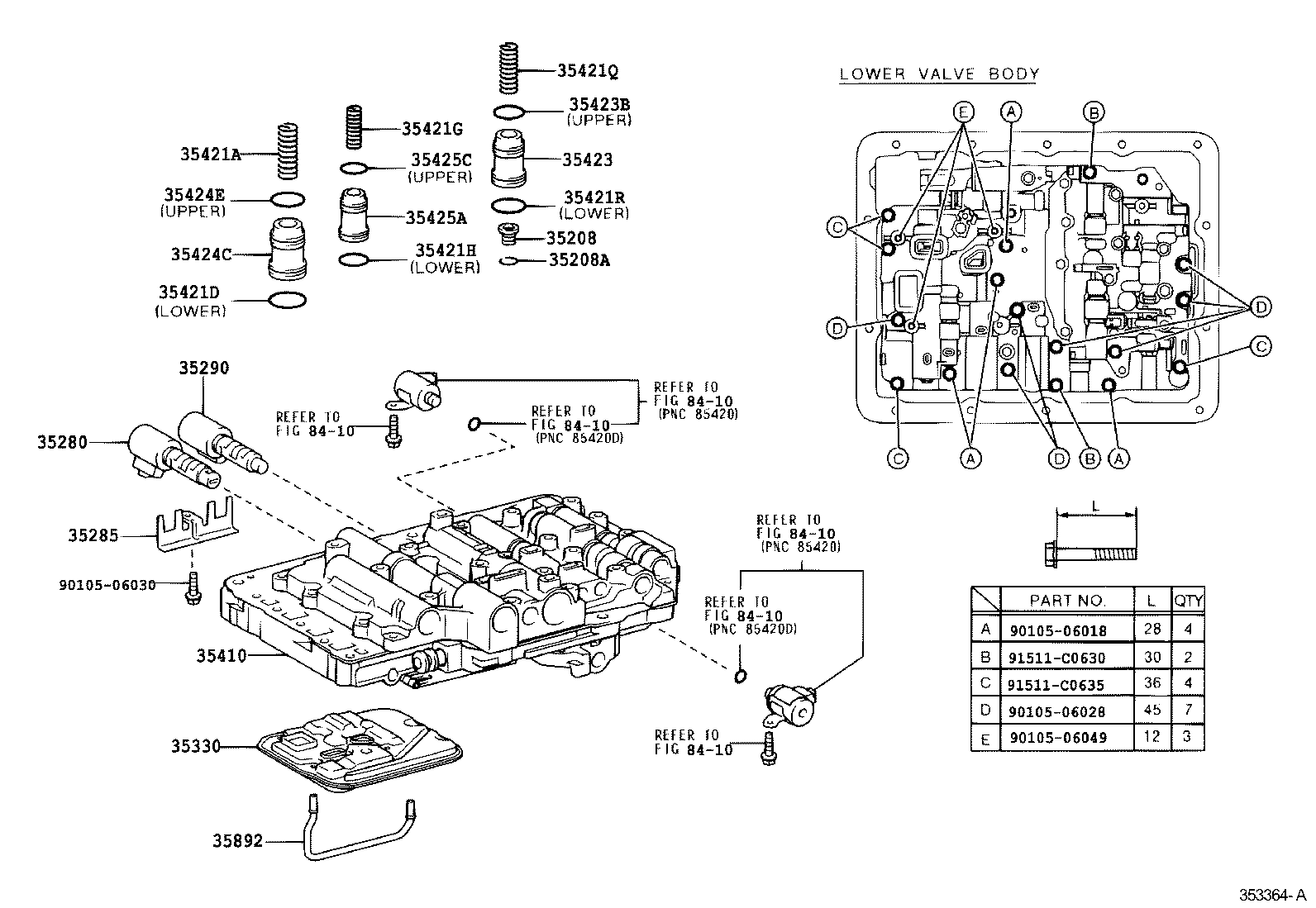

353364A 2001-07 → —

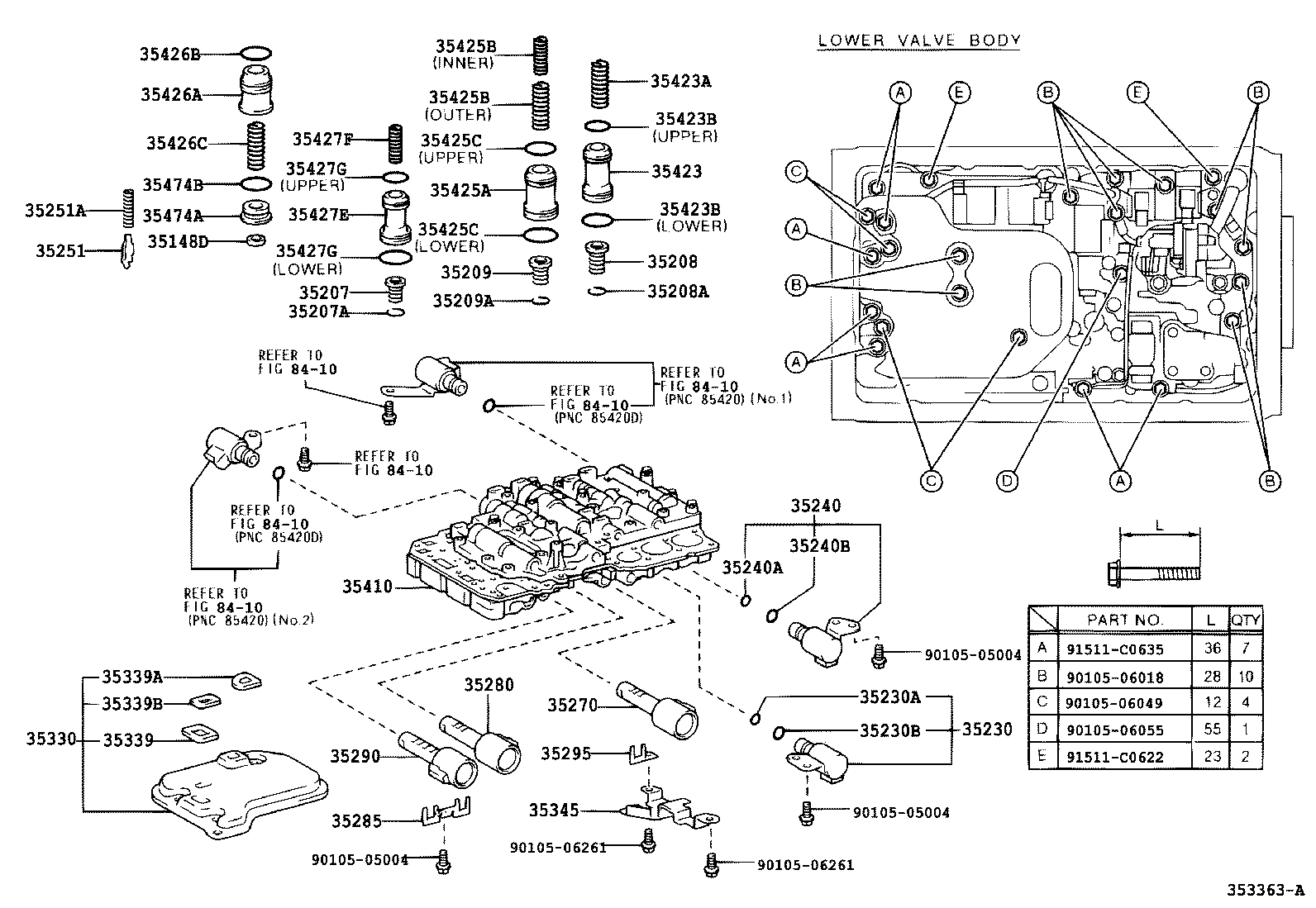

353363A 2001-07 → —

Part groups

PNC	Description
35148D	Gasket (FOR C-O ACCUMULATOR PISTON)
35207	Spring Sub-assy, B-0 Accumulator
35207A	Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208	Spring Sub-assy, B-2 Accumulator
35208A	Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209	Spring Sub-assy, C-2 Accumulator
35209A	Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211	Valve, Lock UP Signal
35212	Valve, Lock UP Relay
35212B	Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D	Plunger, Lock UP Relay Valve
35214	Valve, Lock UP Control
35214C	Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215C	Sleeve, Lock UP Relay Valve, NO.1
35218A	Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219D	Plunger, Lock UP Control Valve
35224	Valve, Reverse Control
35224A	Key, Straight (FOR REVERSE CONTROL VALVE)
35224B	Plug (FOR REVERSE CONTROL VALVE)
35224C	Spring, Compression (FOR REVERSE CONTROL VALVE)
35230	Solenoid Assy, Transmission 3Way, NO.2
35230A	Ring, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230B	Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35240	Solenoid Assy, Automatic Transmission 3Way
35240A	Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B	Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35246	Valve, Check, NO.1
35247	Valve, Check, NO.2
35251	Body, Check Ball
35251A	Spring, Compression (FOR CHECK BALL BODY)
35270	Solenoid Assy, Shift Control
35275	Valve, Solenoid Modulator
35275A	Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B	Plug (FOR SOLENOID MODULATOR VALVE)
35280	Solenoid Assy, Lock UP Control
35285	Plate, Solenoid Lock
35290	Solenoid Assy, Line Pressure Control
35295	Plate, Solenoid Lock, NO.2
35330	Strainer Assy, Valve Body Oil
35339	Gasket, Oil Strainer
35339A	Gasket, Oil Strainer, NO.1
35339B	Gasket, Oil Strainer, NO.2
35345	Plate, Oil Guide
35404G	Plate Sub-assy, Valve Body, NO.2
35406A	Plate Sub-assy, Valve Body
35409	Spring Sub-assy, Manual Detent
35410	Body Assy, Transmission Valve
35415F	Valve, Primary Regulator
35415H	Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J	Washer (FOR PRIMARY REGULATOR VALVE)
35416	Plunger, Primary Regulator Valve, NO.1
35417A	Sleeve, Primary Regulator Valve
35418	Valve, Manual
35419	Valve, Check, NO.1
35419A	Spring, Compression (FOR CHECK VALVE)
35420A	Ball (FOR PRESSURE RELIEF)
35420D	Ball (FOR LOWER VALVE BODY)
35421A	Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421D	Ring (FOR ACCUMULATOR PISTON NO.1)
35421G	Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H	Ring (FOR ACCUMULATOR PISTON NO.2)
35421Q	Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35421R	Ring (FOR ACCUMULATOR PISTON NO.3)
35422B	Plunger, Primary Regulator Valve, NO.2
35423	Piston, B-2 Accumulator
35423A	Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B	Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C	Piston, C-1 Accumulator
35424E	Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A	Piston, C-2 Accumulator
35425B	Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C	Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A	Piston, C-0 Accumulator
35426B	Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C	Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35426J	Seat, C-0 Accumulator Piston Plug
35426K	Plug, C-0 Accumulator Piston
35427E	Piston, B-0 Accumulator
35427F	Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G	Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427H	Plug, B-0 Accumulator Piston
35427N	Seat, B-0 Accumulator Piston Plug
35441C	Strainer, Solenoid Oil
35445H	Valve, 2ND Coast Modulator
35445P	Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q	Valve, Low Coast Modulator
35445R	Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35449	Valve, Sequence
35449A	Spring, Compression (FOR SEQUENCE VALVE)
35449E	Plug, Sequence Valve
35449F	Seat, Reverse Sequence Valve Plug
35456	Valve, 2-3 Shift
35456A	Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C	Plug (FOR 2-3 SHIFT VALVE)
35456D	Seat (FOR 2-3 SHIFT VALVE)
35464	Valve, 1-2 Shift
35464A	Spring, Compression (FOR 1-2 SHIFT VALVE)
35464E	Plug (FOR 1-2 SHIFT VALVE)
35468C	Valve, Secondary Regulator
35468D	Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468F	Plug (FOR SECONDARY REGULATOR VALVE)
35473	Cover, Transmission Valve Body
35474A	Cover, Accumulator
35474B	Ring, O (FOR ACCUMULATOR COVER)
35476D	Valve, Cut Off
35476F	Plug (FOR CUT OFF VALVE)
35476G	Spring, Compression (FOR CUT OFF VALVE)
35481B	Clamp, Valve Body Wire Harness
35482B	Clamp, Temperature Sensor
35486B	Seat, Pressure Relief Valve Spring
35486C	Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D	Ball (FOR PRESSURE RELIFE VALVE)
35487B	Ball, Check, NO.4
35487C	Spring, Compression (FOR CHECK BALL)
35489H	Valve, C-1 Orifice Control
35489J	Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K	Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L	Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491A	Valve, Accumulator Control, NO.1
35491B	Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D	Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35493A	Seat, Primary Regulator Valve Plug
35493B	Seat, 1-2 Shift Valve Plug
35493E	Seat, 2ND Coast Modulator Valve Plug
35493G	Seat, Low Coast Modulator Valve Plug
35493M	Seat, Lock UP Control Valve Plug
35493N	Seat, Solenoid Modulator Valve Plug
35493Q	Seat, Accumulator Control Valve Plug, NO.1
35493S	Seat, Secondary Regulator Valve Plug
35493U	Seat, Check Valve, NO.1
35493V	Seat, Check Valve, NO.2
35493X	Seat, Cut Off Valae
35495B	Ball, Check, NO.1
35497	Valve, 3-4 Shift
35497A	Spring, Compression (FOR 3-4 SHIFT VALVE)
35497B	Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE)
35497C	Plug (FOR 3-4 SHIFT VALVE)
35599	Cover, Manual Detent Spring
35892	Tube, Overdrive Brake

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
