Toyota Lexus IS200/300
1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe
Discontinued model
Data version 2006-04

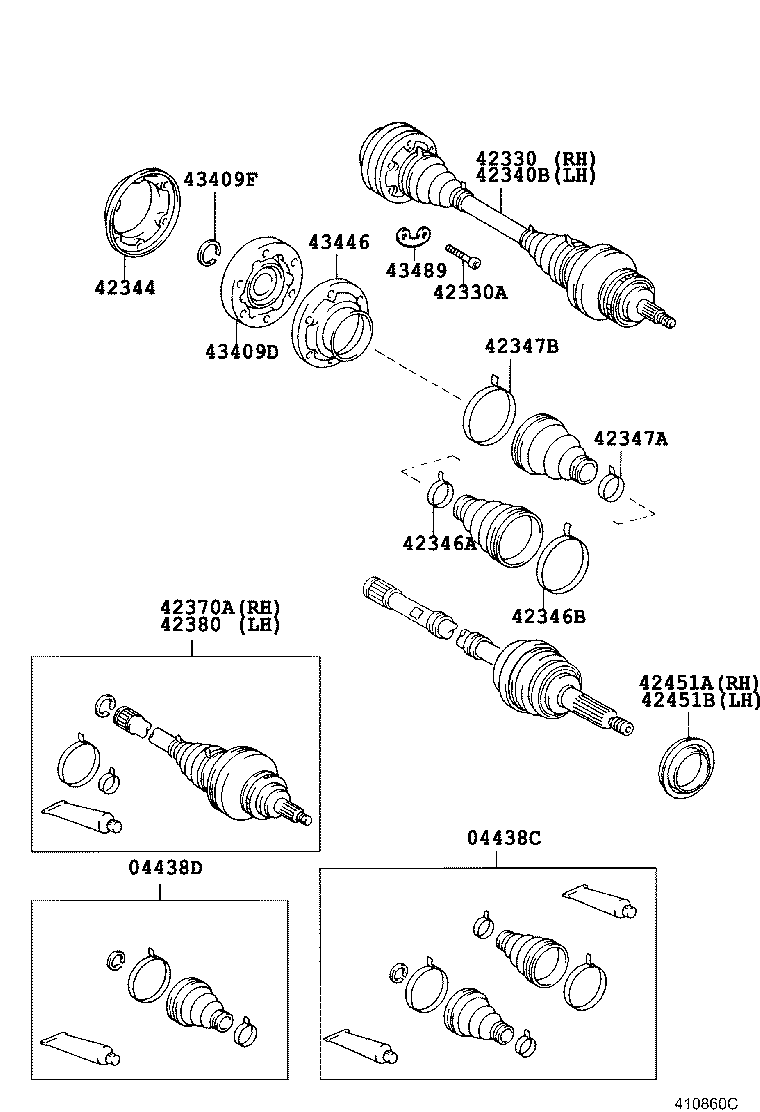

Rear Axle Shaft & Hub
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438C | Boot Kit, Rear Drive Shaft |
| 04438D | Boot Kit, Rear Drive Shaft Inboard Joint |
| 42311L | Shaft, Rear Axle, RH |
| 42311M | Bearing(FOR REAR AXLE SHAFT RH) |
| 42311N | Nut(FOR REAR AXLE SHAFT RH) |
| 42311T | Ring, Snap(FOR REAR AXLE SHAFT RH) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42312 | Shaft, Rear Axle, LH |
| 42312A | Bearing(FOR REAR AXLE SHAFT LH) |
| 42312B | Nut(FOR REAR AXLE SHAFT LH) |
| 42312D | Ring, Snap(FOR REAR AXLE SHAFT LH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42330 | Shaft Assy, Rear Drive, RH |
| 42330A | Bolt(FOR REAR DRIVE SHAFT) |
| 42340B | Shaft Assy, Rear Drive, LH |
| 42341A | Ring, Snap (FOR REAR DRIVE SHAFT) |
| 42343 | Cover, Outboard Joint End |
| 42344 | Cover, Rear Axle Inboard Joint End |
| 42346A | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42346B | Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42347A | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42347B | Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42360 | Joint Assy, Rear Drive Shaft Inboard |
| 42370A | Shaft Assy, Rear Drive Outboard Joint, RH |
| 42380 | Shaft Assy, Rear Drive Outboard Joint, LH |
| 42428B | Plate, Rear Axle Lock Nut, RH |
| 42428C | Plate, Rear Axle Lock Nut, LH |
| 42431 | Disc, Rear |
| 42451A | Deflector, Rear Wheel Bearing Dust, NO.1 RH |
| 42451B | Deflector, Rear Wheel Bearing Dust, NO.1 LH |
| 42452A | Deflecter, Rear Wheel Bearing Dust, NO.2 RH |
| 42452B | Deflecter, Rear Wheel Bearing Dust, NO.2 LH |
| 42491 | Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) |
| 43409D | Joint Sub-assy, Rear Drive Shaft Cross Groove |
| 43409F | Ring, Snap (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) |
| 43446 | Cover, Rear Axle Inboard Joint |
| 43489 | Washer, Rear Drive Shaft Cross Groove Joint |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
