Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

30 part groups · 2 illustrations

Illustrations

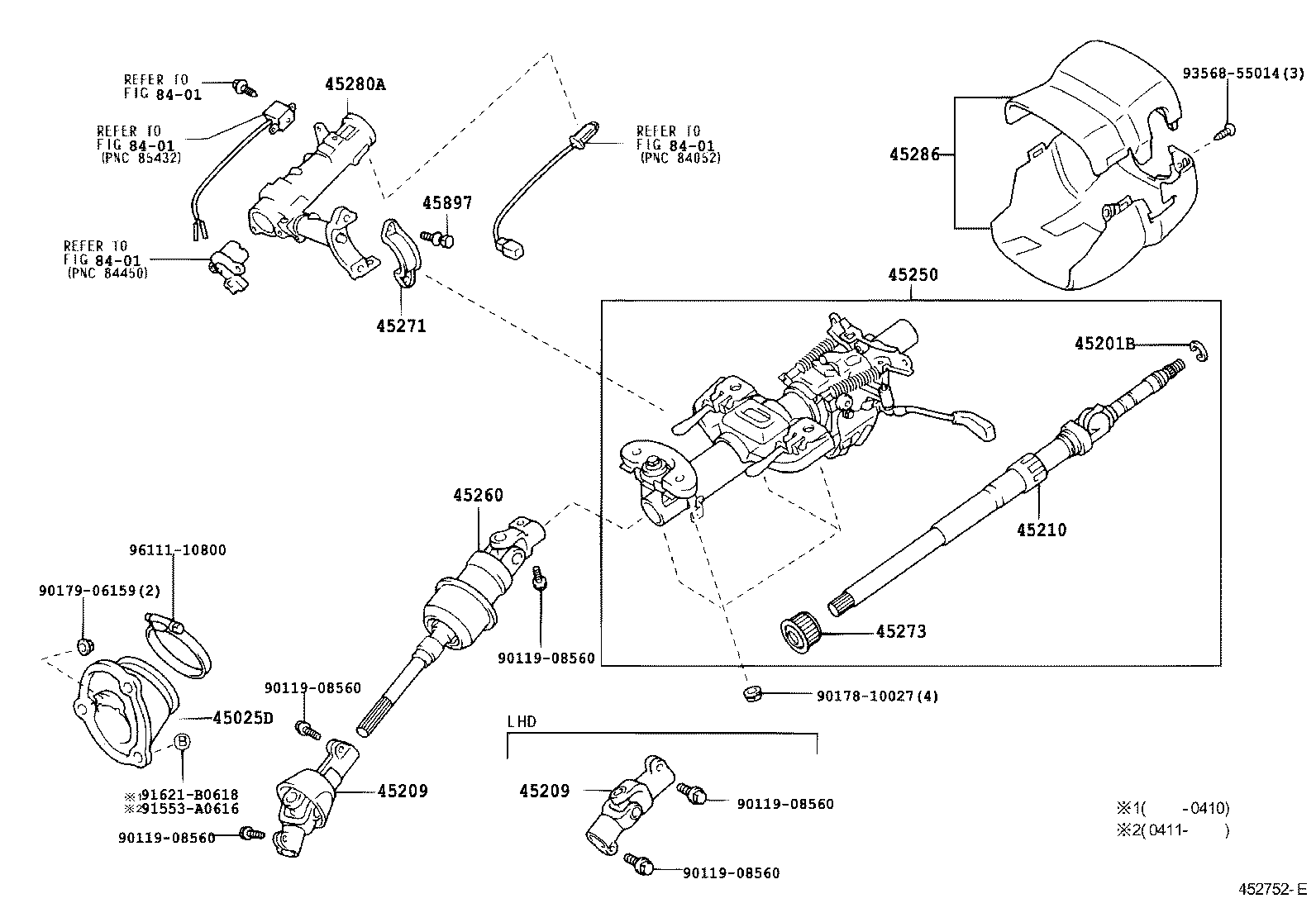

Figure 451676D 451676D 1999-01 → 2001-07 Figure 452752E 452752E 2001-07 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45215 Collar, Main Shaft Bearing Thrust
45246A Guide, Steering Energy Absorbing Plate
45250 Column Assy, Steering
45257A Plate, Steering Column Energy Absorbing
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45279A Attachment, Steering Column Tube, Lwr
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45291A Support, Steering Column Tube
45801A Pin Sub-assy, Steering Energy Absorbing
45819 Retainer, Tilt Lever
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826C Bush(FOR STEERING TILT LEVER)
45855B Shaft, T1LT Steering, NO.1
45856B Shaft, T1LT Steering, NO.2
45870 Tube Assy, Steering Column
45874B Protector, Steering Column, NO.1
45880 Lever Assy, Steering Tilt
45885 Link, Tilt Lever
45890A Pawl Assy, Tilt Steering
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
