Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04

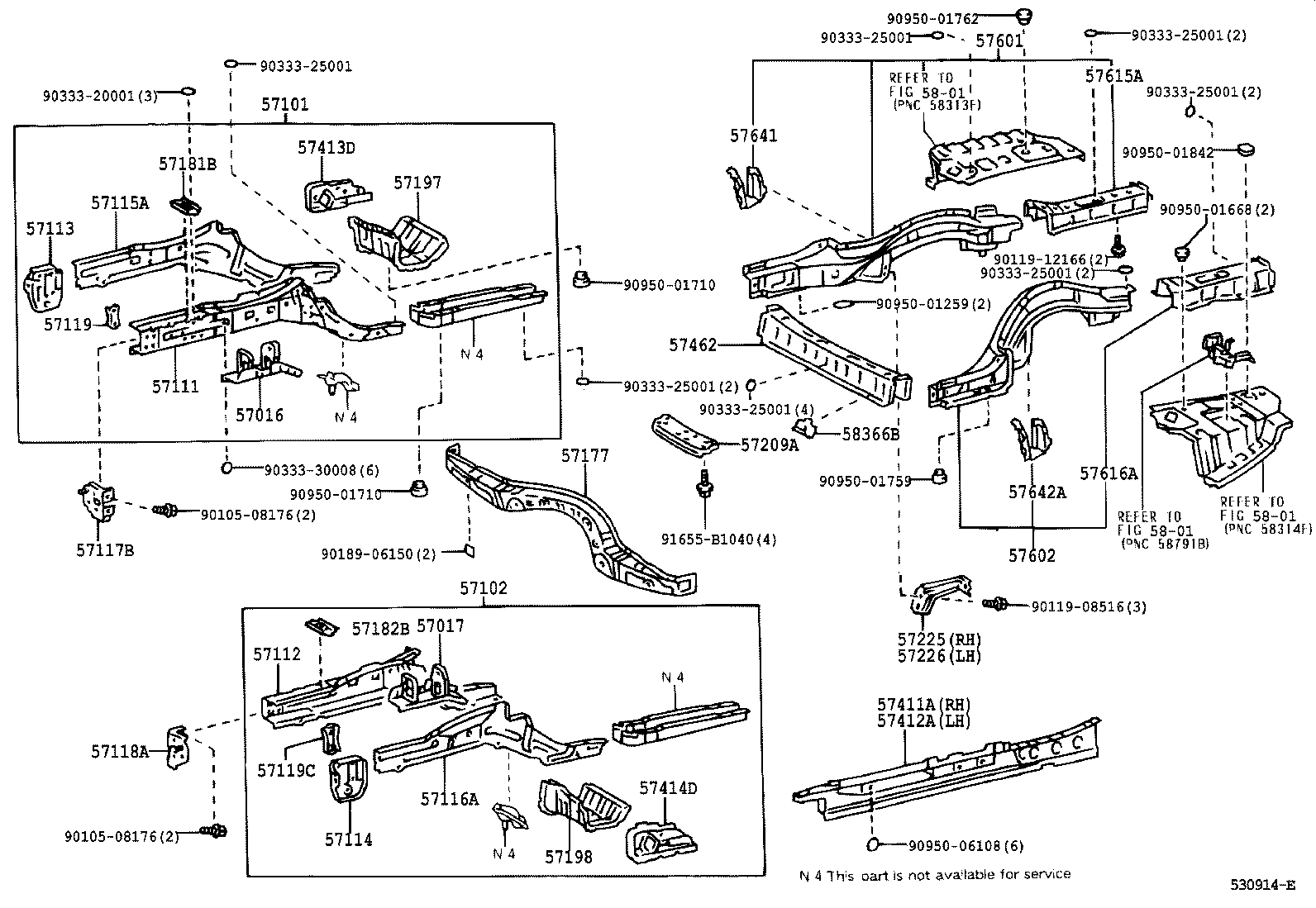

Floor Side Member

36 part groups · 2 illustrations

PNC	Description
57016	Reinforcement Sub-assy, Front Side Member, RH
57017	Reinforcement Sub-assy, Front Side Member, LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57113	Extension, Front Side Member, RH
57114	Extension, Front Side Member, LH
57115A	Plate, Front Side Member, Outer RH
57116A	Plate, Front Side Member, Outer LH
57117B	Reinforcement, Front Bumper Mounting, RH
57118A	Reinforcement, Front Bumper Mounting, LH
57119	Plate, Front Side Member, Front
57119C	Plate, Front Side Member, Front
57177	Crossmember, Front Side Member TO Dash Panel
57181B	Plate, Front Side Member, NO.3 RH
57182B	Plate, Front Side Member, NO.3 LH
57197	Box, Torque, Front RH
57198	Box, Torque, Front LH
57209A	Member Sub-assy, Engine Rear Mounting
57225	Brace, Front Mounting Bracket, RH
57226	Brace, Front Mounting Bracket, LH
57411A	Member, Floor Side, Inner RH
57412A	Member, Floor Side, Inner LH
57413D	Extension, Floor Side, Inner RH
57414D	Extension, Floor Side, Inner LH
57462	Member, Center Floor Cross, NO.2
57601	Member Sub-assy, Rear Floor Side, RH
57602	Member Sub-assy, Rear Floor Side, LH
57607A	Member Sub-assy, Rear Floor Cross, NO.3
57615A	Member, Rear Floor Side, Rear RH
57616A	Member, Rear Floor Side, Rear LH
57641	Reinforcement, Rear Floor Side Member, Inner RH
57642A	Reinforcement, Rear Floor Side Member, Inner LH
58271C	Reinforcement, Belt Anchor TO Froor Pan, NO.3
58366B	Bracket, Fuel Tank Support, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
