Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

36 part groups · 3 illustrations

Illustrations

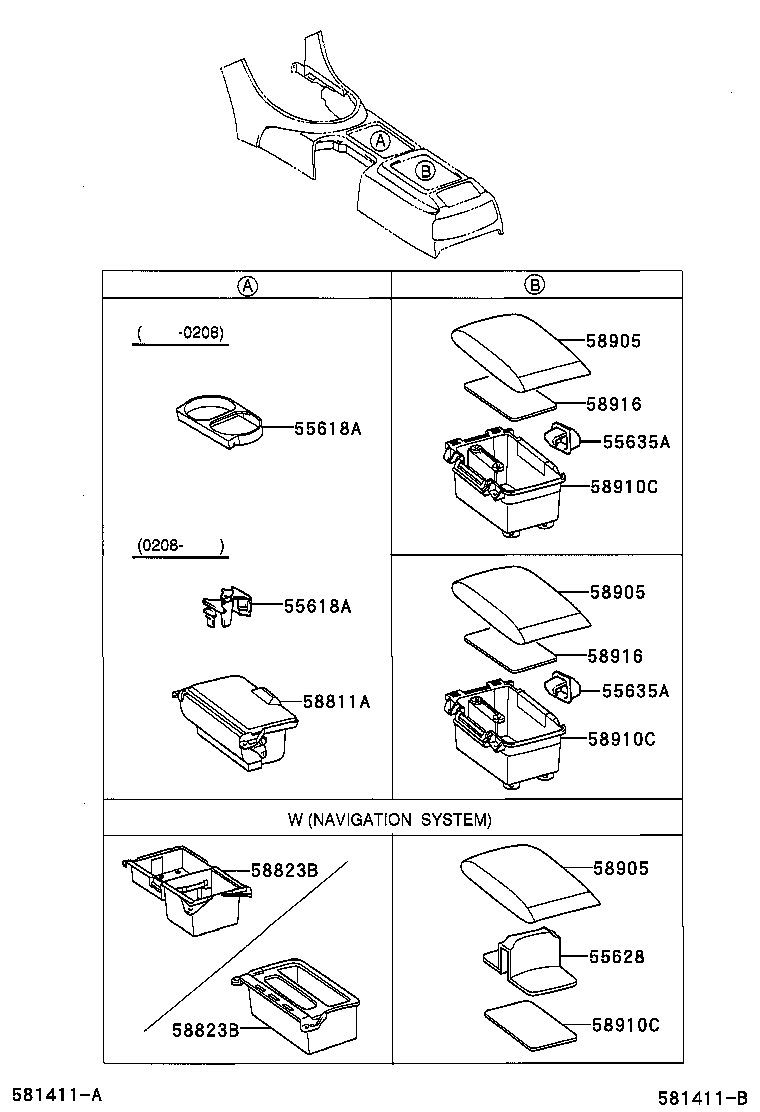

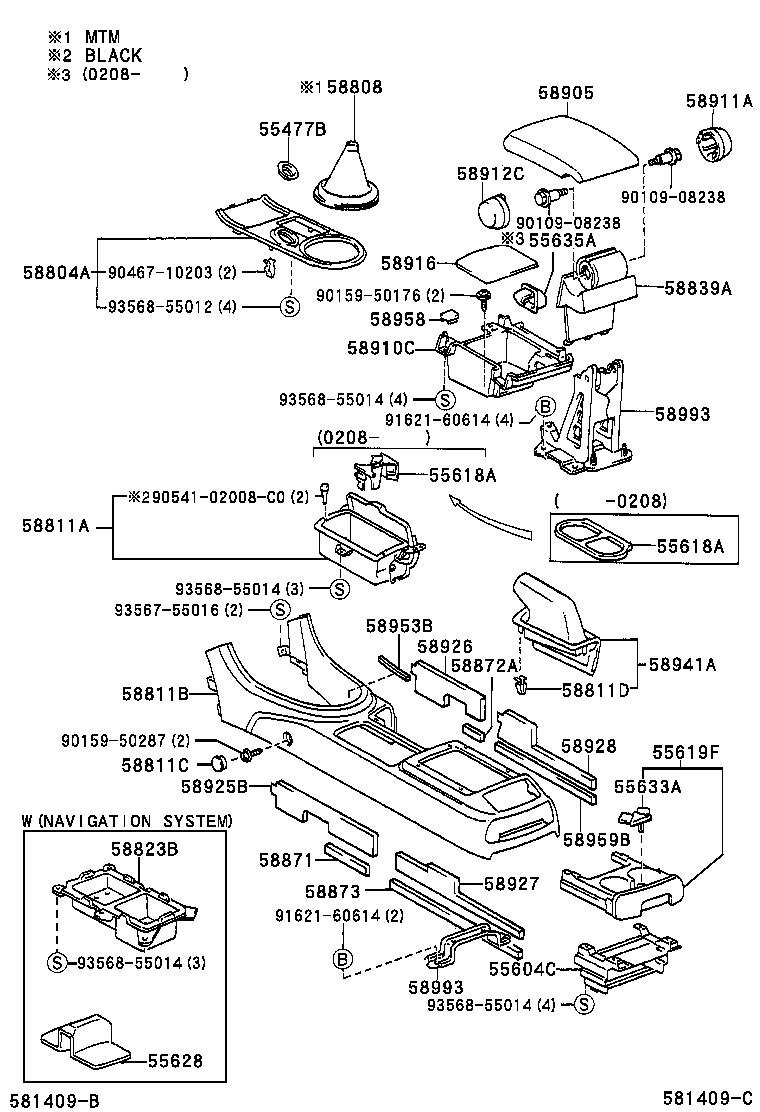

Figure 580945H 580945H 1999-01 → — Figure 581409C 581409C 2001-07 → — Figure 581411B 581411B 1999-01 → —

Part groups

PNCDescription
55477B Bezel, Cigarette Lighter Hole
55604C Holder Sub-assy, Console Box Cup
55618A Holder, Console Box Cup
55619F Holder, Console Box Cup, NO.2
55628 Knob, Console Box Cup Holder
55633A Support, Instrument Panel Cup Holder, NO.1
55635A Support, Instrument Panel Cup Holder, NO.2
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58811B Box, Console
58811C Cap(FOR CONSOLE)
58811D Clip(FOR CONSOLE BOX)
58823B Box, Console Compartment
58839A Cover, Console Box Hole
58871 Cushion, Console Box
58872A Cushion, Console Box, NO.2
58873 Cushion, Console Box, NO.3
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58916 Mat, Box Bottom
58925B Insulator, Console Box, Upper
58926 Insulator, Console Box, Lower
58927 Insulator, Console Compartment Door
58928 Insulator, Console Box Rear Door
58941A Cover, Parking Brake Hole
58953B Packing, Box Panel
58958 Cover, Console Compartment Door Moulding
58959B Cushion, Console Compartment Door
58961A Hinge, Console Compartment Door Male
58966 Shaft, Box Door Hinge
58993 Bracket, Console Box Mounting, Rear
86825A Holder, Navigation Controller
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
