Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

44 part groups · 7 illustrations

Illustrations

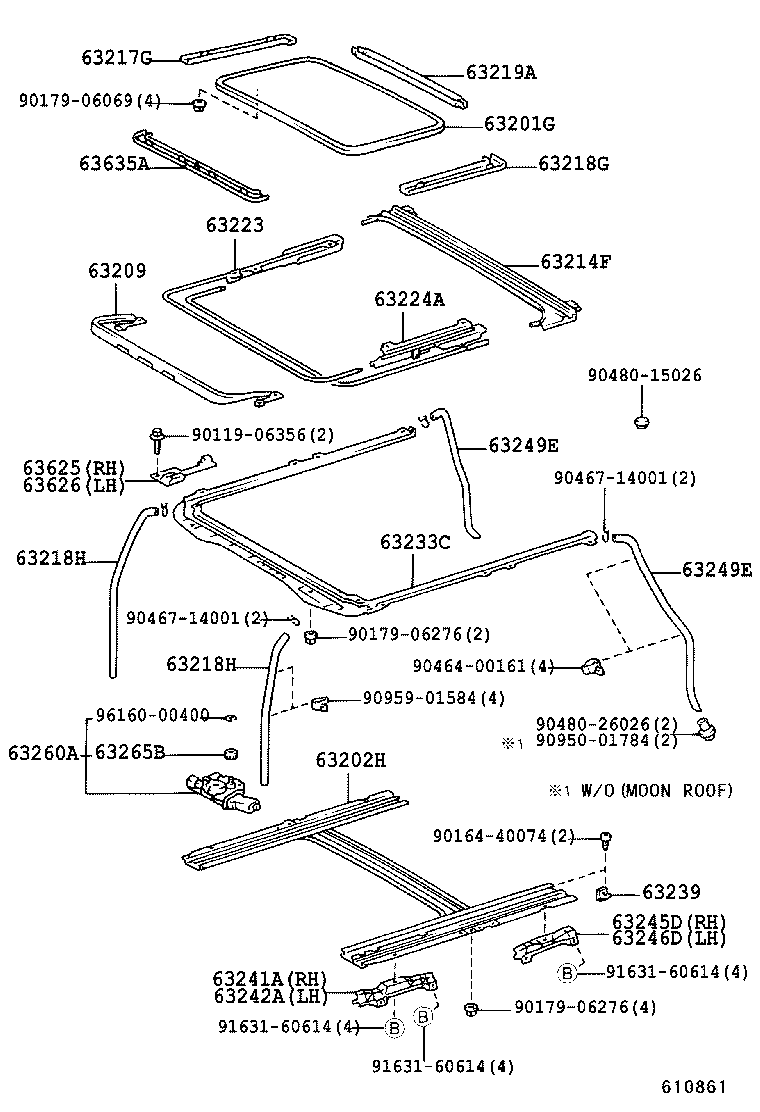

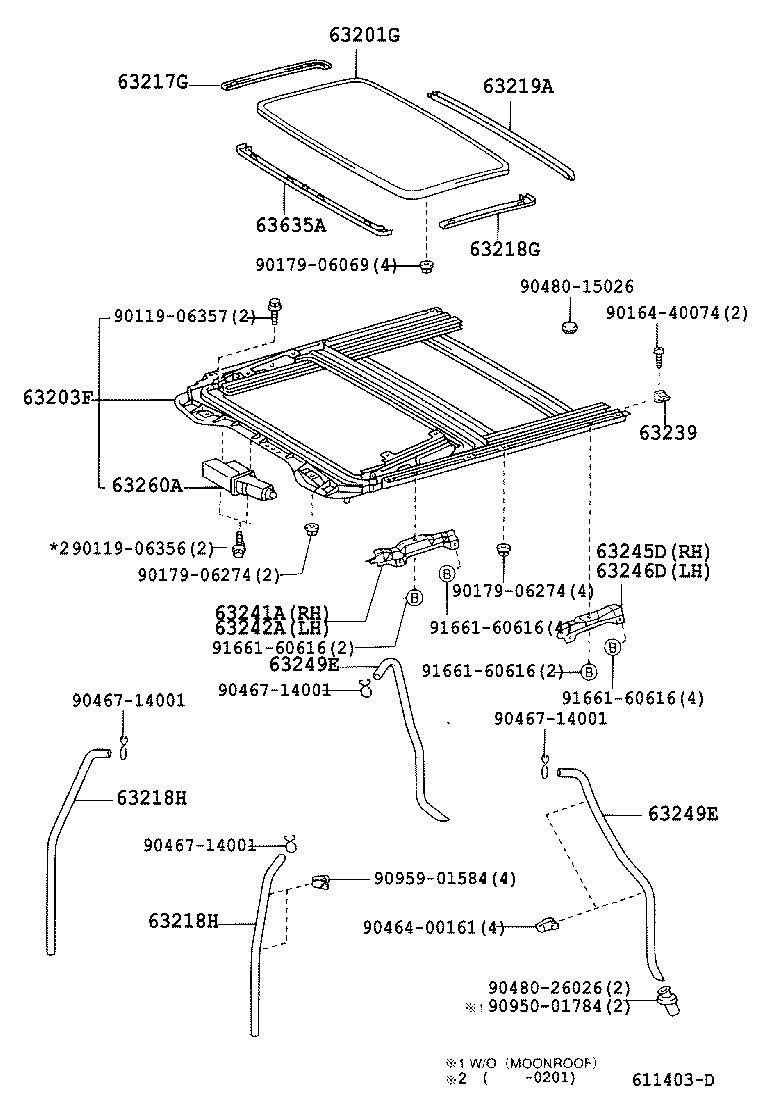

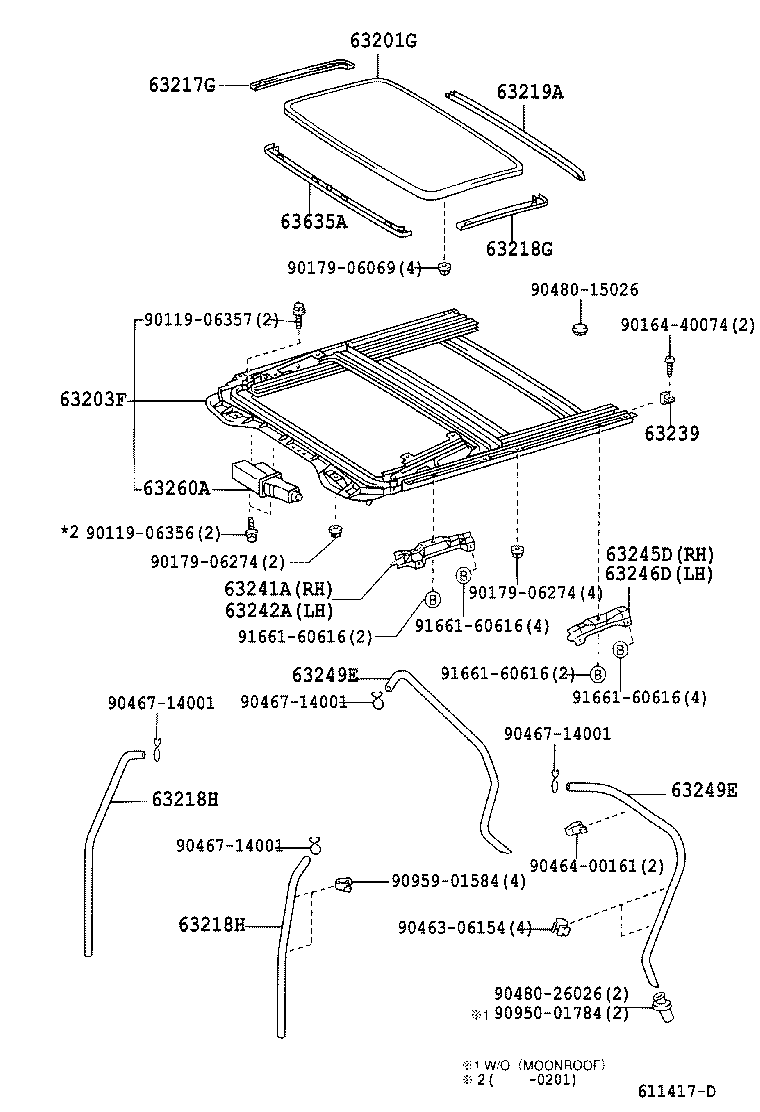

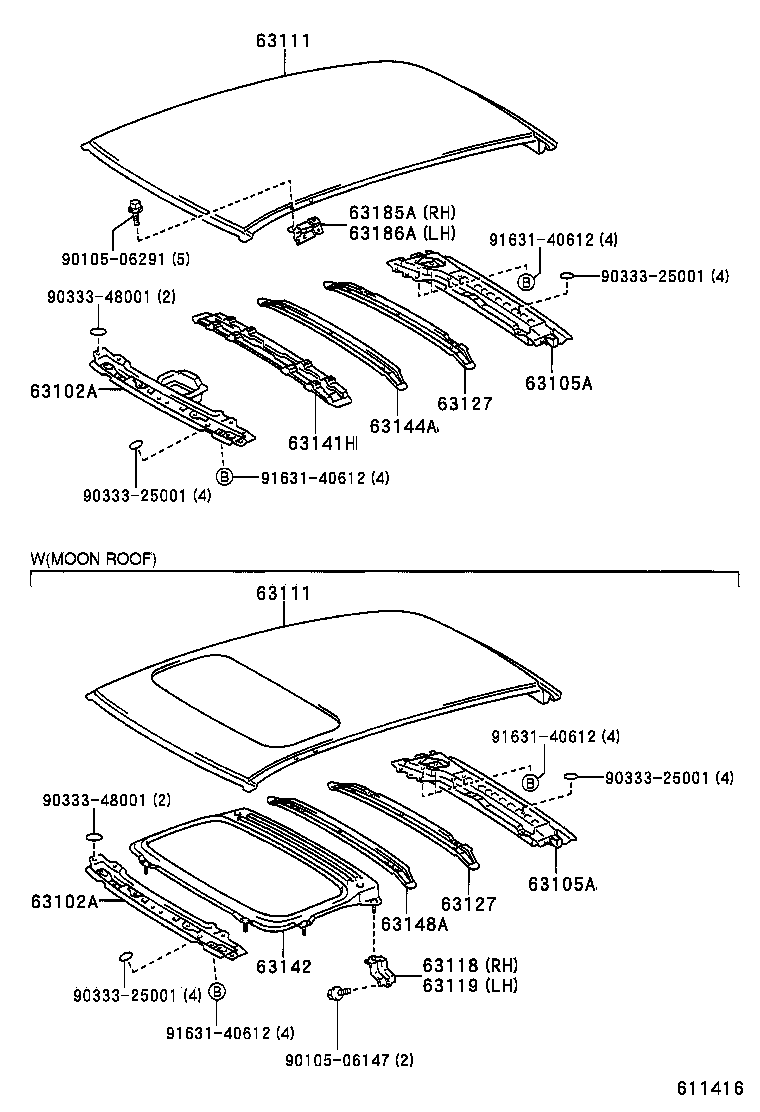

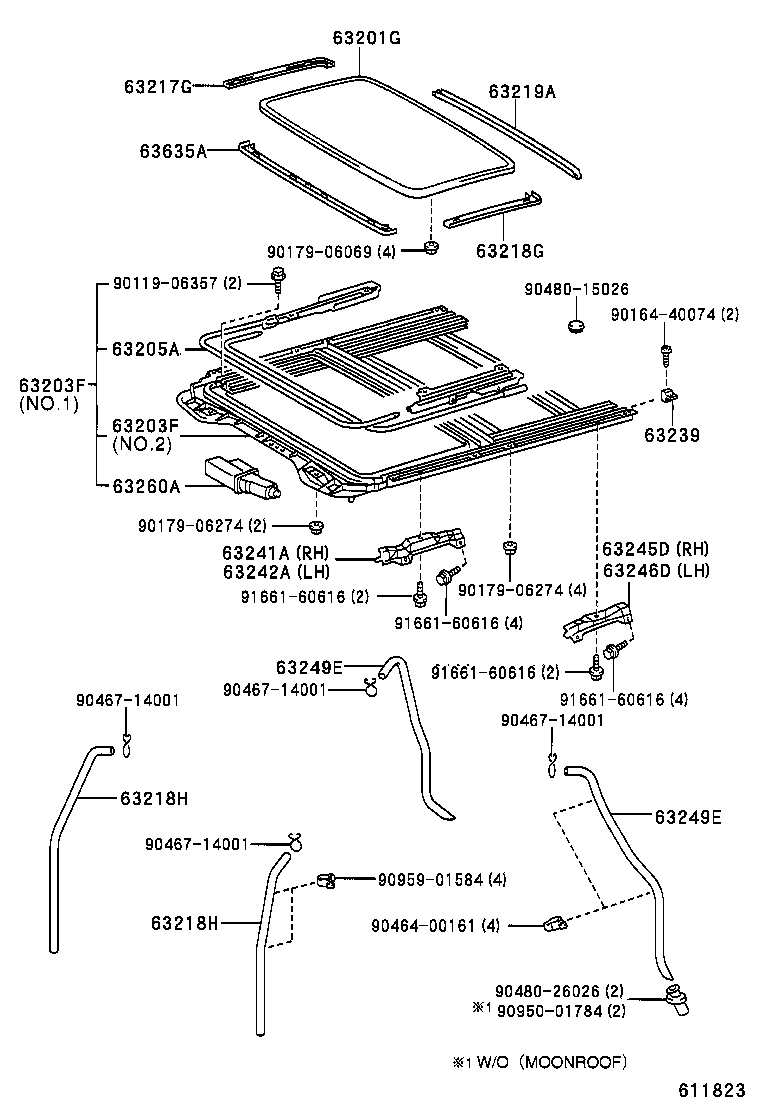

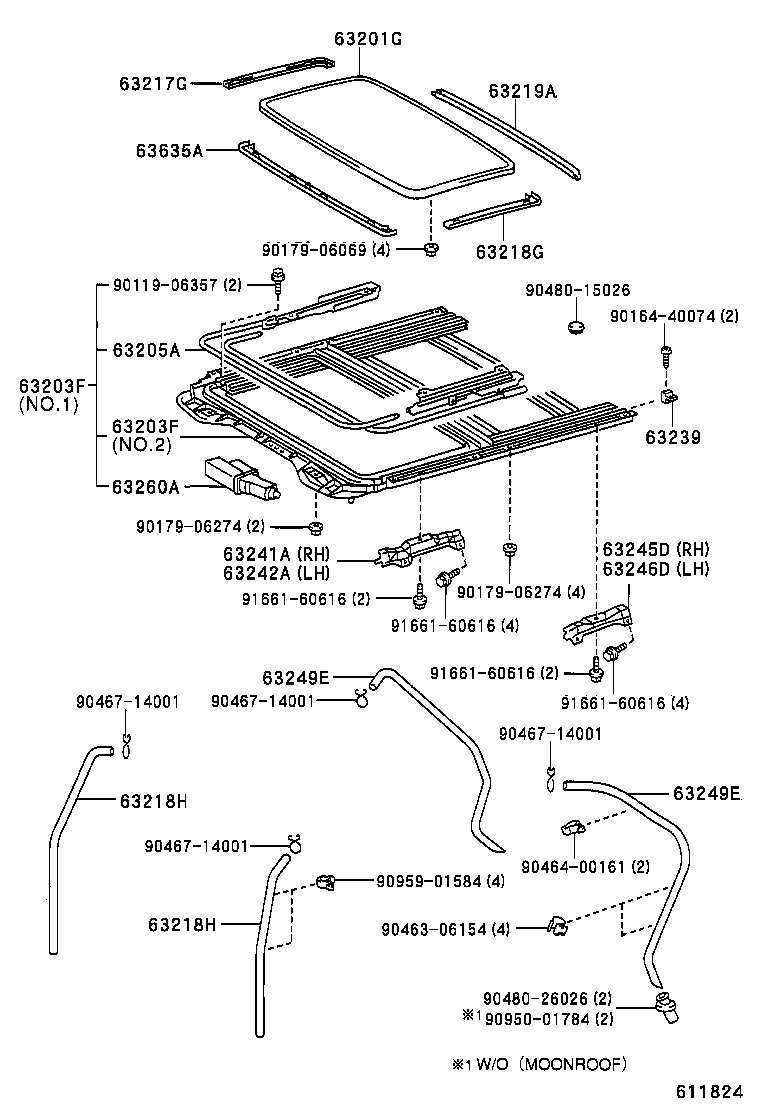

Figure 610860A 610860A 1999-01 → — Figure 611416 611416 2001-07 → — Figure 610861A 610861A 1999-01 → 2001-07 Figure 611403D 611403D 2001-07 → 2003-02 Figure 611417D 611417D 2001-07 → 2003-02 Figure 611823 611823 2003-02 → — Figure 611824 611824 2003-02 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63127 Reinforcement, Roof Panel, NO.5
63133B Frame, Back Window
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63185A Bracket, Roof Rack, Front RH
63186A Bracket, Roof Rack, Front LH
63201G Glass Sub-assy, Sliding Roof
63202H Rail Sub-assy, Slide Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63209 Panel Sub-assy, Roof Wind Deflector
63214F Channel, Roof Drip, Rear
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63218H Hose, Sliding Roof Drain
63219A Garnish, Sliding Roof, Rear
63223 Cable, Sliding Roof Drive, RH
63224A Cable, Sliding Roof Drive, LH
63233C Panel, Sliding Roof Housing
63239 Stopper, Sliding Roof Panel
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63245D Bracket, Sliding Roof Housing Rear Mounting, RH
63246D Bracket, Sliding Roof Housing Rear Mounting, LH
63249E Hose, Sliding Roof Drain
63260A Gear Sub-assy, Sliding Roof Drive
63265B Gear, Sliding Roof Drive
63625 Block, Sliding Roof Guide, RH
63626 Block, Sliding Roof Guide, LH
63635A Garnish, Sliding Roof, Front
64101 Panel Sub-assy, Upper Back
64227B Extension, Center Floor TO Blace, NO.1
64228B Extension, Center Floor TO Brace, NO.2
64241D Panel, Room Partition
64811 Glass, Back Window
64818 Spacer, Back Window Glass
