Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

16 part groups · 2 illustrations

Illustrations

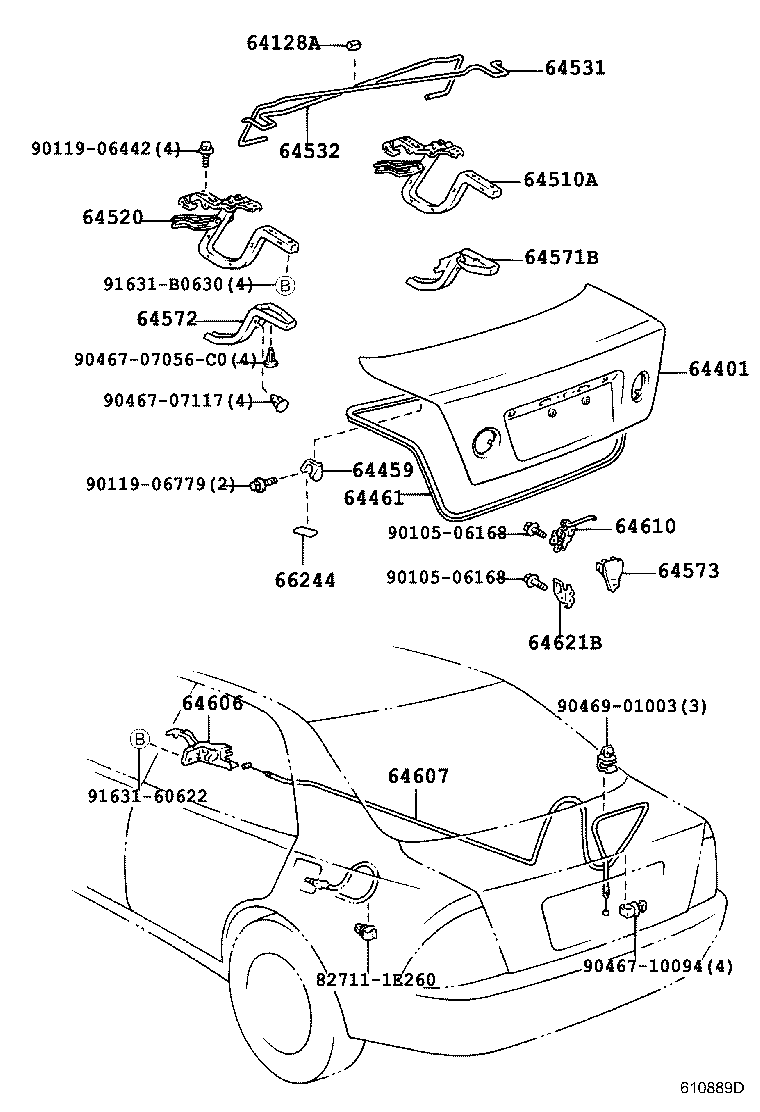

Figure 610888E 610888E 1999-01 → — Figure 610889D 610889D 1999-01 → —

Part groups

PNCDescription
64128A Support, Luggage Compartment Door Torsion Bar, NO.2
64401 Panel Sub-assy, Luggage Compartment Door
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510A Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64571B Cover, Luggage Compartment Door Hinge, RH
64572 Cover, Luggage Compartment Door Hinge, LH
64573 Protector, Luggage Door Opener Cable, RH
64606 Lever Sub-assy, Luggage Door Lock Open
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64621B Striker, Luggage Compartment Door Lock
66244 Protector, Rear Body, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
