Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04

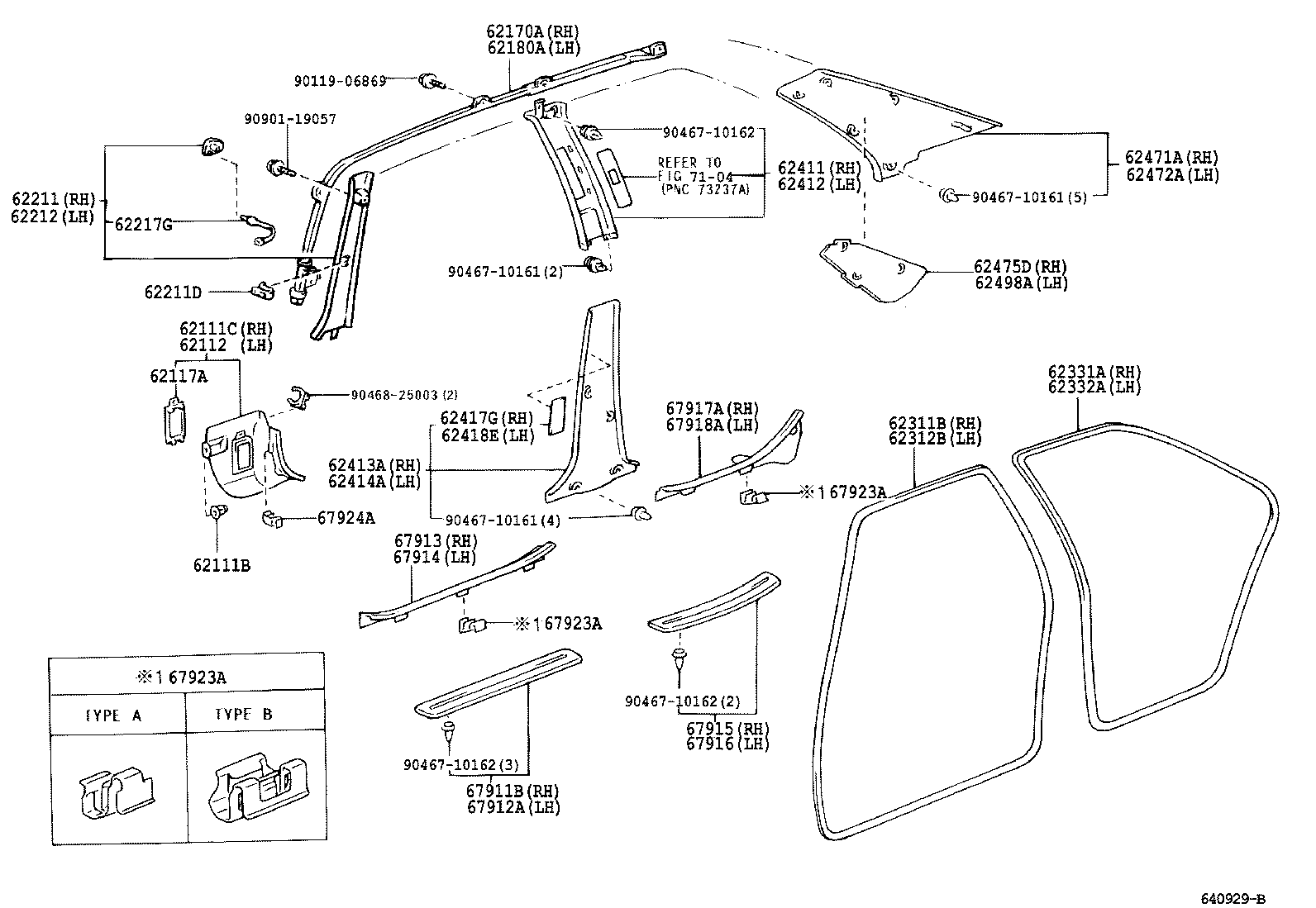

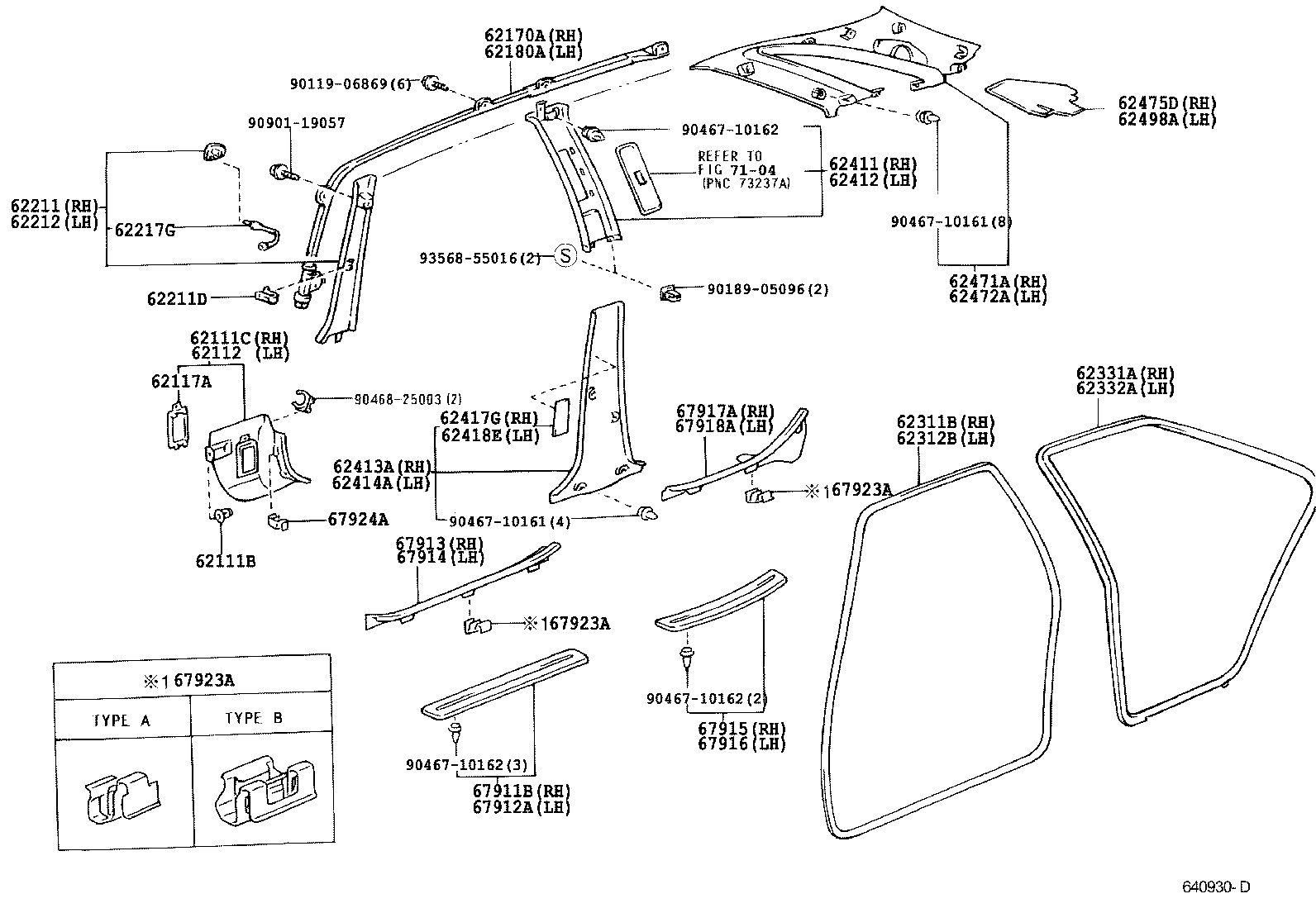

Inside Trim Board & Door Opening Trim Moulding

39 part groups · 3 illustrations

PNC	Description
62111B	Clip(FOR COWL SIDE TRIM)
62111C	Board, Cowl Side Trim, RH
62112	Board, Cowl Side Trim, LH
62117A	Cover, Cowl Side Trim Service Hole
62170A	Airbag Assy, Curtain Shield, RH
62180A	Airbag Assy, Curtain Shield, LH
62211	Garnish, Front Pillar, RH
62211D	Clip(FOR FRONT BODY PILLAR GARNISH)
62212	Garnish, Front Pillar, LH
62213C	Pad, Front Pillar Garnish, RH
62214C	Pad, Front Pillar Garnish, LH
62217G	Clip, Front Pillar Garnish
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62331A	Weatherstrip, Rear Door Opening Trim, RH
62332A	Weatherstrip, Rear Door Opening Trim, LH
62411	Garnish, Center Pillar, RH
62412	Garnish, Center Pillar, LH
62413A	Garnish, Center Pillar, Lower RH
62413C	Clip (FOR CENTER LOWER GARNISH)
62414A	Garnish, Center Pillar, Lower LH
62417F	Pad, Center Pillar Garnish, RH
62417G	Pad, Center Pillar Garnish, Lower RH
62418A	Pad, Center Pillar Garnish, LH
62418E	Pad, Center Pillar Garnish, Lower LH
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62475D	Pad, Roof Side Inner Garnish, RH
62498A	Pad, Roof Side Inner Garnish, LH
67911B	Plate, Front Door Scuff, Outside, RH
67912A	Plate, Front Door Scuff, Outside LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67915	Plate, Rear Door Scuff, Outside RH
67916	Plate, Rear Door Scuff, Outside LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH
67923A	Clamp, Door Scuff Plate, NO.1
67924A	Clamp, Door Scuff Plate, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
