Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

28 part groups · 2 illustrations

Illustrations

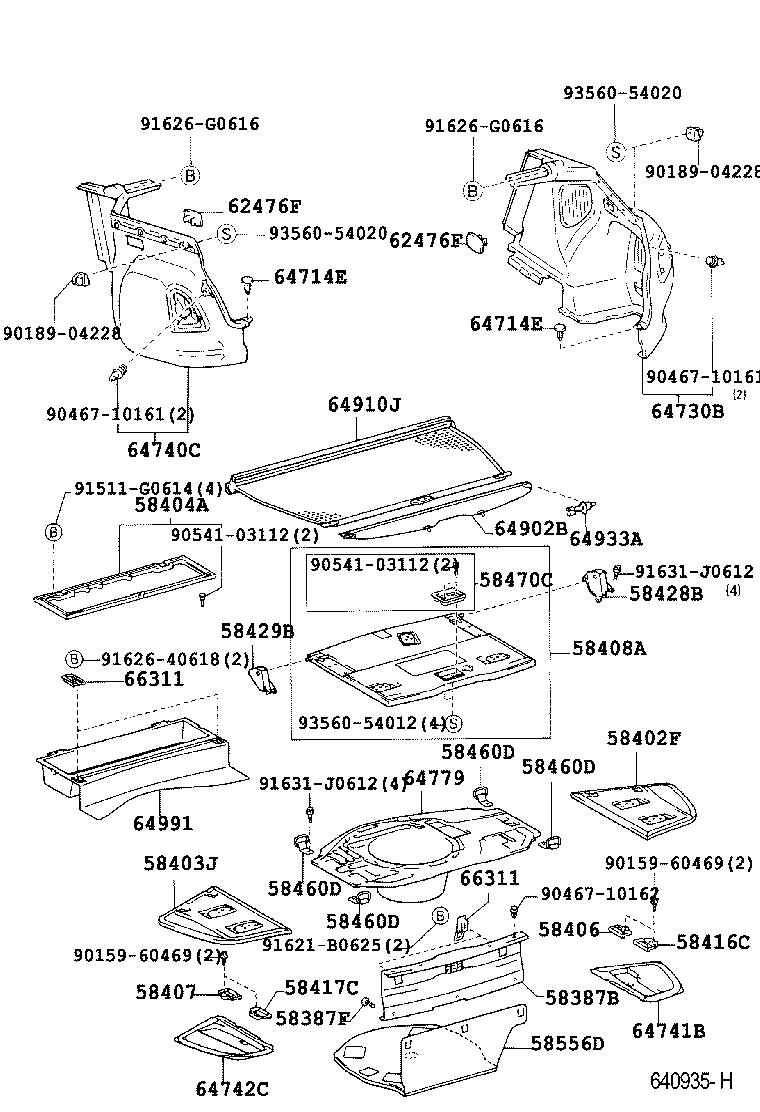

Figure 640934E 640934E 2001-07 → — Figure 640935H 640935H 2001-07 → —

Part groups

PNCDescription
58387B Plate, Rear Floor Finish
58387F Clip, Rear Floor Finish Plate
58402F Board Sub-assy, Rear Floor, NO.2
58403J Board Sub-assy, Rear Floor, NO.3
58404A Board Sub-assy, Rear Floor, NO.4
58406 Bracket Sub-assy, Deck Board, RH
58407 Bracket Sub-assy, Deck Board, LH
58408A Board Sub-assy, Deck, NO.2
58412A Board, Deck, NO.2
58416C Bracket, Deck Board, NO.1 RH
58417C Bracket, Deck Board, NO.1 LH
58428B Bracket, Deck Board, NO.5 RH
58429B Bracket, Deck Board, NO.5 LH
58460D Striker Assy, Luggage Hold Belt
58470C Handle Assy, Deck Board
58556D Silencer, Rear Floor
62476F Cap, Roof Side Inner Garnish, NO.1
64714E Clip(FOR DECK TRIM SIDE COVER)
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64741B Box, Deck Side Trim, RH
64742C Box, Deck Side Trim, LH
64779 Tray, Spare Wheel Cover
64902B Cover Sub-assy, Tonneau
64910J Cover Assy, Tonneau
64933A Bracket, Tonneau Cover Holder, RH
64991 Box, Deck Floor, Front
66311 Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
