Toyota Lexus IS200/300
1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe
Discontinued model
Data version 2006-04
Rear Door Panel & Glass

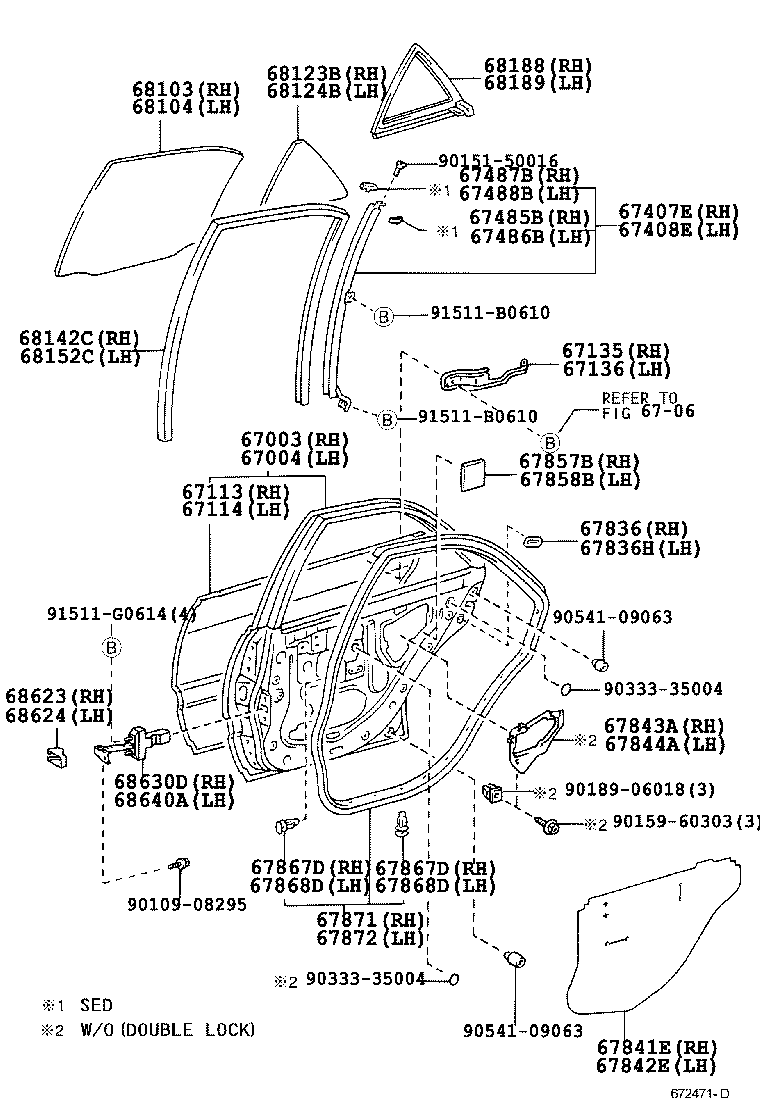

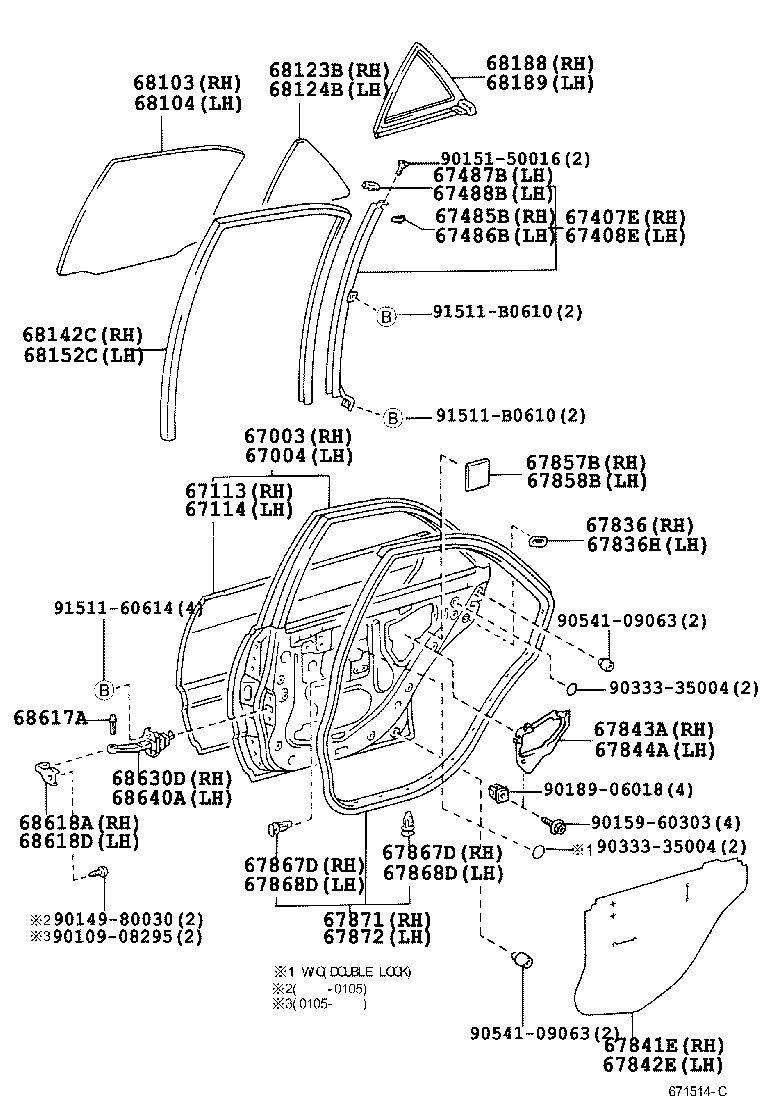

43 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67135 | Extension, Rear Door Outside Reinforce, RH |
| 67136 | Extension, Rear Door Outside Reinforce, LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67485B | Seal, Rear Door Division Bar, Inside, RH |
| 67486B | Seal, Rear Door Division Bar, Inside, LH |
| 67487B | Seal, Rear Door Division Bar, RH |
| 67488B | Seal, Rear Door Division Bar, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67843A | Cover, Rear Door Service Hole, NO.2 |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68617A | Pin, Rear Door Check |
| 68618A | Bracket, Rear Door Check Arm, LH |
| 68618D | Bracket, Rear Door Check Arm, RH |
| 68623 | Cover, Door Check, RH |
| 68624 | Cover, Door Check, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
