Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

12 part groups · 3 illustrations

Illustrations

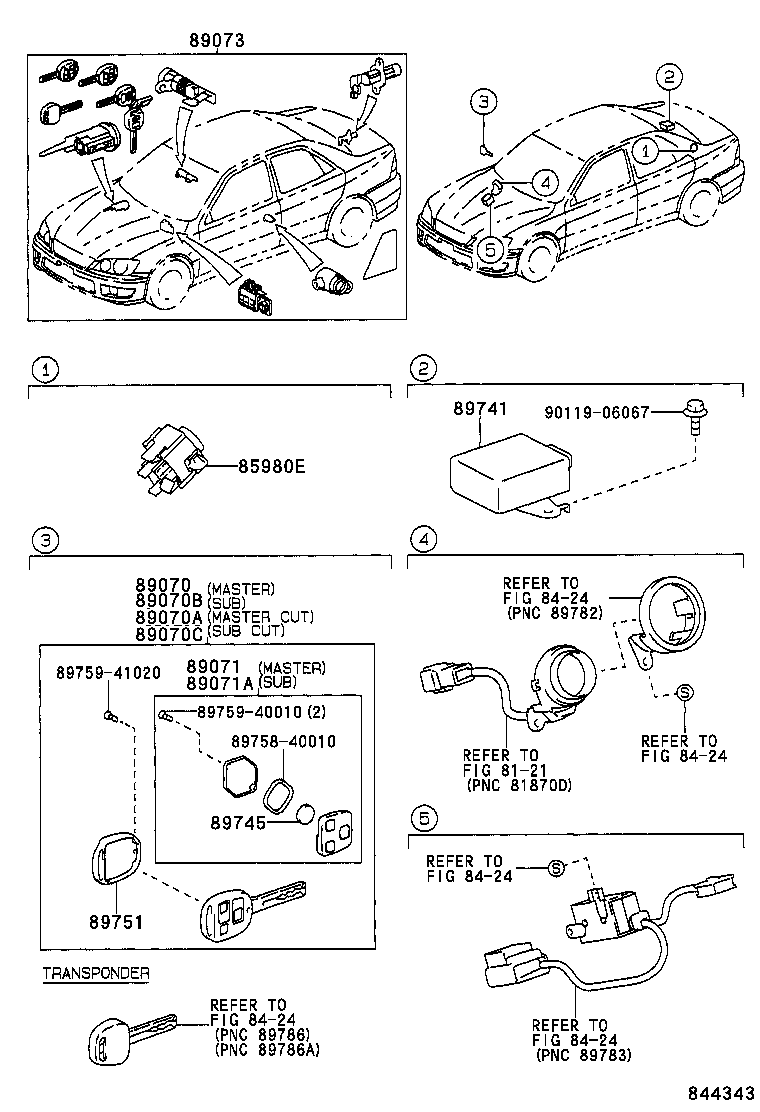

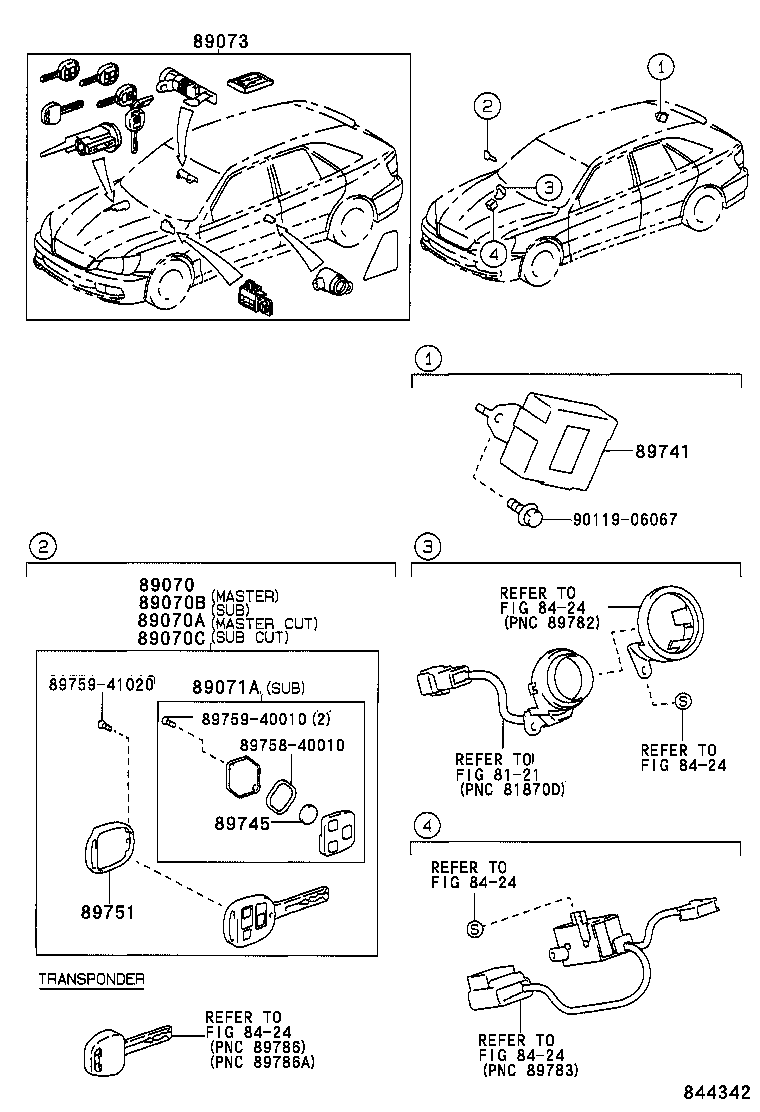

Figure 842546A 842546A 1999-01 → 2001-07 Figure 844343 844343 2001-07 → — Figure 844342 844342 2001-07 → —

Part groups

PNCDescription
85980E Relay Assy, Door Control
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89070B Transmitter Assy, Door Control (SUB KEY)
89070C Transmitter Assy, Door Control (SUB & CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89071A Module Set, Transmitter Sub-assy, Door Control(SUB KEY)
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89751 Cover, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
