Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

10 part groups · 3 illustrations

Illustrations

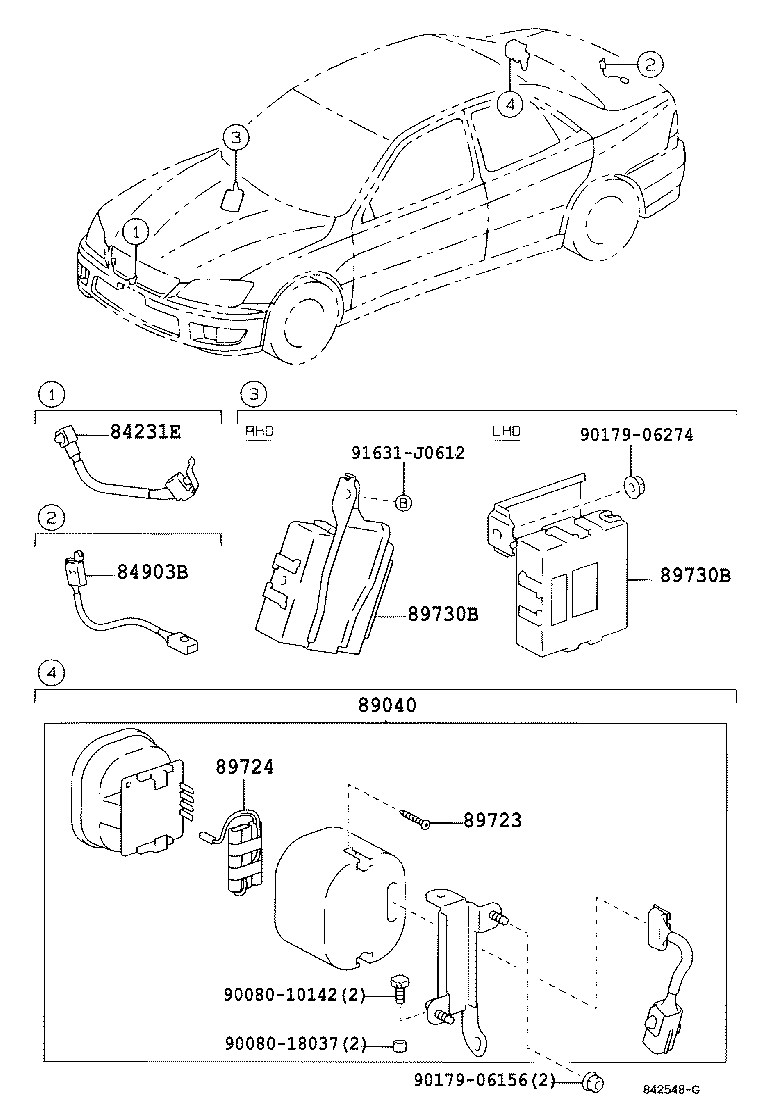

Figure 842547A 842547A 1999-01 → — Figure 842548G 842548G 1999-01 → 2001-07 Figure 842548G 842548G 2001-07 → —

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
84903B Switch Sub-assy, Door Unlock
89040 Siren Assy, Theft Warning
89723 Screw, Theft Warning Siren
89724 Battery, Theft Warning Siren
89730B Computer Assy, Theft Warning
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
