Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

20 part groups · 3 illustrations

Illustrations

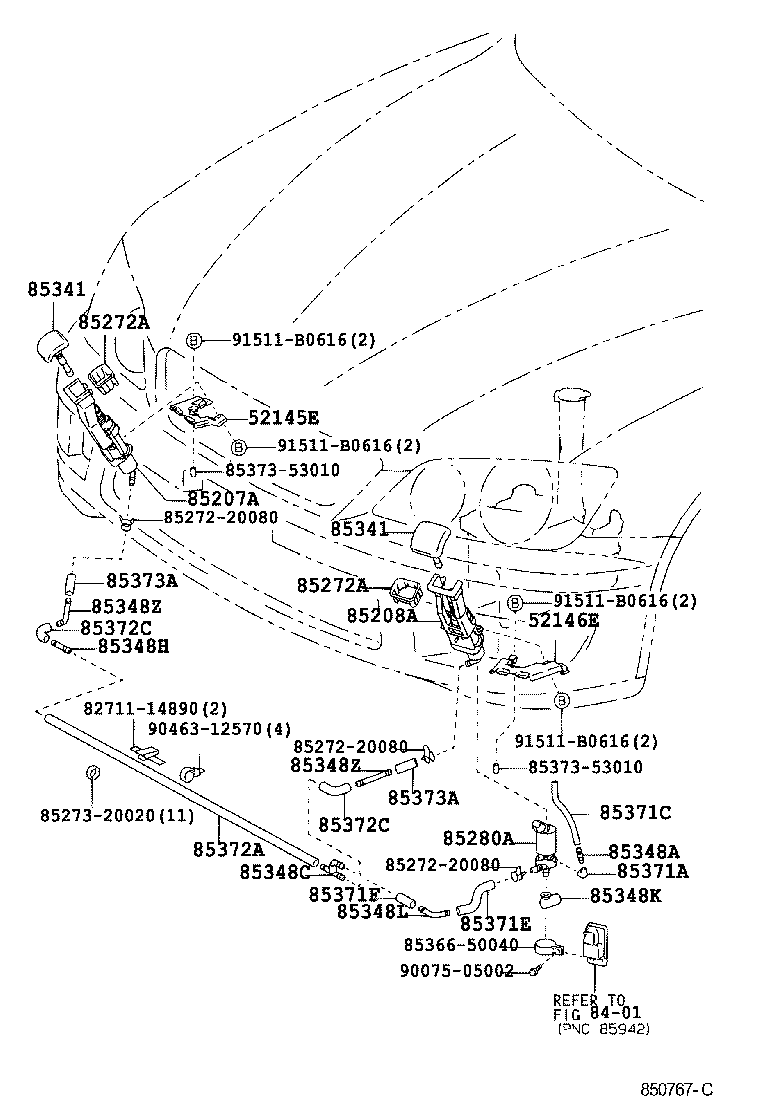

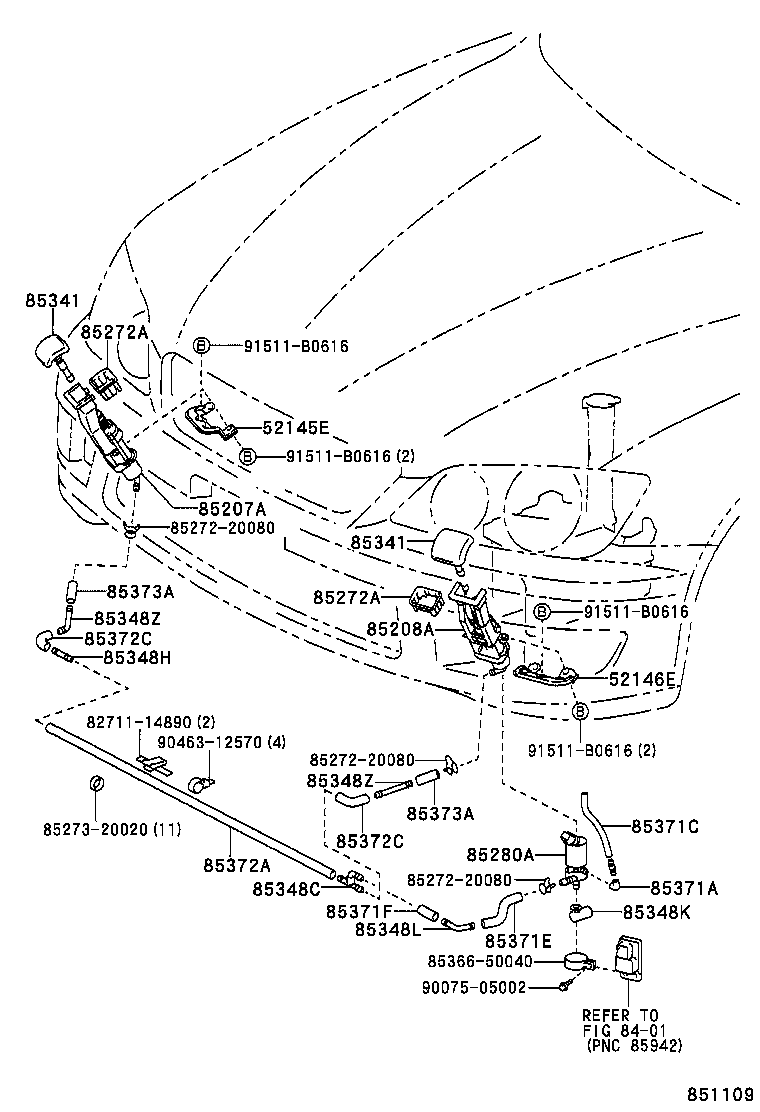

Figure 850587 850587 1999-01 → — Figure 850767C 850767C 2001-07 → — Figure 851109 851109 2001-07 → —

Part groups

PNCDescription
52145E Bracket, Front Bumper Side Mounting, RH
52146E Bracket, Front Bumper Side Mounting, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85272A Clamp, Headlamp Cleaner, NO.1
85280A Motor And Pump Assy, Headlamp Cleaner
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348C Joint, Headlamp Cleaner Hose, NO.3
85348H Joint, Headlamp Cleaner Hose, NO.4
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85348Z Joint, Headlamp Cleaner Hose, NO.5
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85371E Hose, Headlamp Cleaner, NO.3
85371F Hose, Headlamp Cleaner, NO.4
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85372C Hose, Headlamp Cleaner Washer (FROM JOINT TO VALVE)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
