Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 3 illustrations

Illustrations

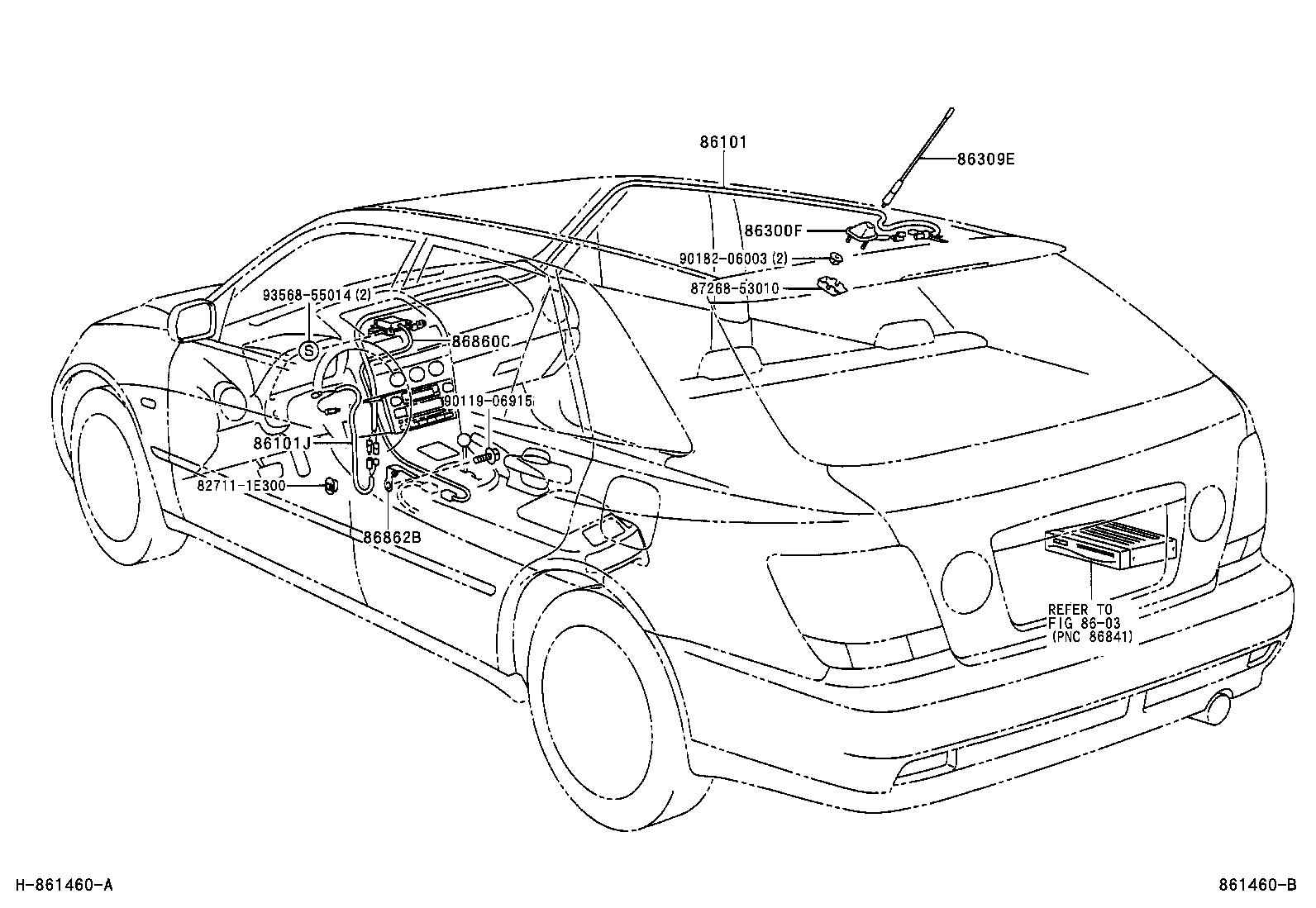

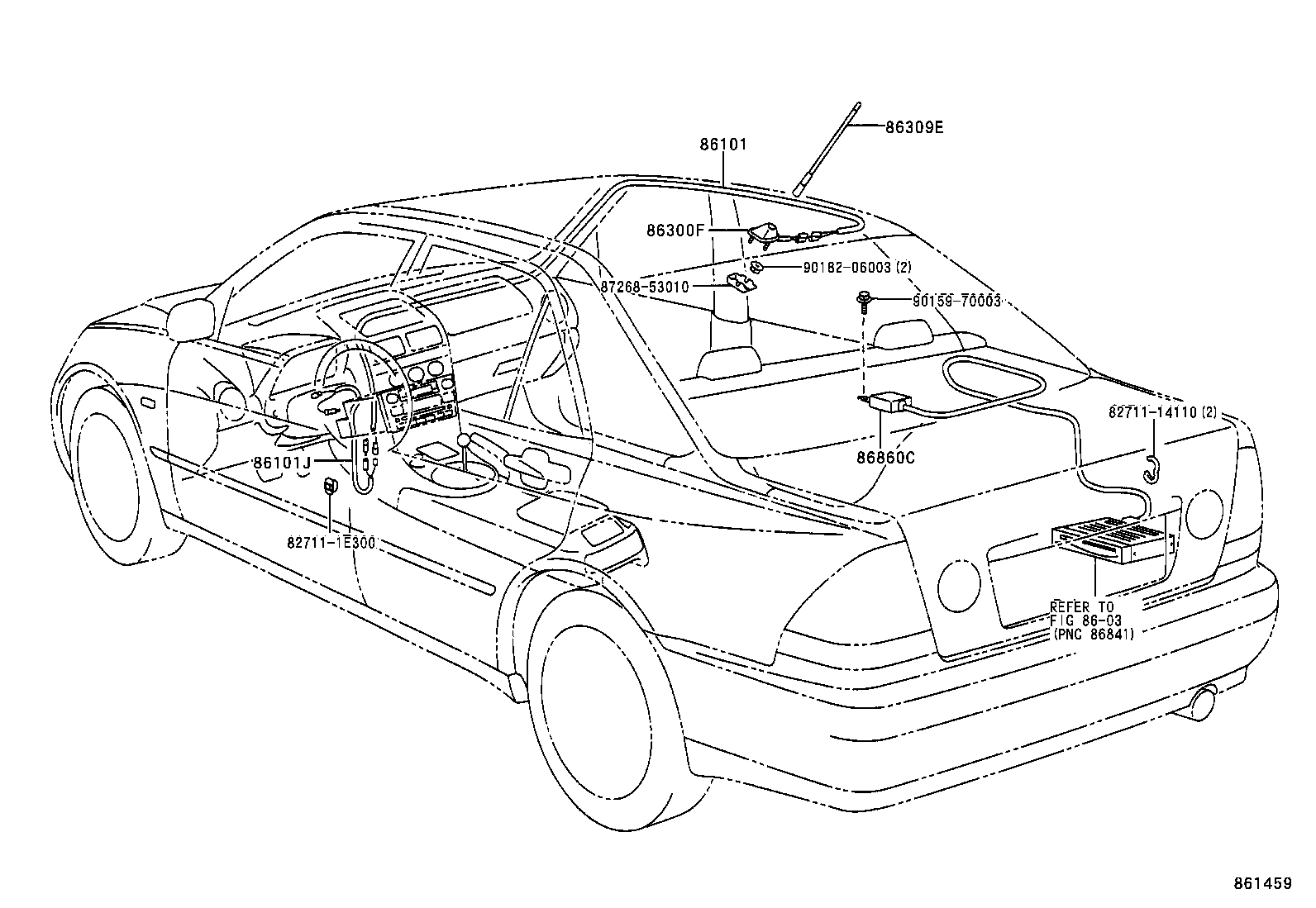

Figure 860853D 860853D 1999-01 → 2001-07 Figure 861459 861459 2001-07 → — Figure 861460B 861460B 2001-07 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86300F Holder Assy, Antenna (CORD/POLE SEPARATE TYPE)
86309E Pole Sub-assy, Roof Antenna
86860C Antenna Assy, Navigation
86862B Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
