Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 3 illustrations

Illustrations

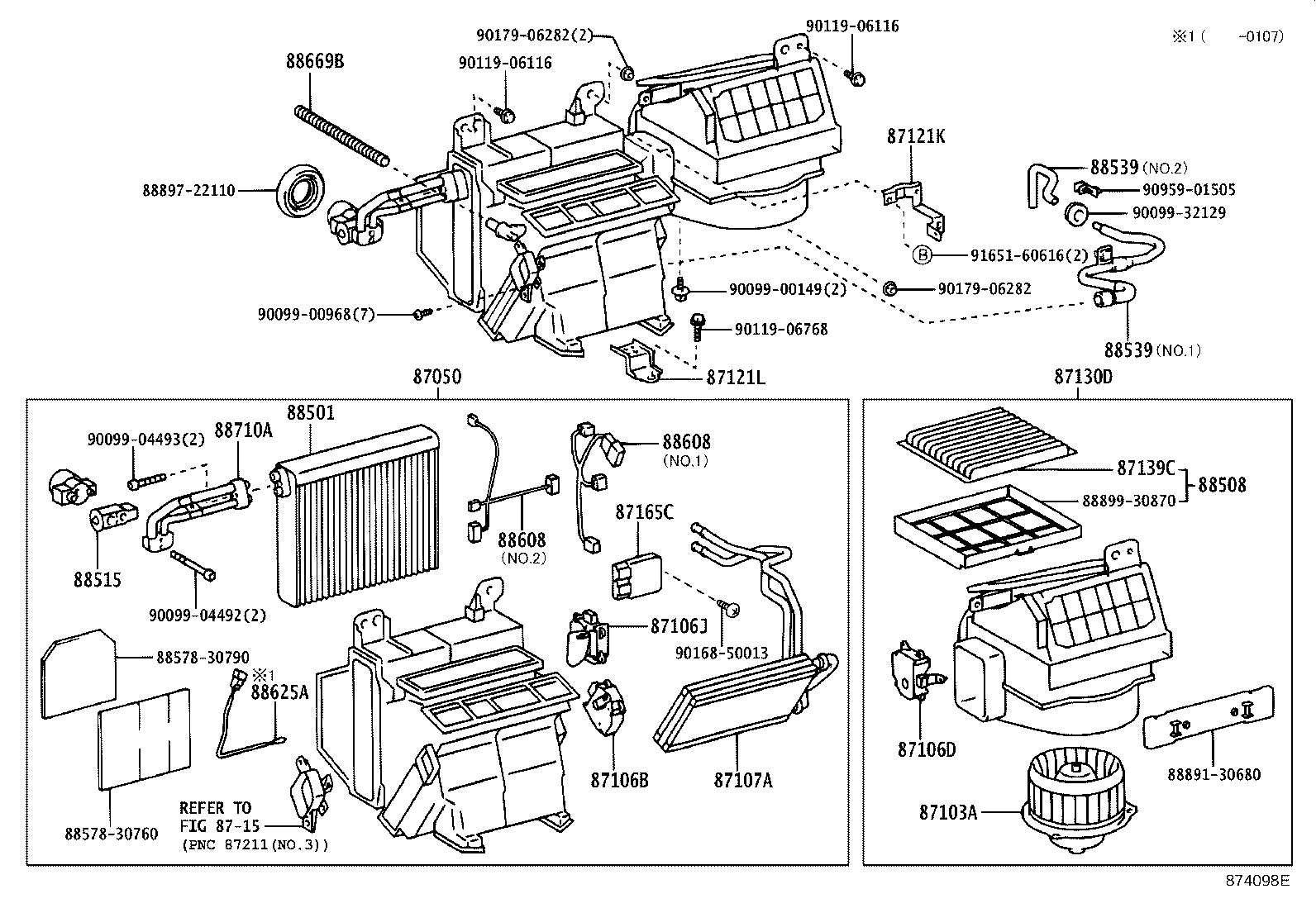

Figure 874904C 874904C 1999-01 → — Figure 874098E 874098E 1999-01 → — Figure 872954 872954 1999-01 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87106B Servo Sub-assy, Damper(FOR COOLING UNIT)
87106D Servo Sub-assy, Damper, NO.1
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87121K Bracket, Heater
87121L Bracket, Heater
87130D Blower Assy
87139C Filter, Clean Air
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88508 Filter Sub-assy, Clean Air
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88608 Harness Sub-assy, Wiring Air Conditioner
88625A Thermistor, Cooler NO.2
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
