Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 4 illustrations

Illustrations

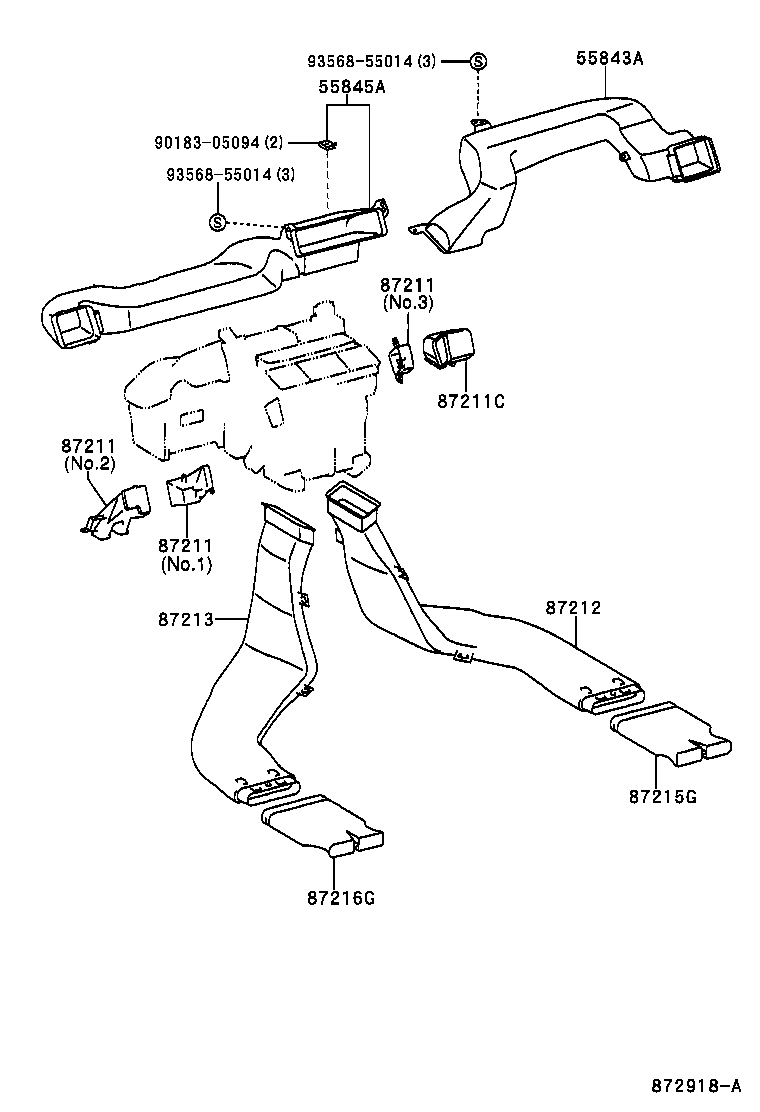

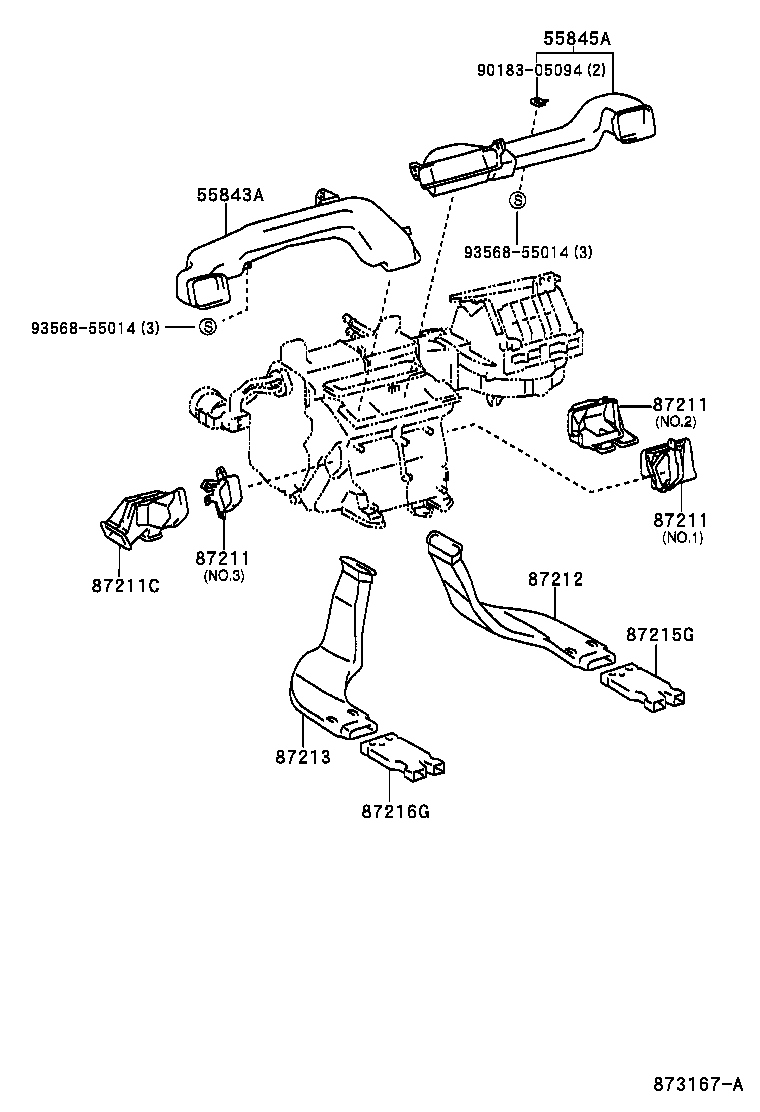

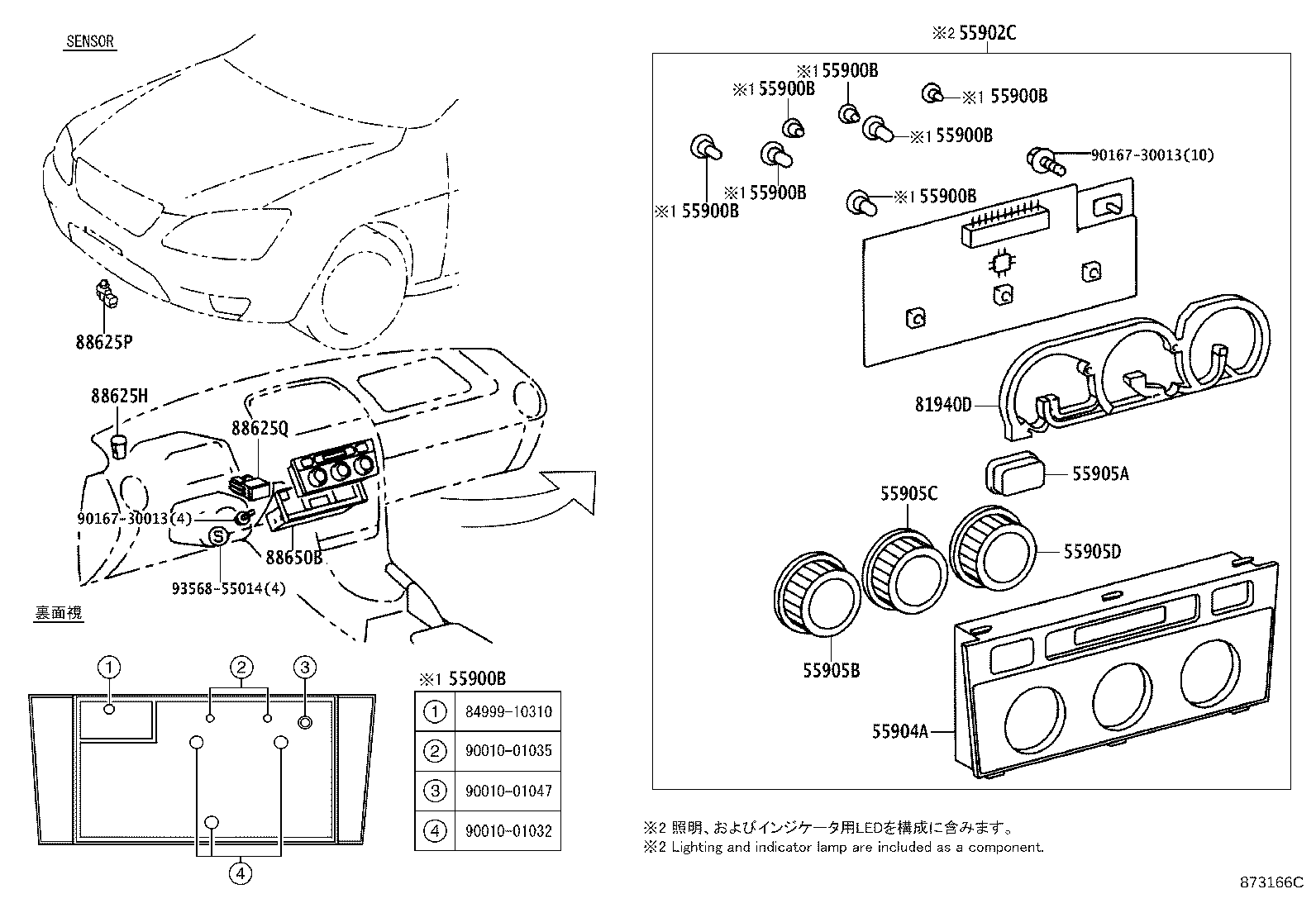

Figure 872917F 872917F 1999-01 → — Figure 873166C 873166C 1999-01 → — Figure 872918A 872918A 1999-01 → — Figure 873167A 873167A 1999-01 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55900B Bulb, Air Conditioner Control
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
81940D Lens Assy, Heater Control
87211 Duct, Air, NO.1
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
