Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

20 part groups · 4 illustrations

Illustrations

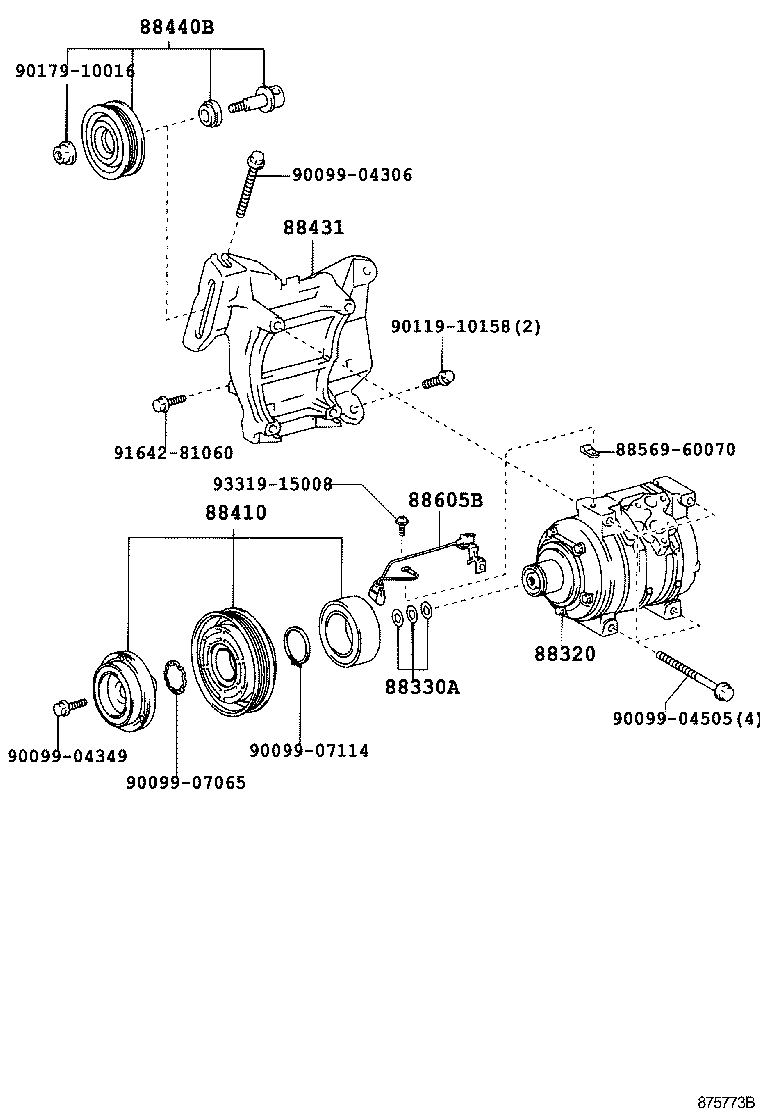

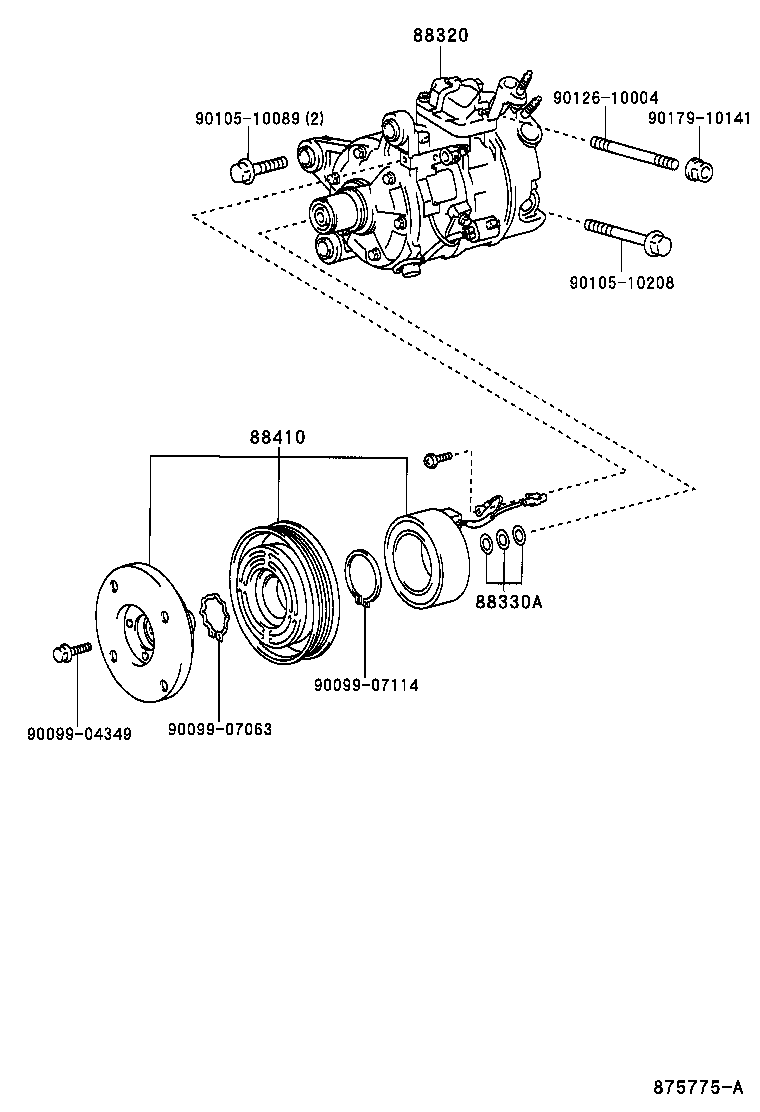

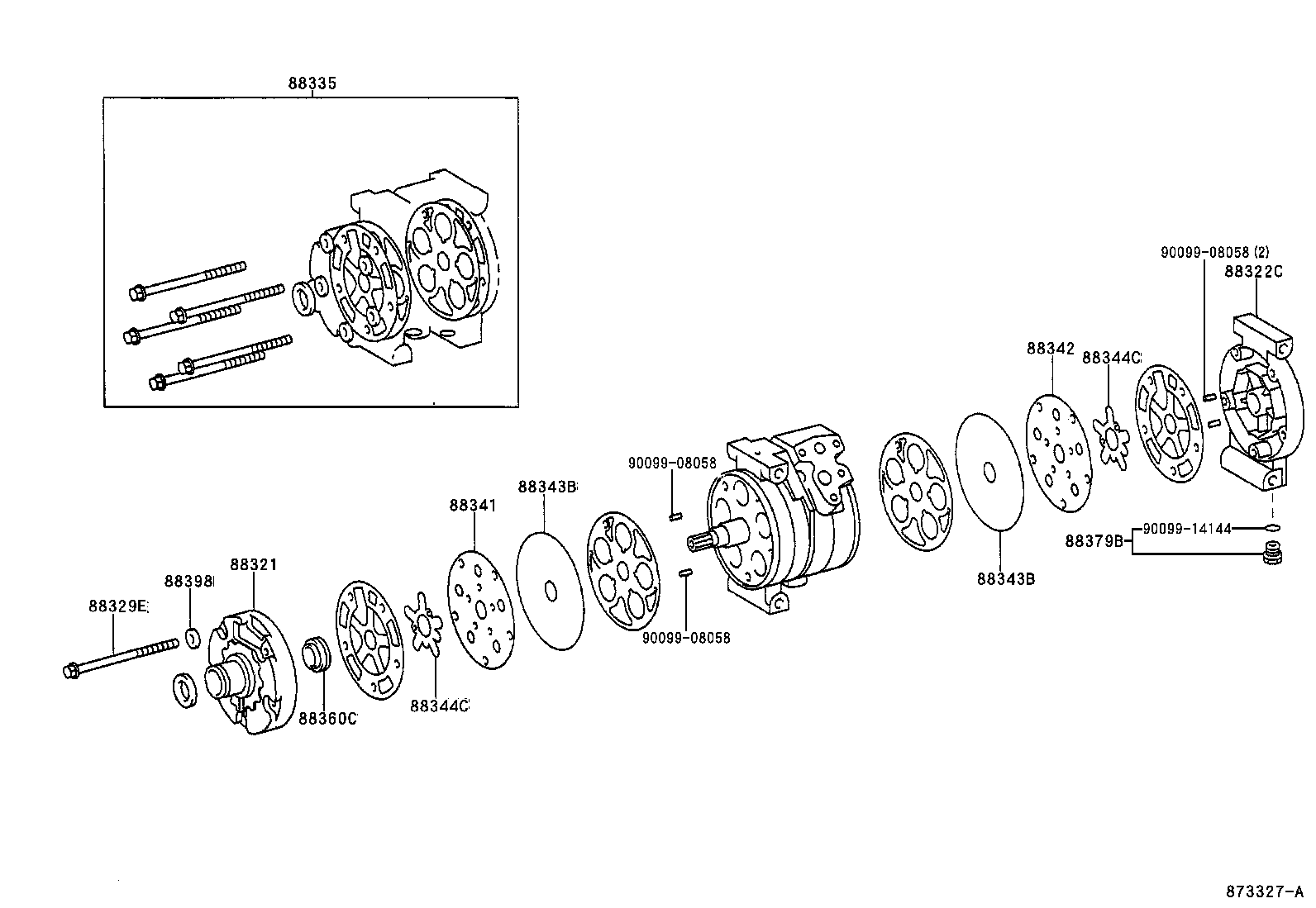

Figure 875772A 875772A 1999-01 → 2001-07 Figure 873327A 873327A 1999-01 → 2001-07 Figure 875773B 875773B 2001-07 → — Figure 875775A 875775A 2001-07 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88322C Head, Cylinder, Rear
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88341 Plate, Front Valve
88342 Plate, Compressor Valve, RR
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88360C Seal Assy, Shaft
88379B Valve, Pressure Relief
88398 Packing, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88605B Harness Sub-assy, Air Conditioner Wiring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
