Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

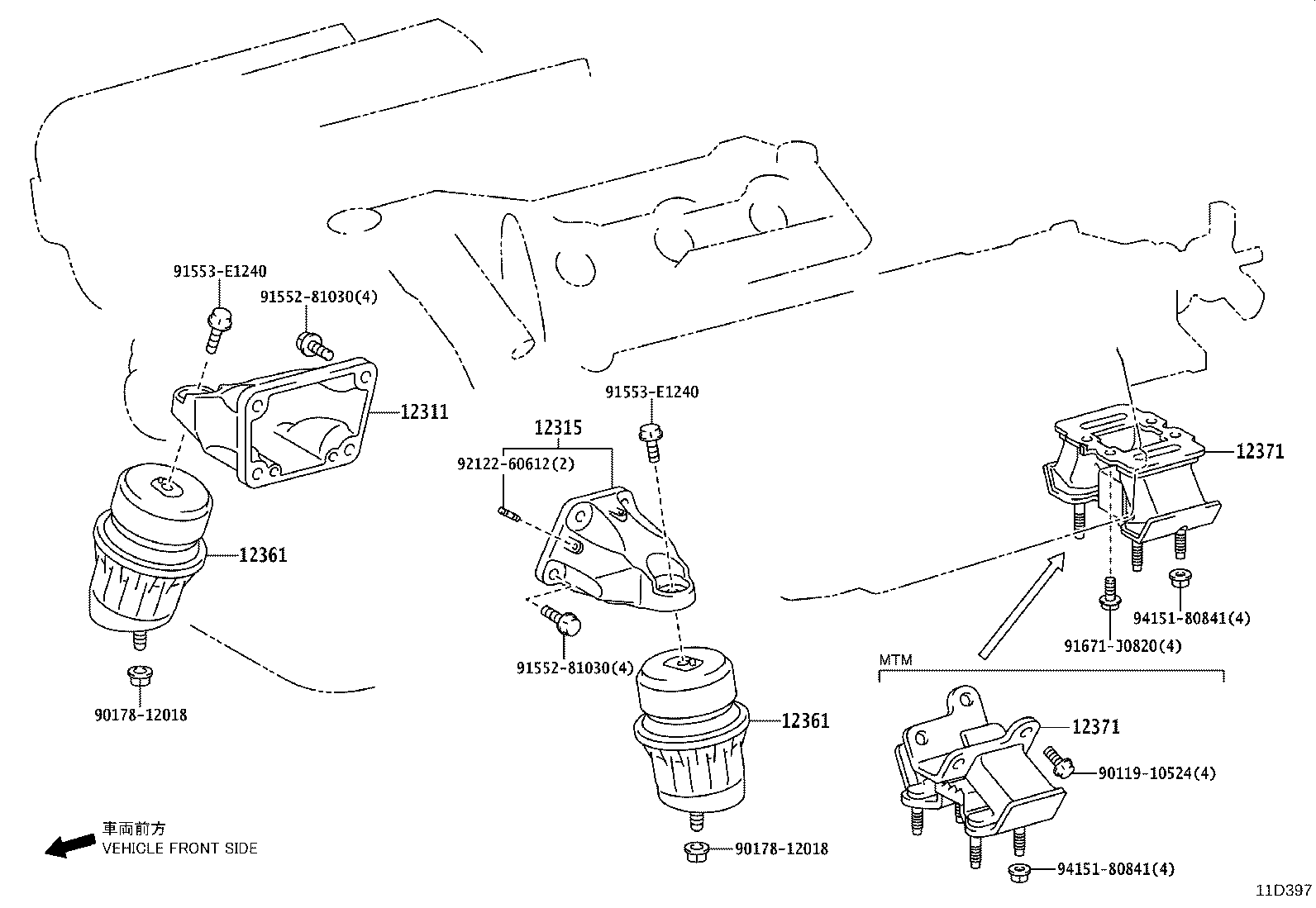

Exploded illustration 11D397 12371 — INSULATOR, ENGINE MOUNTING, REAR NO.1 (9 parts) 12371 — INSULATOR, ENGINE MOUNTING, REAR NO.1 (9 parts) 91671J0820 — not listed in this catalogue 9415180841 — not listed in this catalogue 9155281030 — not listed in this catalogue 91553E1240 — not listed in this catalogue 9155281030 — not listed in this catalogue 9017812018 — not listed in this catalogue 9415180841 — not listed in this catalogue 9011910524 — not listed in this catalogue 9017812018 — not listed in this catalogue 91553E1240 — not listed in this catalogue 12311 — BRACKET, ENGINE MOUNTING, FRONT NO.1 RH (3 parts) 12361 — INSULATOR, ENGINE MOUNTING, FRONT (10 parts) 12361 — INSULATOR, ENGINE MOUNTING, FRONT (10 parts) 9212260612 — not listed in this catalogue 12315 — BRACKET, ENGINE MOUNTING, FRONT NO.1 LH (3 parts)
11D397 · 6 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
12311 — Bracket, Engine Mounting, Front NO.1 RH
12311-31040 Bracket, Engine Mounting, Front NO.1 RH
2005-08 → 2008-08 ended
4GRFSE GSE20 —
12311-31040 Bracket, Engine Mounting, Front NO.1 RH
2008-08 → 2010-08 ended
4GRFSE GSE20 —
12311-31040 Bracket, Engine Mounting, Front NO.1 RH
2010-08 → —
2GRFSE,4GRFSE GSE2# —
12315 — Bracket, Engine Mounting, Front NO.1 LH
12302-31010 Bracket, Engine Mounting, Front NO.1 LH
2005-08 → 2008-08 ended
4GRFSE GSE20 —
12302-31010 Bracket, Engine Mounting, Front NO.1 LH
2008-08 → 2010-08 ended
4GRFSE GSE20 —
12302-31010 Bracket, Engine Mounting, Front NO.1 LH
2010-08 → —
2GRFSE,4GRFSE GSE2# —
12361 — Insulator, Engine Mounting, Front
12361-26070 Insulator, Engine Mounting, Front
2005-11 → 2008-08 ended
2ADFHV ALE20 —
12361-31100 Insulator, Engine Mounting, Front
2005-08 → 2008-08 ended
4GRFSE GSE20 ATM —
12361-31200 Insulator, Engine Mounting, Front
2005-09 → 2008-08 ended
4GRFSE GSE20 MTM —
12361-26070 Insulator, Engine Mounting, Front
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
12361-26070 Insulator, Engine Mounting, Front
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
12361-31100 Insulator, Engine Mounting, Front
2008-08 → 2010-08 ended
4GRFSE GSE20 ATM —
12361-31200 Insulator, Engine Mounting, Front
2008-08 → 2010-08 ended
4GRFSE GSE20 MTM —
12361-26070 Insulator, Engine Mounting, Front
2010-08 → 2012-08 ended
2AD# ALE20 —
12361-31100 Insulator, Engine Mounting, Front
2010-08 → —
4GRFSE GSE20 —
12361-31200 Insulator, Engine Mounting, Front
2010-08 → —
2GRFSE GSE21 —
12371 — Insulator, Engine Mounting, Rear NO.1
12371-31070 Insulator, Engine Mounting, Rear NO.1
2005-08 → 2008-08 ended
4GRFSE GSE20 ATM —
12371-31090 Insulator, Engine Mounting, Rear NO.1
2005-09 → 2008-08 ended
4GRFSE GSE20 MTM —
12371-31090 Insulator, Engine Mounting, Rear NO.1
2005-11 → 2008-08 ended
2ADFHV ALE20 —
12371-31070 Insulator, Engine Mounting, Rear NO.1
2008-08 → 2010-08 ended
4GRFSE GSE20 ATM —
12371-31090 Insulator, Engine Mounting, Rear NO.1
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
12371-31090 Insulator, Engine Mounting, Rear NO.1
2008-08 → 2010-08 ended
4GRFSE GSE20 MTM —
12371-31090 Insulator, Engine Mounting, Rear NO.1
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
12371-31070 Insulator, Engine Mounting, Rear NO.1
2010-08 → —
2GRFSE,4GRFSE GSE2# —
12371-31090 Insulator, Engine Mounting, Rear NO.1
2010-08 → 2012-08 ended
2AD# ALE20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
