Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

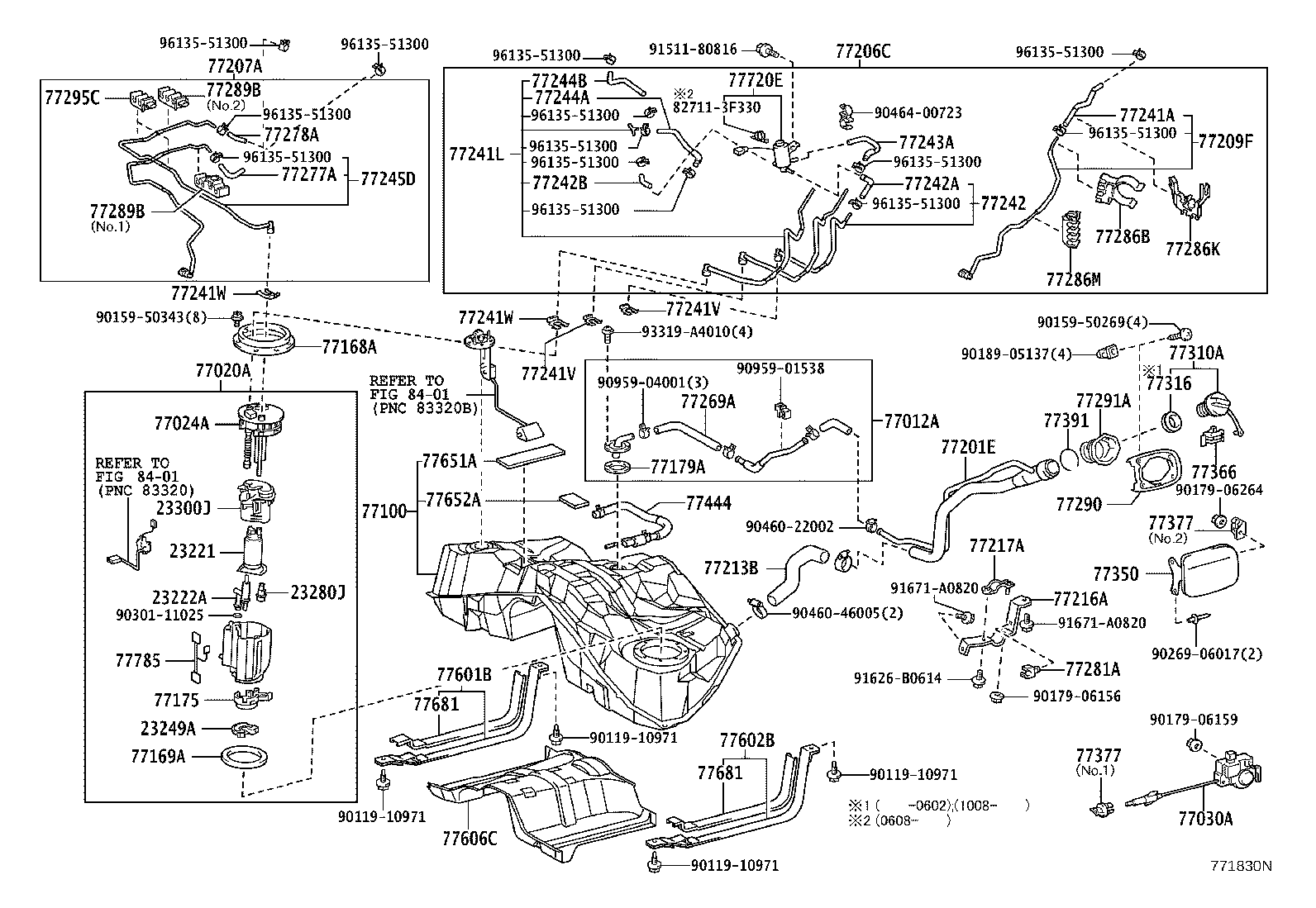

Exploded illustration 771830N 9015950269 — not listed in this catalogue 9018905137 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (4 parts) 77652A — CUSHION, FUEL TANK, NO.2 (4 parts) 9017906159 — not listed in this catalogue 77030A — LOCK ASSY, FUEL LID W/MOTOR (4 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (8 parts) 9017906264 — not listed in this catalogue 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (8 parts) 77100 — TANK ASSY, FUEL (9 parts) 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (11 parts) 77024A — PLATE SUB-ASSY, FUEL SUCTION (6 parts) 23300J — FILTER ASSY, FUEL (7 parts) 23280J — REGULATOR ASSY, FUEL PRESSURE (7 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (6 parts) 77175 — SUPPORT, FUEL SUCTION, NO.2 (4 parts) 77785 — HARNESS, FUEL PUMP (6 parts) 23249A — RUBBER, CUSHION(FOR FUEL PUMP) (4 parts) 77168A — PLATE, FUEL TANK VENT TUBE SET (4 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (9 parts) 77286B — CLAMP, FUEL TUBE W/GROMMET, NO.2 (4 parts) 77286M — CLAMP, FUEL TUBE, NO.6 (4 parts) 77286K — CLAMP, FUEL TUBE, NO.2 (6 parts) 77207A — TUBE SUB-ASSY, FUEL RETURN (4 parts) 77245D — TUBE, FUEL TANK RETURN VENT (7 parts) 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (2 parts) 77242B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) (5 parts) 77242A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) (2 parts) 77243A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) (2 parts) 77720E — VALVE ASSY, FUEL TANK SOLENOID RETURN (4 parts) 77244B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.4) (5 parts) 77244A — HOSE, FUEL, N0.1 (FOR MAIN TUBE, N0.4) (5 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (2 parts) 77278A — HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) (2 parts) 77206C — TUBE SUB-ASSY, FUEL MAIN, NO.2 (3 parts) 77241W — CLIP, TUBE JOINT (5 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (9 parts) 77295C — GROMMET, FUEL TUBE (4 parts) 77241W — CLIP, TUBE JOINT (5 parts) 77241V — CLIP, TUBE JOINT (4 parts) 77241V — CLIP, TUBE JOINT (4 parts) 77241L — TUBE, FUEL TANK SUCTION (4 parts) 77242 — TUBE, FUEL MAIN, NO.2 (4 parts) 9015950343 — not listed in this catalogue 77606C — PROTECTOR, FUEL TANK, NO.2 (5 parts) 8401 — not listed in this catalogue 77179A — GASKET, FUEL TANK BREATHER TUBE (4 parts) 77269A — HOSE, FUEL TANK BREATHER (4 parts) 9095904001 — not listed in this catalogue 77012A — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 (4 parts) 9095901538 — not listed in this catalogue 93319A4010 — not listed in this catalogue 77213B — HOSE, FUEL TANK TO FILLER PIPE (8 parts) 77444 — HOSE, FUEL TANK VENT (7 parts) 9046046005 — not listed in this catalogue 9046400723 — not listed in this catalogue 9151180816 — not listed in this catalogue 827113F330 — not listed in this catalogue 9613551300 — not listed in this catalogue 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (6 parts) 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (7 parts) 77217A — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (6 parts) 77281A — CLAMP, FUEL FILLER PIPE (4 parts) 91626B0614 — not listed in this catalogue 77350 — LID ASSY, FUEL FILLER OPENING (3 parts) 9026906017 — not listed in this catalogue 77290 — SHIELD ASSY, FUEL TANK FILLER PIPE (4 parts) 77291A — SHIELD, FUEL TANK FILLER PIPE (4 parts) 77366 — SPRING, FUEL FILLER OPENING LID HINGE (5 parts) 77316 — GASKET, FUEL TANK CAP (2 parts) 77310A — CAP ASSY, FUEL TANK (4 parts) 77681 — SEAT, FUEL TANK BAND, RH (4 parts) 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (3 parts) 9011910971 — not listed in this catalogue 9011910971 — not listed in this catalogue 9011910971 — not listed in this catalogue 9011910971 — not listed in this catalogue 77681 — SEAT, FUEL TANK BAND, RH (4 parts) 77391 — RING, FUEL INLET BOX (4 parts) 23222A — TUBE, FUEL RETURN JET (7 parts) 23221 — PUMP, FUEL (8 parts) 9046022002 — not listed in this catalogue 8401 — not listed in this catalogue 9030111025 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (3 parts) 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 77209F — TUBE SUB-ASSY, FUEL TANK MAIN (8 parts) 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9017906156 — not listed in this catalogue 91671A0820 — not listed in this catalogue 91671A0820 — not listed in this catalogue
771830N · 63 callouts, 38 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
285 parts on this figure
Part number Description Fitment Price
23221 — Pump, Fuel
23220-26110 Pump, Fuel
2005-11 → 2008-08 ended
2ADFHV ALE20 —
23221-31020 Pump, Fuel
2005-08 → 2008-08 ended
4GRFSE GSE20 —
23220-26110 Pump, Fuel
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
23220-26110 Pump, Fuel
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
23221-31020 Pump, Fuel
2008-08 → 2009-11 ended
4GRFSE GSE20 —
23221-31340 Pump, Fuel
2009-11 → 2010-08 ended
4GRFSE GSE20 —
23220-26110 Pump, Fuel
2010-08 → 2012-08 ended
2AD# ALE20 —
23221-31340 Pump, Fuel
2010-08 → 2013-04 ended
2GRFSE,4GRFSE GSE2# —
23222A — Tube, Fuel Return Jet
23222-26010 Tube, Fuel Return Jet
2005-11 → 2008-08 ended
2ADFHV ALE20 —
23222-31020 Tube, Fuel Return Jet
2005-08 → 2008-08 ended
4GRFSE GSE20 —
23222-26010 Tube, Fuel Return Jet
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
23222-26010 Tube, Fuel Return Jet
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
23222-31020 Tube, Fuel Return Jet
2008-08 → 2010-08 ended
4GRFSE GSE20 —
23222-26010 Tube, Fuel Return Jet
2010-08 → 2012-08 ended
2AD# ALE20 —
23222-31020 Tube, Fuel Return Jet
2010-08 → 2013-04 ended
2GRFSE,4GRFSE GSE2# —
23249A — Rubber, Cushion(FOR FUEL PUMP)
23249-46180 Rubber, Cushion(FOR FUEL PUMP)
2005-11 → 2008-08 ended
2ADFHV ALE20 —
23249-46180 Rubber, Cushion(FOR FUEL PUMP)
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
23249-46180 Rubber, Cushion(FOR FUEL PUMP)
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
23249-46180 Rubber, Cushion(FOR FUEL PUMP)
2010-08 → 2012-08 ended
2AD# ALE20 —
23280J — Regulator Assy, Fuel Pressure
23280-26030 Regulator Assy, Fuel Pressure
2005-11 → 2008-08 ended
2ADFHV ALE20 —
23280-31020 Regulator Assy, Fuel Pressure
2005-08 → 2008-08 ended
4GRFSE GSE20 —
23280-26030 Regulator Assy, Fuel Pressure
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
23280-26030 Regulator Assy, Fuel Pressure
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
23280-31020 Regulator Assy, Fuel Pressure
2008-08 → 2010-08 ended
4GRFSE GSE20 —
23280-26030 Regulator Assy, Fuel Pressure
2010-08 → 2012-08 ended
2AD# ALE20 —
23280-31020 Regulator Assy, Fuel Pressure
2010-08 → 2013-04 ended
2GRFSE,4GRFSE GSE2# —
23300J — Filter Assy, Fuel
23300-26120 Filter Assy, Fuel
2005-11 → 2008-08 ended
2ADFHV ALE20 —
23300-31140 Filter Assy, Fuel
2005-08 → 2008-08 ended
4GRFSE GSE20 —
23300-26120 Filter Assy, Fuel
2008-08 → 2009-08 ended
2ADFHV ALE20 RHD SPO —
23300-26120 Filter Assy, Fuel
2008-08 → 2010-08 ended
2ADFHV ALE20 LUX;2ADFHV ALE20 +2 —
23300-31140 Filter Assy, Fuel
2008-08 → 2010-08 ended
4GRFSE GSE20 —
23300-26120 Filter Assy, Fuel
2010-08 → 2012-08 ended
2AD# ALE20 —
23300-31140 Filter Assy, Fuel
2010-08 → 2013-04 ended
2GRFSE,4GRFSE GSE2# —
77012A — Tube Sub-assy, Fuel Tank Breather, NO.1
77012-53040 Tube Sub-assy, Fuel Tank Breather, NO.1
2005-08 → 2008-08 ended
ALE20,GSE20 —
77012-53040 Tube Sub-assy, Fuel Tank Breather, NO.1
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77012-53040 Tube Sub-assy, Fuel Tank Breather, NO.1
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77012-53040 Tube Sub-assy, Fuel Tank Breather, NO.1
2010-08 → —
ALE20,GSE2# —
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-53060 Tube Assy, Fuel Suction W/Pump & Gage
2005-11 → 2008-08 ended
ALE20 —
77020-53070 Tube Assy, Fuel Suction W/Pump & Gage
2005-08 → 2007-09 ended
GSE20 —
77020-53071 Tube Assy, Fuel Suction W/Pump & Gage
2007-10 → 2008-08 ended
GSE20 —
77020-53060 Tube Assy, Fuel Suction W/Pump & Gage
2008-08 → 2009-02 ended
ALE20 —
77020-53061 Tube Assy, Fuel Suction W/Pump & Gage
2009-03 → 2010-08 ended
ALE20 —
77020-53071 Tube Assy, Fuel Suction W/Pump & Gage
2008-08 → 2009-03 ended
GSE20 —
77020-53072 Tube Assy, Fuel Suction W/Pump & Gage
2009-04 → 2009-10 ended
GSE20 —
77020-53073 Tube Assy, Fuel Suction W/Pump & Gage
2009-11 → 2010-08 ended
GSE20 —
77020-53061 Tube Assy, Fuel Suction W/Pump & Gage
2010-08 → 2012-08 ended
ALE20 —
77020-53073 Tube Assy, Fuel Suction W/Pump & Gage
2010-08 → 2013-01 ended
GSE2# —
77020-53074 Tube Assy, Fuel Suction W/Pump & Gage
2013-02 → 2013-04 ended
GSE2# —
77024A — Plate Sub-assy, Fuel Suction
77024-53020 Plate Sub-assy, Fuel Suction
2005-11 → 2008-08 ended
ALE20 —
77024-22030 Plate Sub-assy, Fuel Suction
2008-08 → 2010-08 ended
GSE20 —
77024-53020 Plate Sub-assy, Fuel Suction
2008-08 → 2009-03 ended
ALE20 —
77024-53021 Plate Sub-assy, Fuel Suction
2009-03 → 2010-08 ended
ALE20 —
77024-22030 Plate Sub-assy, Fuel Suction
2010-08 → 2013-04 ended
GSE2# —
77024-53021 Plate Sub-assy, Fuel Suction
2010-08 → 2012-08 ended
ALE20 —
77030A — Lock Assy, Fuel Lid W/Motor
77030-51030 Lock Assy, Fuel Lid W/Motor
2005-08 → 2008-08 ended
ALE20,GSE20 —
77030-51030 Lock Assy, Fuel Lid W/Motor
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77030-51030 Lock Assy, Fuel Lid W/Motor
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77030-51030 Lock Assy, Fuel Lid W/Motor
2010-08 → —
ALE20,GSE2# —
77100 — Tank Assy, Fuel
77001-53060 Tank Assy, Fuel
2005-08 → 2008-06 ended
GSE20 —
77001-53061 Tank Assy, Fuel
2008-07 → 2008-08 ended
GSE20 —
77001-53100 Tank Assy, Fuel
2005-11 → 2008-08 ended
ALE20 —
77001-53061 Tank Assy, Fuel
2008-08 → 2010-08 ended
GSE20 —
77001-53100 Tank Assy, Fuel
2008-08 → 2008-09 ended
ALE20 —
77001-53101 Tank Assy, Fuel
2008-10 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77001-53101 Tank Assy, Fuel
2008-10 → 2009-08 ended
ALE20 RHD SPO —
77001-53061 Tank Assy, Fuel
2010-08 → —
GSE2# —
77001-53101 Tank Assy, Fuel
2010-08 → 2012-08 ended
ALE20 —
77168A — Plate, Fuel Tank Vent Tube Set
77168-52020 Plate, Fuel Tank Vent Tube Set
2005-08 → 2008-08 ended
ALE20,GSE20 —
77168-52020 Plate, Fuel Tank Vent Tube Set
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77168-52020 Plate, Fuel Tank Vent Tube Set
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77168-52020 Plate, Fuel Tank Vent Tube Set
2010-08 → —
ALE20,GSE2# —
77169A — Gasket, Fuel Suction Tube Set
77169-52010 Gasket, Fuel Suction Tube Set
2007-10 → 2008-08 ended
GSE20 —
77169-52010 Gasket, Fuel Suction Tube Set
2005-08 → 2008-08 ended
ALE20 —
77169-52010 Gasket, Fuel Suction Tube Set
2005-08 → 2007-09 ended
GSE20 —
77169-52010 Gasket, Fuel Suction Tube Set
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77169-52010 Gasket, Fuel Suction Tube Set
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77169-52010 Gasket, Fuel Suction Tube Set
2010-08 → 2013-04 ended
ALE20,GSE2# —
77175 — Support, Fuel Suction, NO.2
77175-53010 Support, Fuel Suction, NO.2
2005-11 → 2008-08 ended
ALE20 —
77175-53010 Support, Fuel Suction, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77175-53010 Support, Fuel Suction, NO.2
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77175-53010 Support, Fuel Suction, NO.2
2010-08 → 2012-08 ended
ALE20 —
77179A — Gasket, Fuel Tank Breather Tube
77179-20040 Gasket, Fuel Tank Breather Tube
2005-08 → 2008-08 ended
ALE20,GSE20 —
77179-20040 Gasket, Fuel Tank Breather Tube
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77179-20040 Gasket, Fuel Tank Breather Tube
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77179-20040 Gasket, Fuel Tank Breather Tube
2010-08 → —
ALE20,GSE2# —
77201E — Pipe Sub-assy, Fuel Tank Filler
77201-53060 Pipe Sub-assy, Fuel Tank Filler
2005-08 → 2008-08 ended
GSE20 —
77201-53070 Pipe Sub-assy, Fuel Tank Filler
2005-11 → 2008-08 ended
ALE20 —
77201-53060 Pipe Sub-assy, Fuel Tank Filler
2008-08 → 2010-08 ended
GSE20 —
77201-53070 Pipe Sub-assy, Fuel Tank Filler
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77201-53070 Pipe Sub-assy, Fuel Tank Filler
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77201-53060 Pipe Sub-assy, Fuel Tank Filler
2010-08 → —
GSE2# —
77201-53070 Pipe Sub-assy, Fuel Tank Filler
2010-08 → 2012-08 ended
ALE20 —
77206C — Tube Sub-assy, Fuel Main, NO.2
77207-53010 Tube Sub-assy, Fuel Main, NO.2
2005-11 → 2008-08 ended
ALE20 —
77207-53010 Tube Sub-assy, Fuel Main, NO.2
2008-08 → 2010-08 ended
ALE20 —
77207-53010 Tube Sub-assy, Fuel Main, NO.2
2010-08 → 2012-08 ended
ALE20 —
77207A — Tube Sub-assy, Fuel Return
77204-53010 Tube Sub-assy, Fuel Return
2005-11 → 2008-08 ended
ALE20 —
77204-53010 Tube Sub-assy, Fuel Return
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77204-53010 Tube Sub-assy, Fuel Return
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77204-53010 Tube Sub-assy, Fuel Return
2010-08 → 2012-08 ended
ALE20 —
77209F — Tube Sub-assy, Fuel Tank Main
77209-53020 Tube Sub-assy, Fuel Tank Main
2005-08 → 2008-08 ended
GSE20 —
77209-53040 Tube Sub-assy, Fuel Tank Main
2005-11 → 2008-08 ended
ALE20 —
77209-53020 Tube Sub-assy, Fuel Tank Main
2008-08 → 2010-08 ended
GSE20 —
77209-53040 Tube Sub-assy, Fuel Tank Main
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77209-53040 Tube Sub-assy, Fuel Tank Main
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77209-53020 Tube Sub-assy, Fuel Tank Main
2010-08 → —
GSE20 —
77209-53030 Tube Sub-assy, Fuel Tank Main
2010-08 → —
GSE21 —
77209-53040 Tube Sub-assy, Fuel Tank Main
2010-08 → 2012-08 ended
ALE20 —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-22100 Hose, Fuel Tank TO Filler Pipe
2005-08 → 2008-08 ended
GSE20 —
77213-53030 Hose, Fuel Tank TO Filler Pipe
2005-11 → 2008-08 ended
ALE20 —
77213-22100 Hose, Fuel Tank TO Filler Pipe
2008-08 → 2010-08 ended
GSE20 —
77213-53030 Hose, Fuel Tank TO Filler Pipe
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77213-53030 Hose, Fuel Tank TO Filler Pipe
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77213-22100 Hose, Fuel Tank TO Filler Pipe
2010-08 → —
GSE20 —
77213-22100 Hose, Fuel Tank TO Filler Pipe
2010-08 → —
GSE21 —
77213-53030 Hose, Fuel Tank TO Filler Pipe
2010-08 → 2012-08 ended
ALE20 —
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-30050 Support, Fuel Tank Filler Pipe, NO.1
2005-08 → 2008-08 ended
ALE20,GSE20 —
77216-30050 Support, Fuel Tank Filler Pipe, NO.1
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77216-30050 Support, Fuel Tank Filler Pipe, NO.1
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77216-30050 Support, Fuel Tank Filler Pipe, NO.1
2010-08 → 2012-02 ended
GSE2# —
77216-30050 Support, Fuel Tank Filler Pipe, NO.1
2010-08 → 2012-08 ended
ALE20 —
77216-30051 Support, Fuel Tank Filler Pipe, NO.1
2012-03 → —
GSE2# —
77217A — Support, Fuel Tank Filler Pipe, NO.2
77217-30130 Support, Fuel Tank Filler Pipe, NO.2
2005-08 → 2008-08 ended
ALE20,GSE20 —
77217-30130 Support, Fuel Tank Filler Pipe, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77217-30130 Support, Fuel Tank Filler Pipe, NO.2
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77217-30130 Support, Fuel Tank Filler Pipe, NO.2
2010-08 → 2012-02 ended
GSE2# —
77217-30130 Support, Fuel Tank Filler Pipe, NO.2
2010-08 → 2012-08 ended
ALE20 —
77217-30131 Support, Fuel Tank Filler Pipe, NO.2
2012-03 → —
GSE2# —
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
23271-26120 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
2005-11 → 2008-08 ended
ALE20 —
23271-26120 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
2005-11 → 2008-08 ended
ALE20 —
77241L — Tube, Fuel Tank Suction
77241-53030 Tube, Fuel Tank Suction
2005-11 → 2008-08 ended
ALE20 —
77241-53030 Tube, Fuel Tank Suction
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77241-53030 Tube, Fuel Tank Suction
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77241-53030 Tube, Fuel Tank Suction
2010-08 → 2012-08 ended
ALE20 —
77241V — Clip, Tube Joint
77241-35450 Clip, Tube Joint
2005-11 → 2008-08 ended
ALE20 —
77241-35450 Clip, Tube Joint
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77241-35450 Clip, Tube Joint
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77241-35450 Clip, Tube Joint
2010-08 → 2012-08 ended
ALE20 —
77241W — Clip, Tube Joint
77241-60320 Clip, Tube Joint
2005-08 → 2008-08 ended
ALE20,GSE20 —
77241-33011 Clip, Tube Joint
2010-02 → 2010-08 ended
ALE20,GSE20 —
77241-60320 Clip, Tube Joint
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77241-60320 Clip, Tube Joint
2008-08 → 2010-01 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77241-33011 Clip, Tube Joint
2010-08 → —
ALE20,GSE2# —
77242 — Tube, Fuel Main, NO.2
77242-53010 Tube, Fuel Main, NO.2
2005-11 → 2008-08 ended
ALE20 —
77242-53010 Tube, Fuel Main, NO.2
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77242-53010 Tube, Fuel Main, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77242-53010 Tube, Fuel Main, NO.2
2010-08 → 2012-08 ended
ALE20 —
77242A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
23271-26100 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
2005-11 → 2008-08 ended
ALE20 —
23271-26100 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
2005-11 → 2008-08 ended
ALE20 —
77242B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
23271-26070 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
2005-11 → 2008-08 ended
ALE20 —
23271-26070 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
2005-11 → 2008-08 ended
ALE20 —
23271-26070 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
2008-08 → 2009-08 ended
ALE20 RHD SPO —
23271-26070 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
23271-26070 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
2010-08 → 2012-08 ended
ALE20 —
77243A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
23271-26110 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
2005-11 → 2008-08 ended
ALE20 —
23271-26110 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
2005-11 → 2008-08 ended
ALE20 —
77244A — Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
23271-26080 Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
2005-11 → 2008-08 ended
ALE20 —
23271-26080 note Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
2005-11 → 2008-08 ended
ALE20 —
23271-26080 Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
2008-08 → 2009-08 ended
ALE20 RHD SPO —
23271-26080 Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
23271-26080 Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
2010-08 → 2012-08 ended
ALE20 —
77244B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
23271-26090 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
2005-11 → 2008-08 ended
ALE20 —
23271-26090 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
2005-11 → 2008-08 ended
ALE20 —
23271-26090 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
2008-08 → 2009-08 ended
ALE20 RHD SPO —
23271-26090 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
23271-26090 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
2010-08 → 2012-08 ended
ALE20 —
77245D — Tube, Fuel Tank Return Vent
77245-53010 Tube, Fuel Tank Return Vent
2005-08 → 2008-08 ended
GSE20 —
77245-53020 Tube, Fuel Tank Return Vent
2005-11 → 2008-08 ended
ALE20 —
77245-53010 Tube, Fuel Tank Return Vent
2008-08 → 2010-08 ended
GSE20 —
77245-53020 Tube, Fuel Tank Return Vent
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77245-53020 Tube, Fuel Tank Return Vent
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77245-53010 Tube, Fuel Tank Return Vent
2010-08 → —
GSE2# —
77245-53020 Tube, Fuel Tank Return Vent
2010-08 → 2012-08 ended
ALE20 —
77269A — Hose, Fuel Tank Breather
77269-22010 Hose, Fuel Tank Breather
2005-08 → 2008-08 ended
ALE20,GSE20 —
77269-22010 Hose, Fuel Tank Breather
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77269-22010 Hose, Fuel Tank Breather
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77269-22010 Hose, Fuel Tank Breather
2010-08 → —
ALE20,GSE2# —
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-26130 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2005-11 → 2008-08 ended
ALE20 —
23271-26130 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2005-11 → 2008-08 ended
ALE20 —
77278A — Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
23271-26140 Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
2005-11 → 2008-08 ended
ALE20 —
23271-26140 note Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
2005-11 → 2008-08 ended
ALE20 —
77281A — Clamp, Fuel Filler Pipe
77281-50020 Clamp, Fuel Filler Pipe
2005-08 → 2008-08 ended
ALE20,GSE20 —
77281-50020 Clamp, Fuel Filler Pipe
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77281-50020 Clamp, Fuel Filler Pipe
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77281-50020 Clamp, Fuel Filler Pipe
2010-08 → —
ALE20,GSE2# —
77286B — Clamp, Fuel Tube W/Grommet, NO.2
77285-53040 Clamp, Fuel Tube W/Grommet, NO.2
2005-11 → 2008-08 ended
ALE20 —
77285-53040 Clamp, Fuel Tube W/Grommet, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77285-53040 Clamp, Fuel Tube W/Grommet, NO.2
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77285-53040 Clamp, Fuel Tube W/Grommet, NO.2
2010-08 → 2012-08 ended
ALE20 —
77286K — Clamp, Fuel Tube, NO.2
77286-53030 Clamp, Fuel Tube, NO.2
2005-11 → 2008-08 ended
ALE20 —
77286-53030 Clamp, Fuel Tube, NO.2
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77286-53030 Clamp, Fuel Tube, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77286-30150 Clamp, Fuel Tube, NO.2
2010-08 → 2012-07 ended
GSE21 —
77286-53030 Clamp, Fuel Tube, NO.2
2010-08 → 2012-08 ended
ALE20 —
77286-53040 Clamp, Fuel Tube, NO.2
2012-08 → —
GSE21 —
77286M — Clamp, Fuel Tube, NO.6
77299-53030 Clamp, Fuel Tube, NO.6
2005-11 → 2008-08 ended
ALE20 —
77299-53030 Clamp, Fuel Tube, NO.6
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77299-53030 Clamp, Fuel Tube, NO.6
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77299-53030 Clamp, Fuel Tube, NO.6
2010-08 → 2012-08 ended
ALE20 —
77289B — Clamp, Fuel Tube, NO.3
77289-33050 note Clamp, Fuel Tube, NO.3
2005-11 → 2008-08 ended
ALE20 —
77289-53020 Clamp, Fuel Tube, NO.3
2005-08 → 2008-08 ended
GSE20 —
77289-53030 note Clamp, Fuel Tube, NO.3
2005-11 → 2008-08 ended
ALE20 —
77289-33050 note Clamp, Fuel Tube, NO.3
2008-08 → 2010-08 ended
ALE20 —
77289-53020 Clamp, Fuel Tube, NO.3
2008-08 → 2010-08 ended
GSE20 —
77289-53030 note Clamp, Fuel Tube, NO.3
2008-08 → 2010-08 ended
ALE20 —
77289-33050 note Clamp, Fuel Tube, NO.3
2010-08 → 2012-08 ended
ALE20 —
77289-53020 Clamp, Fuel Tube, NO.3
2010-08 → —
GSE2# —
77289-53030 note Clamp, Fuel Tube, NO.3
2010-08 → 2012-08 ended
ALE20 —
77290 — Shield Assy, Fuel Tank Filler Pipe
77290-53010 Shield Assy, Fuel Tank Filler Pipe
2005-08 → 2008-08 ended
ALE20,GSE20 —
77290-53010 Shield Assy, Fuel Tank Filler Pipe
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77290-53010 Shield Assy, Fuel Tank Filler Pipe
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77290-53010 Shield Assy, Fuel Tank Filler Pipe
2010-08 → —
ALE20,GSE2# —
77291A — Shield, Fuel Tank Filler Pipe
77291-53030 Shield, Fuel Tank Filler Pipe
2005-08 → 2008-08 ended
ALE20,GSE20 —
77291-53030 Shield, Fuel Tank Filler Pipe
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77291-53030 Shield, Fuel Tank Filler Pipe
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77291-53030 Shield, Fuel Tank Filler Pipe
2010-08 → —
ALE20,GSE2# —
77295C — Grommet, Fuel Tube
77295-53020 Grommet, Fuel Tube
2005-11 → 2008-08 ended
ALE20 —
77295-53020 Grommet, Fuel Tube
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77295-53020 Grommet, Fuel Tube
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77295-53020 Grommet, Fuel Tube
2010-08 → 2012-08 ended
ALE20 —
77310A — Cap Assy, Fuel Tank
77300-52030 Cap Assy, Fuel Tank
2005-08 → 2008-08 ended
ALE20,GSE20 —
77300-52030 Cap Assy, Fuel Tank
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77300-52030 Cap Assy, Fuel Tank
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77300-52030 Cap Assy, Fuel Tank
2010-08 → —
ALE20,GSE2# —
77316 — Gasket, Fuel Tank Cap
77316-52020 Gasket, Fuel Tank Cap
2005-08 → 2006-02 ended
ALE20,GSE20 —
77316-52040 Gasket, Fuel Tank Cap
2010-08 → —
ALE20,GSE2# —
77350 — Lid Assy, Fuel Filler Opening
77350-53050 Lid Assy, Fuel Filler Opening
2005-08 → 2008-08 ended
ALE20,GSE20 —
77350-53050 Lid Assy, Fuel Filler Opening
2008-08 → 2010-08 ended
ALE20,GSE20 —
77350-53050 Lid Assy, Fuel Filler Opening
2010-08 → —
ALE20,GSE2# —
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-30070 Spring, Fuel Filler Opening Lid Hinge
2006-02 → 2008-08 ended
ALE20,GSE20 —
77360-30080 Spring, Fuel Filler Opening Lid Hinge
2005-08 → 2006-01 ended
ALE20,GSE20 —
77360-30070 Spring, Fuel Filler Opening Lid Hinge
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77360-30070 Spring, Fuel Filler Opening Lid Hinge
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77360-30070 Spring, Fuel Filler Opening Lid Hinge
2010-08 → —
ALE20,GSE2# —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-12050 note Retainer, Fuel Filler Opening Lid Lock
2005-08 → 2008-08 ended
ALE20,GSE20 —
77377-22060 note Retainer, Fuel Filler Opening Lid Lock
2005-08 → 2008-08 ended
ALE20,GSE20 —
77377-12050 note Retainer, Fuel Filler Opening Lid Lock
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77377-12050 note Retainer, Fuel Filler Opening Lid Lock
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77377-22060 note Retainer, Fuel Filler Opening Lid Lock
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77377-22060 note Retainer, Fuel Filler Opening Lid Lock
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77377-12050 note Retainer, Fuel Filler Opening Lid Lock
2010-08 → —
ALE20,GSE2# —
77377-22060 note Retainer, Fuel Filler Opening Lid Lock
2010-08 → —
ALE20,GSE2# —
77391 — Ring, Fuel Inlet Box
77391-12020 Ring, Fuel Inlet Box
2005-08 → 2008-08 ended
ALE20,GSE20 —
77391-12020 Ring, Fuel Inlet Box
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77391-12020 Ring, Fuel Inlet Box
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77391-12020 Ring, Fuel Inlet Box
2010-08 → —
ALE20,GSE2# —
77444 — Hose, Fuel Tank Vent
77404-53030 Hose, Fuel Tank Vent
2005-11 → 2008-08 ended
ALE20 —
77404-53040 Hose, Fuel Tank Vent
2005-08 → 2008-08 ended
GSE20 —
77404-53030 Hose, Fuel Tank Vent
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77404-53030 Hose, Fuel Tank Vent
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77404-53040 Hose, Fuel Tank Vent
2008-08 → 2010-08 ended
GSE20 —
77404-53030 Hose, Fuel Tank Vent
2010-08 → 2012-08 ended
ALE20 —
77404-53040 Hose, Fuel Tank Vent
2010-08 → —
GSE2# —
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-53020 Band Sub-assy, Fuel Tank, NO.1 RH
2005-08 → 2008-08 ended
ALE20,GSE20 —
77601-53020 Band Sub-assy, Fuel Tank, NO.1 RH
2008-08 → 2010-08 ended
ALE20,GSE20 —
77601-53020 Band Sub-assy, Fuel Tank, NO.1 RH
2010-08 → —
ALE20,GSE2# —
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77601-22110 Band Sub-assy, Fuel Tank, NO.1 LH
2005-08 → 2008-08 ended
ALE20,GSE20 —
77601-22110 Band Sub-assy, Fuel Tank, NO.1 LH
2008-08 → 2010-08 ended
ALE20,GSE20 —
77601-22110 Band Sub-assy, Fuel Tank, NO.1 LH
2010-08 → —
ALE20,GSE2# —
77606C — Protector, Fuel Tank, NO.2
77606-53030 Protector, Fuel Tank, NO.2
2005-08 → 2008-08 ended
ALE20,GSE20 —
77606-53030 Protector, Fuel Tank, NO.2
2008-08 → 2010-08 ended
ALE20,GSE20 —
77606-53030 Protector, Fuel Tank, NO.2
2010-08 → 2012-06 ended
GSE2# —
77606-53030 Protector, Fuel Tank, NO.2
2010-08 → 2012-08 ended
ALE20 —
77606-53031 Protector, Fuel Tank, NO.2
2012-07 → 2013-04 ended
GSE2# —
77651A — Cushion, Fuel Tank, NO.1
77651-53010 Cushion, Fuel Tank, NO.1
2005-08 → 2008-08 ended
ALE20,GSE20 —
77651-53010 Cushion, Fuel Tank, NO.1
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77651-53010 Cushion, Fuel Tank, NO.1
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77651-53010 Cushion, Fuel Tank, NO.1
2010-08 → —
ALE20,GSE2# —
77652A — Cushion, Fuel Tank, NO.2
77652-12100 Cushion, Fuel Tank, NO.2
2005-08 → 2008-08 ended
ALE20,GSE20 —
77652-12100 Cushion, Fuel Tank, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77652-12100 Cushion, Fuel Tank, NO.2
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77652-12100 Cushion, Fuel Tank, NO.2
2010-08 → —
ALE20,GSE2# —
77681 — Seat, Fuel Tank Band, RH
77681-22020 Seat, Fuel Tank Band, RH
2005-08 → 2008-08 ended
ALE20,GSE20 —
77681-22020 Seat, Fuel Tank Band, RH
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77681-22020 Seat, Fuel Tank Band, RH
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77681-22020 Seat, Fuel Tank Band, RH
2010-08 → —
ALE20,GSE2# —
77720E — Valve Assy, Fuel Tank Solenoid Return
77720-53010 Valve Assy, Fuel Tank Solenoid Return
2005-11 → 2008-08 ended
ALE20 —
77720-53010 Valve Assy, Fuel Tank Solenoid Return
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77720-53010 Valve Assy, Fuel Tank Solenoid Return
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77720-53010 Valve Assy, Fuel Tank Solenoid Return
2010-08 → 2012-08 ended
ALE20 —
77785 — Harness, Fuel Pump
77785-52020 Harness, Fuel Pump
2005-11 → 2008-08 ended
ALE20 —
77785-30040 Harness, Fuel Pump
2009-04 → 2010-08 ended
GSE20 —
77785-52020 Harness, Fuel Pump
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77785-52020 Harness, Fuel Pump
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77785-30040 Harness, Fuel Pump
2010-08 → 2013-04 ended
GSE2# —
77785-52020 Harness, Fuel Pump
2010-08 → 2012-08 ended
ALE20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
