Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

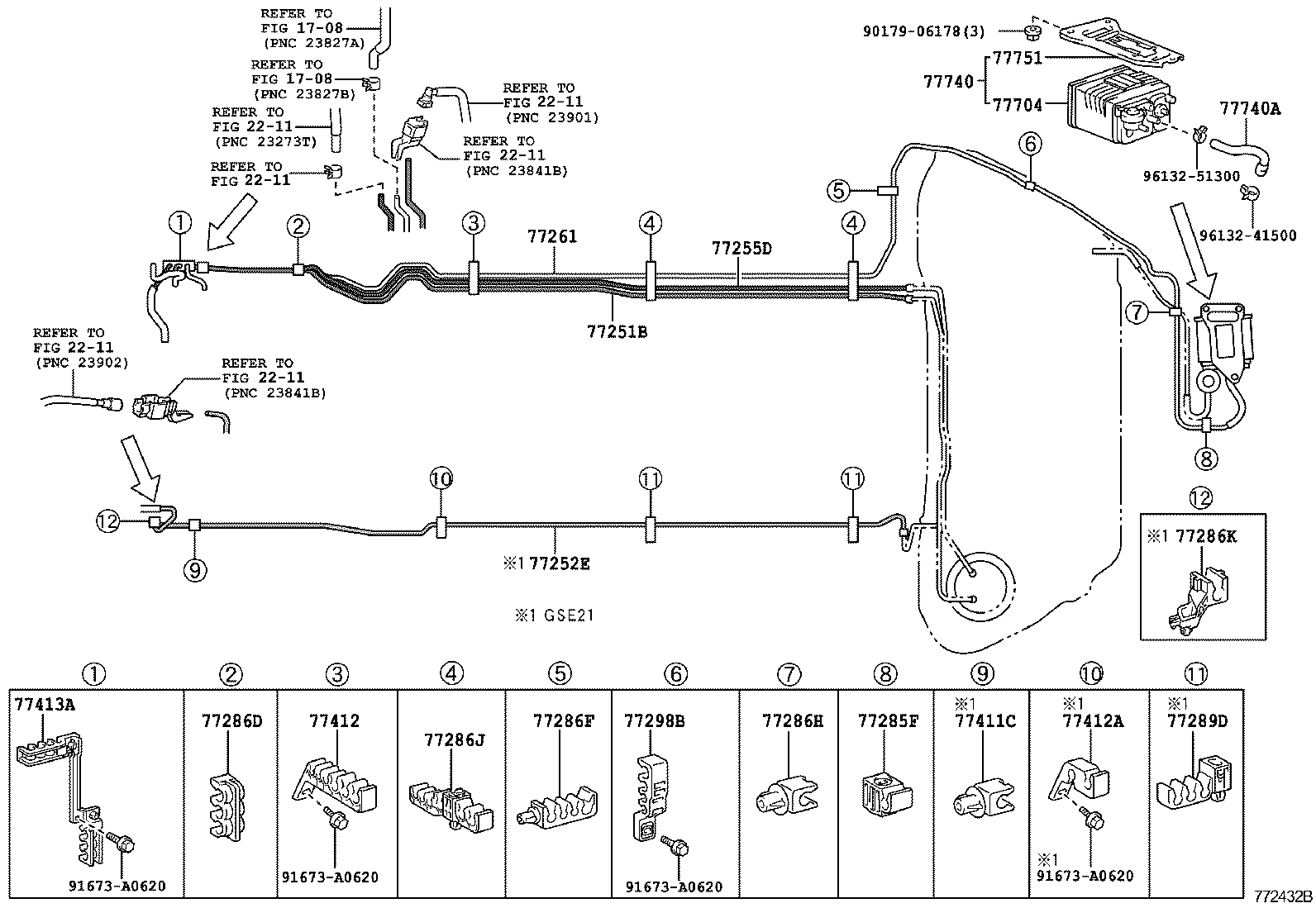

Exploded illustration 772432B 77413A — SUPPORT, FUEL TUBE GROMMET, NO.3 (4 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (4 parts) 77412 — SUPPORT, FUEL TUBE GROMMET, NO.2 (4 parts) 77412A — SUPPORT, FUEL TUBE GROMMET, NO.2 (2 parts) 77411C — SUPPORT, FUEL TUBE GROMMET, NO.1 (1 parts) 77286J — CLAMP, FUEL TUBE, NO.4 (6 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (4 parts) 77298B — CLAMP, FUEL TUBE, NO.4 (3 parts) 77286H — CLAMP, FUEL TUBE, NO.3 (3 parts) 77289D — CLAMP, FUEL TUBE, NO.5 (1 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (7 parts) 77740 — CANISTER ASSY, CHARCOAL (4 parts) 77251B — TUBE, FUEL MAIN (7 parts) 77252E — TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN) (1 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (3 parts) 77255D — TUBE, FUEL RETURN (7 parts) 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (4 parts) 91673A0620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 9017906178 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613241500 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 77286K — CLAMP, FUEL TUBE, NO.2 (6 parts) 77704 — CANISTER SUB-ASSY, CHARCOAL (3 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (4 parts)
772432B · 20 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-53050 Tube, Fuel Main
2005-08 → 2008-08 ended
GSE20 —
77251-53070 Tube, Fuel Main
2005-11 → 2008-08 ended
ALE20 —
77251-53050 Tube, Fuel Main
2008-08 → 2010-08 ended
GSE20 —
77251-53070 Tube, Fuel Main
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77251-53070 Tube, Fuel Main
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77251-53050 Tube, Fuel Main
2010-08 → —
GSE2# —
77251-53070 Tube, Fuel Main
2010-08 → 2012-08 ended
ALE20 —
77252E — Tube, Fuel Main, NO.2 (FOR FRONT FUEL MAIN)
77251-53060 Tube, Fuel Main, NO.2 (FOR FRONT FUEL MAIN)
2010-08 → —
GSE21 —
77255D — Tube, Fuel Return
77255-53010 Tube, Fuel Return
2005-08 → 2008-08 ended
GSE20 —
77255-53020 Tube, Fuel Return
2005-11 → 2008-08 ended
ALE20 —
77255-53010 Tube, Fuel Return
2008-08 → 2010-08 ended
GSE20 —
77255-53020 Tube, Fuel Return
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77255-53020 Tube, Fuel Return
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77255-53010 Tube, Fuel Return
2010-08 → —
GSE2# —
77255-53020 Tube, Fuel Return
2010-08 → 2012-08 ended
ALE20 —
77261 — Tube Sub-assy, Fuel Emission
77261-53090 Tube Sub-assy, Fuel Emission
2005-08 → 2008-08 ended
GSE20 —
77261-53090 Tube Sub-assy, Fuel Emission
2008-08 → 2010-08 ended
GSE20 —
77261-53090 Tube Sub-assy, Fuel Emission
2010-08 → —
GSE2# —
77285F — Clamp, Fuel Tube, NO.1
77285-22100 Clamp, Fuel Tube, NO.1
2005-11 → 2008-08 ended
ALE20 —
77285-50030 Clamp, Fuel Tube, NO.1
2005-08 → 2008-08 ended
GSE20 —
77285-22100 Clamp, Fuel Tube, NO.1
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77285-22100 Clamp, Fuel Tube, NO.1
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77285-50030 Clamp, Fuel Tube, NO.1
2008-08 → 2010-08 ended
GSE20 —
77285-22100 Clamp, Fuel Tube, NO.1
2010-08 → 2012-08 ended
ALE20 —
77285-50030 Clamp, Fuel Tube, NO.1
2010-08 → —
GSE2# —
77286D — Clamp, Fuel Tube, NO.2
77286-20170 Clamp, Fuel Tube, NO.2
2005-08 → 2006-11 ended
GSE20 —
77286-30170 Clamp, Fuel Tube, NO.2
2006-12 → 2008-08 ended
GSE20 —
77286-30170 Clamp, Fuel Tube, NO.2
2008-08 → 2010-08 ended
GSE20 —
77286-30170 Clamp, Fuel Tube, NO.2
2010-08 → —
GSE2# —
77286F — Clamp, Fuel Tube, NO.2
77286-30110 Clamp, Fuel Tube, NO.2
2005-08 → 2008-08 ended
ALE20,GSE20 —
77286-30110 Clamp, Fuel Tube, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77286-30110 Clamp, Fuel Tube, NO.2
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77286-30110 Clamp, Fuel Tube, NO.2
2010-08 → —
ALE20,GSE2# —
77286H — Clamp, Fuel Tube, NO.3
77286-30120 Clamp, Fuel Tube, NO.3
2005-08 → 2008-08 ended
GSE20 —
77286-30120 Clamp, Fuel Tube, NO.3
2008-08 → 2010-08 ended
GSE20 —
77286-30120 Clamp, Fuel Tube, NO.3
2010-08 → —
GSE2# —
77286J — Clamp, Fuel Tube, NO.4
77289-20080 Clamp, Fuel Tube, NO.4
2005-11 → 2008-08 ended
ALE20 —
77289-30060 Clamp, Fuel Tube, NO.4
2005-08 → 2008-08 ended
GSE20 —
77289-20080 Clamp, Fuel Tube, NO.4
2008-08 → 2010-08 ended
ALE20 —
77289-30060 Clamp, Fuel Tube, NO.4
2008-08 → 2010-08 ended
GSE20 —
77289-20080 Clamp, Fuel Tube, NO.4
2010-08 → 2012-08 ended
ALE20 —
77289-30060 Clamp, Fuel Tube, NO.4
2010-08 → —
GSE2# —
77286K — Clamp, Fuel Tube, NO.2
77286-53030 Clamp, Fuel Tube, NO.2
2005-11 → 2008-08 ended
ALE20 —
77286-53030 Clamp, Fuel Tube, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77286-53030 Clamp, Fuel Tube, NO.2
2008-08 → 2010-08 ended
ALE20 LUX;ALE20 LHD SPO —
77286-30150 Clamp, Fuel Tube, NO.2
2010-08 → 2012-07 ended
GSE21 —
77286-53030 Clamp, Fuel Tube, NO.2
2010-08 → 2012-08 ended
ALE20 —
77286-53040 Clamp, Fuel Tube, NO.2
2012-08 → —
GSE21 —
77289D — Clamp, Fuel Tube, NO.5
77289-30070 Clamp, Fuel Tube, NO.5
2010-08 → —
GSE21 —
77298B — Clamp, Fuel Tube, NO.4
77298-30150 Clamp, Fuel Tube, NO.4
2005-08 → 2008-08 ended
GSE20 —
77298-30150 Clamp, Fuel Tube, NO.4
2008-08 → 2010-08 ended
GSE20 —
77298-30150 Clamp, Fuel Tube, NO.4
2010-08 → —
GSE2# —
77411C — Support, Fuel Tube Grommet, NO.1
77411-53010 Support, Fuel Tube Grommet, NO.1
2010-08 → —
GSE21 —
77412 — Support, Fuel Tube Grommet, NO.2
77412-30060 Support, Fuel Tube Grommet, NO.2
2005-08 → 2008-08 ended
ALE20,GSE20 —
77412-30060 Support, Fuel Tube Grommet, NO.2
2008-08 → 2009-08 ended
ALE20 RHD SPO —
77412-30060 Support, Fuel Tube Grommet, NO.2
2008-08 → 2010-08 ended
ALE20 LHD SPO;ALE20,GSE20 LUX —
77412-30060 Support, Fuel Tube Grommet, NO.2
2010-08 → —
ALE20,GSE2# —
77412A — Support, Fuel Tube Grommet, NO.2
77412-30090 Support, Fuel Tube Grommet, NO.2
2010-08 → 2012-07 ended
GSE21 —
77412-53020 Support, Fuel Tube Grommet, NO.2
2012-08 → —
GSE21 —
77413A — Support, Fuel Tube Grommet, NO.3
77413-30070 Support, Fuel Tube Grommet, NO.3
2005-08 → 2008-08 ended
GSE20 —
77413-30070 Support, Fuel Tube Grommet, NO.3
2008-08 → 2009-07 ended
GSE20 —
77413-30071 Support, Fuel Tube Grommet, NO.3
2009-08 → 2010-08 ended
GSE20 —
77413-30071 Support, Fuel Tube Grommet, NO.3
2010-08 → —
GSE2# —
77704 — Canister Sub-assy, Charcoal
77704-30200 Canister Sub-assy, Charcoal
2005-08 → 2008-08 ended
GSE20 —
77704-30200 Canister Sub-assy, Charcoal
2008-08 → 2010-08 ended
GSE20 —
77704-30200 Canister Sub-assy, Charcoal
2010-08 → —
GSE2# —
77740 — Canister Assy, Charcoal
77740-30320 Canister Assy, Charcoal
2006-04 → 2008-08 ended
GSE20 —
77740-30340 Canister Assy, Charcoal
2005-08 → 2006-03 ended
GSE20 —
77740-30320 Canister Assy, Charcoal
2008-08 → 2010-08 ended
GSE20 —
77740-30320 Canister Assy, Charcoal
2010-08 → —
GSE2# —
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2005-08 → 2008-08 ended
GSE20 —
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2008-08 → 2010-08 ended
GSE20 —
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2010-08 → 2013-04 ended
GSE20 —
23829-46290 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
2010-08 → 2013-04 ended
GSE21 —
77751 — Bracket, Charcoal Canister Base
77751-22140 Bracket, Charcoal Canister Base
2005-08 → 2006-04 ended
GSE20 —
77751-30150 Bracket, Charcoal Canister Base
2006-04 → 2008-08 ended
GSE20 —
77751-30150 Bracket, Charcoal Canister Base
2008-08 → 2010-08 ended
GSE20 —
77751-30150 Bracket, Charcoal Canister Base
2010-08 → —
GSE2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
