Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

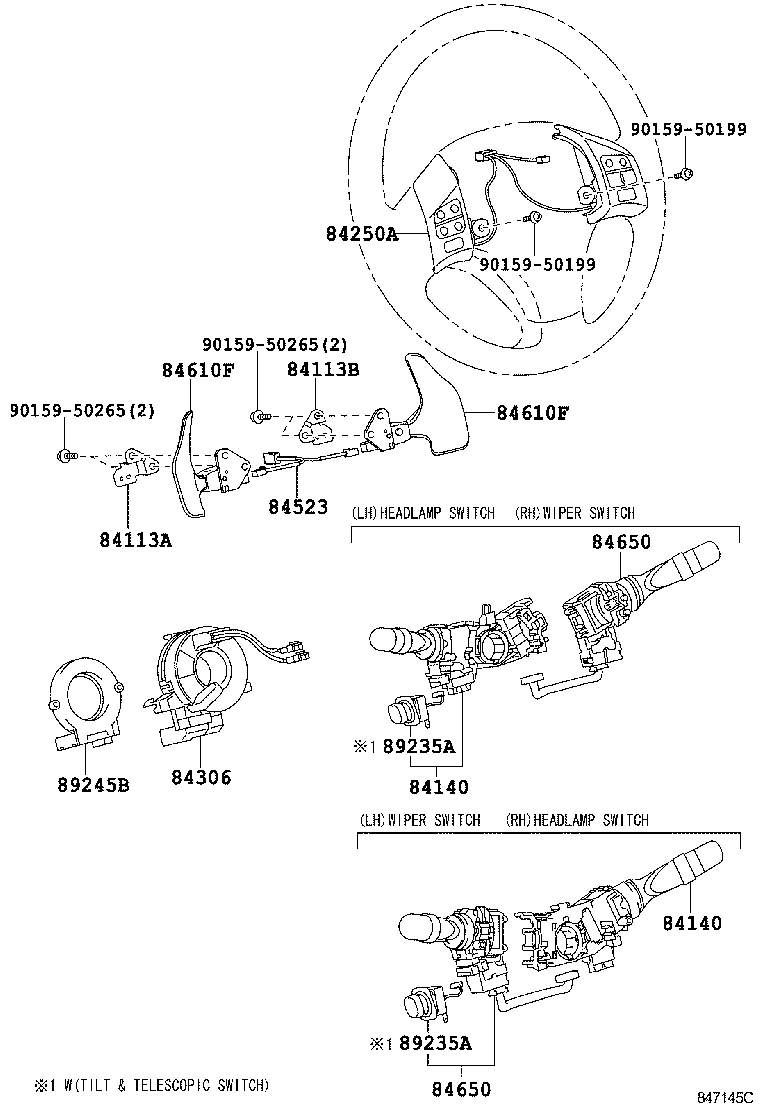

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84113A — Bracket, Switch, NO.1 | ||||
| 84113-52010 |
Bracket, Switch, NO.1
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84113-52010 |
Bracket, Switch, NO.1
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84113-52010 |
Bracket, Switch, NO.1
2010-08 → 2013-04
ended
|
GSE2# | — | |
| 84113B — Bracket, Switch, NO.2 | ||||
| 84113-52020 |
Bracket, Switch, NO.2
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84113-52020 |
Bracket, Switch, NO.2
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84113-52020 |
Bracket, Switch, NO.2
2010-08 → 2013-04
ended
|
GSE2# | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-02 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-04 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-04 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-06 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-06 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-02 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-02 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-02 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-01 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2006-01 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84140-30310 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
GSE20 | — | |
| 84140-30310 |
Switch Assy, Headlamp Dimmer
2006-02 → 2007-04
ended
|
ALE20 SPO | — | |
| 84140-30310 note |
Switch Assy, Headlamp Dimmer
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84140-30310 note |
Switch Assy, Headlamp Dimmer
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84140-30310 note |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 84140-42110 |
Switch Assy, Headlamp Dimmer
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84140-42110 |
Switch Assy, Headlamp Dimmer
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2009-08 → 2010-08
ended
|
ALE20 LUX | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2009-10 → 2010-08
ended
|
ALE20 | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LHD SPO | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84140-42111 |
Switch Assy, Headlamp Dimmer
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84140-42111 |
Switch Assy, Headlamp Dimmer
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30290 |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE21 | — | |
| 84140-30290 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 RHD | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20 LHD | — | |
| 84140-30311 note |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
GSE20;ALE20 LHD | — | |
| 84140-42111 |
Switch Assy, Headlamp Dimmer
2010-08 → —
|
ALE20,GSE20 | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2005-09 → 2008-08
ended
|
ALE20,GSE20 MTM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84250-53030-C0 note |
Switch Assy, Steering Pad
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2005-09 → 2008-08
ended
|
ALE20,GSE20 MTM | — | |
| 84250-53080-C0 note |
Switch Assy, Steering Pad
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84250-53090-C0 note |
Switch Assy, Steering Pad
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-03
ended
|
ALE20 RHD SPO | — | |
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD MTM | — | |
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD MTM | — | |
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD MTM | — | |
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD MTM | — | |
| 84250-53010-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 MTM +1 | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 LHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 LHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 LHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 LHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-08
ended
|
GSE20 ATM | — | |
| 84250-53020-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53030-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53030-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53030-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53030-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-08
ended
|
GSE20 ATM | — | |
| 84250-53030-C0 note |
Switch Assy, Steering Pad
2009-09 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD MTM | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-03
ended
|
ALE20 RHD SPO | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2009-08 → 2010-08
ended
|
ALE20,GSE20 MTM | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2009-03 → 2010-08
ended
|
ALE20 RHD SPO | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD MTM | — | |
| 84250-53070-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 MTM +1 | — | |
| 84250-53080-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-08
ended
|
GSE20 ATM | — | |
| 84250-53080-C0 note |
Switch Assy, Steering Pad
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84250-53080-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 LHD ATM | — | |
| 84250-53080-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53080-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53090-C0 note |
Switch Assy, Steering Pad
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84250-53090-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53090-C0 note |
Switch Assy, Steering Pad
2009-08 → 2009-09
ended
|
GSE20 RHD ATM | — | |
| 84250-53090-C0 note |
Switch Assy, Steering Pad
2008-08 → 2009-08
ended
|
GSE20 ATM | — | |
| 84250-53100-C0 note |
Switch Assy, Steering Pad
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 LHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 LHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 LHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 LHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53120 |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE21 | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53120 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53121 |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE21 | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 LHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 LHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 LHD | — | |
| 84250-53121 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 LHD | — | |
| 84250-53130 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 | — | |
| 84250-53130 |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
ALE20 | — | |
| 84250-53131 |
Switch Assy, Steering Pad
2010-12 → 2012-08
ended
|
ALE20 | — | |
| 84250-53131 note |
Switch Assy, Steering Pad
2010-12 → —
|
GSE20 | — | |
| 84250-53140 |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 LHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE21 | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 LHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53140 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53141 |
Switch Assy, Steering Pad
2010-12 → —
|
GSE20 | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 LHD | — | |
| 84250-53141 |
Switch Assy, Steering Pad
2011-08 → —
|
GSE21 | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE21 | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 LHD | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53141 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53150 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53150 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53150 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE21 | — | |
| 84250-53151 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53151 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53151 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE21 | — | |
| 84250-53170 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 | — | |
| 84250-53170 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE21 | — | |
| 84250-53170 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53170 note |
Switch Assy, Steering Pad
2010-08 → 2010-12
ended
|
GSE20 RHD | — | |
| 84250-53171 note |
Switch Assy, Steering Pad
2011-08 → —
|
GSE21 | — | |
| 84250-53171 note |
Switch Assy, Steering Pad
2010-12 → —
|
GSE20 RHD | — | |
| 84250-53171 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE21 | — | |
| 84250-53171 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53171 note |
Switch Assy, Steering Pad
2010-12 → 2011-08
ended
|
GSE20 RHD | — | |
| 84250-53171 note |
Switch Assy, Steering Pad
2010-12 → 2012-08
ended
|
GSE20 LHD | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-48030 |
Cable Sub-assy, Spiral
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84306-48030 |
Cable Sub-assy, Spiral
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84306-48030 |
Cable Sub-assy, Spiral
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84306-48030 |
Cable Sub-assy, Spiral
2010-08 → —
|
ALE20,GSE2# | — | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-52020 |
Wire, Switch NO.1
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84523-52020 |
Wire, Switch NO.1
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84523-52020 |
Wire, Switch NO.1
2010-08 → 2013-04
ended
|
GSE2# | — | |
| 84610F — Switch Assy, Transmission Shift | ||||
| 84610-53020 note |
Switch Assy, Transmission Shift
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84610-53030 note |
Switch Assy, Transmission Shift
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84610-53020 note |
Switch Assy, Transmission Shift
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84610-53030 note |
Switch Assy, Transmission Shift
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84610-53060 note |
Switch Assy, Transmission Shift
2010-08 → 2010-12
ended
|
GSE2# | — | |
| 84610-53061 note |
Switch Assy, Transmission Shift
2010-12 → 2013-04
ended
|
GSE2# | — | |
| 84610-53070 note |
Switch Assy, Transmission Shift
2010-08 → 2010-12
ended
|
GSE2# | — | |
| 84610-53071 note |
Switch Assy, Transmission Shift
2010-12 → 2013-04
ended
|
GSE2# | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-30530 note |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 RHD | — | |
| 84652-30530 note |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 RHD | — | |
| 84652-30530 note |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 RHD | — | |
| 84652-30530 note |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2006-06 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2006-02 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2006-02 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-04 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2006-01 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-30540 |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 | — | |
| 84652-30541 |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 84652-30541 |
Switch Assy, Windshield Wiper
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84652-30550 note |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 | — | |
| 84652-30550 note |
Switch Assy, Windshield Wiper
2005-08 → 2005-09
ended
|
GSE20 | — | |
| 84652-30551 note |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 84652-30551 note |
Switch Assy, Windshield Wiper
2005-09 → 2008-08
ended
|
GSE20 | — | |
| 84652-30551 |
Switch Assy, Windshield Wiper
2006-02 → 2007-04
ended
|
ALE20 SPO | — | |
| 84652-30551 note |
Switch Assy, Windshield Wiper
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84652-30551 note |
Switch Assy, Windshield Wiper
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2006-01 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-04 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2006-06 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2006-02 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2006-02 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2005-08 → 2008-08
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-30542 |
Switch Assy, Windshield Wiper
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84652-30542 |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2009-08 → 2010-08
ended
|
ALE20 LUX | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2009-10 → 2010-08
ended
|
ALE20 | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LHD SPO | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2008-08 → 2010-08
ended
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE21 | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE21 | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30531 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-30542 |
Switch Assy, Windshield Wiper
2010-08 → —
|
ALE20,GSE20 | — | |
| 84652-30552 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
ALE20,GSE20 | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE21 | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53120 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 note |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE20 RHD | — | |
| 84652-53150 |
Switch Assy, Windshield Wiper
2010-08 → —
|
GSE21 | — | |
| 89235A — Switch, Tilt & Telescopic | ||||
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-04 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2006-06 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2006-02 → 2008-08
ended
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2006-02 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2005-09 → 2008-08
ended
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2005-08 → 2008-08
ended
|
GSE20 | — | |
| 89235-48010 |
Switch, Tilt & Telescopic
2006-02 → 2007-04
ended
|
ALE20 SPO | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2006-01 → 2008-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LHD SPO | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2009-08 → 2010-08
ended
|
ALE20 LUX | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2009-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2009-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2009-10 → 2010-08
ended
|
ALE20 | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2008-08 → 2010-08
ended
|
GSE20 RHD ATM | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE21 | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20;ALE20 LHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE21 | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 LHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89235-48010 note |
Switch, Tilt & Telescopic
2010-08 → —
|
GSE20 RHD | — | |
| 89245B — Sensor, Steering | ||||
| 89245-52030 |
Sensor, Steering
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 89245-52030 |
Sensor, Steering
2008-08 → 2010-08
ended
|
ALE20,GSE20 | — | |
| 89245-52030 |
Sensor, Steering
2010-08 → 2013-04
ended
|
ALE20,GSE2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
