Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

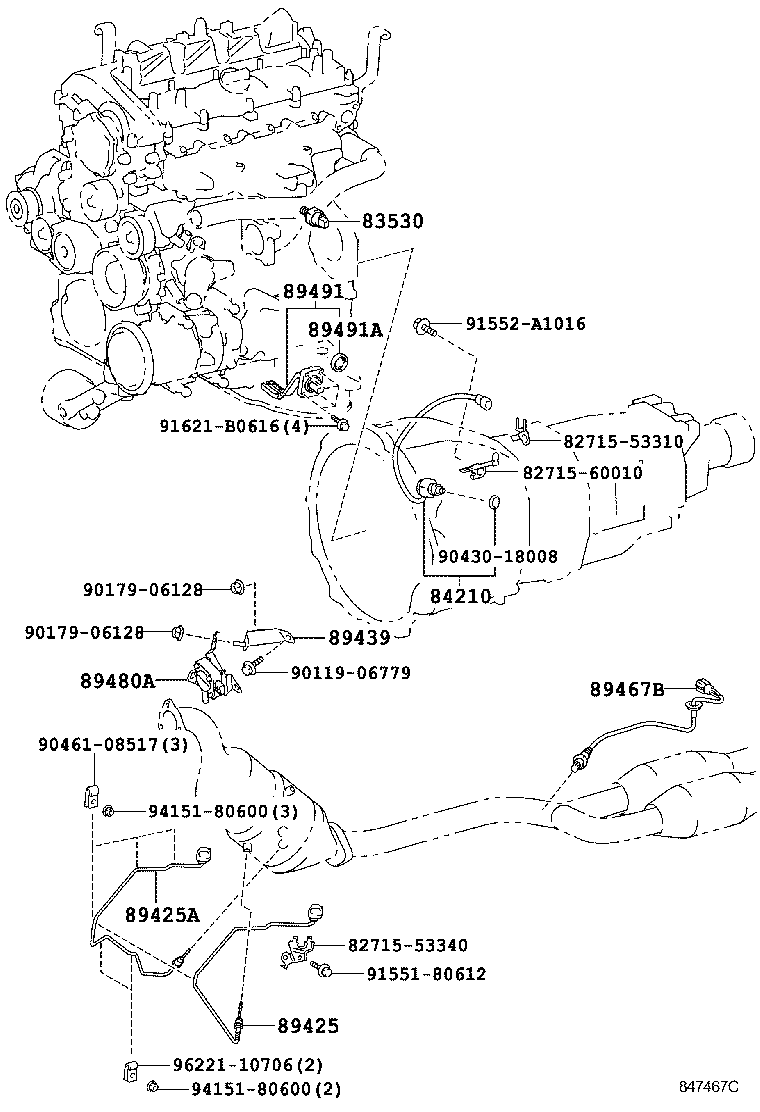

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2005-08 → 2008-08
ended
|
GSE20 | — | |
| 83530-60010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2005-11 → 2008-08
ended
|
ALE20 | — | |
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-08 → 2010-08
ended
|
GSE20 | — | |
| 83530-60010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-08 → 2010-08
ended
|
ALE20 LUX;ALE20 LHD SPO | — | |
| 83530-60010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2010-08 → —
|
GSE2# | — | |
| 83530-60010 |
Switch Assy, Oil Pressure (FOR ENGINE)
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2010-08 → —
|
GSE2# | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-14040 |
Switch Assy, Back-up Lamp
2005-09 → 2008-08
ended
|
ALE20,GSE20 MTM | — | |
| 84210-14040 |
Switch Assy, Back-up Lamp
2008-08 → 2010-08
ended
|
ALE20,GSE20 MTM | — | |
| 84210-14040 |
Switch Assy, Back-up Lamp
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 89425 — Sensor, Exhaust Gas Temperature | ||||
| 89425-53010 |
Sensor, Exhaust Gas Temperature
2005-11 → 2008-08
ended
|
ALE20 | — | |
| 89425-53010 |
Sensor, Exhaust Gas Temperature
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89425-53010 |
Sensor, Exhaust Gas Temperature
2008-08 → 2010-08
ended
|
ALE20 LUX;ALE20 LHD SPO | — | |
| 89425-53010 |
Sensor, Exhaust Gas Temperature
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 89425A — Sensor, Exhaust Gas Temperature, NO.2 | ||||
| 89425-53020 |
Sensor, Exhaust Gas Temperature, NO.2
2005-11 → 2008-08
ended
|
ALE20 | — | |
| 89425-53020 |
Sensor, Exhaust Gas Temperature, NO.2
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89425-53020 |
Sensor, Exhaust Gas Temperature, NO.2
2008-08 → 2010-08
ended
|
ALE20 LUX;ALE20 LHD SPO | — | |
| 89425-53020 |
Sensor, Exhaust Gas Temperature, NO.2
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 89439 — Bracket, Sensor | ||||
| 89439-53010 |
Bracket, Sensor
2005-11 → 2008-08
ended
|
ALE20 LHD | — | |
| 89439-53020 |
Bracket, Sensor
2005-11 → 2008-08
ended
|
ALE20 RHD | — | |
| 89439-53010 |
Bracket, Sensor
2008-08 → 2010-08
ended
|
ALE20 LHD | — | |
| 89439-53020 |
Bracket, Sensor
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89439-53020 |
Bracket, Sensor
2008-08 → 2010-08
ended
|
ALE20 RHD LUX | — | |
| 89439-53010 |
Bracket, Sensor
2010-08 → 2012-08
ended
|
ALE20 LHD | — | |
| 89439-53020 |
Bracket, Sensor
2010-08 → 2012-08
ended
|
ALE20 RHD | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-30010 note |
Sensor, Air Fuel Ratio
2005-08 → 2008-02
ended
|
GSE20 | — | |
| 89467-30040 note |
Sensor, Air Fuel Ratio
2008-02 → 2008-08
ended
|
GSE20 | — | |
| 89467-53010 |
Sensor, Air Fuel Ratio
2005-11 → 2008-08
ended
|
ALE20 | — | |
| 89467-30040 note |
Sensor, Air Fuel Ratio
2008-08 → 2010-08
ended
|
GSE20 | — | |
| 89467-53010 |
Sensor, Air Fuel Ratio
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89467-53010 |
Sensor, Air Fuel Ratio
2008-08 → 2010-08
ended
|
ALE20 LUX;ALE20 LHD SPO | — | |
| 89467-53010 |
Sensor, Air Fuel Ratio
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 89467-53040 |
Sensor, Air Fuel Ratio
2010-08 → —
|
GSE2# | — | |
| 89480A — Sensor Assy, Differential Pressure | ||||
| 89480-53010 |
Sensor Assy, Differential Pressure
2005-11 → 2008-08
ended
|
ALE20 | — | |
| 89480-53010 |
Sensor Assy, Differential Pressure
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89480-53010 |
Sensor Assy, Differential Pressure
2008-08 → 2010-08
ended
|
ALE20 LUX;ALE20 LHD SPO | — | |
| 89480-53020 |
Sensor Assy, Differential Pressure
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-30060 |
Sensor, Engine Oil Level
2005-08 → 2008-08
ended
|
GSE20 | — | |
| 89491-60080 |
Sensor, Engine Oil Level
2005-11 → 2008-08
ended
|
ALE20 | — | |
| 89491-30060 |
Sensor, Engine Oil Level
2008-08 → 2010-08
ended
|
GSE20 | — | |
| 89491-60080 |
Sensor, Engine Oil Level
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89491-60080 |
Sensor, Engine Oil Level
2008-08 → 2010-08
ended
|
ALE20 LUX;ALE20 LHD SPO | — | |
| 89491-30060 |
Sensor, Engine Oil Level
2010-08 → 2011-08
ended
|
GSE2# | — | |
| 89491-30061 |
Sensor, Engine Oil Level
2011-09 → —
|
GSE2# | — | |
| 89491-60080 |
Sensor, Engine Oil Level
2010-08 → 2012-08
ended
|
ALE20 | — | |
| 89491A — Gasket, Engine Oil Level Sensor | ||||
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 89493-60010 |
Gasket, Engine Oil Level Sensor
2010-08 → —
|
ALE20,GSE2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
