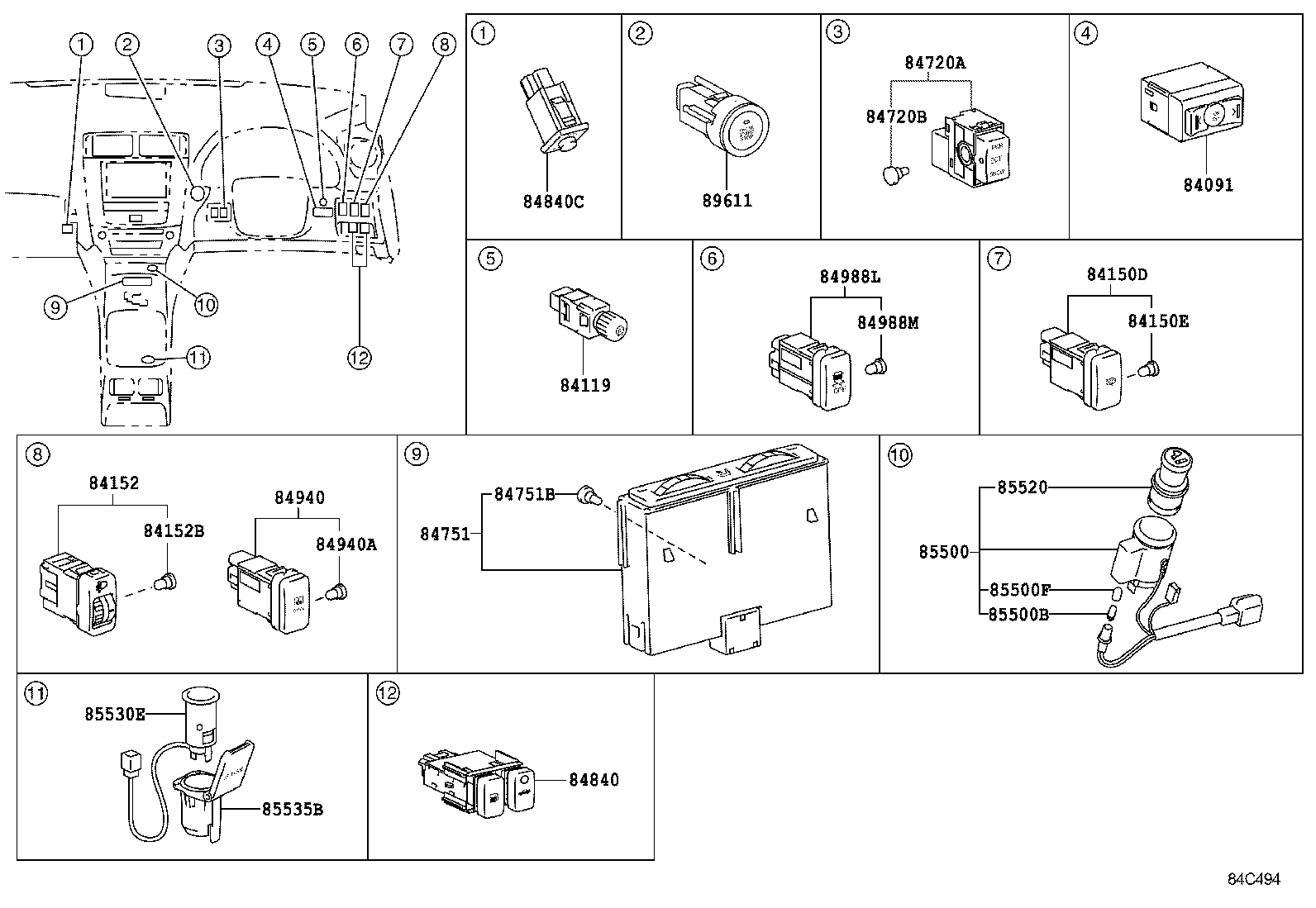

Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84091 — Switch Set, Satellite | ||||
| 84091-53010 |
Switch Set, Satellite
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84091-53010 |
Switch Set, Satellite
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84091-53010 |
Switch Set, Satellite
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84091-53010 |
Switch Set, Satellite
2010-08 → —
|
ALE20,GSE2# | — | |
| 84119 — Rheostat, Light Control | ||||
| 84119-48010 |
Rheostat, Light Control
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84119-48010 |
Rheostat, Light Control
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84119-48010 |
Rheostat, Light Control
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84119-48010 |
Rheostat, Light Control
2010-08 → —
|
ALE20,GSE2# | — | |
| 84150D — Switch Assy, Headlamp Cleaner | ||||
| 84150-60030 |
Switch Assy, Headlamp Cleaner
2006-02 → 2007-04
ended
|
ALE20 SPO | — | |
| 84150-60030 note |
Switch Assy, Headlamp Cleaner
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 84150-60030 note |
Switch Assy, Headlamp Cleaner
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84150-60030 note |
Switch Assy, Headlamp Cleaner
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 84150-60030 note |
Switch Assy, Headlamp Cleaner
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84150-60030 note |
Switch Assy, Headlamp Cleaner
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 84150-60030 |
Switch Assy, Headlamp Cleaner
2010-08 → —
|
GSE21 | — | |
| 84150-60030 note |
Switch Assy, Headlamp Cleaner
2010-08 → —
|
ALE20,GSE20 | — | |
| 84150E — Bulb, Headlamp Cleaner Switch | ||||
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2006-02 → 2007-04
ended
|
ALE20 SPO | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2010-08 → —
|
GSE21 | — | |
| 90010-01039 note |
Bulb, Headlamp Cleaner Switch
2010-08 → —
|
ALE20,GSE20 | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-53020 |
Switch, Headlamp Leveling
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 84152-53020 |
Switch, Headlamp Leveling
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 84152-53020 |
Switch, Headlamp Leveling
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84152-53020 |
Switch, Headlamp Leveling
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84152-53020 |
Switch, Headlamp Leveling
2010-08 → —
|
ALE20,GSE20 | — | |
| 84152B — Bulb (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
2005-08 → 2008-08
ended
|
ALE20,GSE20 LUX | — | |
| 90010-08107 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
2007-04 → 2008-08
ended
|
ALE20 SPO | — | |
| 90010-08107 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 90010-08107 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 90010-08107 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
2010-08 → —
|
ALE20,GSE20 | — | |
| 84720A — Switch Assy, Pattern Select, NO.1 | ||||
| 84720-30330 |
Switch Assy, Pattern Select, NO.1
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84720-30330 |
Switch Assy, Pattern Select, NO.1
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84720-30330 |
Switch Assy, Pattern Select, NO.1
2010-08 → 2011-08
ended
|
GSE2# | — | |
| 84721-53010 |
Switch Assy, Pattern Select, NO.1
2011-08 → —
|
GSE2# | — | |
| 84720B — Bulb (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 note |
Bulb (FOR PATTERN SELECT SWITCH)
2005-08 → 2008-08
ended
|
GSE20 ATM | — | |
| 84999-10710 note |
Bulb (FOR PATTERN SELECT SWITCH)
2008-08 → 2010-08
ended
|
GSE20 ATM | — | |
| 84999-10710 note |
Bulb (FOR PATTERN SELECT SWITCH)
2010-08 → 2011-08
ended
|
GSE2# | — | |
| 90010-01162 note |
Bulb (FOR PATTERN SELECT SWITCH)
2011-08 → —
|
GSE2# | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-30180 note |
Switch, Seat Heater
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84751-30190 note |
Switch, Seat Heater
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84751-30180 note |
Switch, Seat Heater
2008-08 → 2010-08
ended
|
ALE20,GSE20 LHD | — | |
| 84751-30180 note |
Switch, Seat Heater
2009-08 → 2010-08
ended
|
ALE20,GSE20 RHD | — | |
| 84751-30180 note |
Switch, Seat Heater
2008-08 → 2009-08
ended
|
ALE20,GSE20 RHD | — | |
| 84751-30190 note |
Switch, Seat Heater
2008-08 → 2010-08
ended
|
ALE20,GSE20 LHD | — | |
| 84751-30190 note |
Switch, Seat Heater
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 84751-30190 note |
Switch, Seat Heater
2009-08 → 2010-08
ended
|
ALE20,GSE20 RHD | — | |
| 84751-30190 note |
Switch, Seat Heater
2008-08 → 2009-08
ended
|
ALE20 RHD SPO;GSE20 RHD +1 | — | |
| 84751-30180 note |
Switch, Seat Heater
2010-08 → —
|
ALE20,GSE2# | — | |
| 84751-30190 note |
Switch, Seat Heater
2010-08 → —
|
ALE20,GSE2# | — | |
| 84751B — Bulb, Seat Heater Switch | ||||
| 90010-01070 note |
Bulb, Seat Heater Switch
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2008-08 → 2008-10
ended
|
GSE20 RHD MTM | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2008-08 → 2009-08
ended
|
ALE20 RHD SPO;GSE20 RHD +1 | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2008-08 → 2009-08
ended
|
ALE20,GSE20 RHD | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2008-08 → 2010-08
ended
|
ALE20,GSE20 LHD | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2008-08 → 2010-08
ended
|
ALE20,GSE20 LHD | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2009-08 → 2010-08
ended
|
ALE20,GSE20 RHD | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2009-08 → 2010-08
ended
|
ALE20,GSE20 RHD | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2010-08 → —
|
ALE20,GSE2# | — | |
| 90010-01070 note |
Bulb, Seat Heater Switch
2010-08 → —
|
ALE20,GSE2# | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-33050 note |
Switch Assy, Luggage Compartment Door Opening
2005-08 → 2006-07
ended
|
ALE20,GSE20 | — | |
| 84840-33050 note |
Switch Assy, Luggage Compartment Door Opening
2006-07 → 2008-08
ended
|
ALE20 | — | |
| 84840-33080 note |
Switch Assy, Luggage Compartment Door Opening
2006-07 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84840-33050 note |
Switch Assy, Luggage Compartment Door Opening
2008-08 → 2010-08
ended
|
ALE20 LHD | — | |
| 84840-33080 note |
Switch Assy, Luggage Compartment Door Opening
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84840-33080 note |
Switch Assy, Luggage Compartment Door Opening
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84840-33050 note |
Switch Assy, Luggage Compartment Door Opening
2010-08 → 2012-08
ended
|
ALE20 LHD | — | |
| 84840-33080 |
Switch Assy, Luggage Compartment Door Opening
2010-08 → —
|
ALE20,GSE2# | — | |
| 84840C — Switch Assy, Luggage Door Opening, Cancel | ||||
| 84840-24020 |
Switch Assy, Luggage Door Opening, Cancel
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84840-24020 |
Switch Assy, Luggage Door Opening, Cancel
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84840-24020 |
Switch Assy, Luggage Door Opening, Cancel
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84840-24020 |
Switch Assy, Luggage Door Opening, Cancel
2010-08 → —
|
ALE20,GSE2# | — | |
| 84940 — Switch Assy, Curtain | ||||
| 84940-22010 note |
Switch Assy, Curtain
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84940-22010 note |
Switch Assy, Curtain
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 84940-22010 note |
Switch Assy, Curtain
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84940-22010 note |
Switch Assy, Curtain
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 84940-22010 note |
Switch Assy, Curtain
2010-08 → —
|
GSE2#;ALE20 LHD | — | |
| 84940A — Bulb, Curtain Switch | ||||
| 90010-01062 note |
Bulb, Curtain Switch
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 90010-01062 note |
Bulb, Curtain Switch
2008-08 → 2008-10
ended
|
GSE20 MTM | — | |
| 90010-01062 note |
Bulb, Curtain Switch
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 90010-01062 note |
Bulb, Curtain Switch
2008-08 → 2010-08
ended
|
GSE20 ATM;ALE20 LUX;ALE20 LHD +1 | — | |
| 90010-01062 note |
Bulb, Curtain Switch
2010-08 → —
|
GSE2#;ALE20 LHD | — | |
| 84988L — Switch, Vsc Off | ||||
| 84988-30140 |
Switch, Vsc Off
2006-07 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84988-30140 |
Switch, Vsc Off
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84988-30140 |
Switch, Vsc Off
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84988-30140 |
Switch, Vsc Off
2010-08 → 2011-08
ended
|
ALE20,GSE2# | — | |
| 84988-53010 |
Switch, Vsc Off
2011-08 → —
|
ALE20,GSE2# | — | |
| 84988M — Bulb, Vsc Off Switch | ||||
| 90010-01137 note |
Bulb, Vsc Off Switch
2006-07 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 90010-01137 note |
Bulb, Vsc Off Switch
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 90010-01137 note |
Bulb, Vsc Off Switch
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 90010-01039 note |
Bulb, Vsc Off Switch
2011-08 → —
|
ALE20,GSE2# | — | |
| 90010-01137 note |
Bulb, Vsc Off Switch
2010-08 → 2011-08
ended
|
ALE20,GSE2# | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-30520 |
Lighter Assy, Cigarette
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 85500-30520 |
Lighter Assy, Cigarette
2008-08 → 2010-08
ended
|
ALE20,GSE20 | — | |
| 85500-30520 note |
Lighter Assy, Cigarette
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 85500-30520 note |
Lighter Assy, Cigarette
2010-08 → 2013-04
ended
|
ALE20,GSE2# | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90010-01111 note |
Bulb, Cigarette Lighter
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 90010-01111 note |
Bulb, Cigarette Lighter
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 90010-01111 note |
Bulb, Cigarette Lighter
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 90010-01111 note |
Bulb, Cigarette Lighter
2010-08 → —
|
ALE20,GSE2# | — | |
| 85500F — Cap, Cigarette Lighter Bulb | ||||
| 84998-10510 |
Cap, Cigarette Lighter Bulb
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 84998-10510 |
Cap, Cigarette Lighter Bulb
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 84998-10510 |
Cap, Cigarette Lighter Bulb
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 84998-10510 note |
Cap, Cigarette Lighter Bulb
2010-08 → —
|
ALE20,GSE2# | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-89101 |
Knob And Element Assy, Cigarette Lighter
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 85520-89101 |
Knob And Element Assy, Cigarette Lighter
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 85520-89101 |
Knob And Element Assy, Cigarette Lighter
2008-08 → 2010-08
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 85520-89101 note |
Knob And Element Assy, Cigarette Lighter
2010-08 → —
|
ALE20,GSE2# | — | |
| 85530E — Socket Assy, Power Outlet, NO.3 | ||||
| 85530-53040 |
Socket Assy, Power Outlet, NO.3
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 85530-53050 |
Socket Assy, Power Outlet, NO.3
2008-08 → 2010-08
ended
|
ALE20,GSE20 | — | |
| 85530-53050 |
Socket Assy, Power Outlet, NO.3
2010-08 → 2013-04
ended
|
ALE20,GSE2# | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-50020 |
Cover, Power Outlet Socket, NO.1
2005-08 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 85535-50020 |
Cover, Power Outlet Socket, NO.1
2008-08 → 2010-08
ended
|
ALE20,GSE20 | — | |
| 85535-50020 |
Cover, Power Outlet Socket, NO.1
2010-08 → 2013-04
ended
|
ALE20,GSE2# | — | |
| 89611 — Switch, Push Start | ||||
| 89611-30020 |
Switch, Push Start
2005-08 → 2008-02
ended
|
ALE20,GSE20 | — | |
| 89611-30021 |
Switch, Push Start
2008-03 → 2008-08
ended
|
ALE20,GSE20 | — | |
| 89611-30021 |
Switch, Push Start
2008-08 → 2009-08
ended
|
ALE20 RHD SPO | — | |
| 89611-30021 |
Switch, Push Start
2008-08 → 2010-01
ended
|
ALE20 LHD SPO;ALE20,GSE20 LUX | — | |
| 89611-30022 |
Switch, Push Start
2010-02 → 2010-08
ended
|
ALE20,GSE20 | — | |
| 89611-30022 |
Switch, Push Start
2010-08 → 2011-04
ended
|
ALE20,GSE2# | — | |
| 89611-30023 |
Switch, Push Start
2011-05 → 2012-04
ended
|
ALE20,GSE2# | — | |
| 89611-30024 |
Switch, Push Start
2012-05 → —
|
ALE20,GSE2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
