Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

10 part groups · 3 illustrations

Illustrations

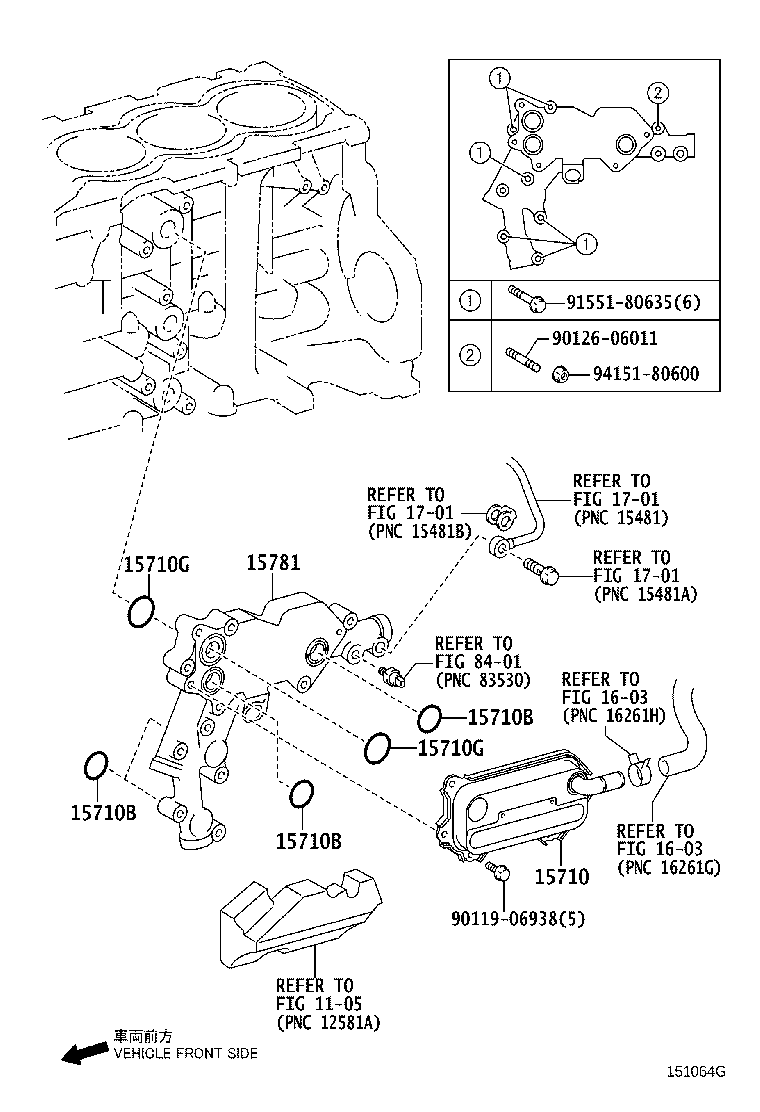

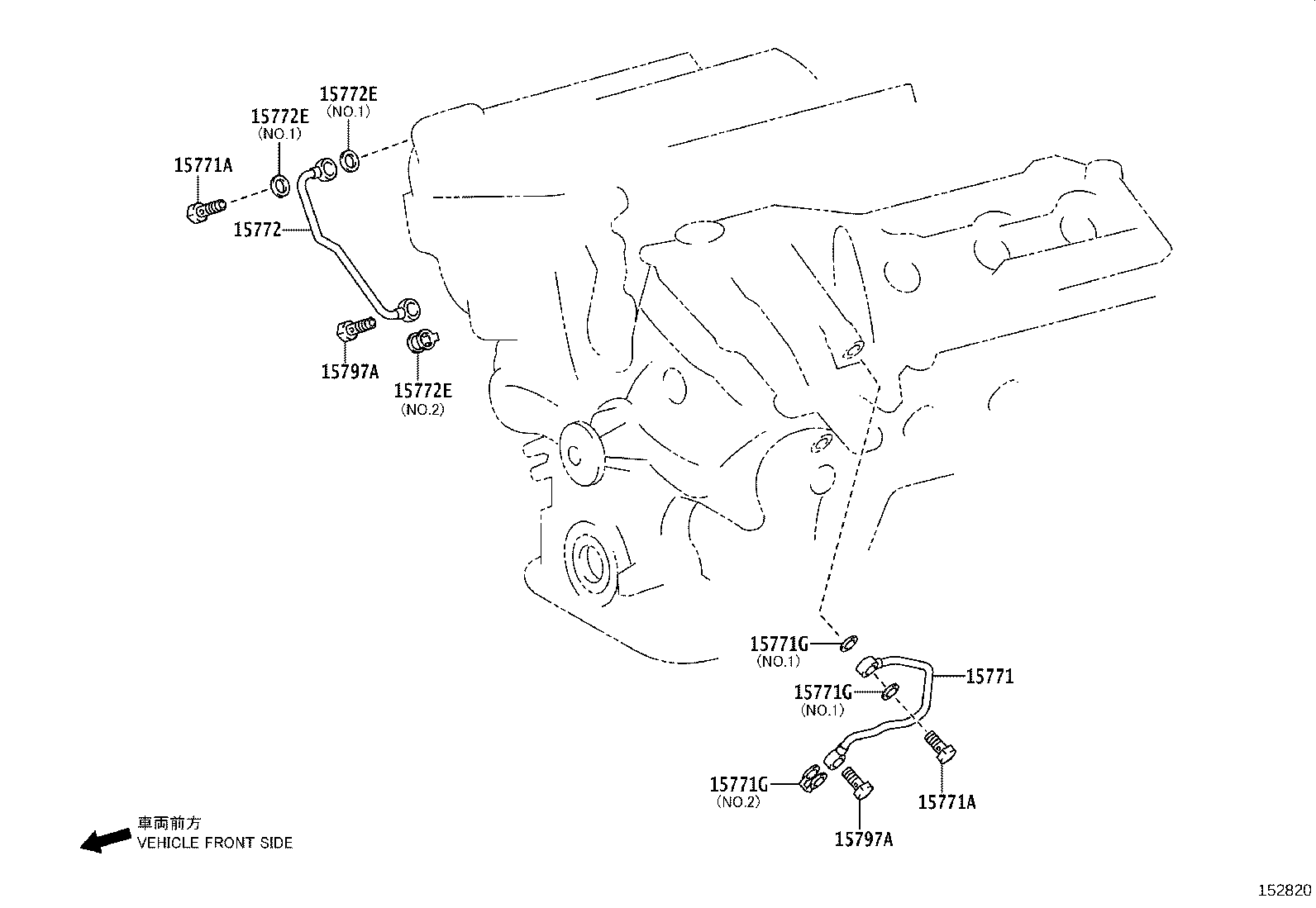

Figure 151474A 151474A 2005-11 → 2008-11 Figure 151064G 151064G 2008-11 → — Figure 152820 152820 2005-08 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710G Ring, O, NO.2
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772E Gasket(FOR OIL PIPE)
15781 Bracket, Oil Cooler, NO.1
15797A Bolt, Oil Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
