Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

39 part groups · 4 illustrations

Illustrations

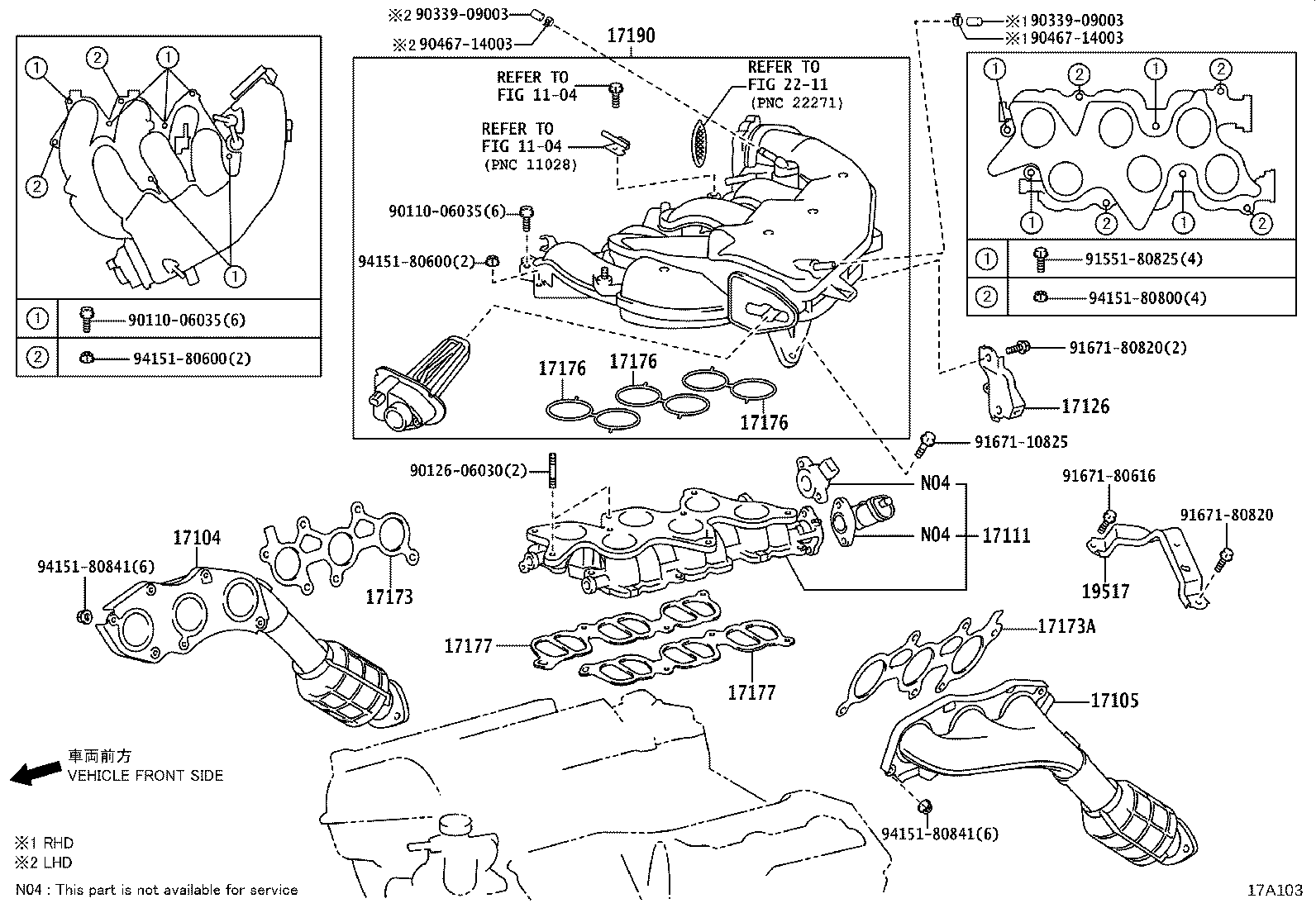

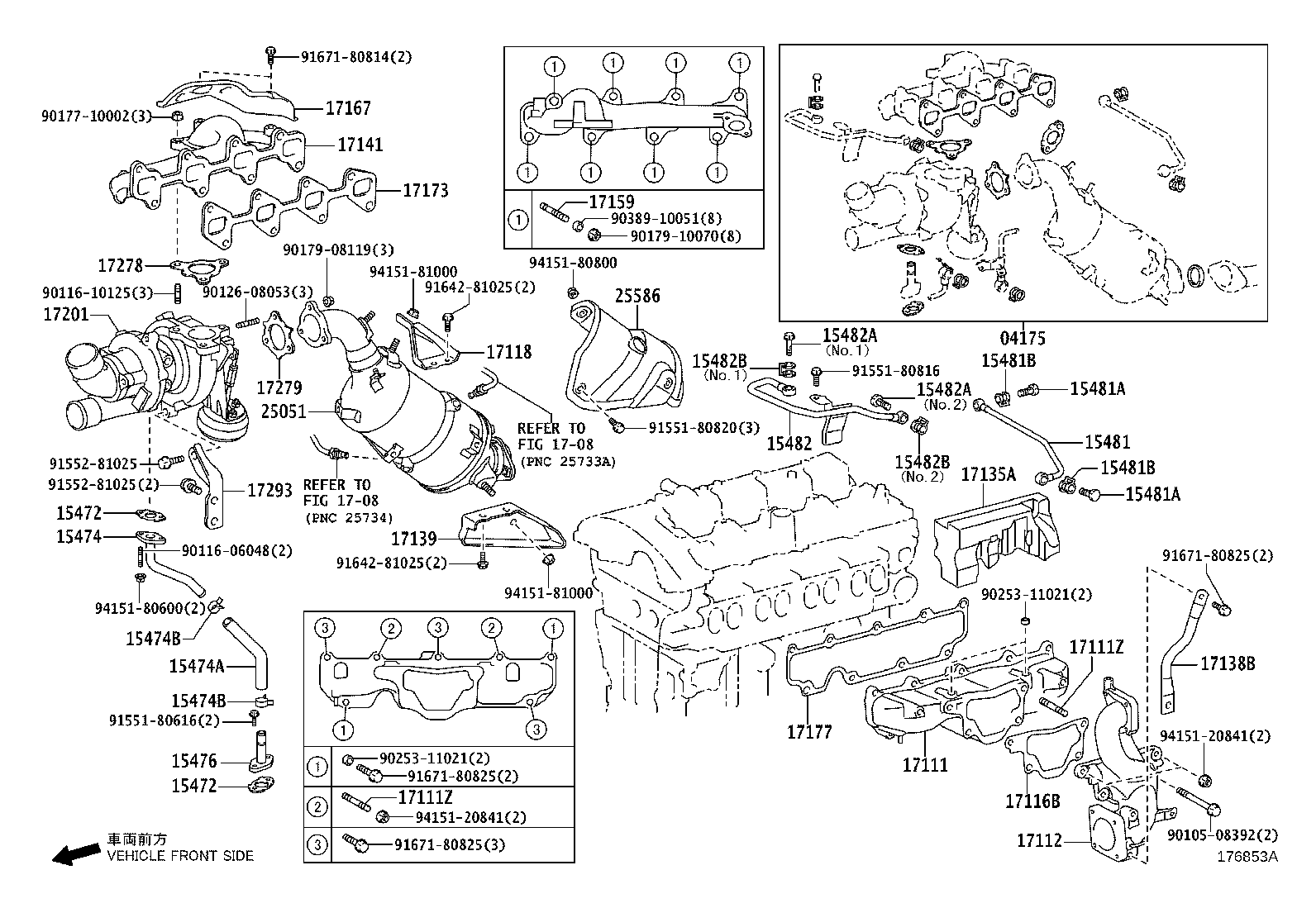

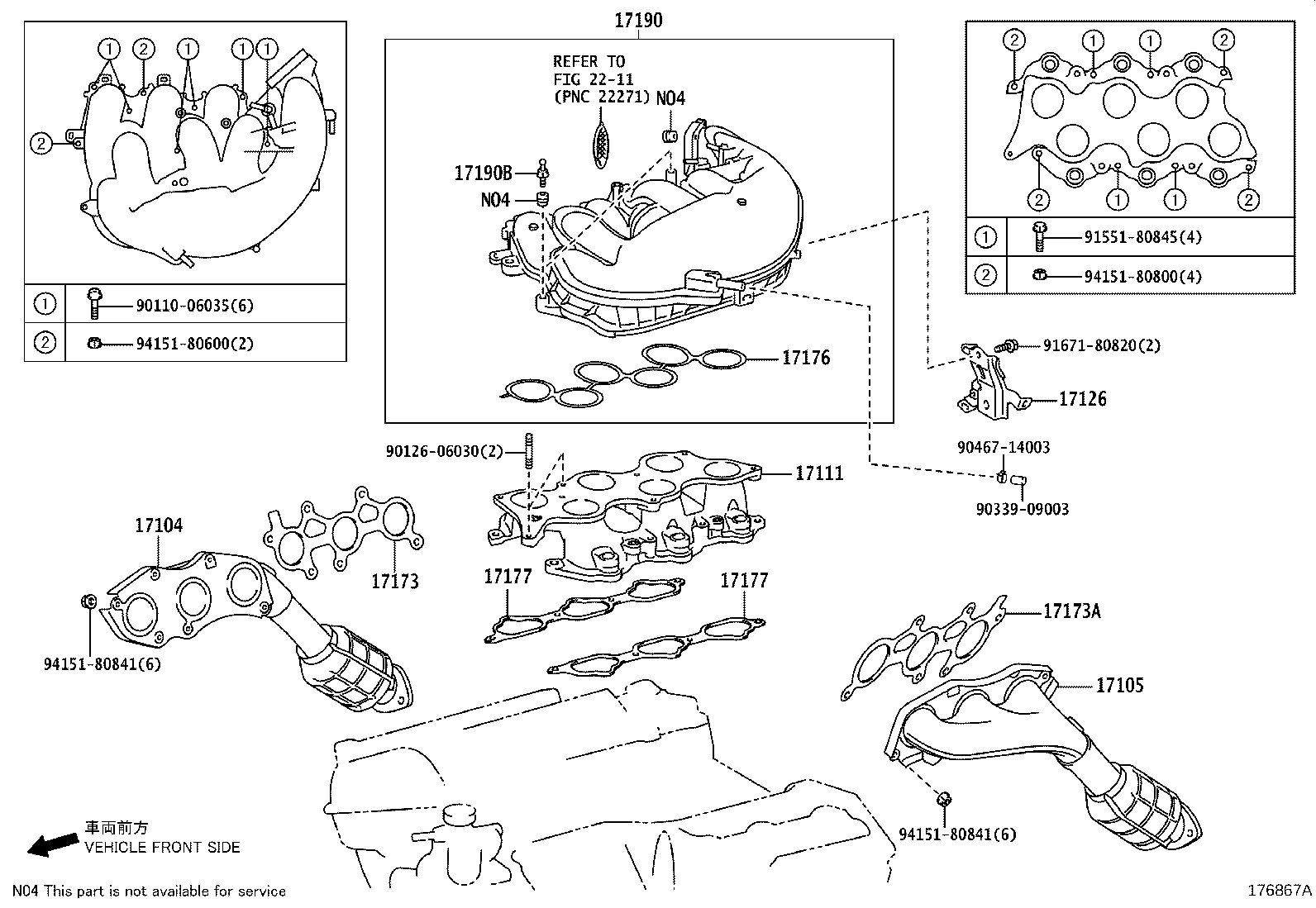

Figure 174722H 174722H 2005-11 → 2010-08 Figure 176853A 176853A 2010-08 → — Figure 176867A 176867A 2010-08 → — Figure 17A103 17A103 2005-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15476 Pipe, Turbo Oil Outlet, NO.2
15481 Pipe, Turbo Oil, NO.1
15481A Bolt, Union, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
15482 Pipe, Turbo Oil, NO.2
15482A Bolt, Union, NO.2
15482B Gasket(FOR UNION BOLT NO.2)
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17112 Manifold, Intake, NO.2
17116B Gasket, Intake Flange
17118 Stay, Manifold
17126 Stay, Surge Tank, NO.2
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
17190B Bracket, Intake Air Surge Tank, NO.2
17201 Turbocharger Sub-assy
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
19517 Bracket, Ignition Coil Cover
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
