Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

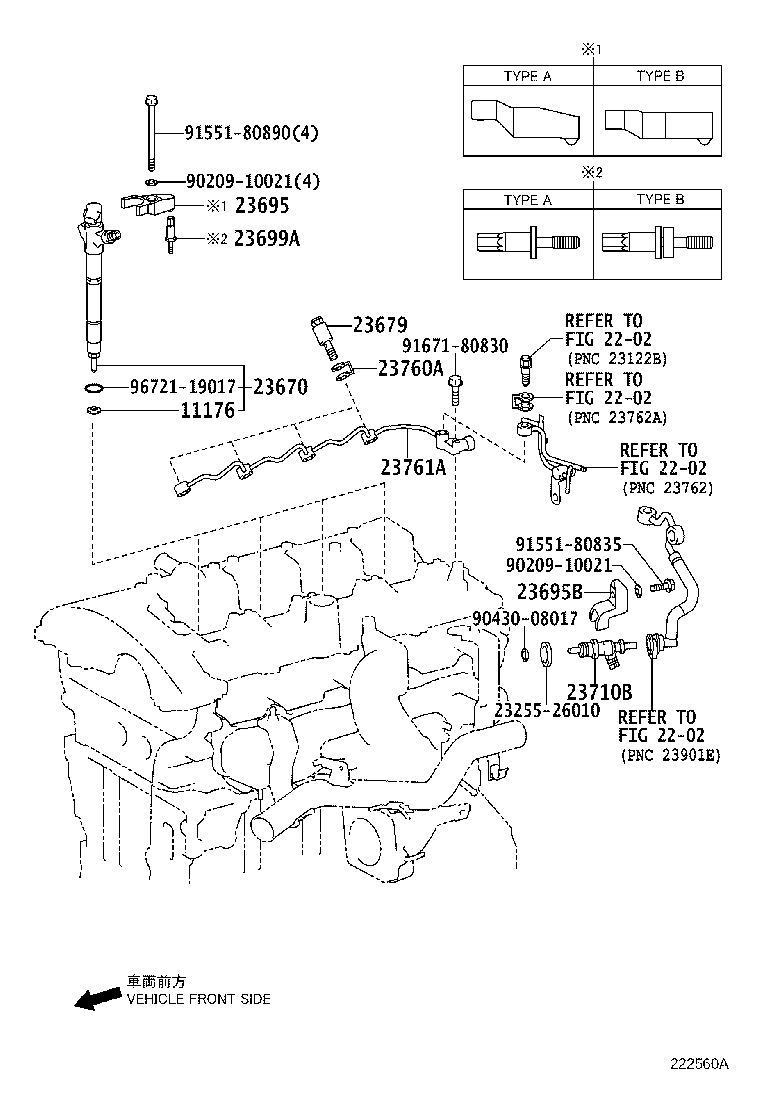

Injection Nozzle
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11176 | Seat, Injection Nozzle |
| 23670 | Injector Assy |
| 23679 | Screw, Injector Follow |
| 23695 | Clamp, Nozzle Holder, NO.1 |
| 23695B | Clamp, Nozzle Holder, NO.2 |
| 23699A | Seat, Nozzle Holder Clamp |
| 23710B | Injector Assy, Exhaust Fuel Addition |
| 23760A | Gasket |
| 23761A | Pipe, Nozzle Leakage, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
