Injection Pump Assembly

26 part groups · 2 illustrations

Illustrations

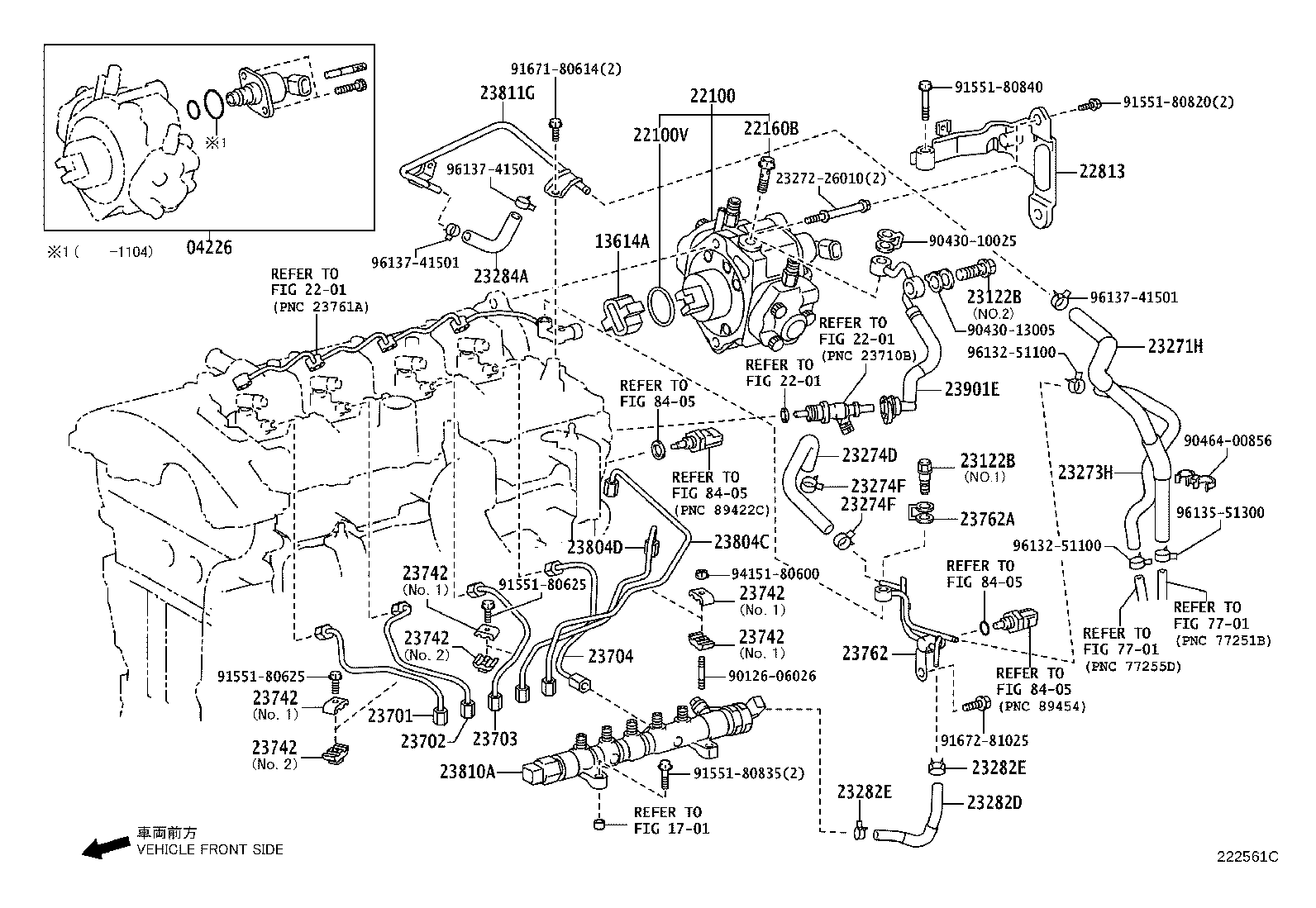

Figure 221857L 221857L 2005-11 → 2010-08 Figure 222561C 222561C 2010-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
13614A Coupling, Supply Pump Drive, NO.1
22100 Pump Assy, Injection OR Supply
22100V Ring, O(FOR INJECTION PUMP)
22160B Screw
22813 Protector, Injection Pump, NO.1
23122B Valve, Check
23271H Hose, Fuel, NO.1
23273H Hose, Fuel, NO.2
23274D Hose, Fuel, NO.3
23274F Clip(FOR FUEL HOSE NO.3)
23282D Hose, Fuel, NO.4
23282E Clip(FOR FUEL HOSE NO.4)
23284A Hose, Fuel, NO.5
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23742 Clamp, Injection Pipe, NO.2
23762 Pipe, Nozzle Leakage, NO.2
23762A Gasket, Nozzle Leakage Pipe NO.2
23804C Pipe Sub-assy, Fuel Inlet
23804D Pipe Sub-assy, Fuel, NO.4
23810A Rail Assy, Common
23811G Pipe, Fuel, NO.1
23901E Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
