Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

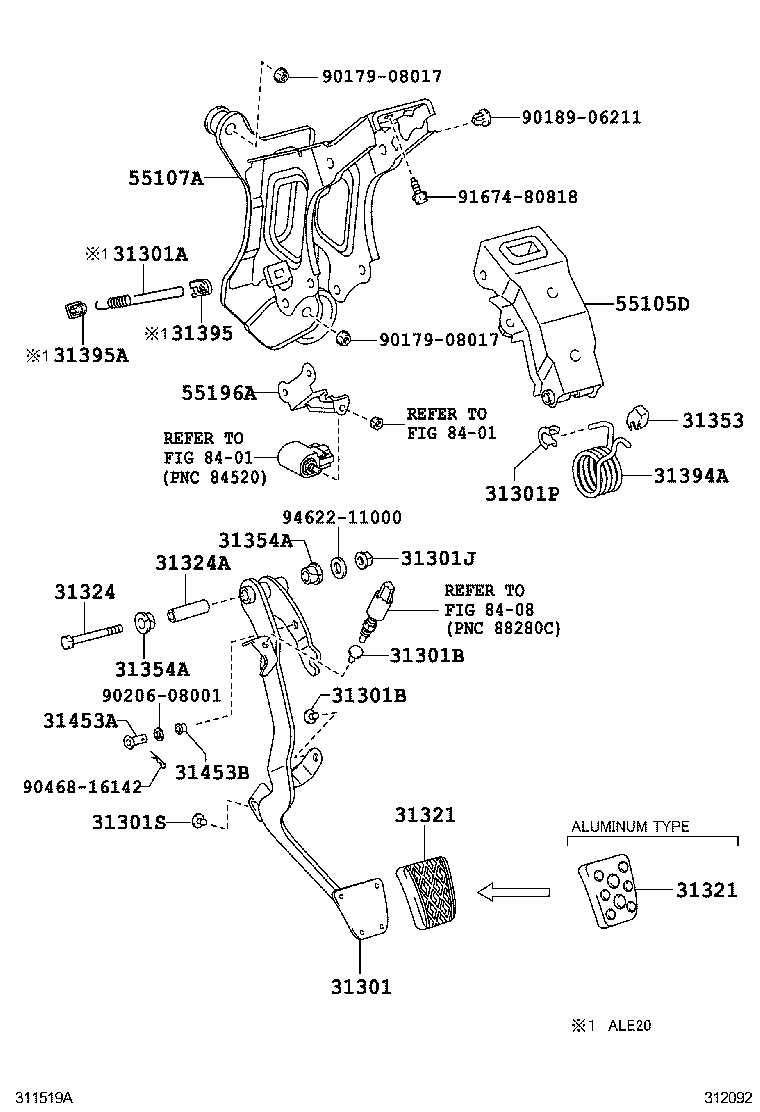

Clutch Pedal & Flexible Hose
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31301S | Cushion, NO.2(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31354A | Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31394A | Spring, Pedal W/Hook |
| 31395 | Hook, Pedal Spring |
| 31395A | Hook, Pedal Spring, NO.1 |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31490 | Accumulator Assy, Clutch |
| 55105D | Bracket Sub-assy, Clutch Pedal |
| 55107A | Support Sub-assy, Clutch Pedal |
| 55196A | Bracket, Clutch Start Switch Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
