Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

20 part groups · 2 illustrations

Illustrations

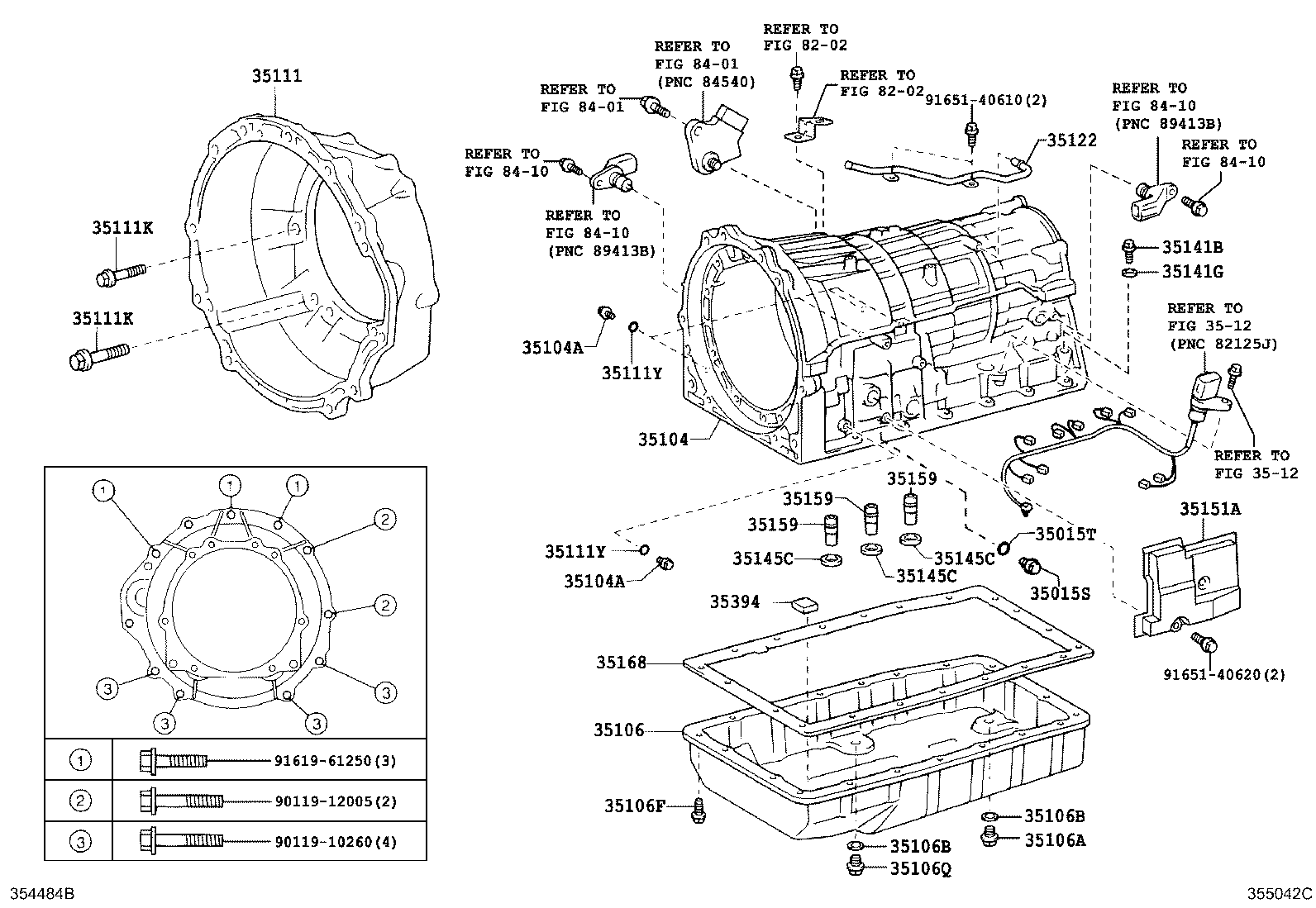

Figure 356825A 356825A 2005-08 → — Figure 355042C 355042C 2010-08 → —

Part groups

PNCDescription
35015S Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
35015T Ring, O(FOR TRANSMISSION CASE ADAPTER)
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35122 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35141G Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35145C Gasket, Transaxle Case
35151A Cover, Transaxle Case, Upper
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
