Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

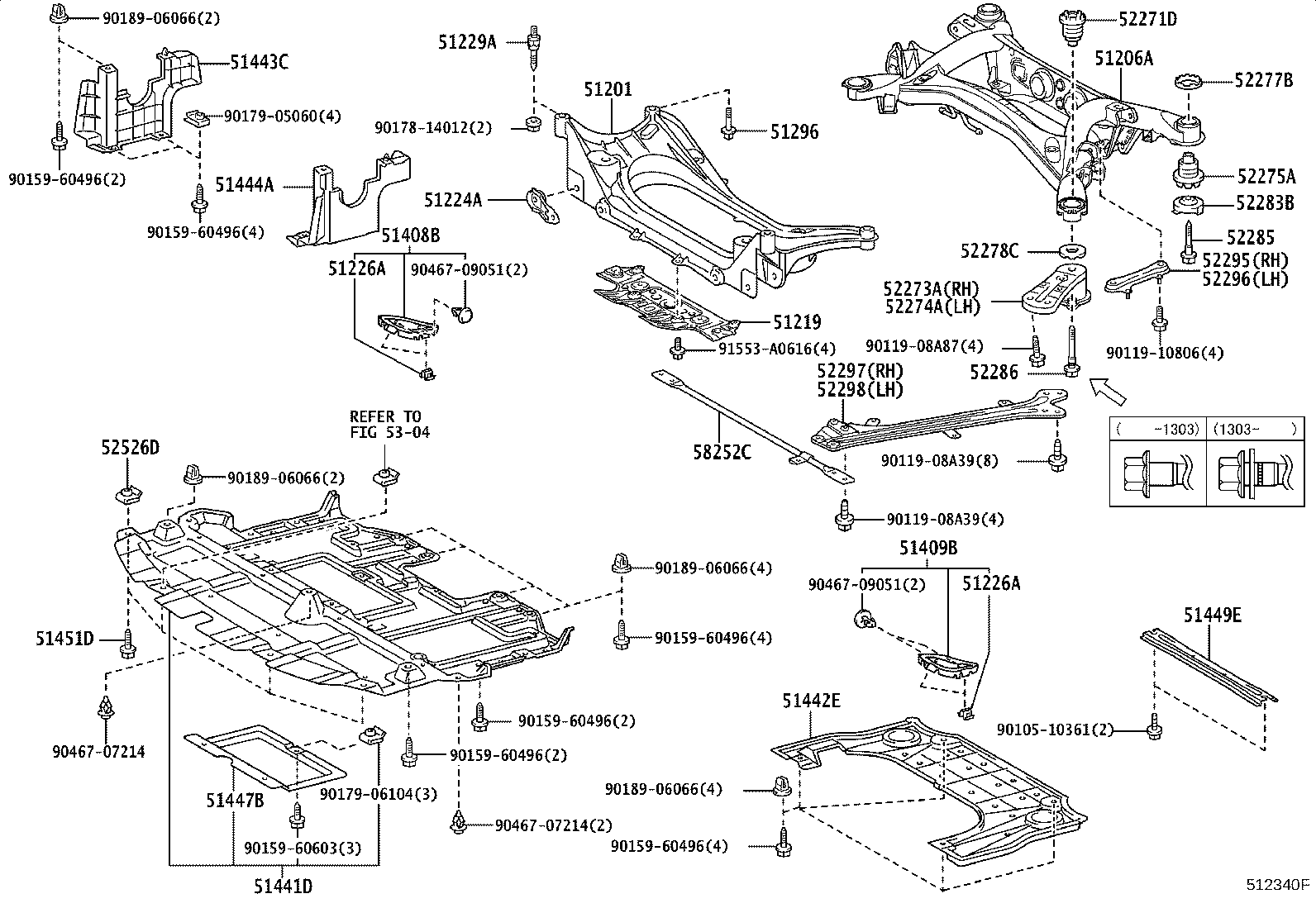

Suspension Crossmember & Under Cover
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51206A | Member Sub-assy, Rear Suspension |
| 51219 | Protector, Front Suspension Member, Lwr |
| 51224A | Plate, Front Suspension Menber Brace |
| 51226A | Bracket, Front Suspension Member, LH |
| 51229A | Bolt, Front Suspension Member Mounting |
| 51296 | Bolt, Front Suspension Member Mounting |
| 51408B | Cover Sub-assy, Engine Under, RH |
| 51409B | Cover Sub-assy, Engine Under, LH |
| 51436B | Bracket, Engine Side Cover, NO.1 RH |
| 51437A | Bracket, Engine Side Cover, NO.1 LH |
| 51441D | Cover, Engine Under |
| 51442E | Cover, Engine Under, NO.2 |
| 51443C | Cover, Engine Under, Rear RH |
| 51444A | Cover, Engine Under, Rear LH |
| 51447B | Protector, Oil Pan |
| 51449E | Bracket, Engine Under Cover Air Guide |
| 51451D | Screw, NO.1 |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52277B | Stopper, Rear Suspension Member, Rear Upper |
| 52278C | Stopper, Rear Suspension Member, Rear Lower |
| 52283B | Stopper, Differential Support Member, Lower |
| 52285 | Bolt, Differential Support Member Mounting, NO.1 |
| 52286 | Bolt, Differential Support Member Mounting, NO.2 |
| 52295 | Brace, Rear Suspension Member, RH |
| 52296 | Brace, Rear Suspension Member, LH |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
| 52298 | Brace, Rear Suspension Member, Rear Lower LH |
| 52526D | Retainer, Front Bumper, Lower |
| 58252C | Brace, Floor Panel, Rear NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
