Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 6 illustrations

Illustrations

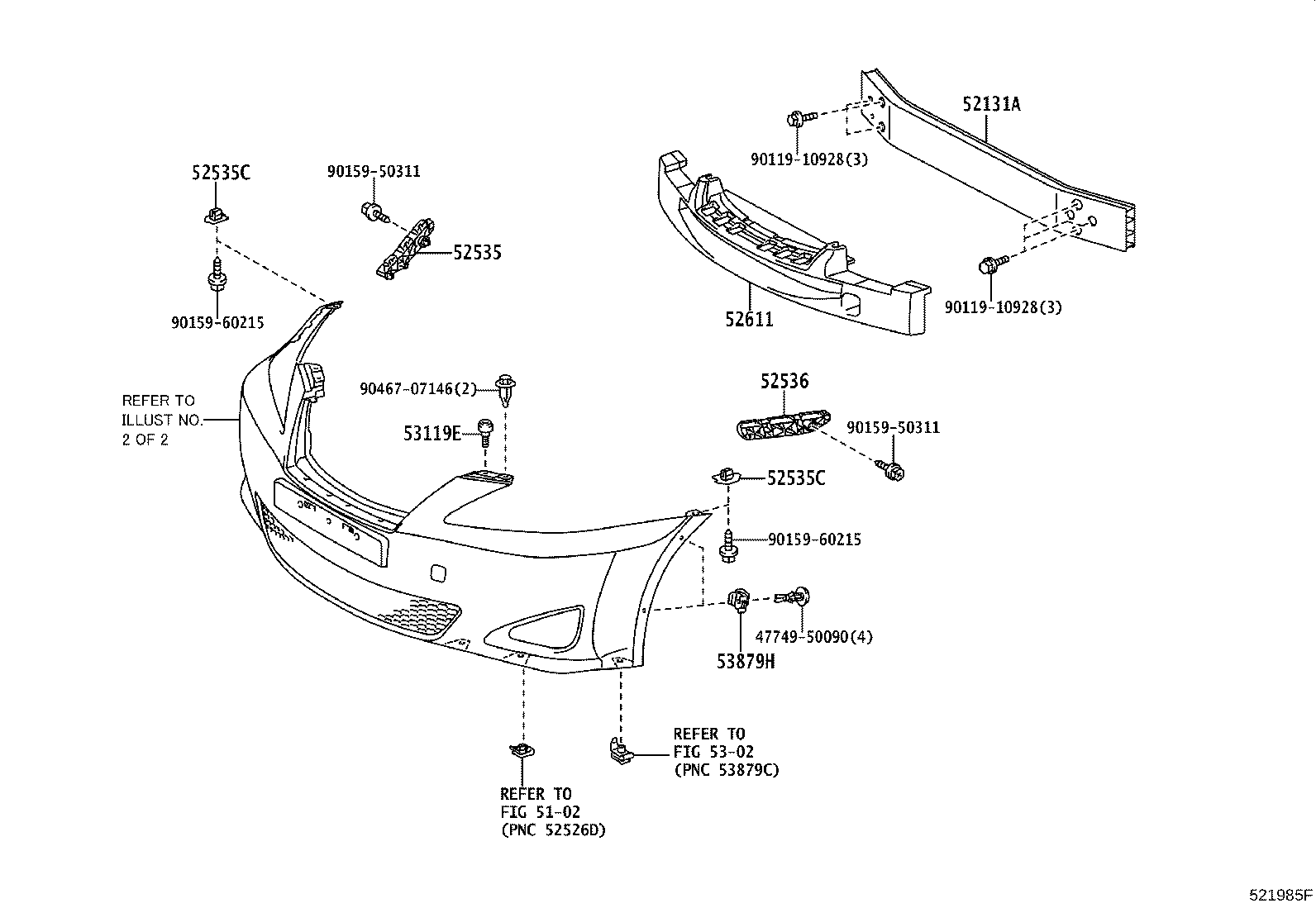

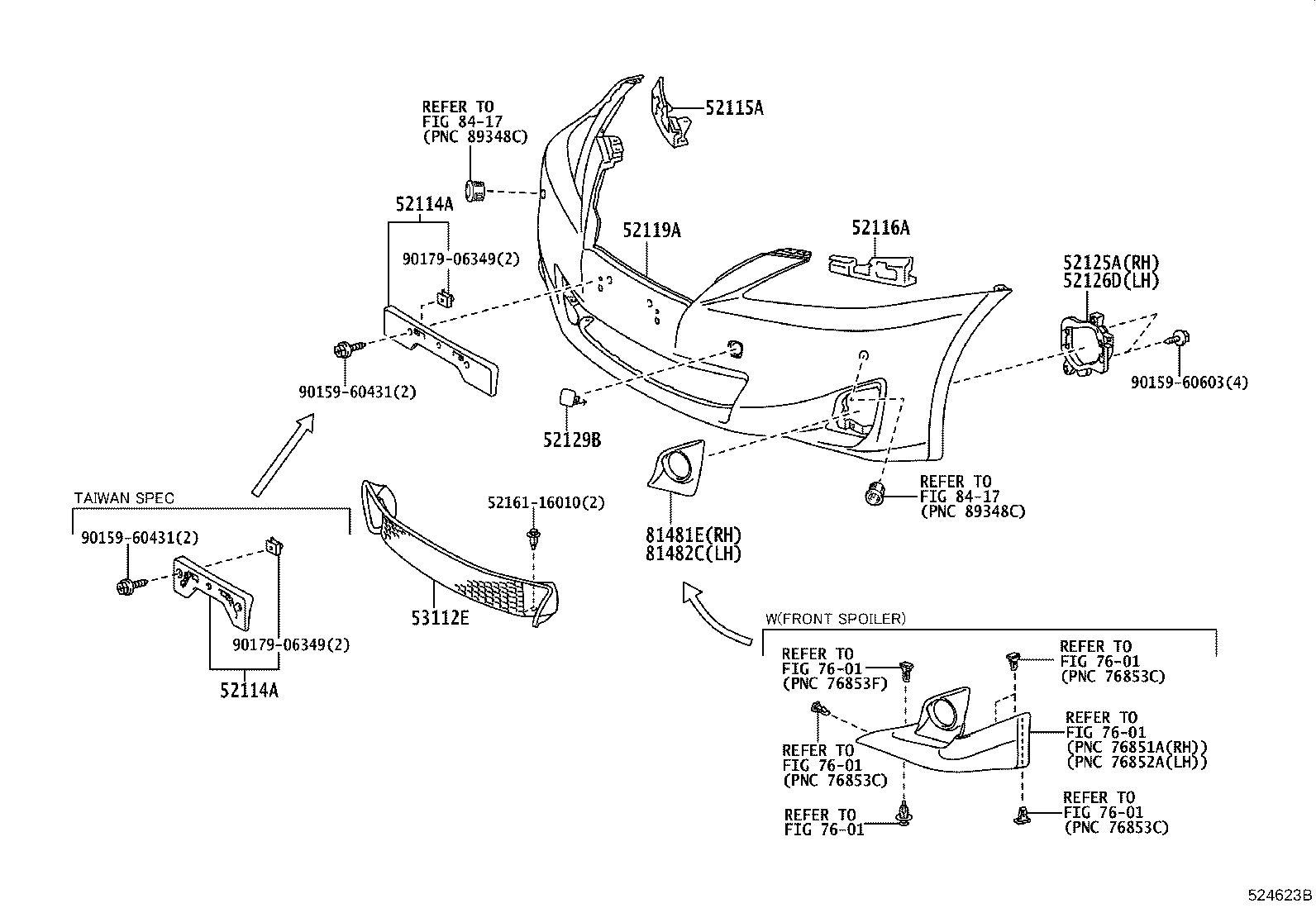

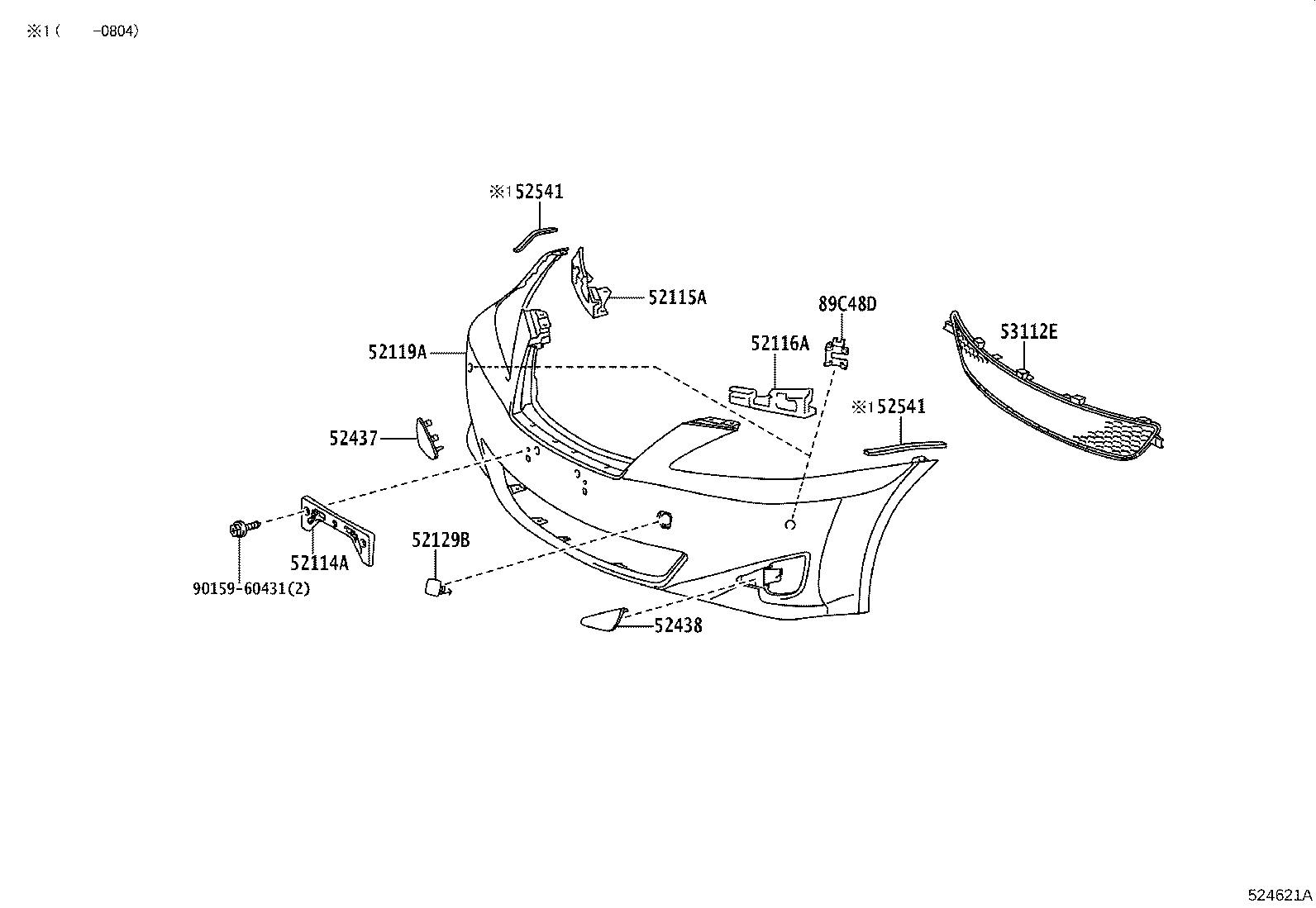

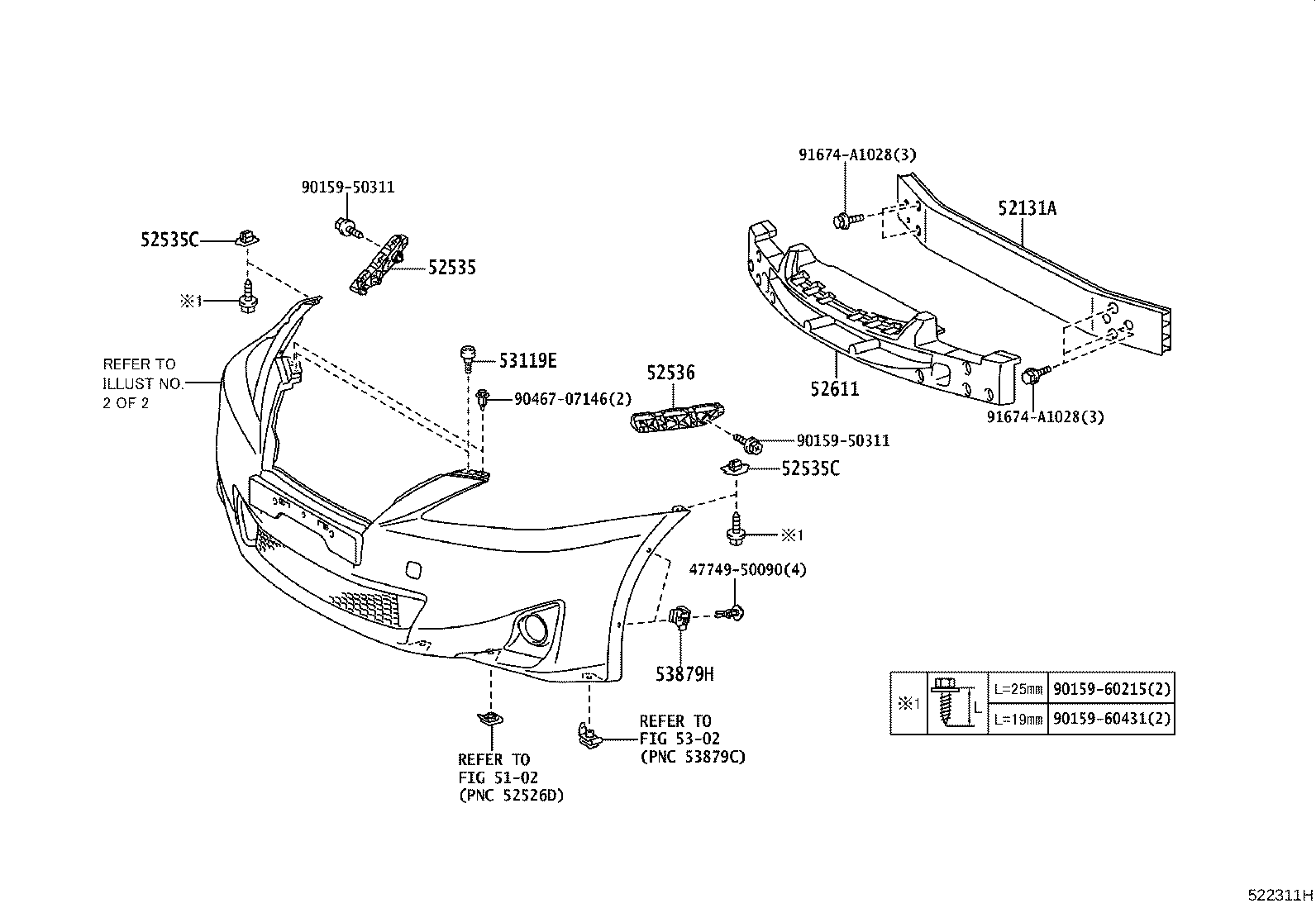

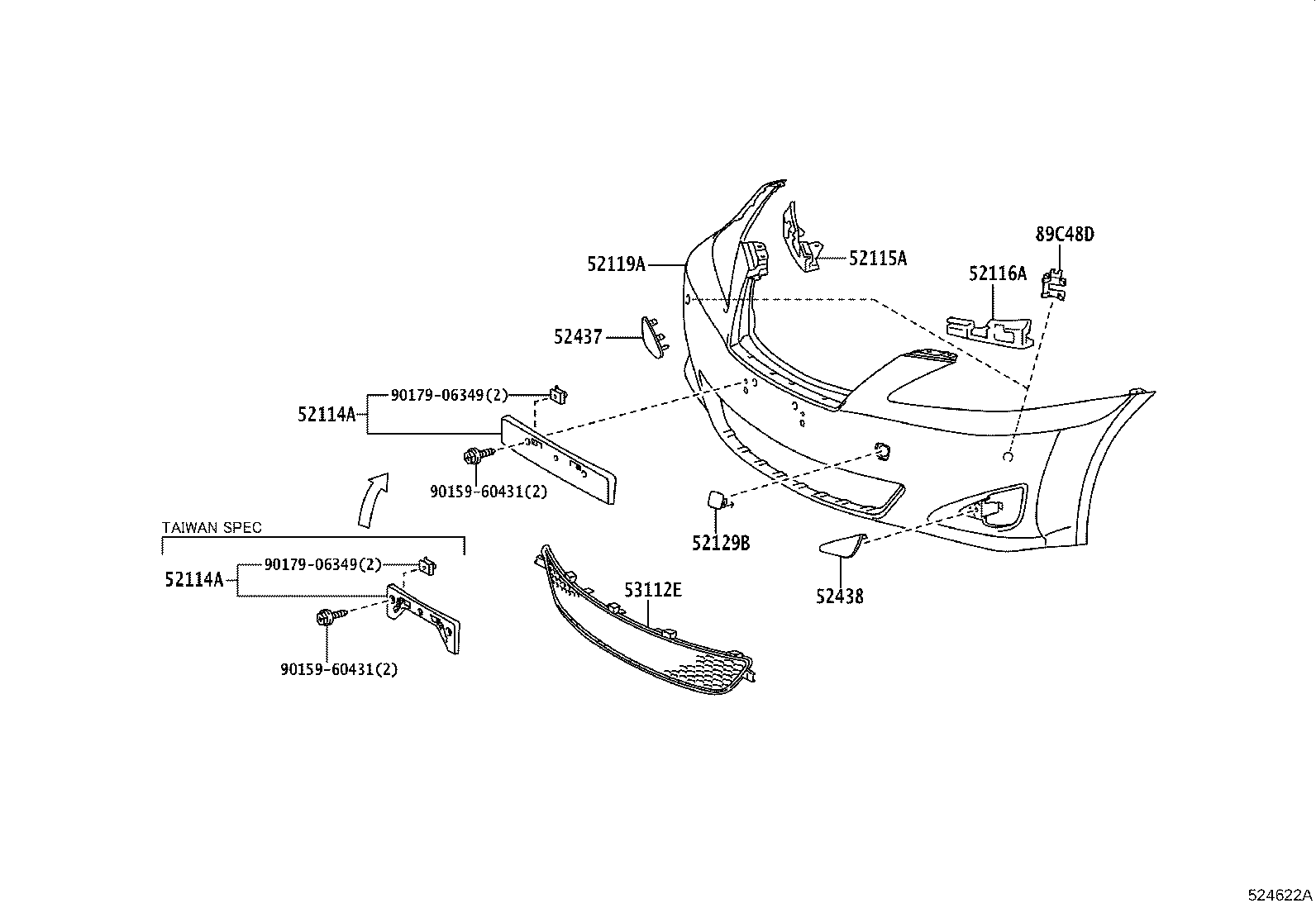

Figure 523021E 523021E 2005-08 → 2008-08 Figure 524621A 524621A 2005-08 → 2008-08 Figure 521985F 521985F 2008-08 → 2010-08 Figure 524622A 524622A 2008-08 → 2010-08 Figure 522311H 522311H 2010-08 → — Figure 524623B 524623B 2010-08 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
