Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

Figure 531963F

531963F 2005-08 → 2008-08

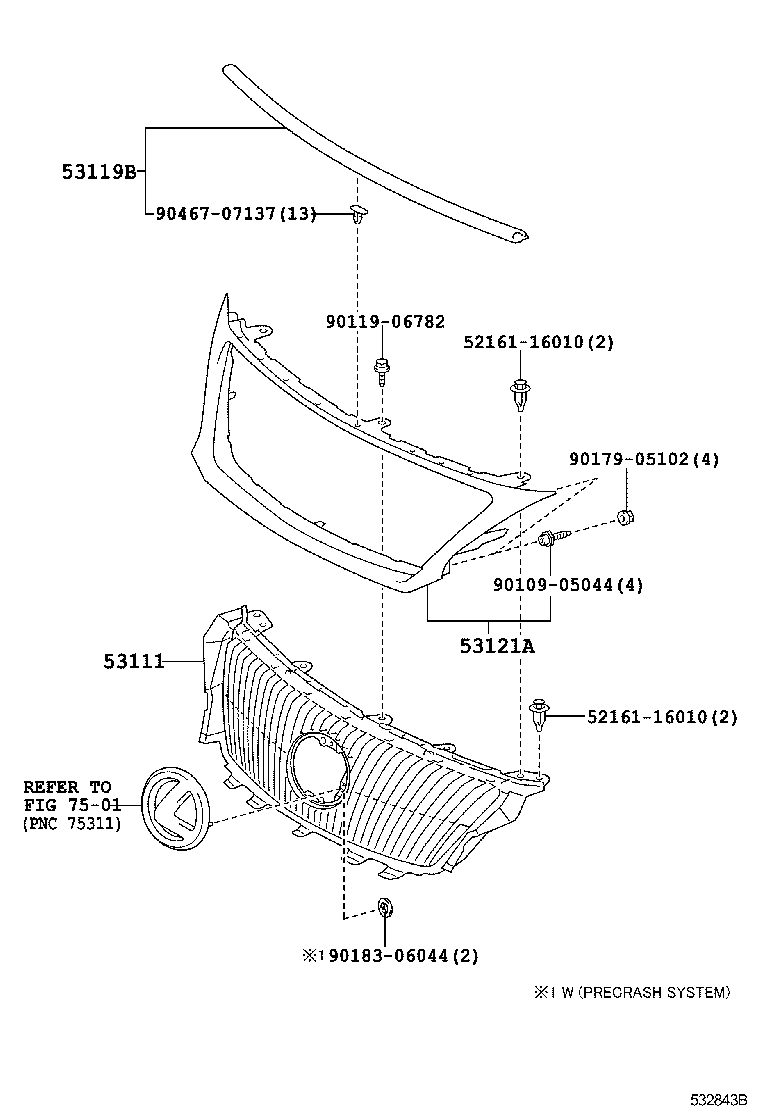

Figure 532843B

532843B 2008-08 → 2010-08

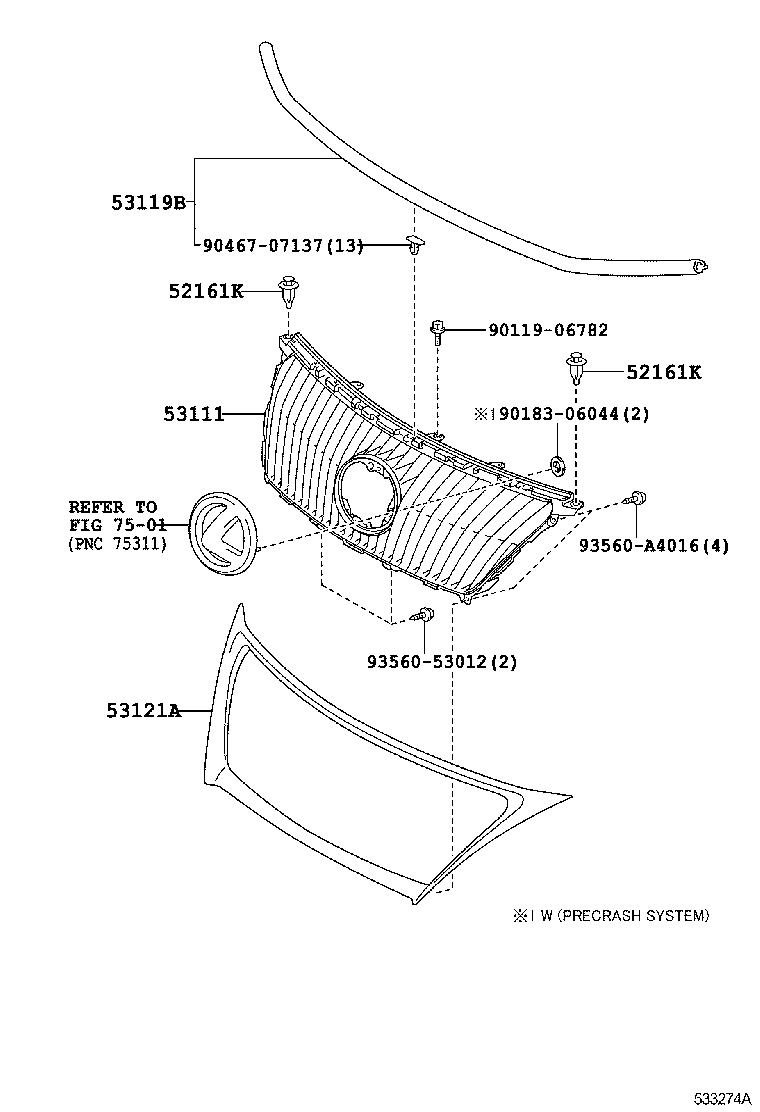

Figure 533274A

533274A 2010-08 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53111	Grille, Radiator
53119B	Protector, Radiator Grille
53121A	Moulding, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
