Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

22 part groups · 2 illustrations

Illustrations

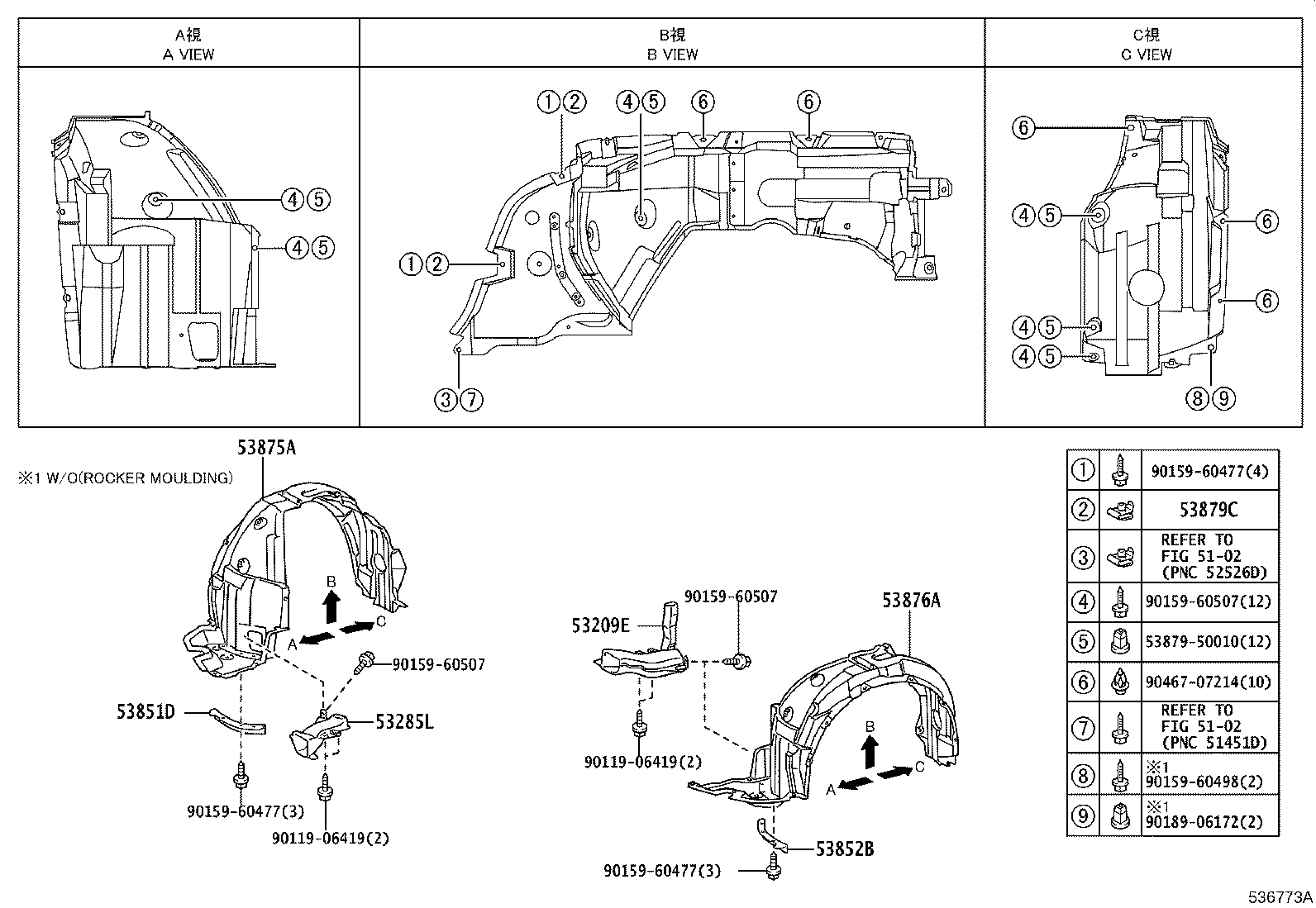

Figure 532141I 532141I 2005-08 → — Figure 536773A 536773A 2005-08 → —

Part groups

PNCDescription
53209E Duct Sub-assy, Cool Air Intake, NO.3
53285L Duct, Cool Air Intake, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53378C Seal, Hood Air Intake Duct
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879C Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
