Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

57 part groups · 15 illustrations

Illustrations

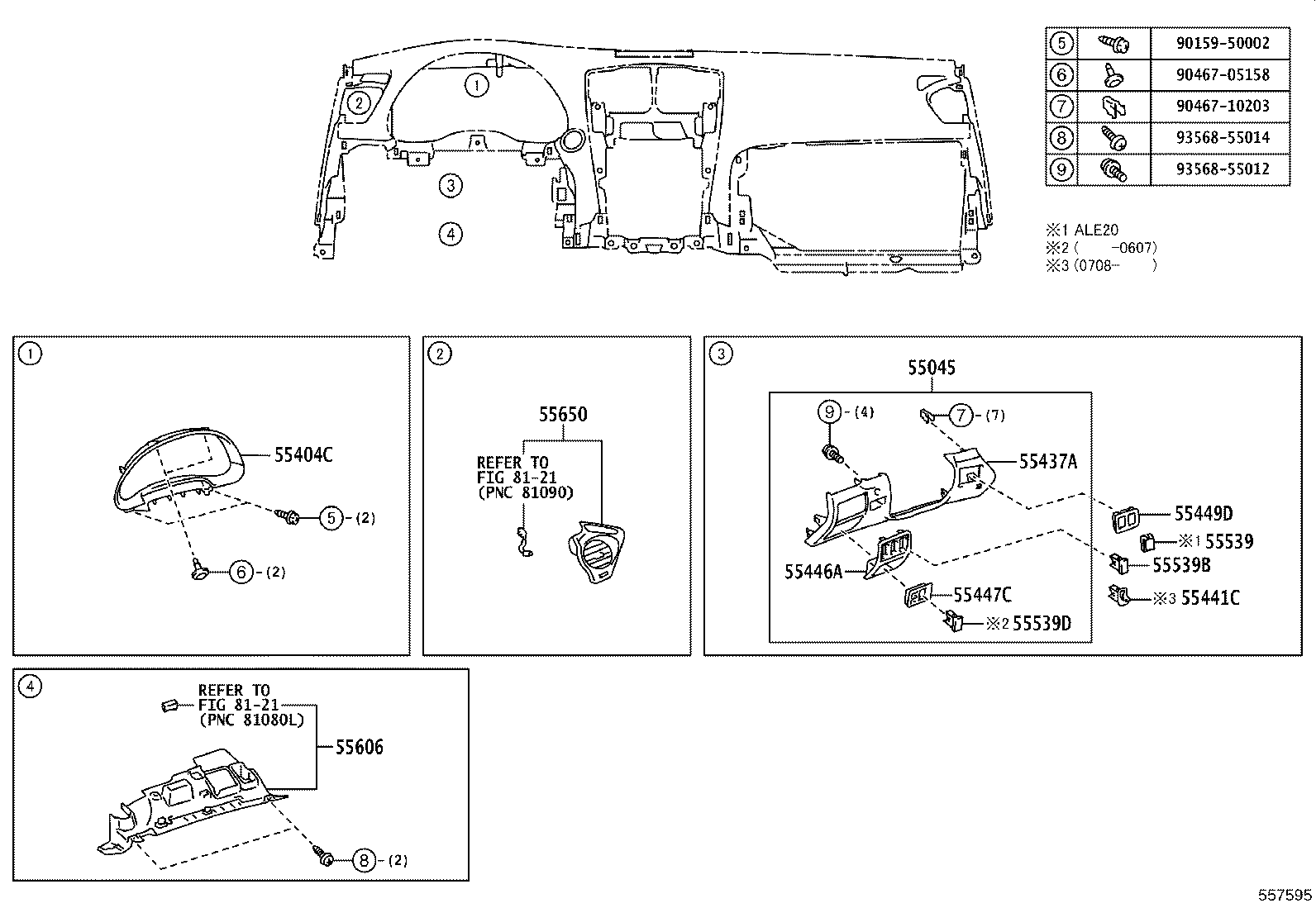

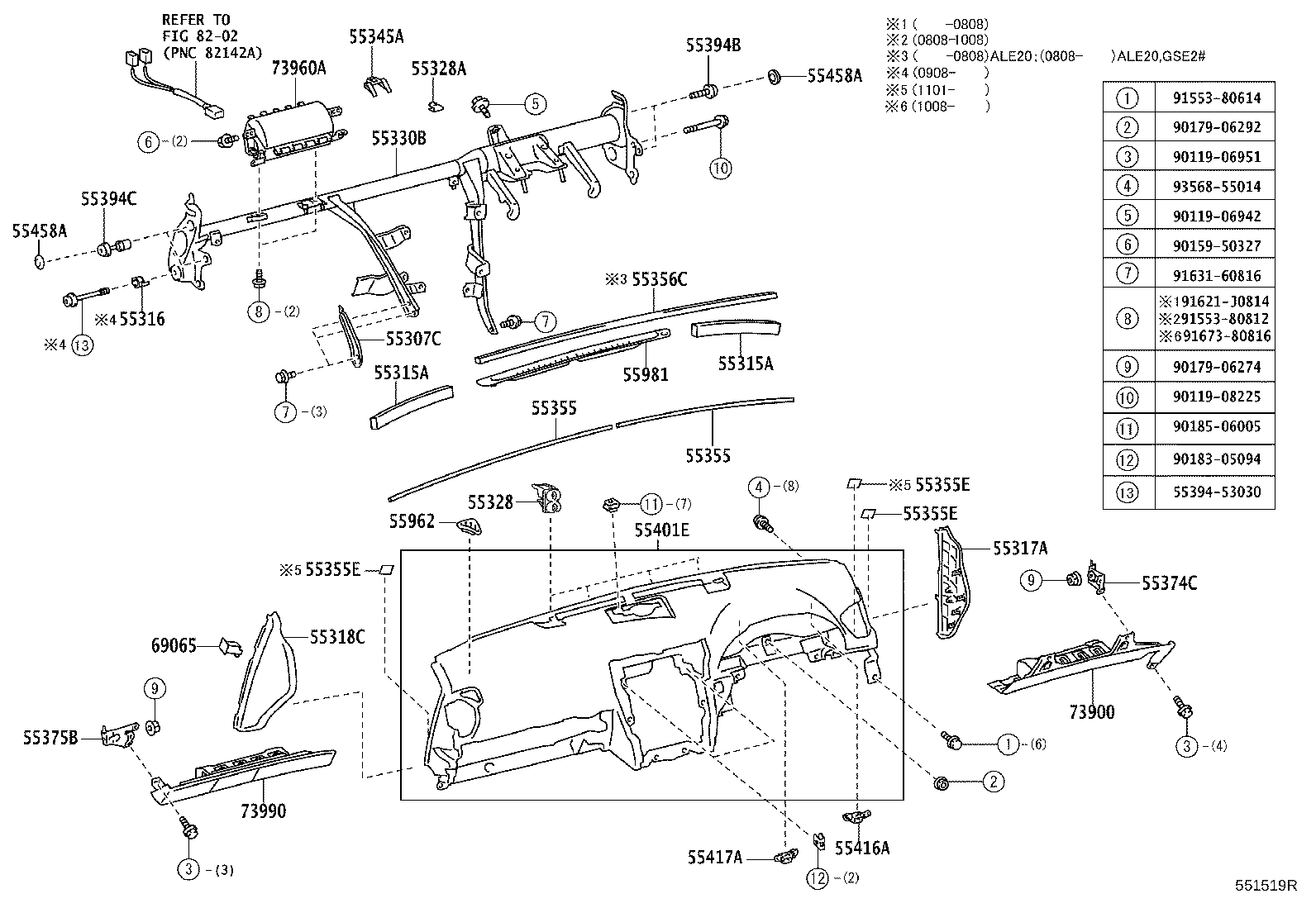

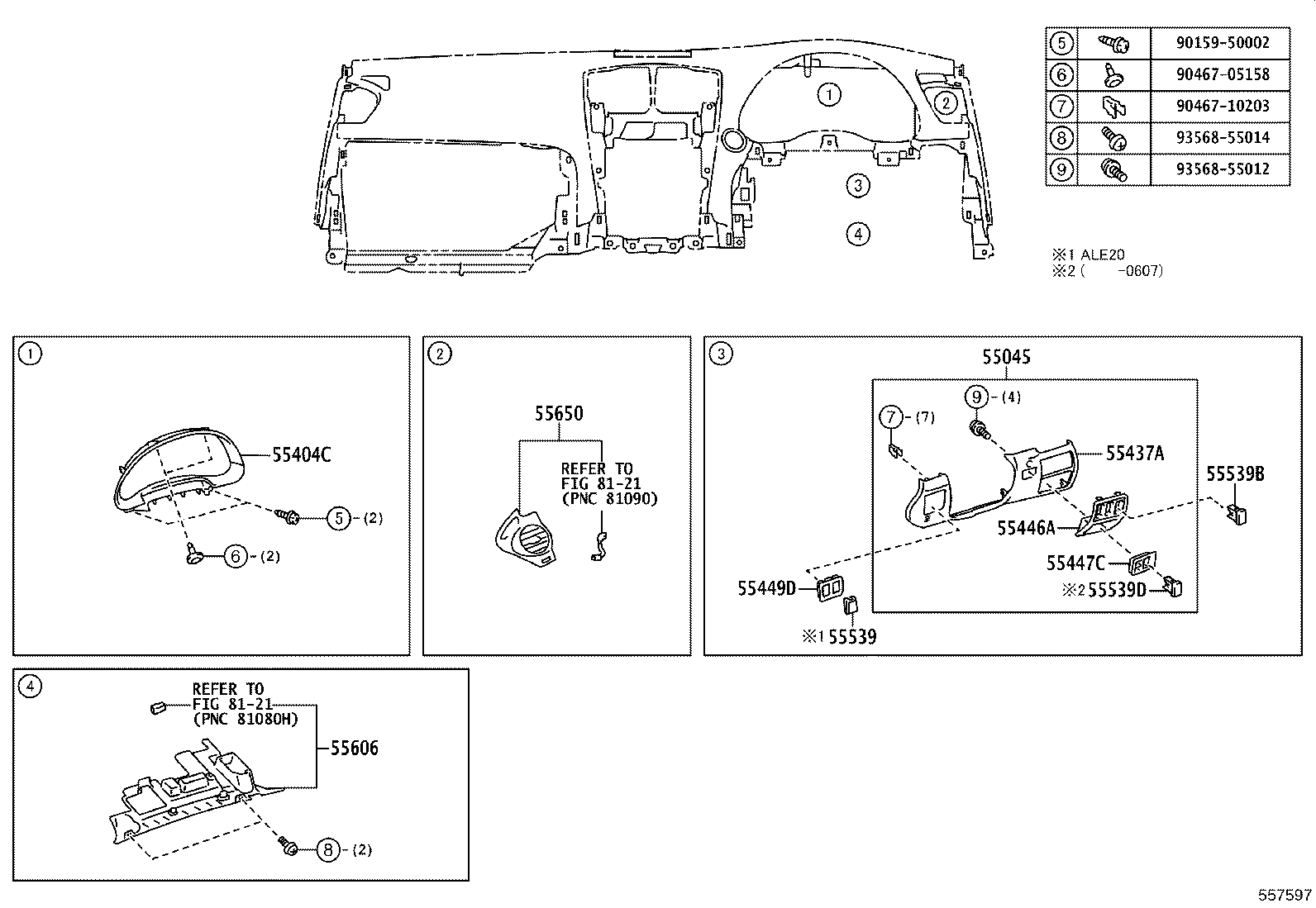

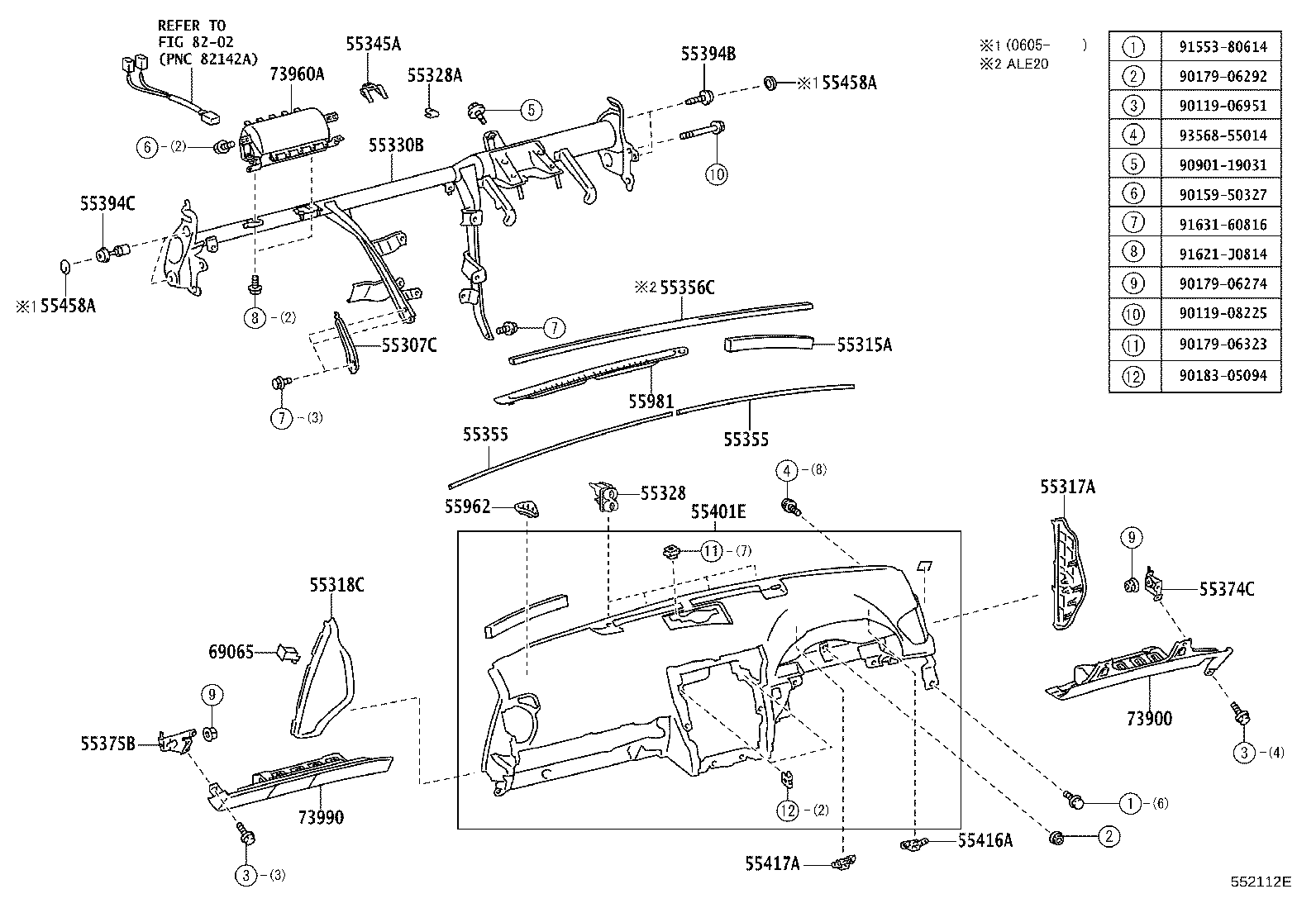

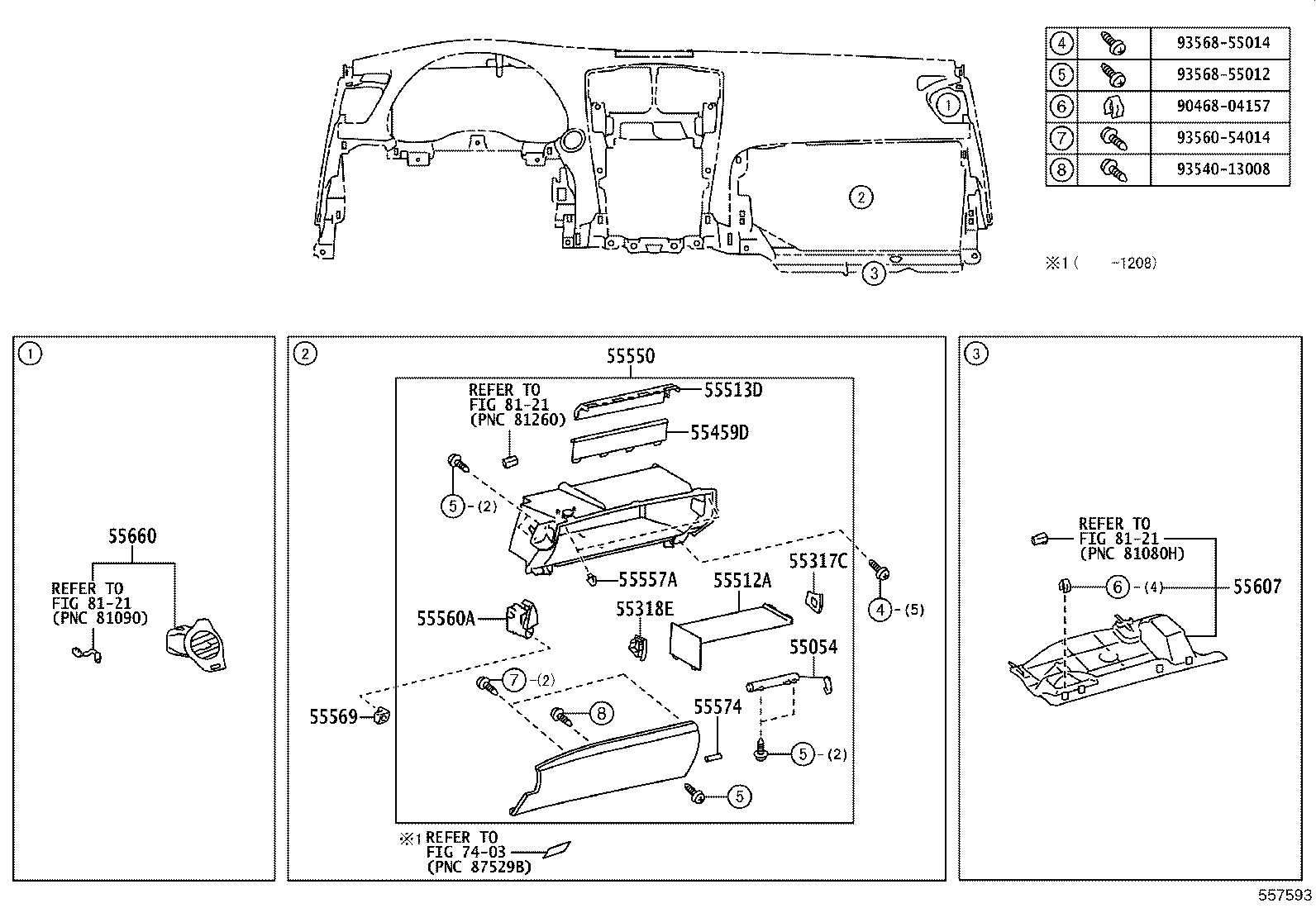

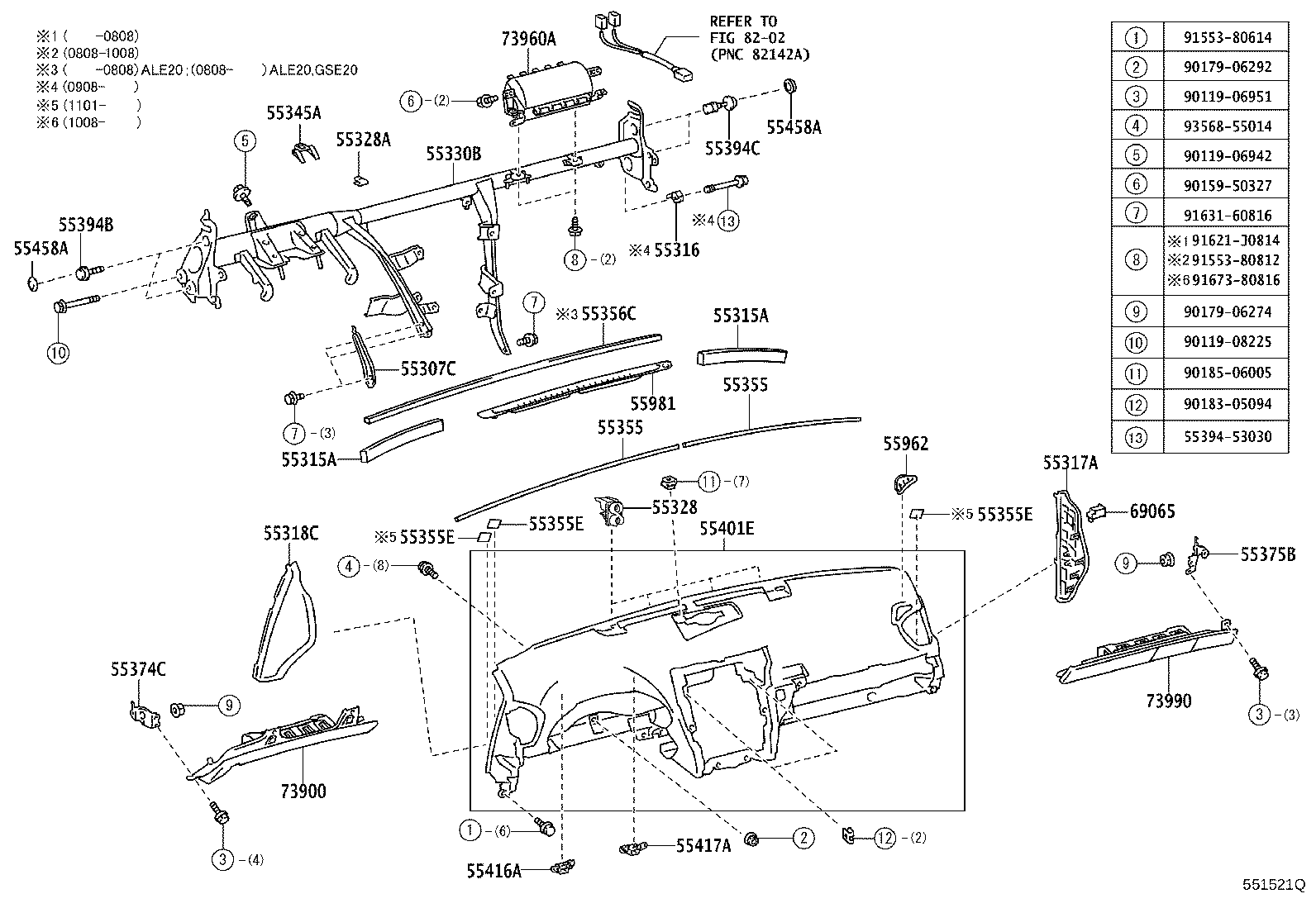

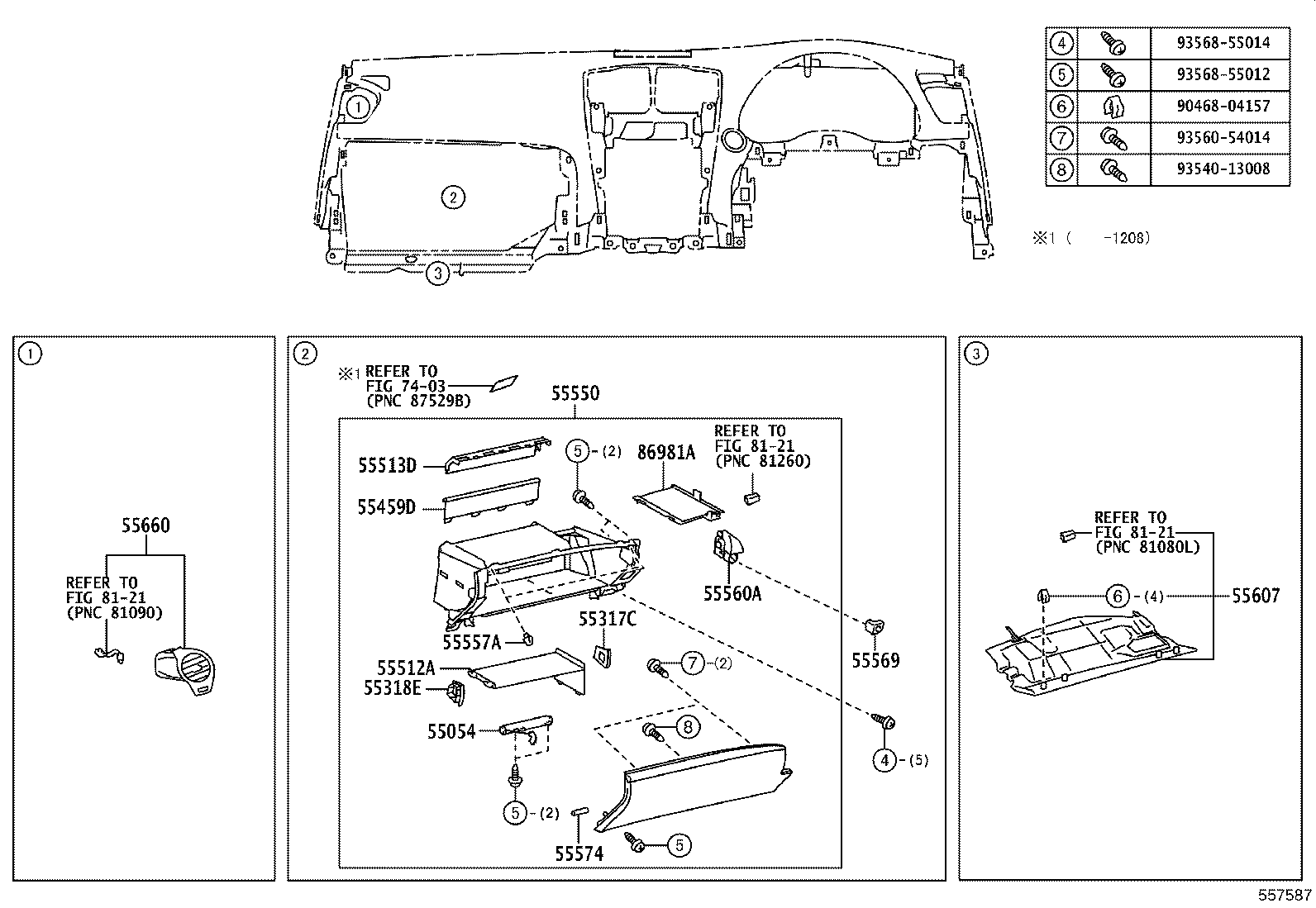

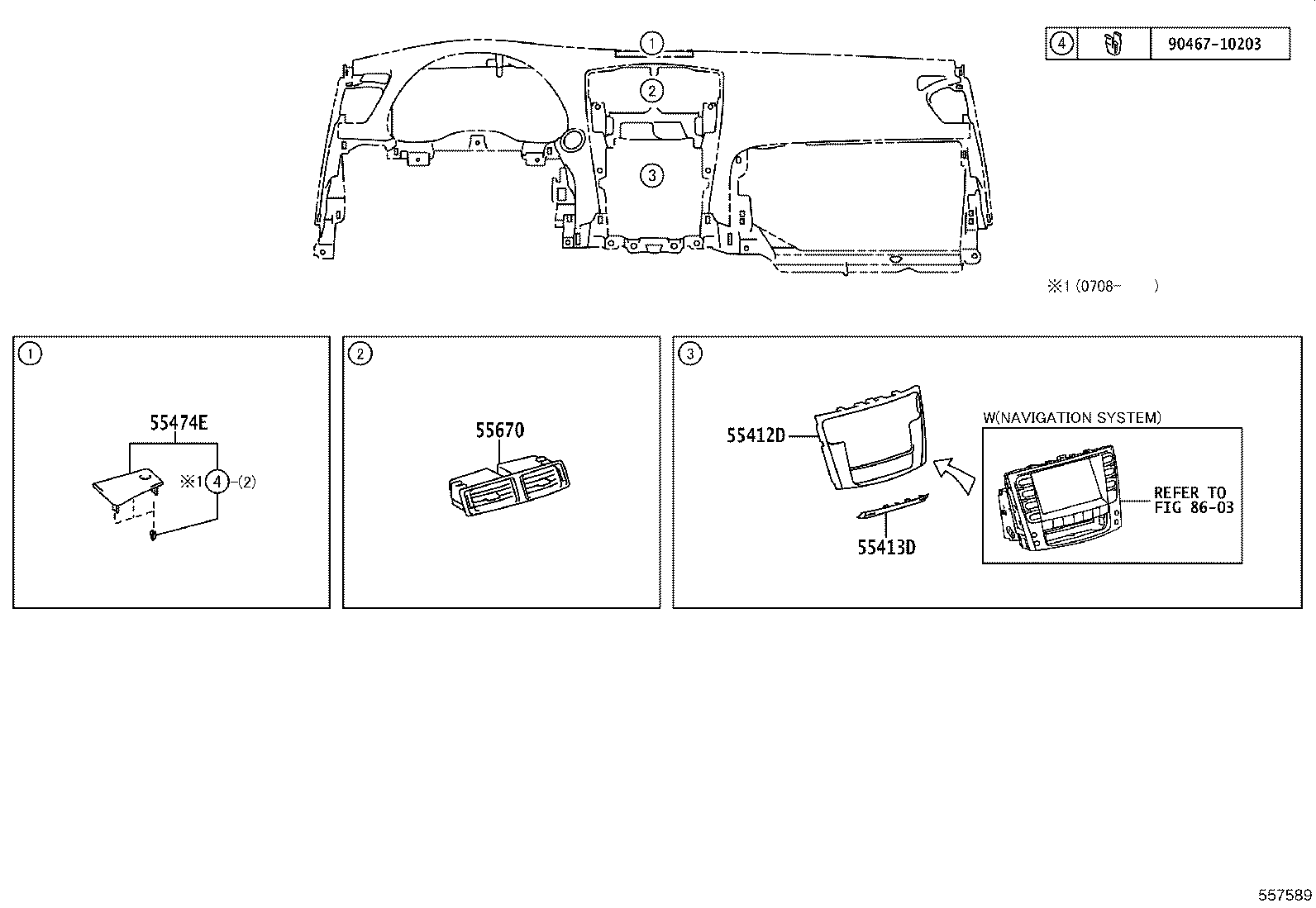

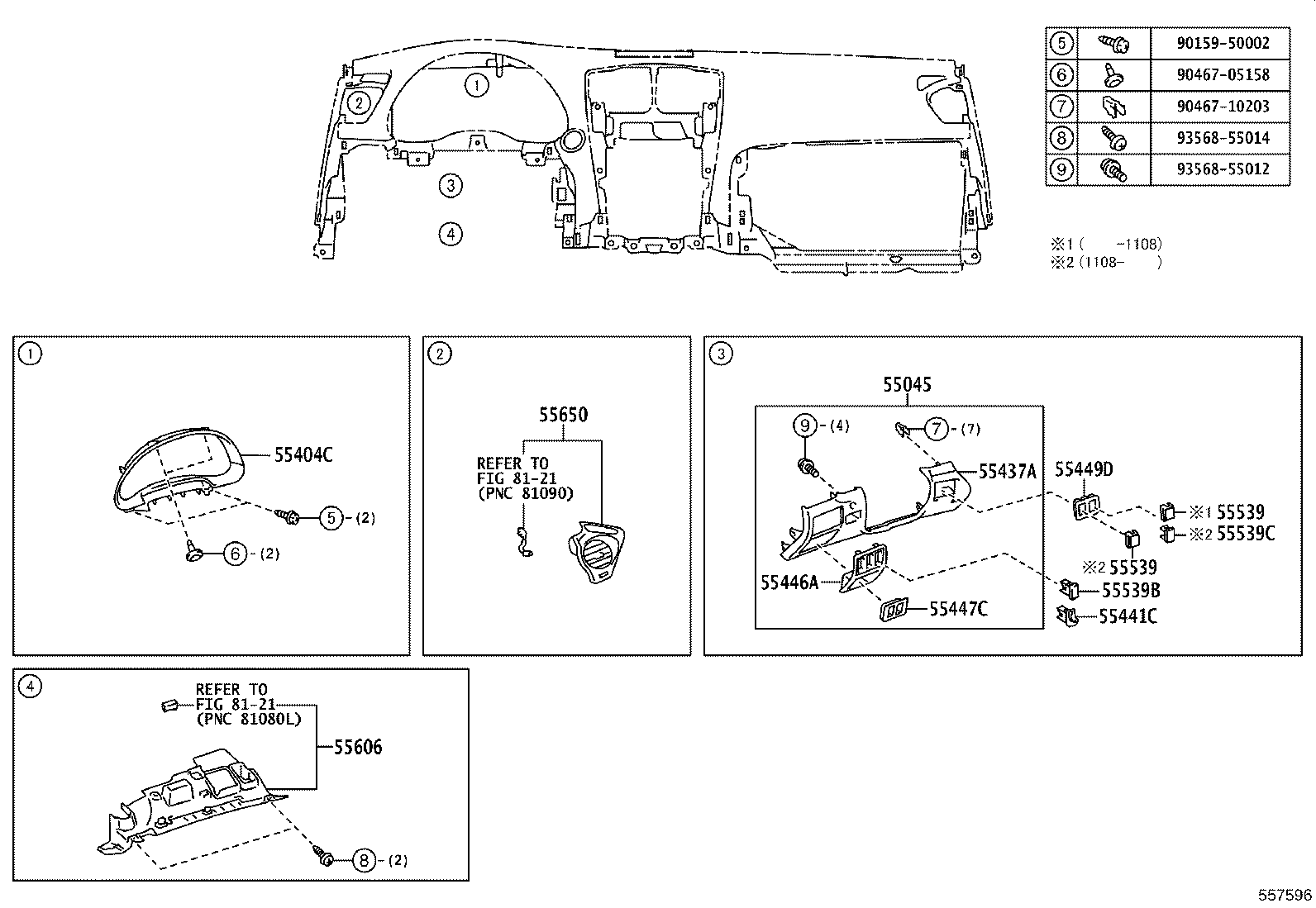

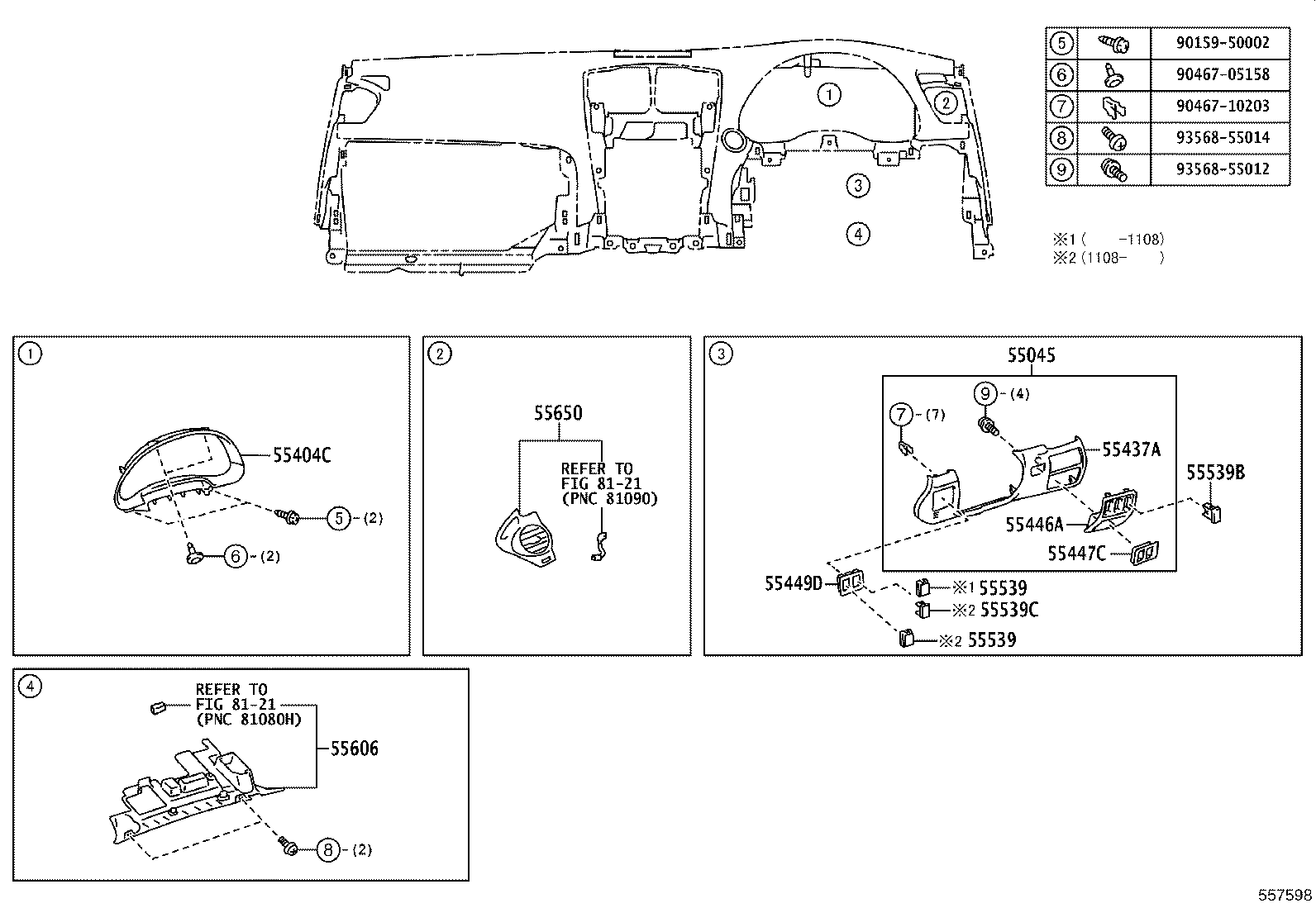

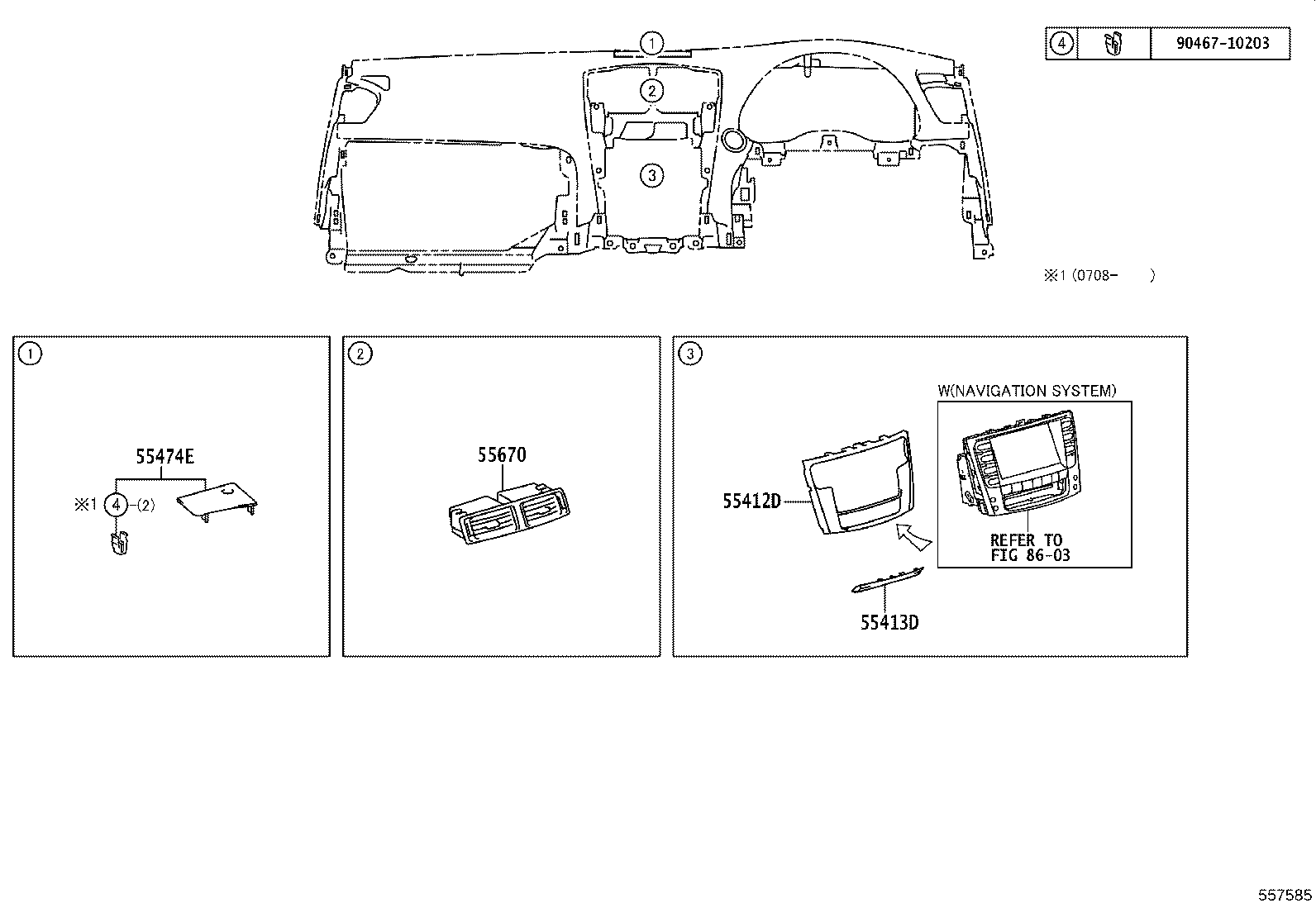

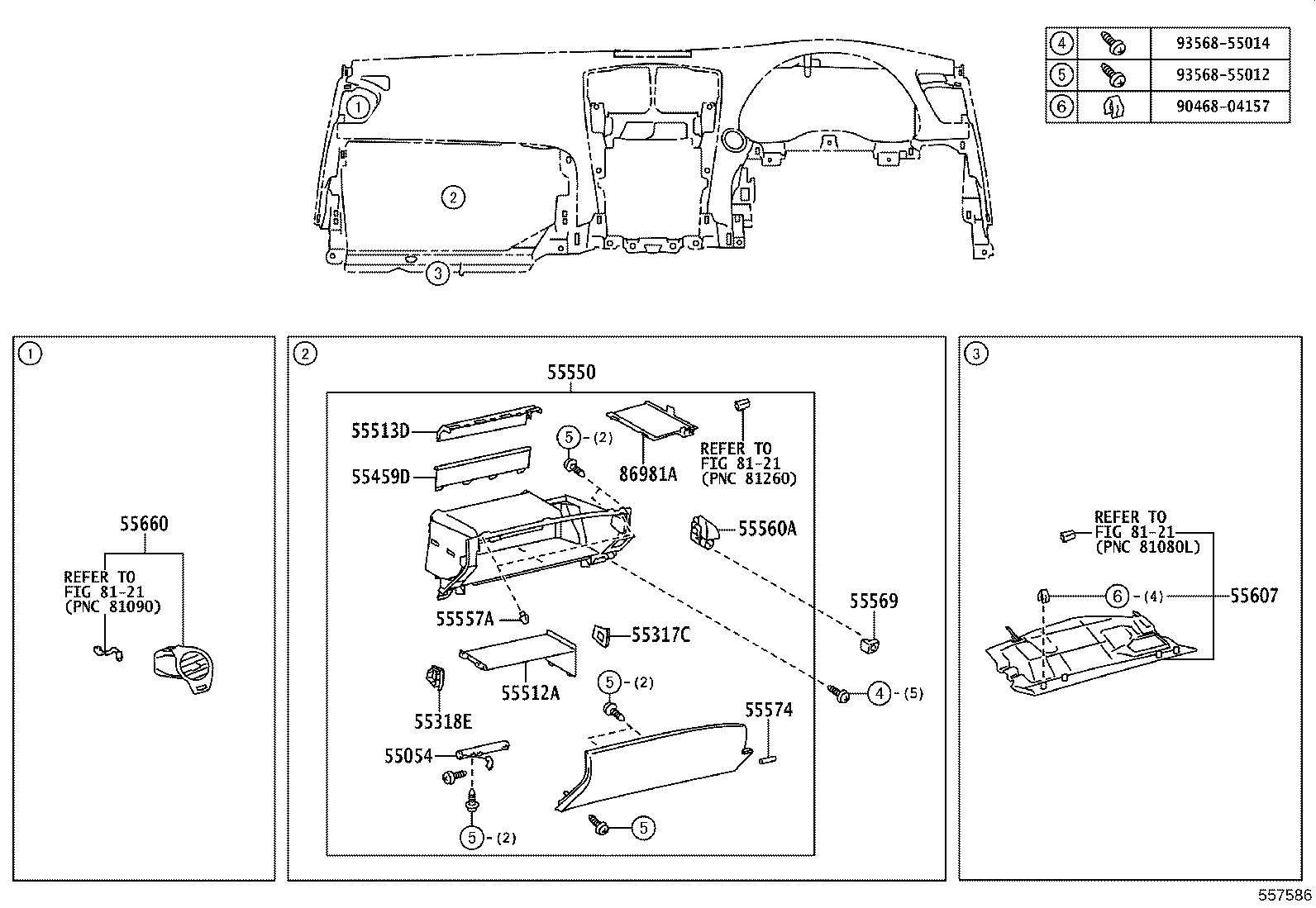

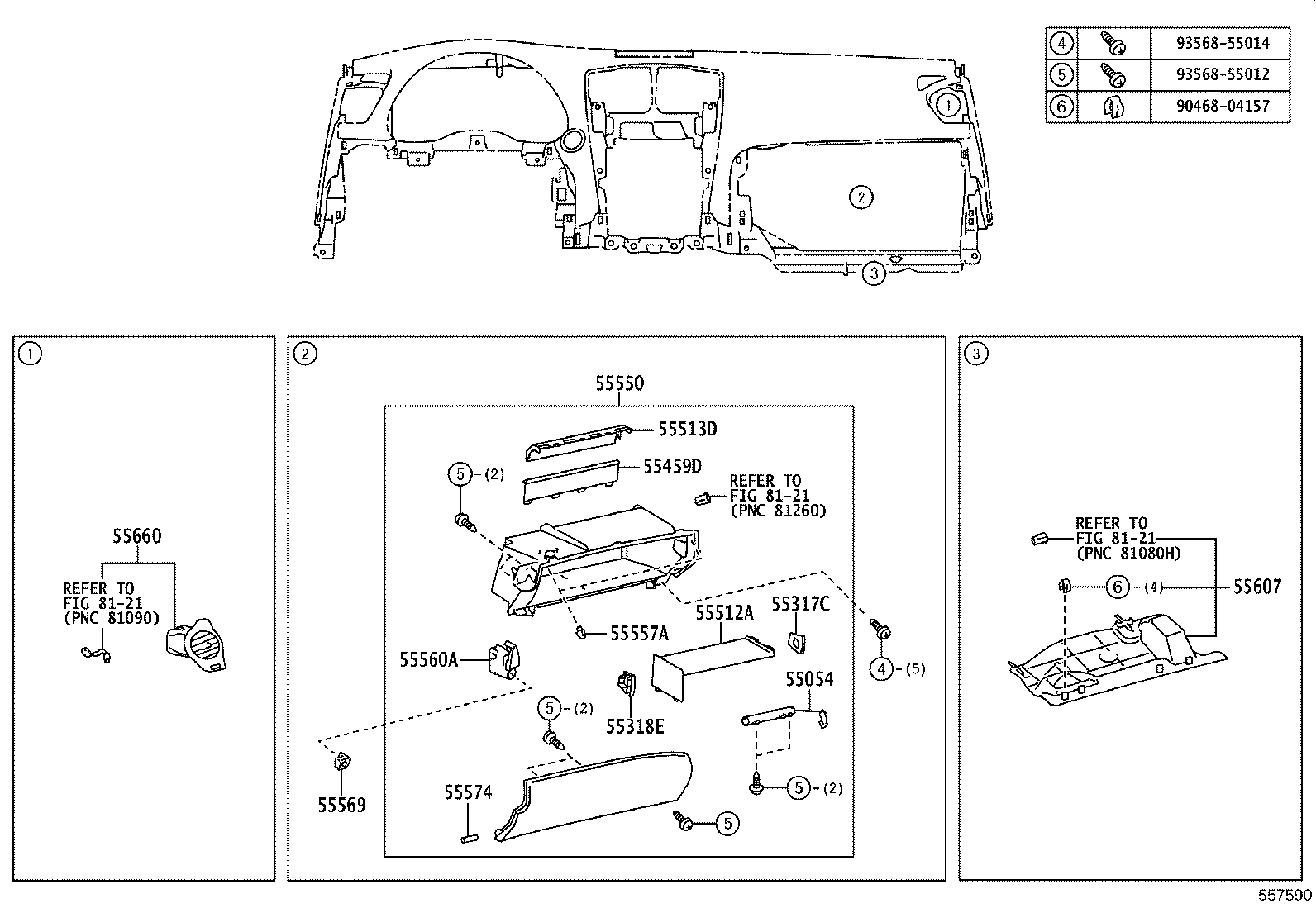

Figure 552118E 552118E 2005-08 → 2008-01 Figure 552112E 552112E 2005-08 → 2008-01 Figure 551521Q 551521Q 2008-01 → — Figure 551519R 551519R 2008-01 → — Figure 557595 557595 2005-08 → 2010-08 Figure 557596 557596 2010-08 → — Figure 557597 557597 2005-08 → 2010-08 Figure 557598 557598 2010-08 → — Figure 557589 557589 2005-08 → 2010-08 Figure 557592 557592 2010-08 → — Figure 557585 557585 2005-08 → — Figure 557590 557590 2005-08 → 2010-08 Figure 557593 557593 2010-08 → — Figure 557586 557586 2005-08 → 2010-08 Figure 557587 557587 2010-08 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55307C Brace Sub-assy, Instrument Panel, NO.2
55315A Spacer, Instrument Panel, NO.1
55316 Spacer, Instrument Panel, NO.2
55317A Panel, Instrument Side, RH
55317C Patch, Instrument Side, Lower RH
55318C Panel, Instrument Side, LH
55318E Patch, Instrument Side, Lower LH
55328 Pin, Instrument Panel, NO.1
55328A Stay, Instrument Panel, NO.3
55330B Reinforcement Assy, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55355 Cushion, Instrument Panel, NO.1
55355E Cushion, Instrument Panel
55356C Cushion, Instrument Panel, NO.2
55374C Bracket, Instrument Panel Lower Mounting, NO.1
55375B Bracket, Instrument Panel Lower Mounting, NO.2
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55412D Panel, Instrument Cluster Finish, Center
55413D Panel, Instrument Cluster Finish, Center Lower
55416A Retainer, Meter Hood, NO.1
55417A Retainer, Meter Hood, NO.2
55437A Retainer, Instrument Panel Finish Panel, NO.1
55441C Box, Instrument Panel Coin
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55449D Base, Switch
55458A Cap, Instrument Panel Safety Pad
55459D Cover, Instrument, Lower LH
55474E Panel Sub-assy, Instrument Panel Speaker, NO.3
55512A Plate, Glove Compartment
55513D Plate, Glove Compartment, NO.2
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55569 Cover, Glove Compartment Door Lock
55574 Shaft, Glove Compartment Door Hinge
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
69065 Cylinder Sub-assy, Airbag Cut Off SW
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
86981A Cover, Toll Collection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
