Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

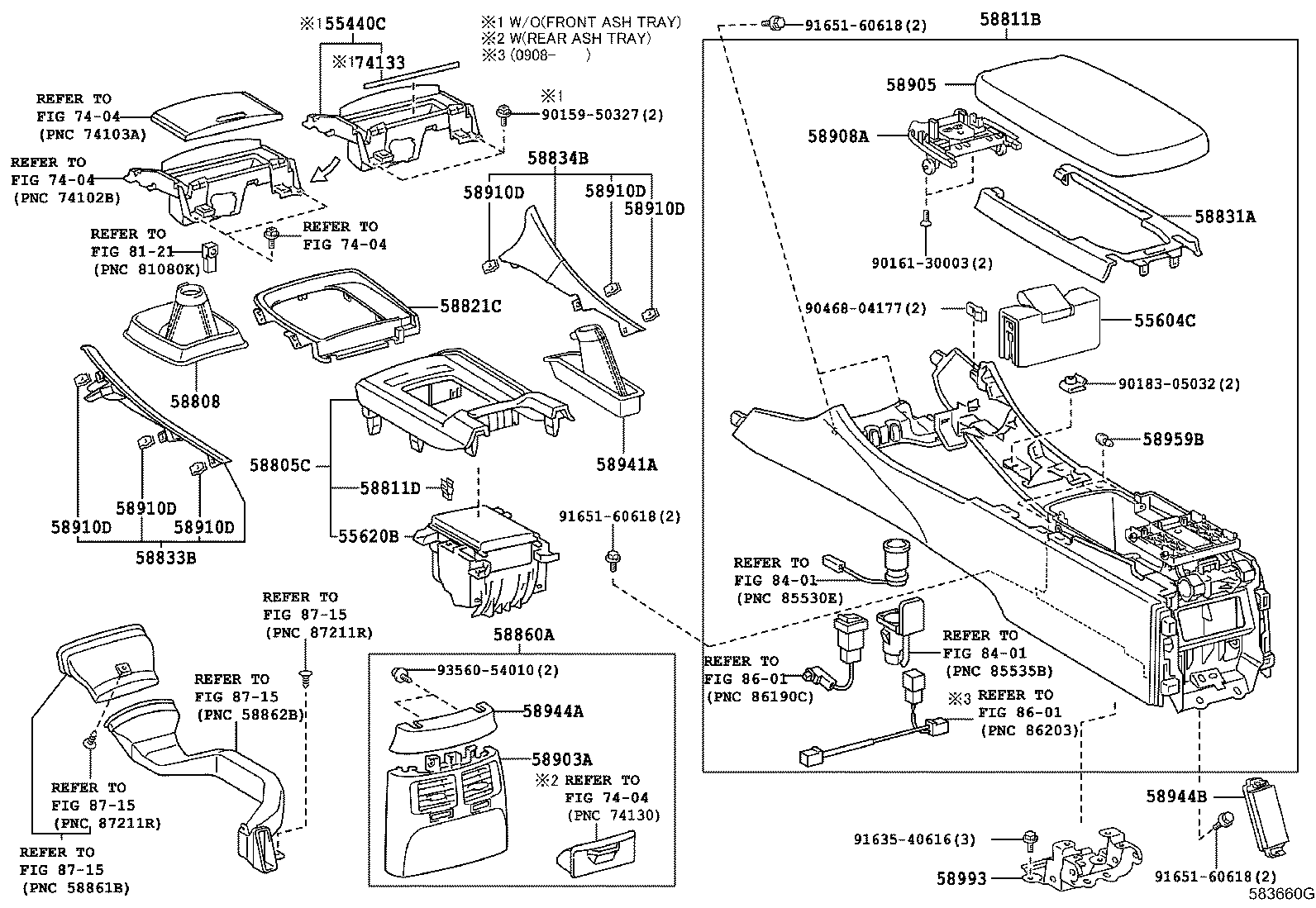

Console Box & Bracket
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35975E | Cover, Slide (FOR POSITION INDICATOR) |
| 35978A | Indicator, Shift Position |
| 55440C | Box Assy, Instrument Panel |
| 55604C | Holder Sub-assy, Console Box Cup |
| 55620B | Holder, Instrument Panel Cup |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58808D | Shift Indicator Lamp Bulb |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58821C | Panel, Console, Upper |
| 58831A | Garnish, Console Upper Panel, Front |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58860A | Register Assy, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58941A | Cover, Parking Brake Hole |
| 58944A | Cover, Console, Rear |
| 58944B | Cover, Console, Rear |
| 58959B | Cushion, Console Compartment Door |
| 58993 | Bracket, Console Box Mounting, Rear |
| 74133 | Seal, Front Ash Receptacle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
