Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

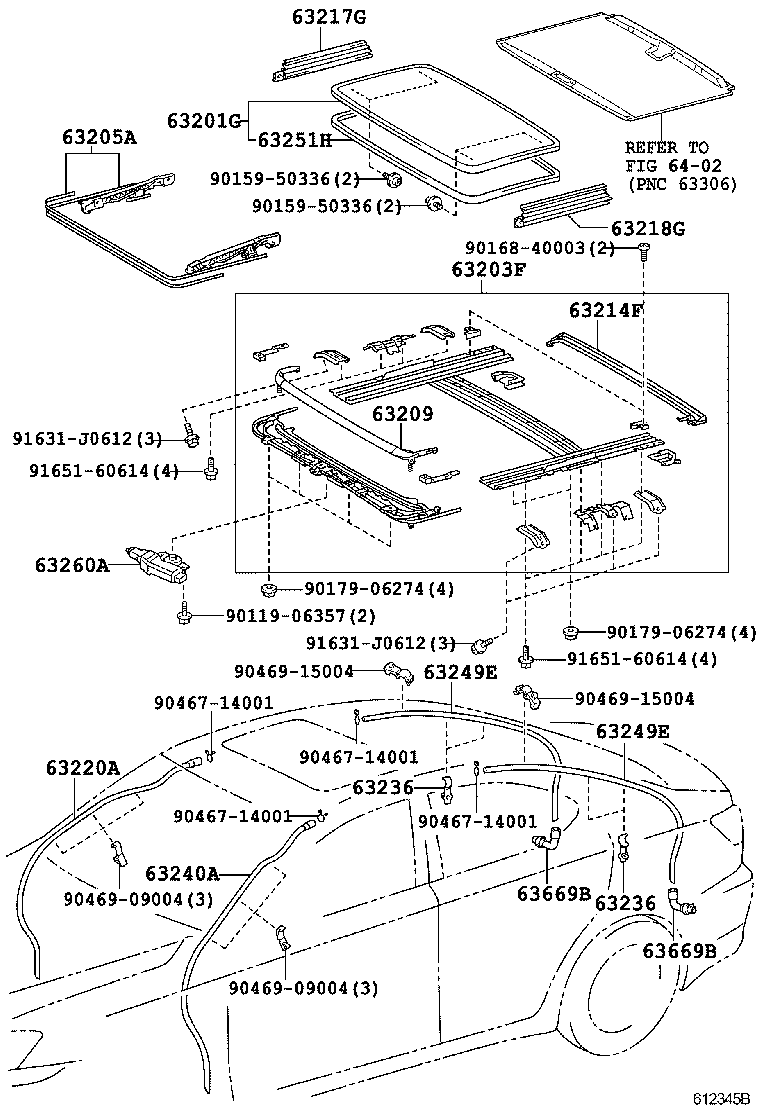

Roof Panel & Back Window Glass
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63106 | Reinforcement Sub-assy, Roof Panel, NO.4 |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63119D | Pad, Roof Panel, NO.1 |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63146A | Bracket, Roof Panel Reinforcement, NO.1 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63220A | Hose Assy, Sliding Roof Drain, RH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63240A | Hose Assy, Sliding Roof Drain, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64125F | Bracket, Upper Back Panel |
| 64206F | Panel Sub-assy, Room Partition |
| 64227B | Extension, Center Floor TO Blace, NO.1 |
| 64228B | Extension, Center Floor TO Brace, NO.2 |
| 64811 | Glass, Back Window |
| 75571G | Moulding, Back Window, Outside Upper, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
