Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

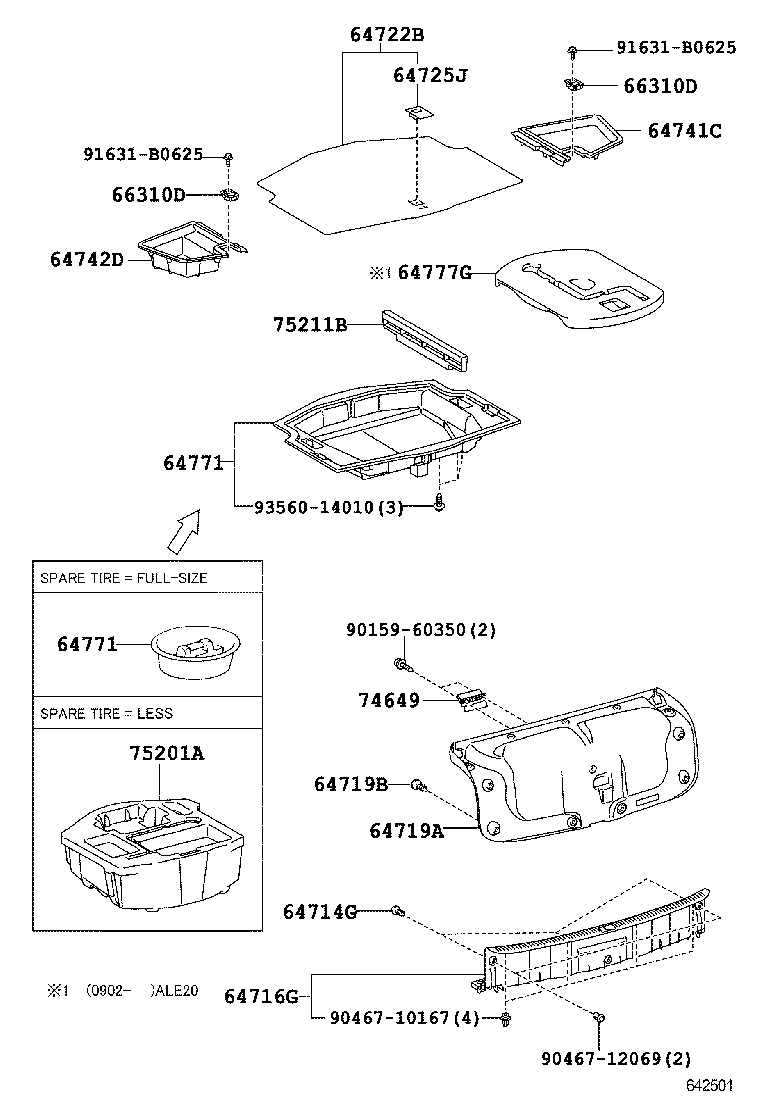

Package Tray Panel & Luggage Compartment Mat
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64273E | Pad, Room Partition |
| 64274A | Pad, Room Partition, NO.2 |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64714G | Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64722B | Cover, Luggage Compartment Trim, NO.2 |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64726F | Hook, Luggage Compartment Trim, NO.2 |
| 64741C | Box, Deck Side Trim, RH |
| 64742D | Box, Deck Side Trim, LH |
| 64771 | Cover, Spare Wheel |
| 64777G | Cushion, Spare Wheel |
| 66310D | Hook Assy, Rope |
| 66311L | Hook,Rope |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
| 75211B | Panel, Tool Box |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
