Toyota Lexus IS250/350/2##D
2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe
Supported model
Data version 2013-10

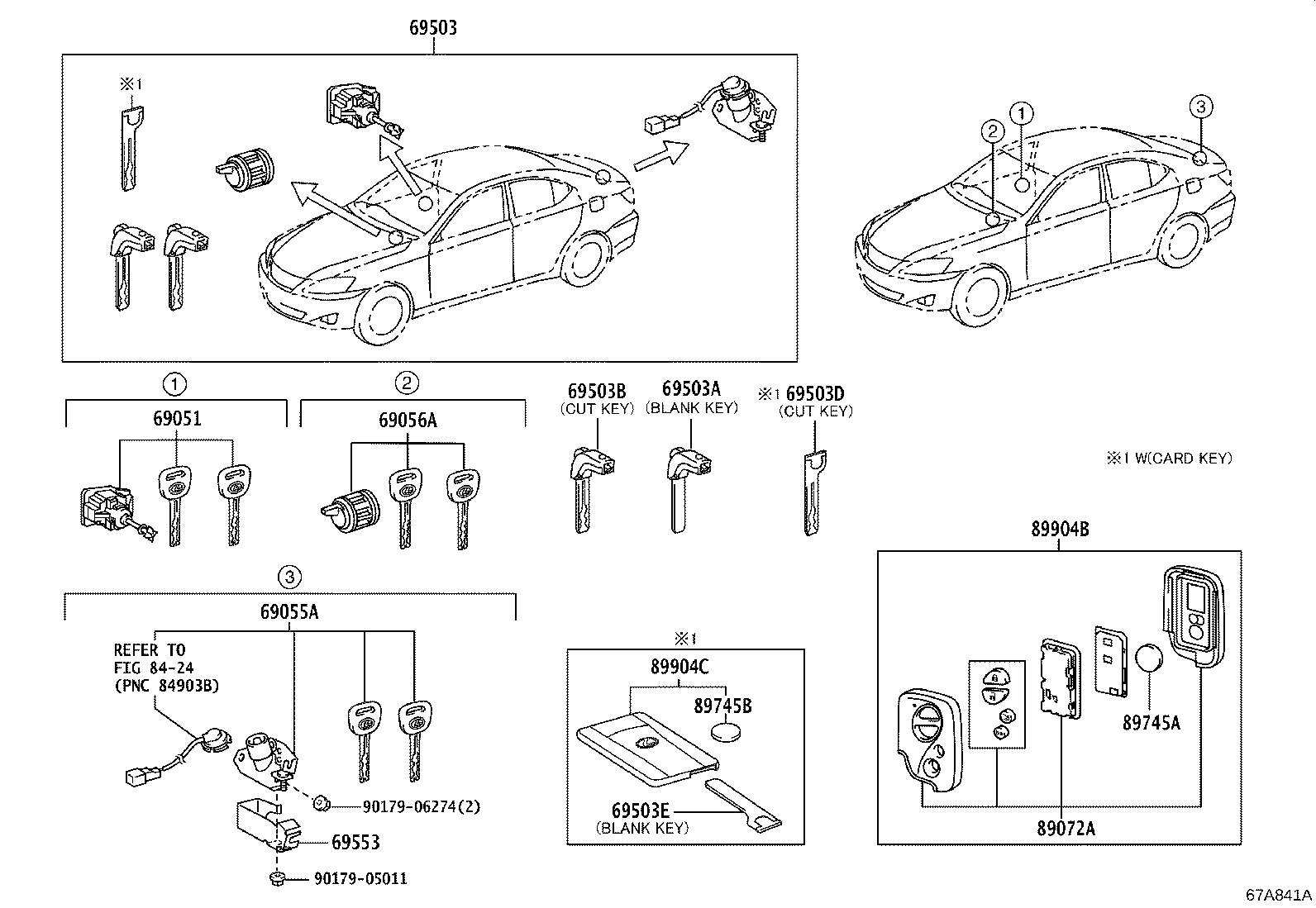

Lock Cylinder Set
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 69503D | Key, Cut(CARD KEY) |
| 69503E | Key, Blank(CARD KEY) |
| 69553 | Protector, Luggage Compartment Key Cylinder |
| 89072A | Housing Set, Door Control Transmitter |
| 89745A | Battery, Transmitter |
| 89745B | Battery, Transmitter(CARD KEY) |
| 89904B | Transmitter Sub-assy, Electrical Key |
| 89904C | Transmitter Sub-assy, Electrical Key(CARD KEY) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
