Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

91 part groups · 7 illustrations

Illustrations

715767G 2005-08 → —

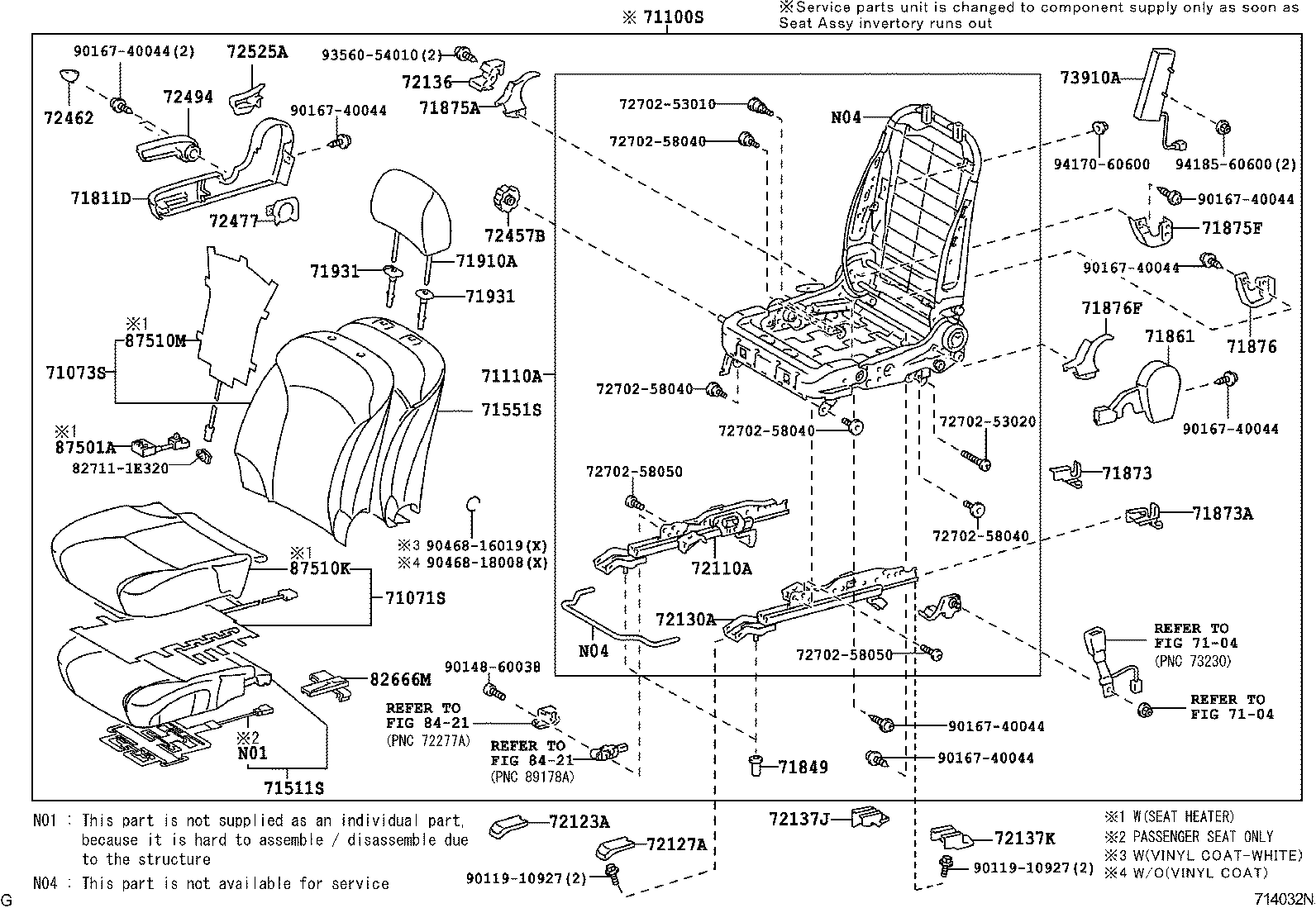

714032N 2005-08 → 2008-08

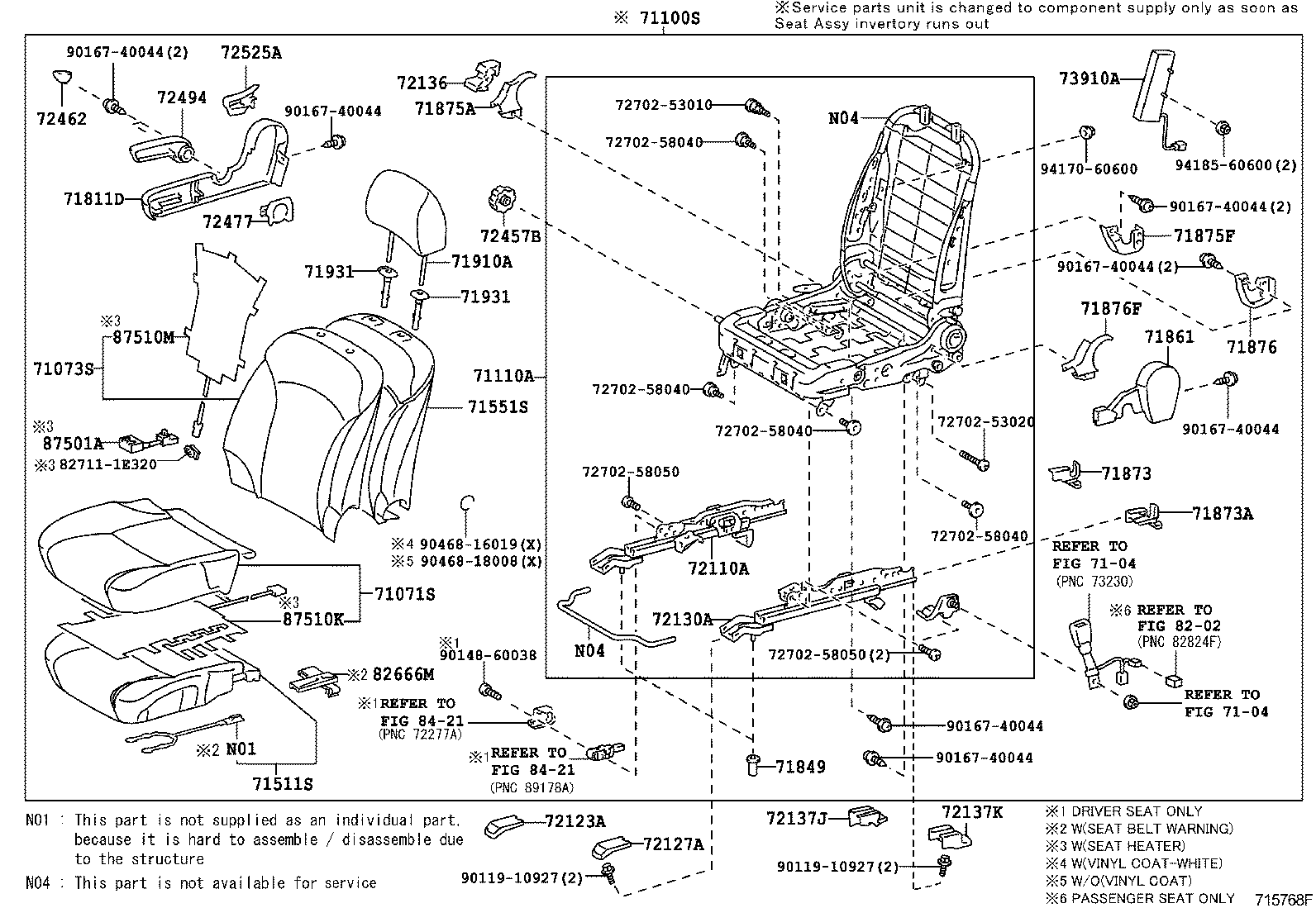

715768F 2008-08 → —

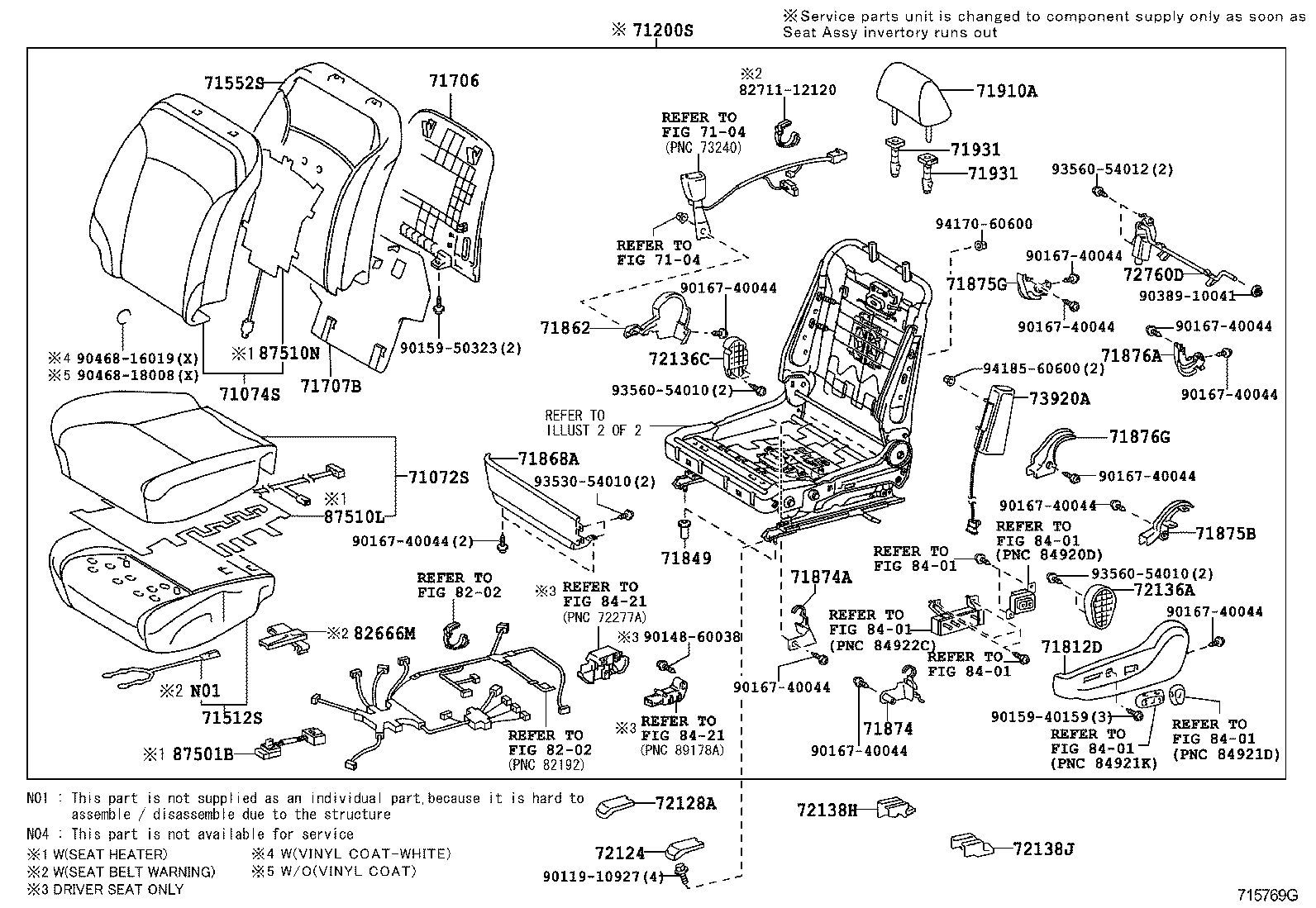

715769G 2005-08 → —

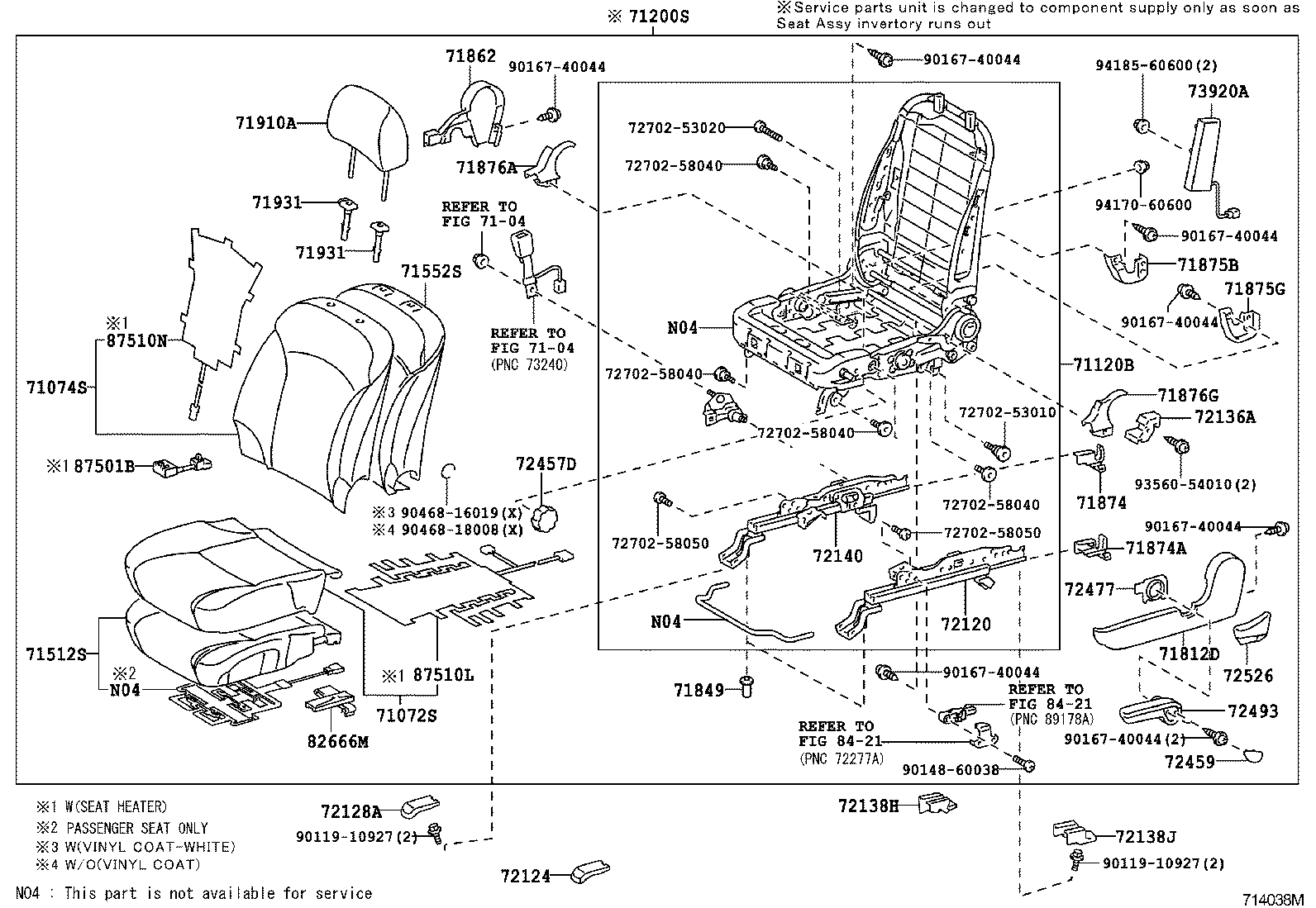

714038M 2005-08 → 2008-08

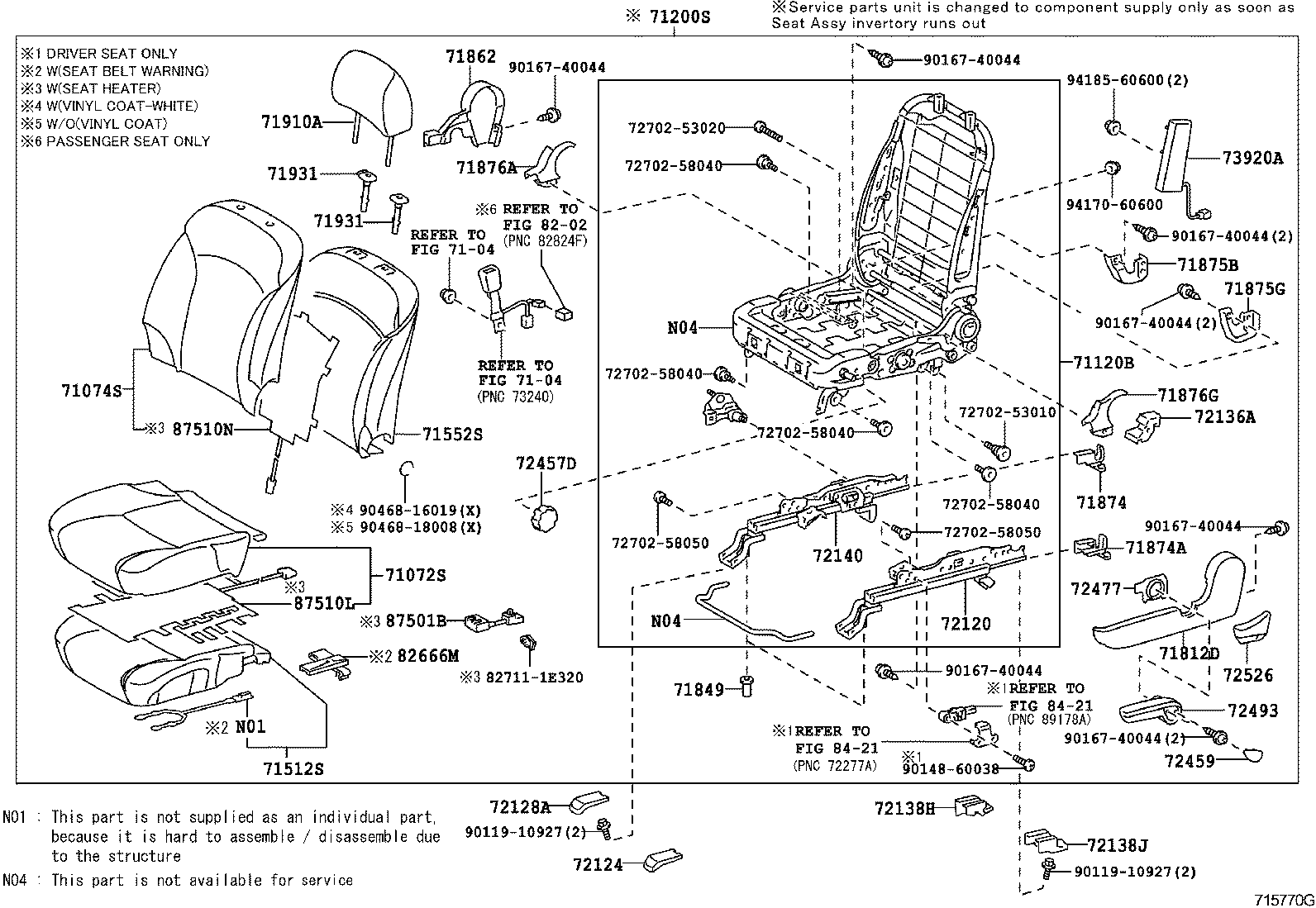

715770G 2008-08 → —

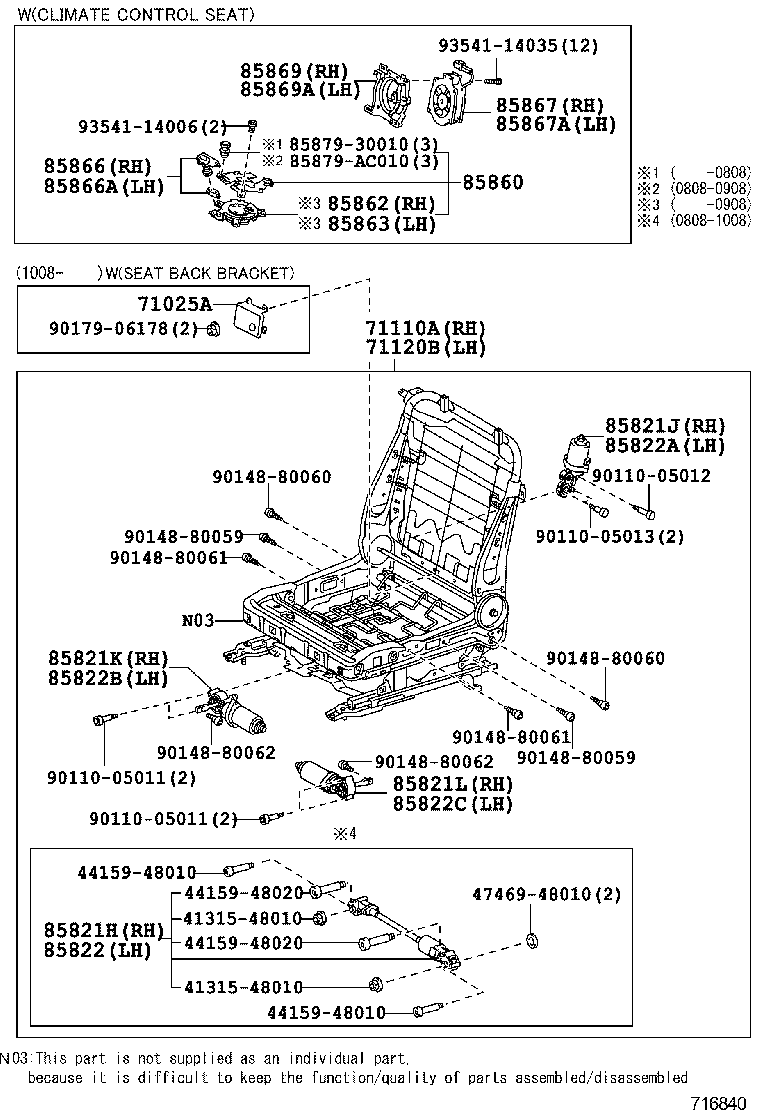

716840 2005-08 → —

Part groups

PNC	Description
71025A	Bracket Sub-assy, Front Seatback
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71200S	Seat Assy, Front LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71707A	Cover Sub-assy, Front Seatback Board
71707B	Cover Sub-assy, Front Seatback Board
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72130A	Track Assy, Front Seat, Inner RH
72136	Spacer, Seat Track, Lower NO.1
72136A	Spacer, Seat Track, Lower NO.2
72136B	Spacer, Seat Track, Lower NO.3
72136C	Spacer, Seat Track, Lower NO.4
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72140	Track Assy, LH Seat, Inner
72457B	Knob, Vertical Seat Adjuster, RH
72457D	Knob, Vertical Seat Adjuster, LH
72459	Cap, Vertical Seat Adjuster Knob
72462	Cover, Vertical Adjuster RH
72477	Spacer, Vertical Adjuster
72493	Handle, Vertical Adjusting, NO.2
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
82666M	Holder, Connector
85821H	Motor Assy, Power Seat Slide, RH
85821J	Motor Assy, Power Seat Reclining, RH
85821K	Motor Assy, Power Seat Tilt, RH
85821L	Motor Assy, Power Seat Lifter, RH
85822	Motor Assy, Power Seat Slide, LH
85822A	Motor Assy, Power Seat Reclining, LH
85822B	Motor Assy, Power Seat Tilt, LH
85822C	Motor Assy, Power Seat Lifter, LH
85860	Blower Assy, Seat Cushion Climate Control
85862	Blower, Seat Climate Control, RH
85863	Blower, Seat Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866A	Duct, Seat Cushion Climate Control, LH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85869	Cover, Seatback Climate Control, RH
85869A	Cover, Seatback Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
