Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 3 illustrations

Illustrations

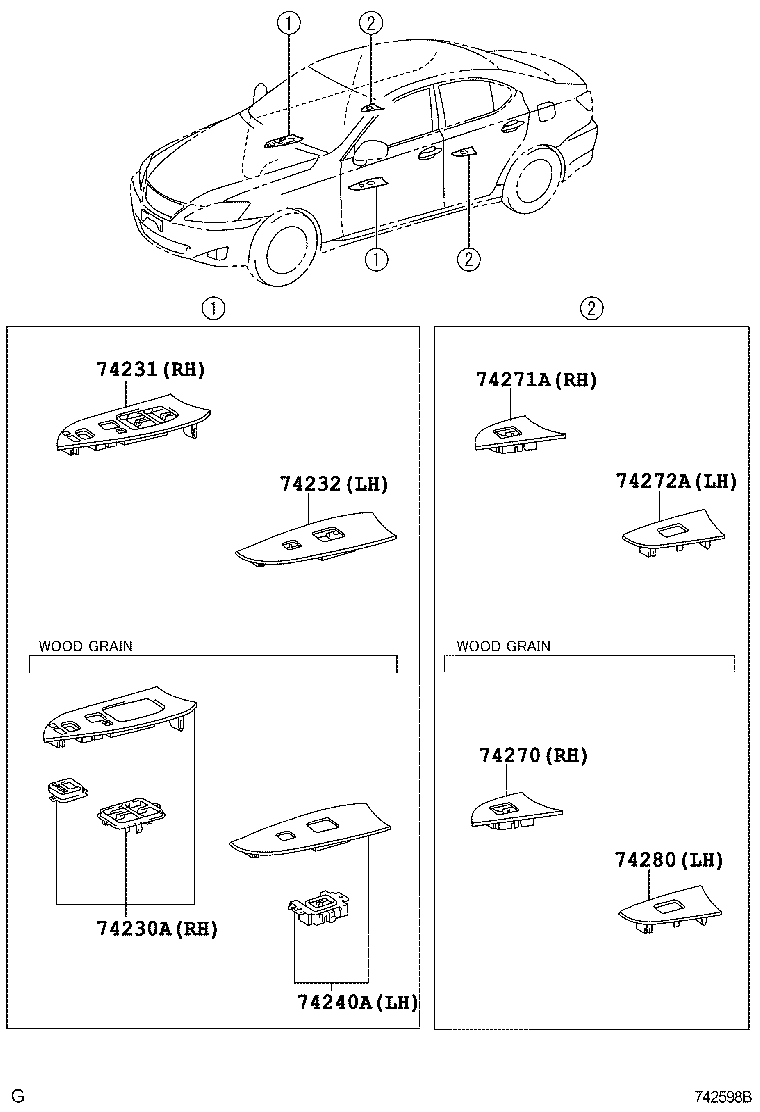

Figure 741700D 741700D 2005-08 → — Figure 742598B 742598B 2005-08 → — Figure 741676D 741676D 2005-08 → —

Part groups

PNCDescription
74230A Panel Assy, Front Door Armrest Base, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240A Panel Assy, Front Door Armrest Base, LH
74270 Panel Assy, Rear Door Armrest Base, RH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
74631B Hook, Coat
74636A Bezel, Card Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
