Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

4 part groups · 2 illustrations

Illustrations

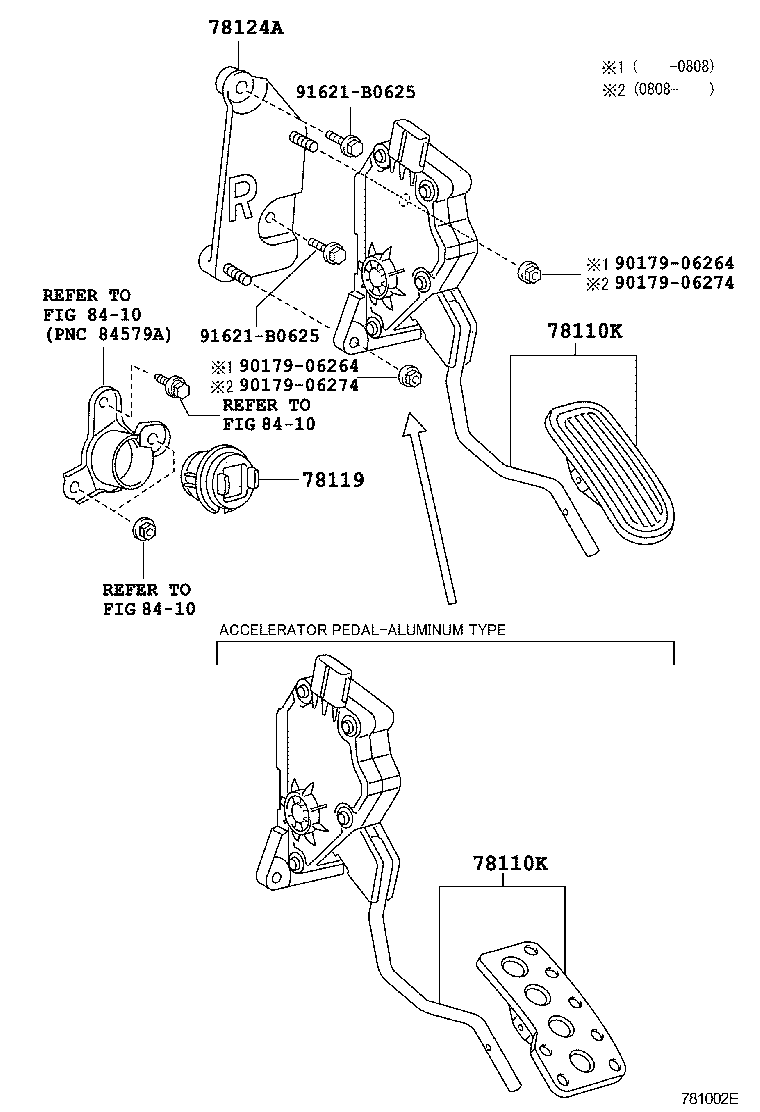

Figure 781000H 781000H 2005-08 → — Figure 781002E 781002E 2005-08 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78119 Stopper, Accelerator Pedal Rod
78124A Bracket, Accelerator Pedal Rod
78125A Bracket, Accelerator Pedal Rod, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
