Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

59 part groups · 20 illustrations

Illustrations

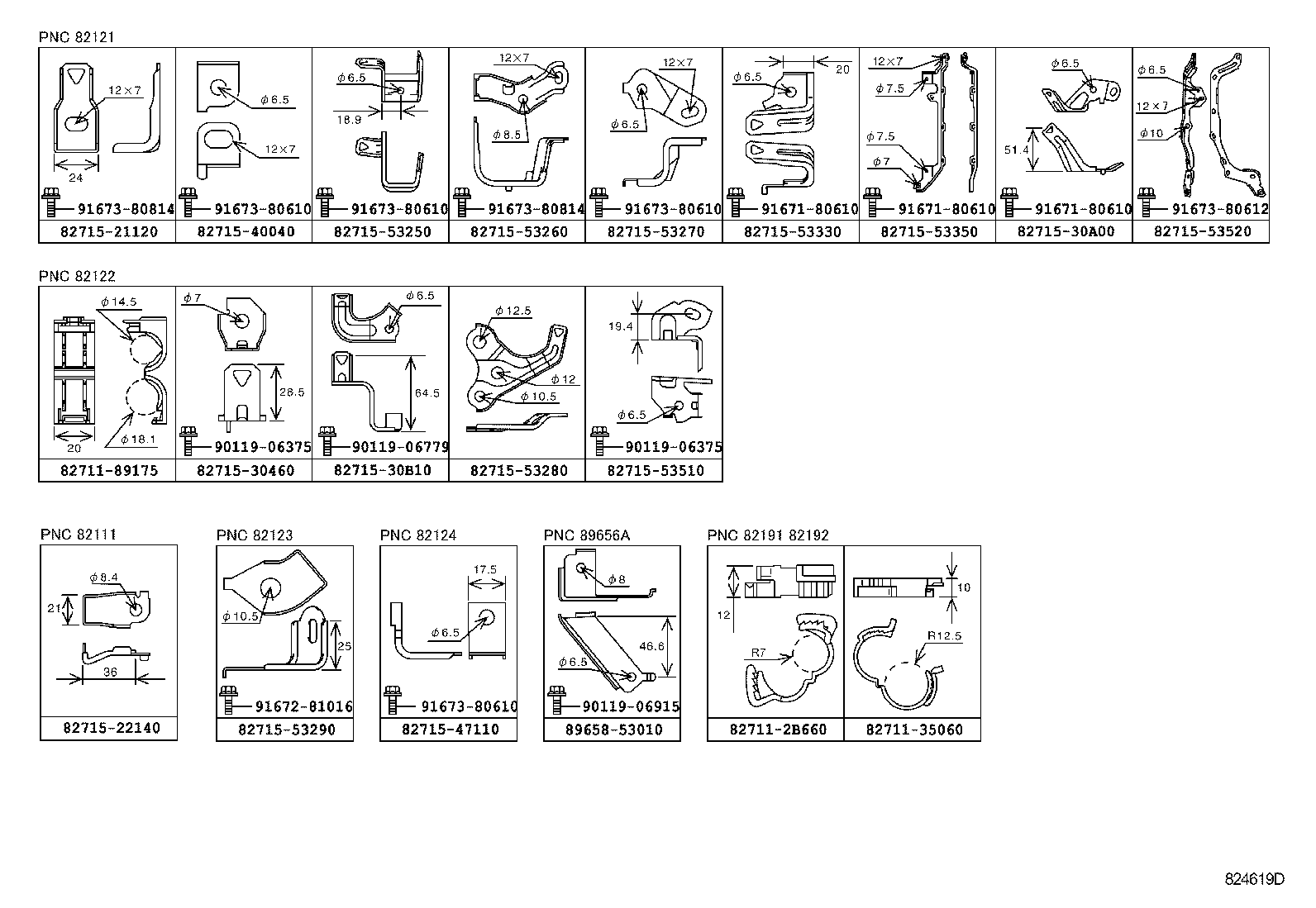

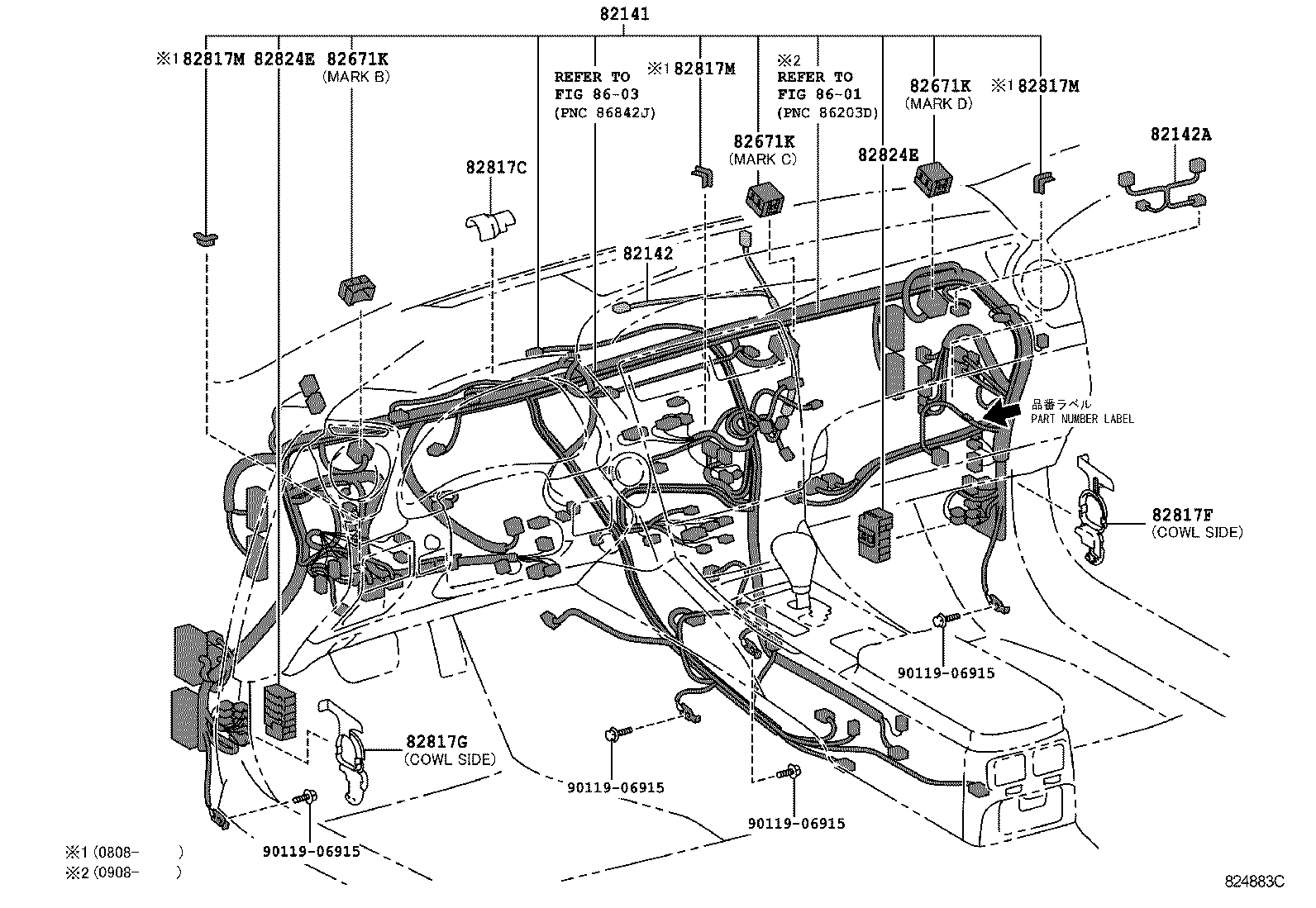

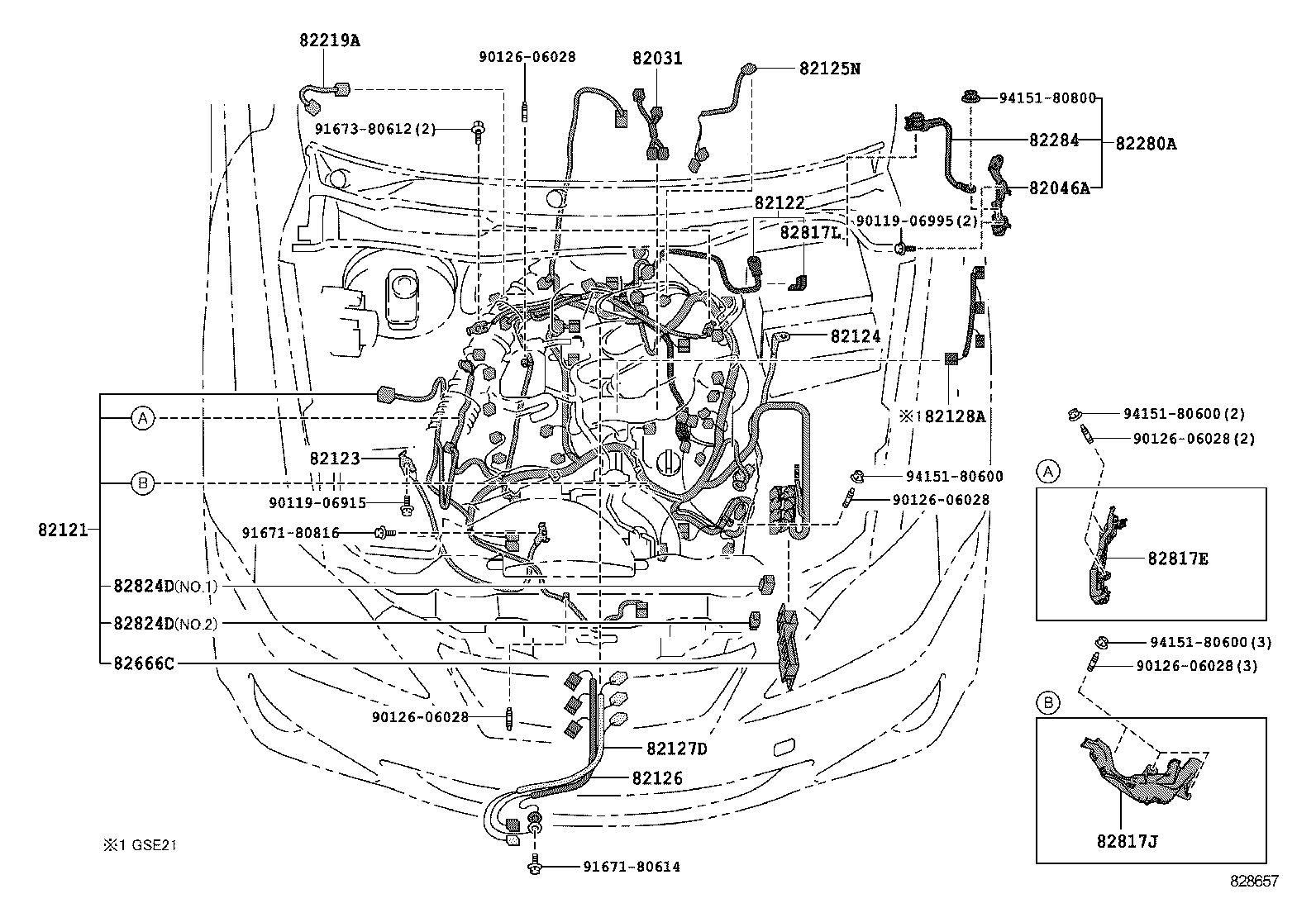

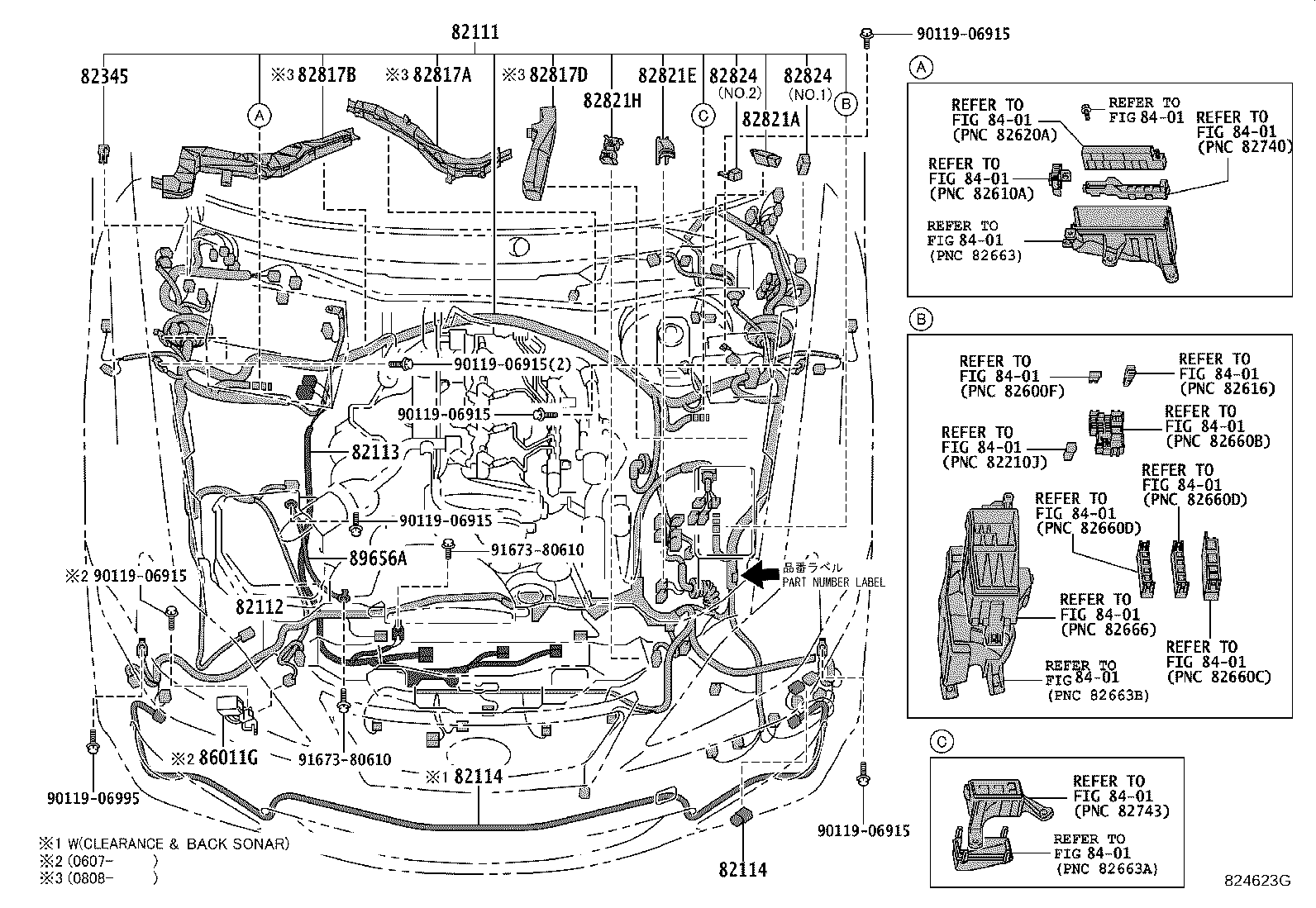

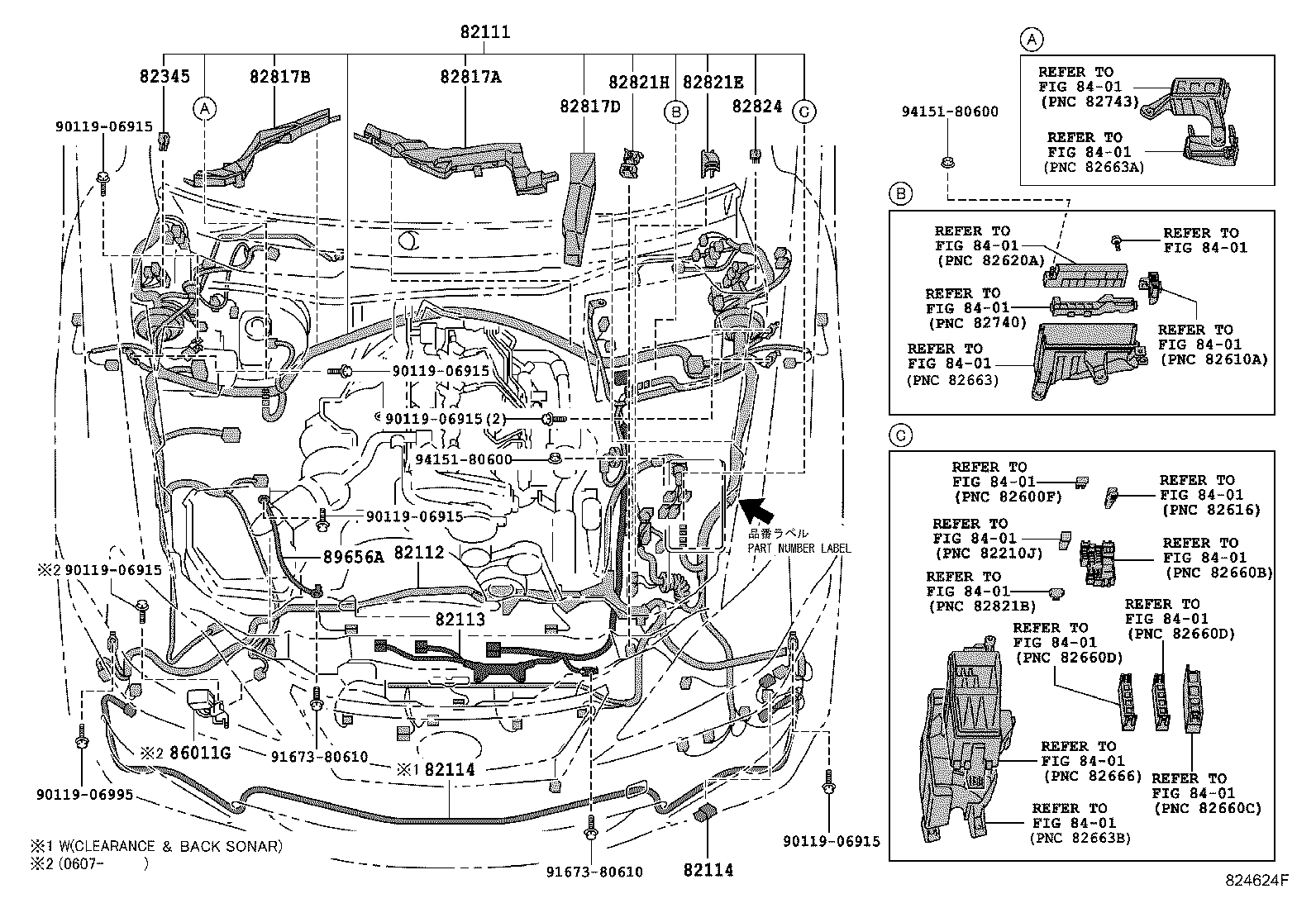

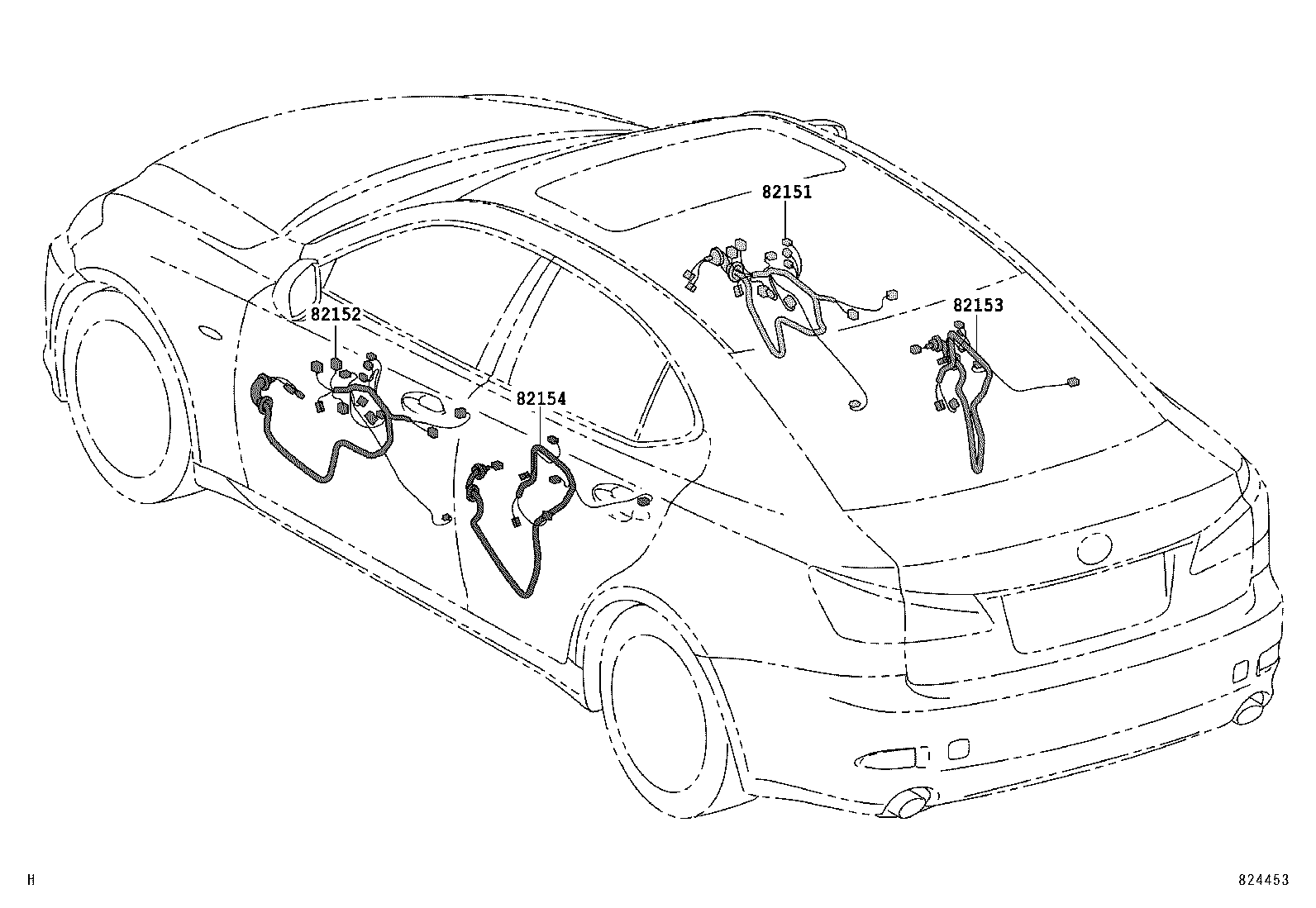

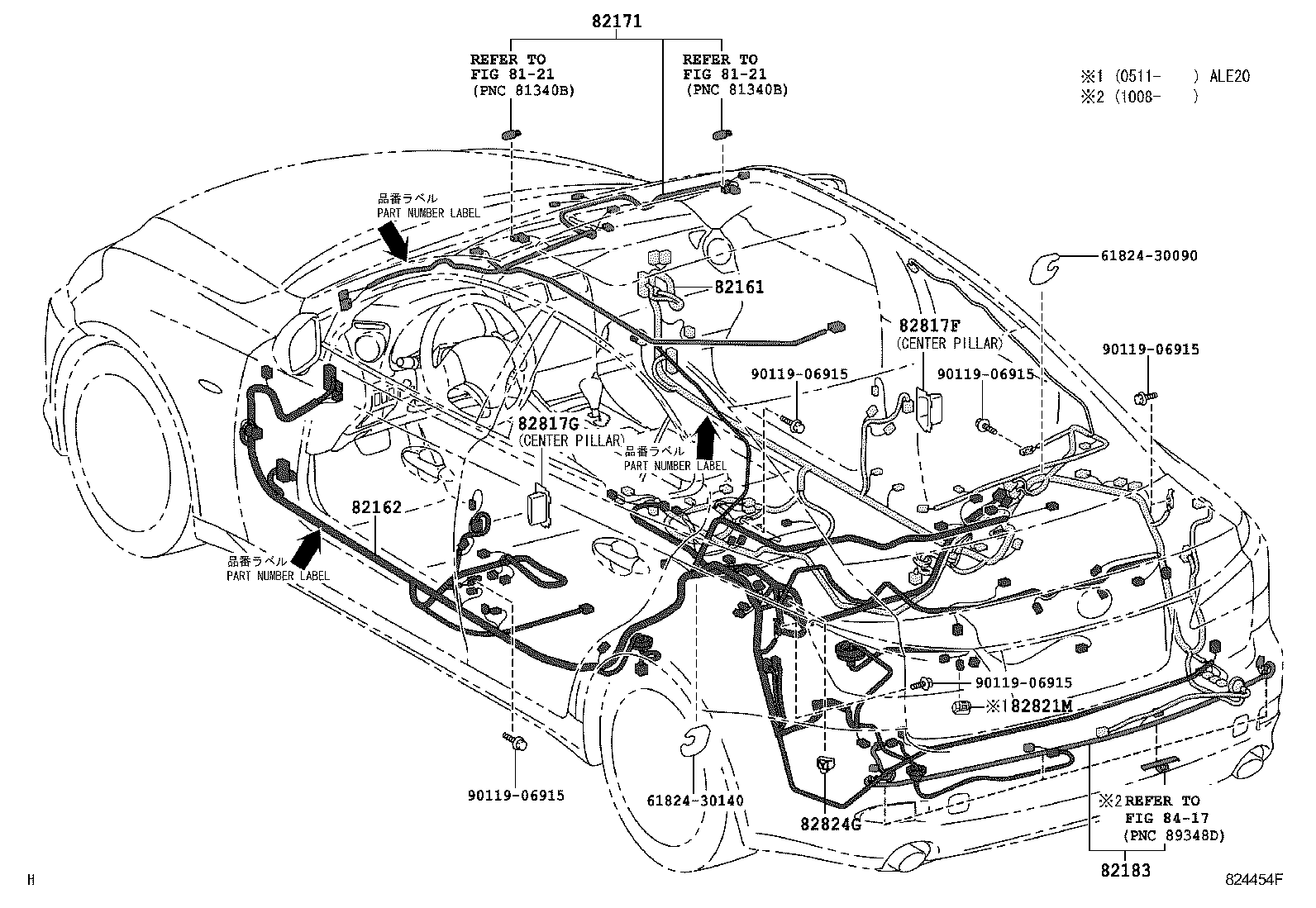

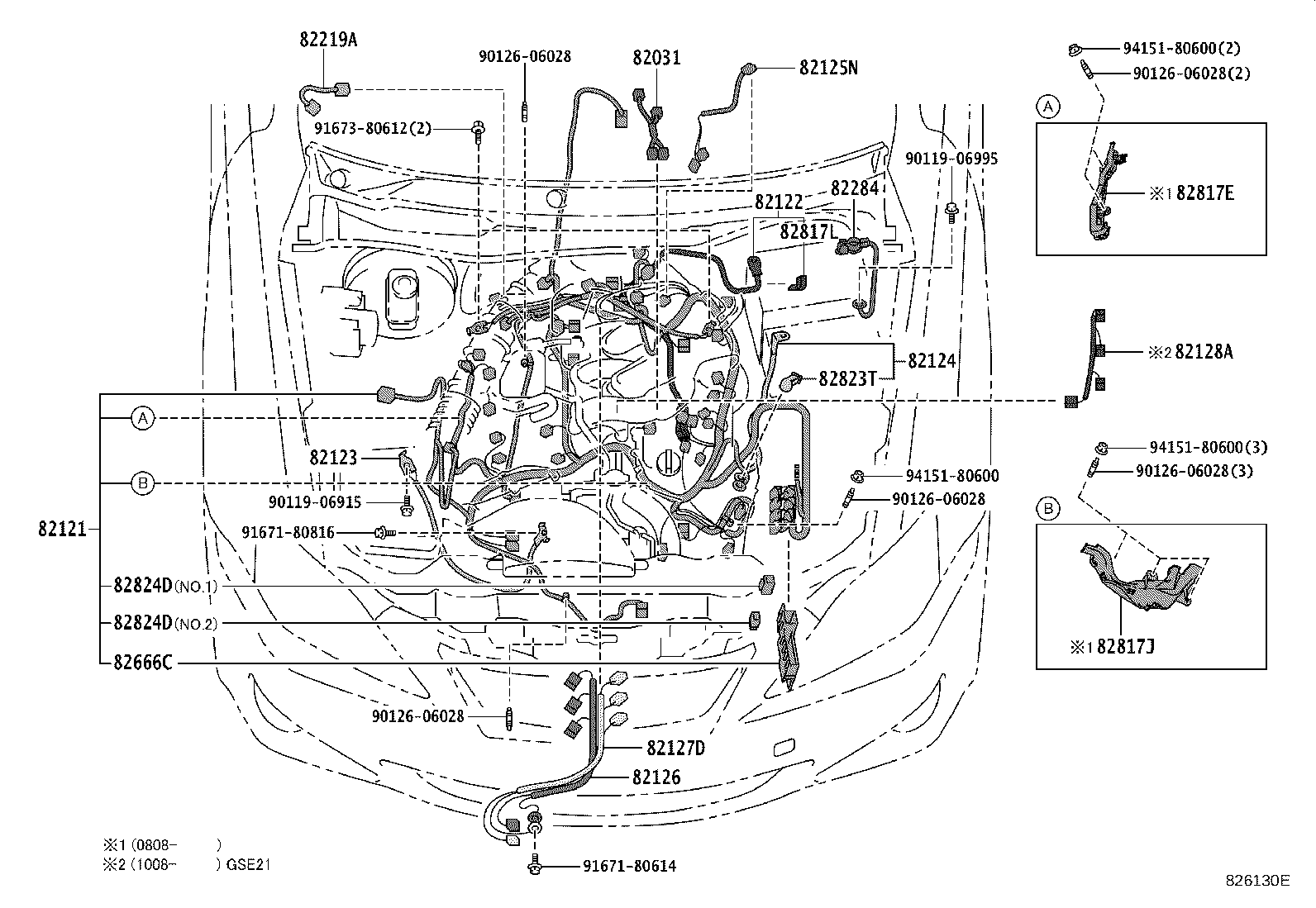

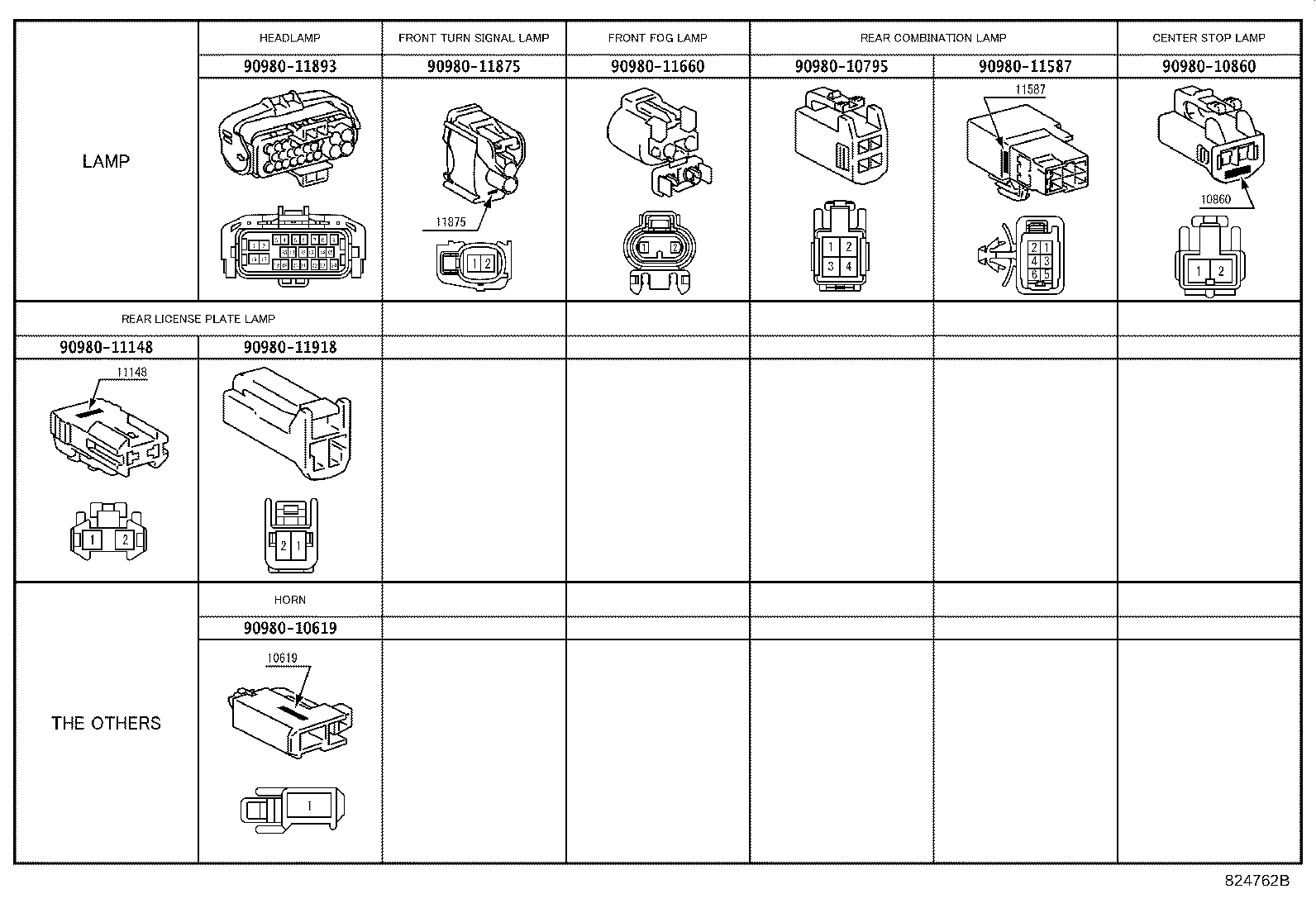

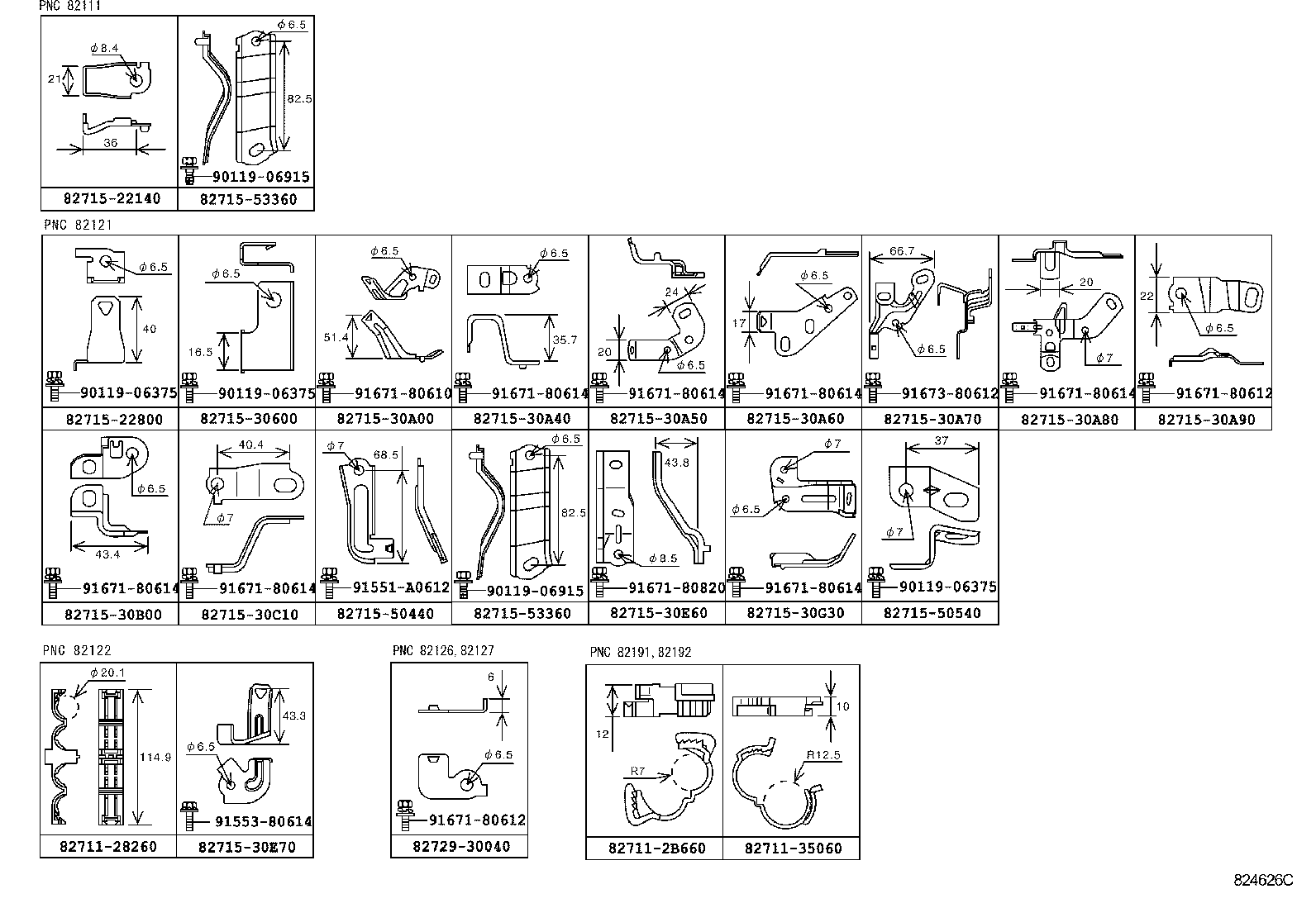

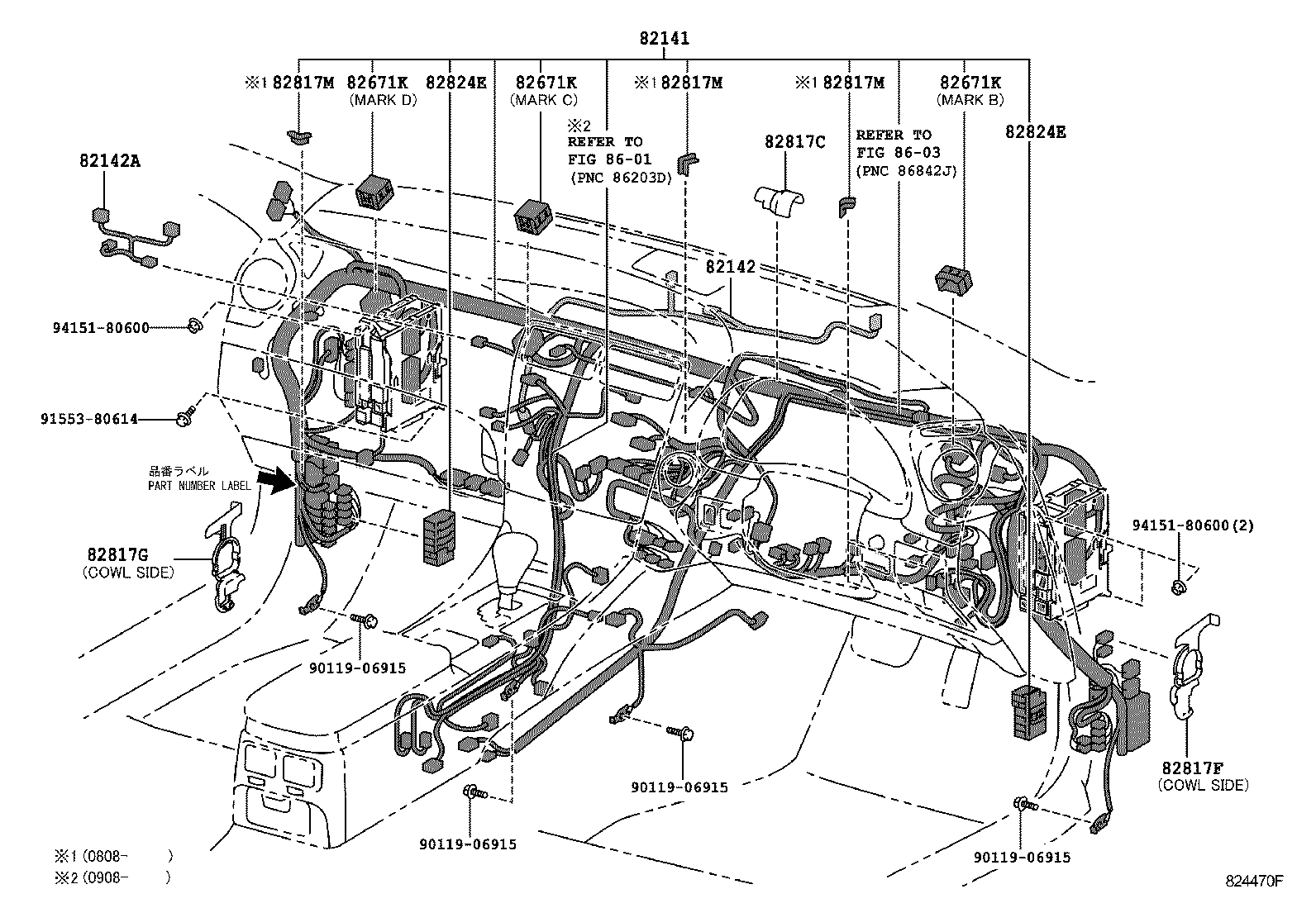

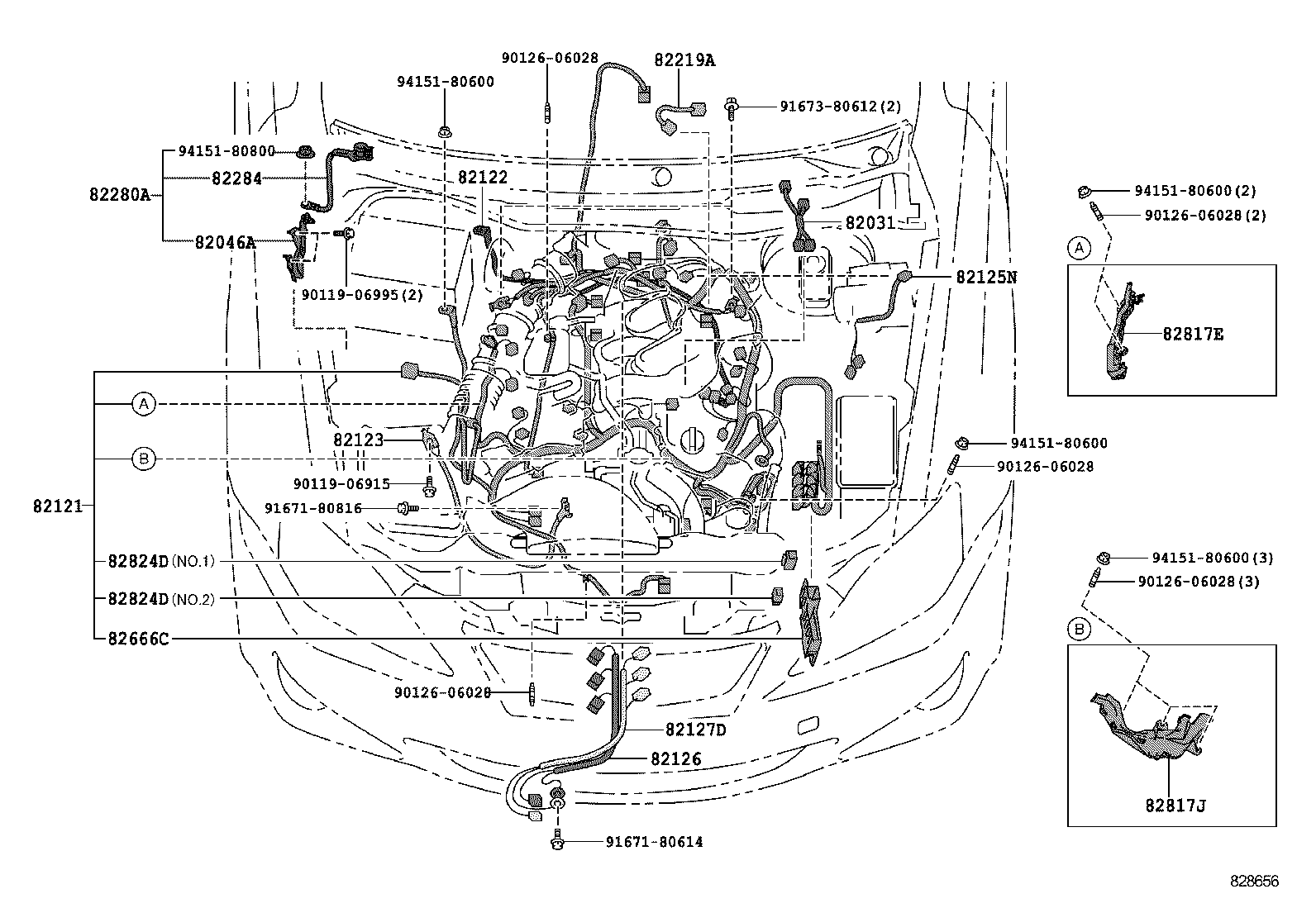

Figure 826122F 826122F 2005-08 → — Figure 826123E 826123E 2005-08 → — Figure 824623G 824623G 2005-11 → 2012-08 Figure 824624F 824624F 2005-11 → 2012-08 Figure 824491F 824491F 2005-08 → 2012-08 Figure 826130E 826130E 2005-08 → 2012-08 Figure 824613C 824613C 2005-11 → 2012-08 Figure 824612D 824612D 2005-11 → 2012-08 Figure 828656 828656 2012-08 → — Figure 828657 828657 2012-08 → — Figure 824883C 824883C 2005-08 → — Figure 824470F 824470F 2005-08 → — Figure 824453 824453 2005-08 → — Figure 824454F 824454F 2005-08 → — Figure 827168A 827168A 2005-08 → — Figure 824490B 824490B 2005-08 → — Figure 824626C 824626C 2005-08 → — Figure 824619D 824619D 2005-11 → — Figure 824481D 824481D 2005-08 → — Figure 824762B 824762B 2005-08 → —

Part groups

PNCDescription

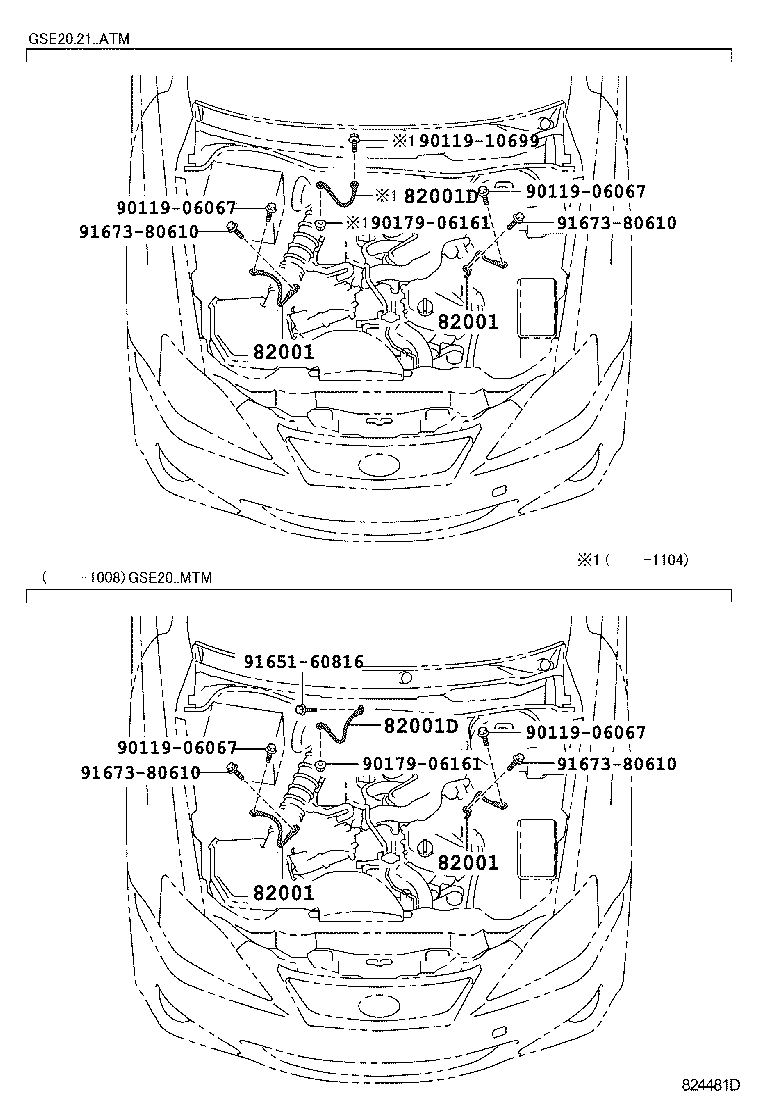

82001 Cable, Bond, NO.1
82001D Cable, Bond, NO.3
82031 Wire Sub-assy, Ignition Coil
82046A Wire Sub-assy, Body Ground, NO.1

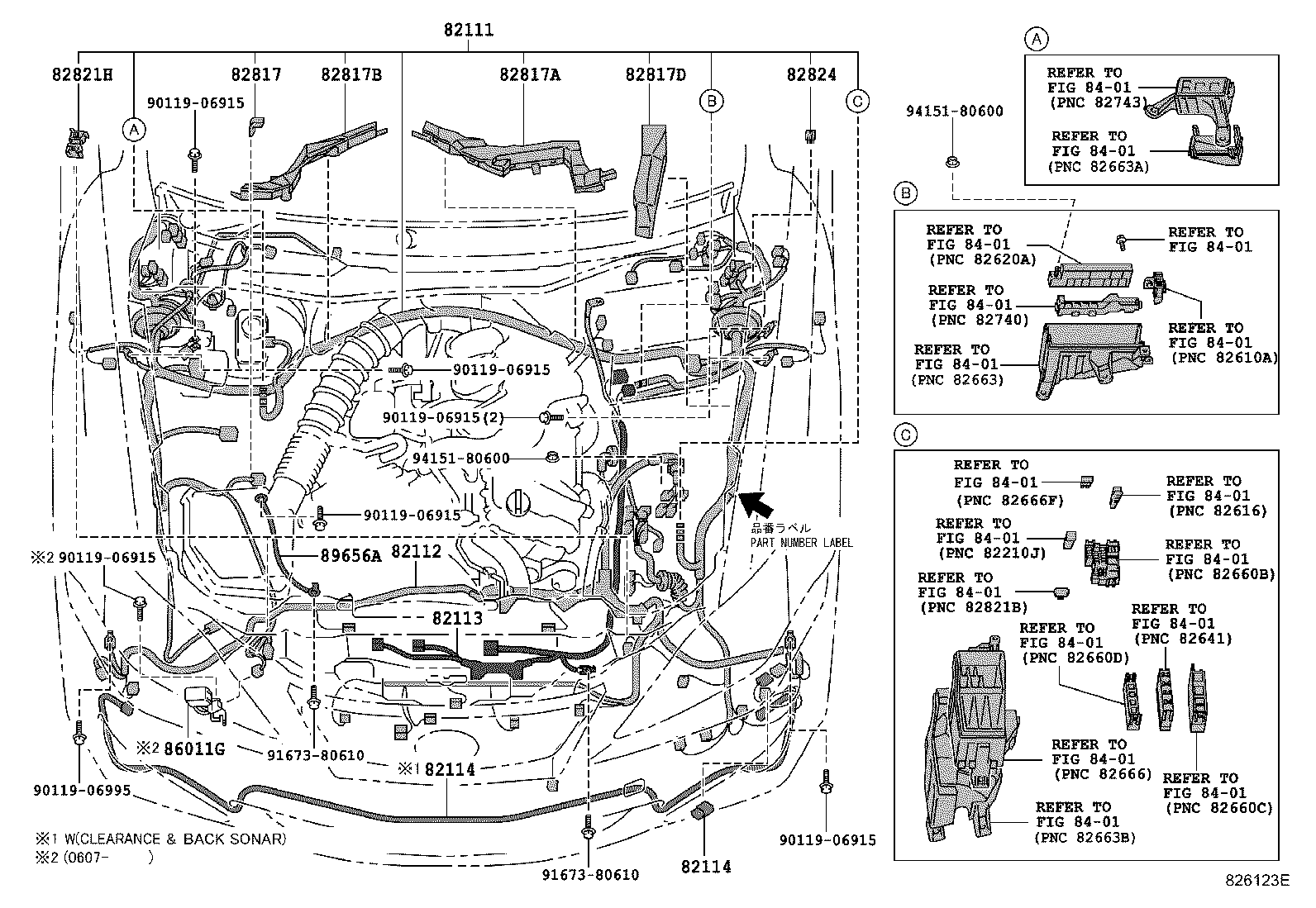

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4

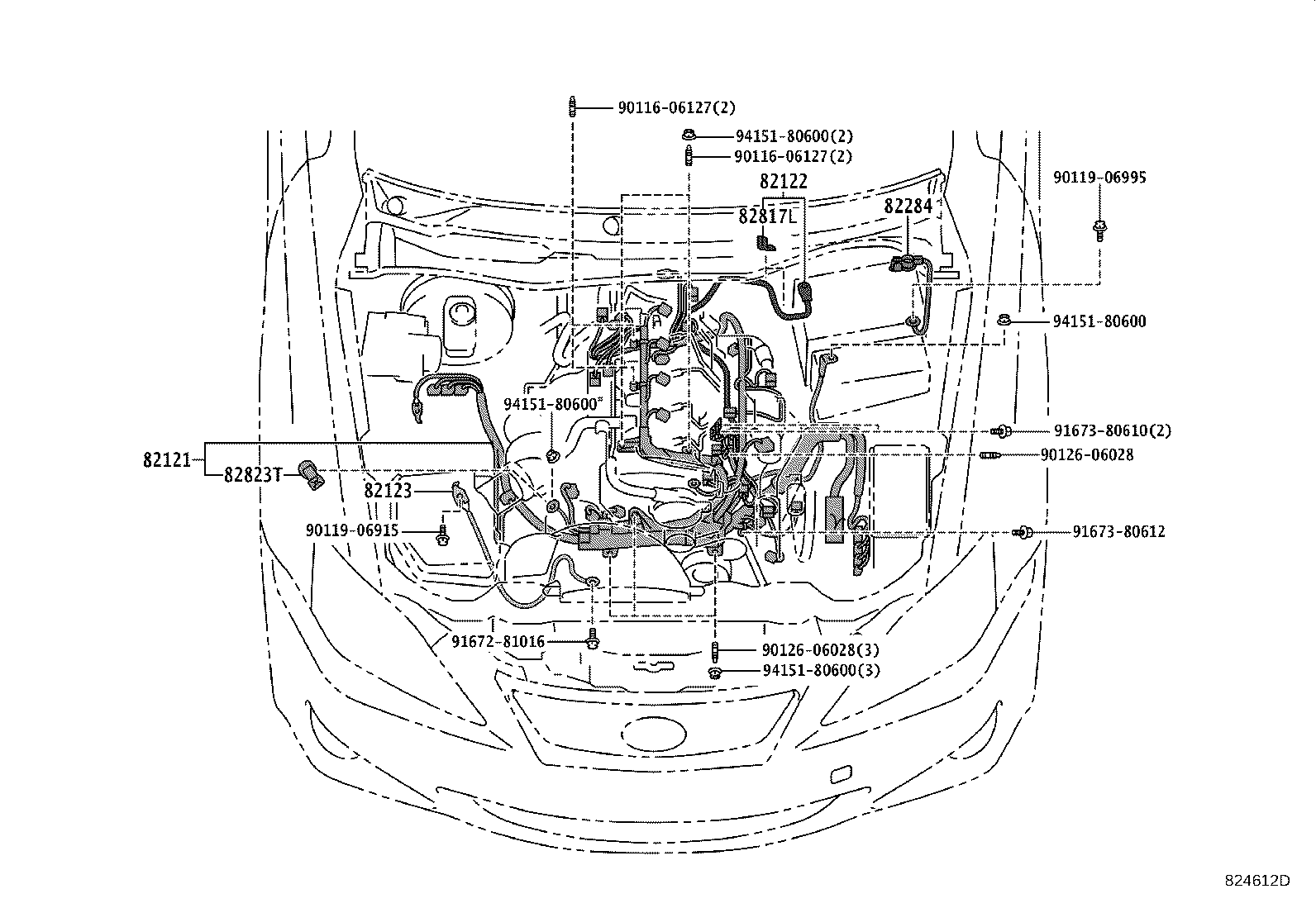

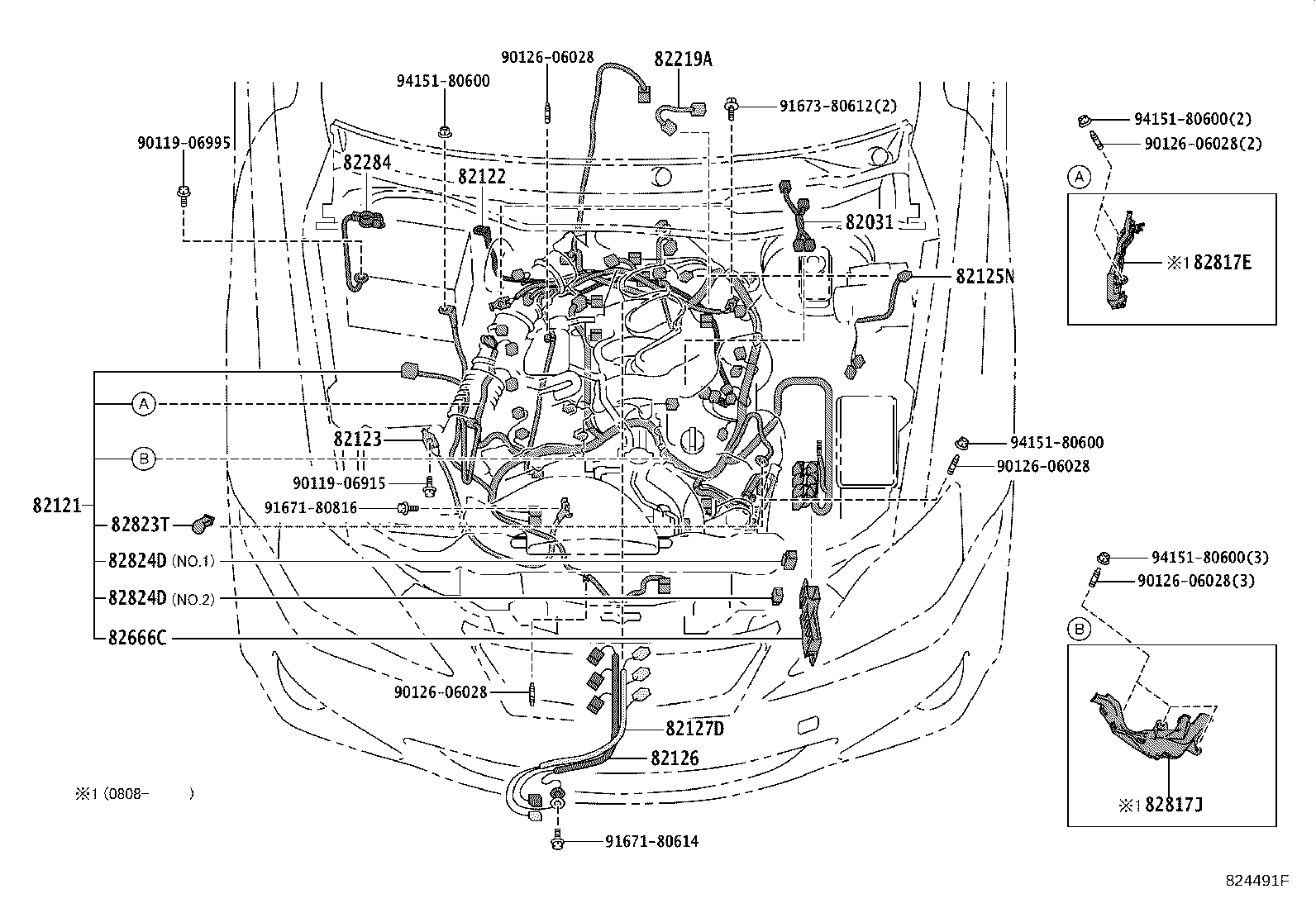

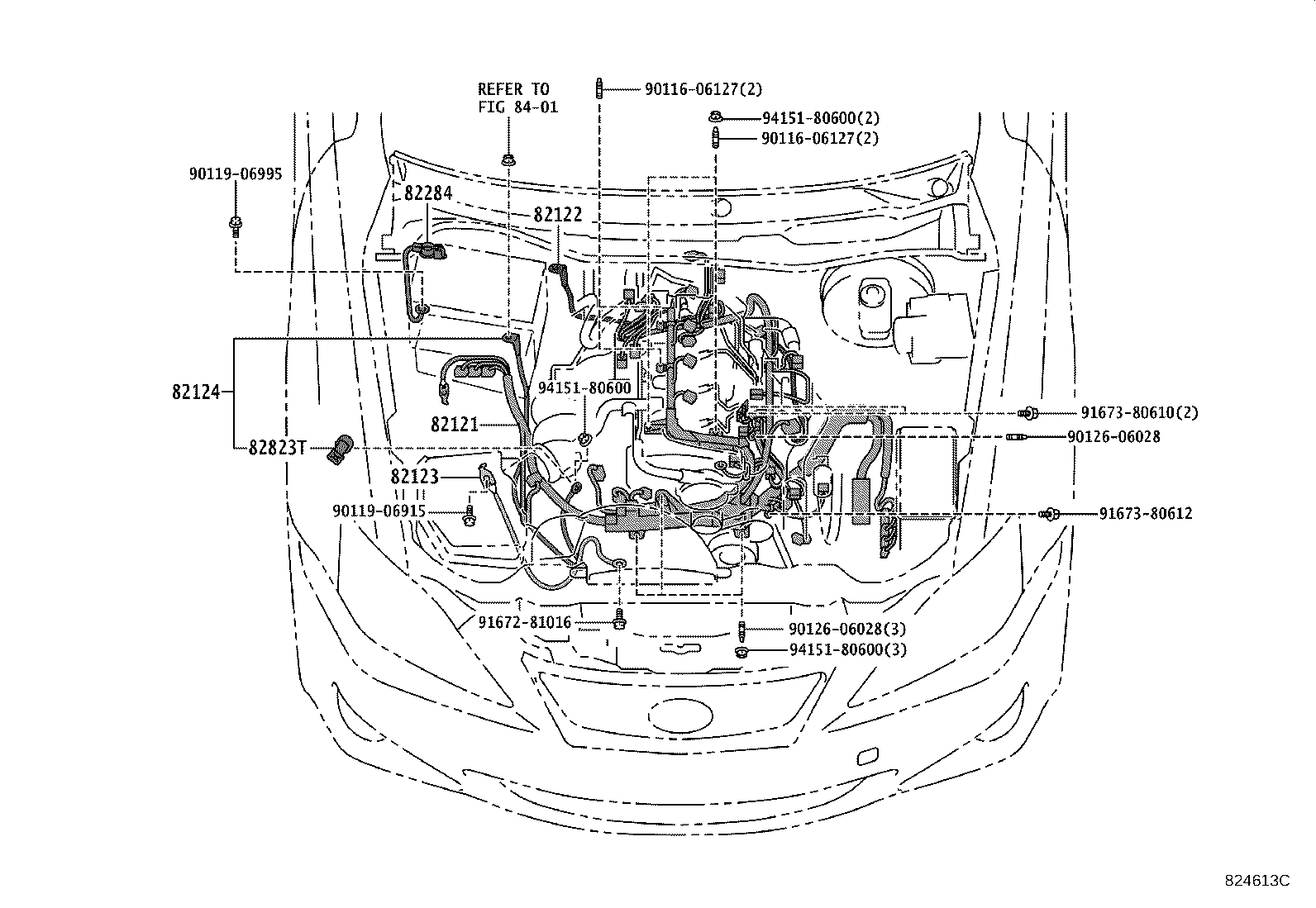

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2

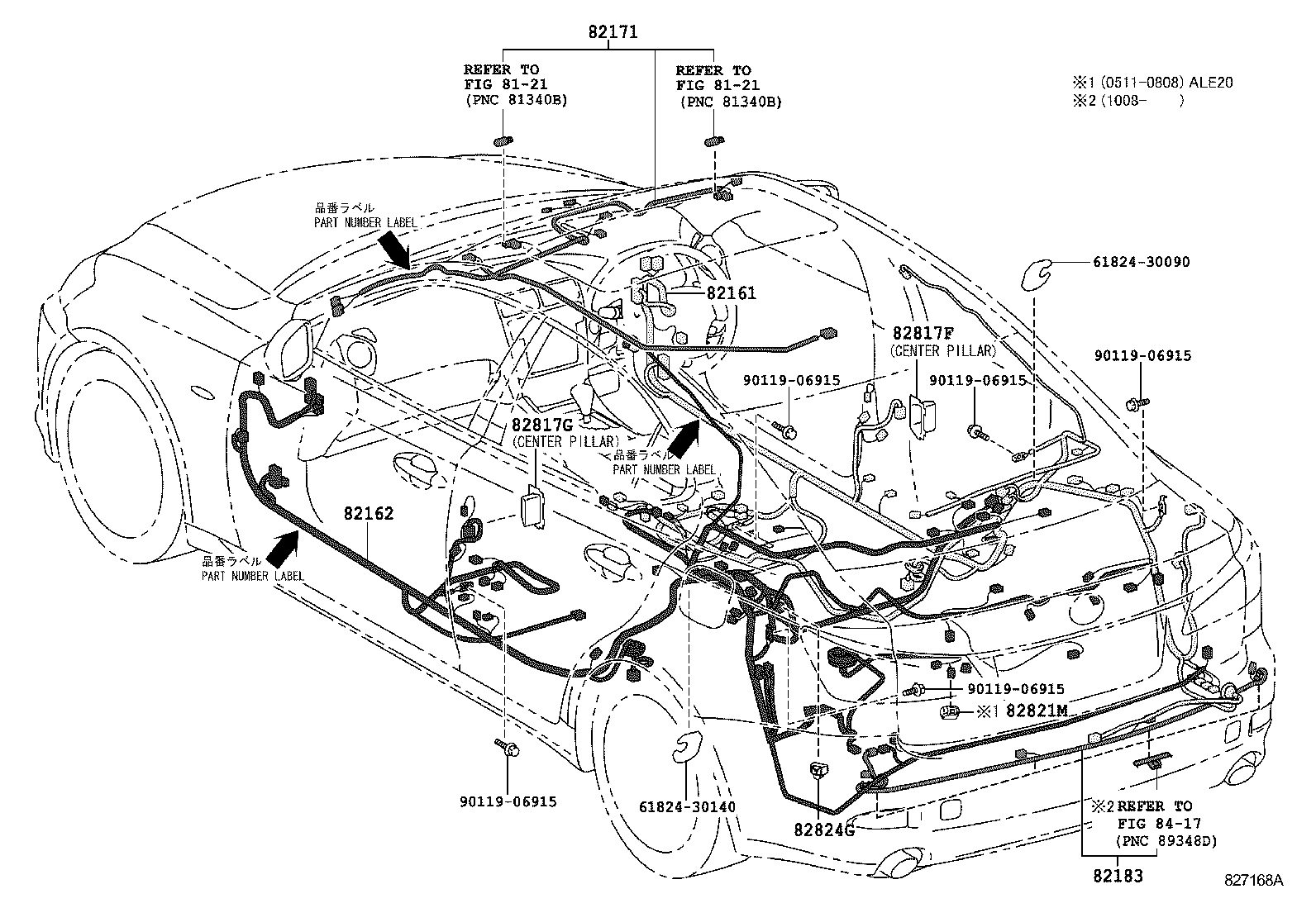

82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82345 Diode
82666C Holder, Connector NO.4
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
86011G Condenser
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
