Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

14 part groups · 2 illustrations

Illustrations

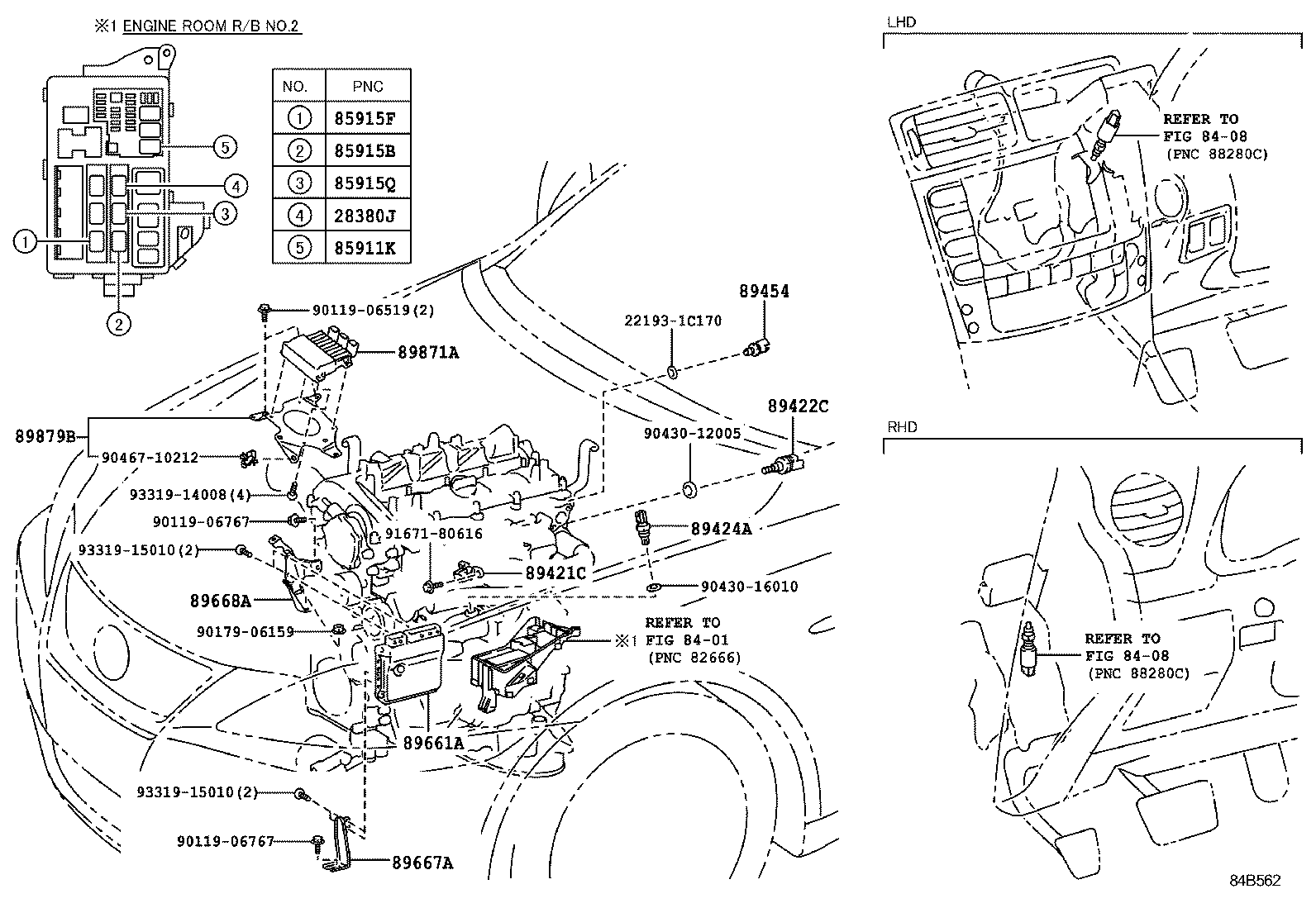

Figure 847441C 847441C 2005-11 → 2010-08 Figure 84B562 84B562 2010-08 → —

Part groups

PNCDescription
28380J Relay, Fuel Pump
85911K Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85915B Relay, Main (FOR DIESEL TURBO)
85915F Relay, Spill Valve
85915Q Relay, Computer (FOR DIESEL)
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89454 Sensor, Fuel Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
