Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

5 part groups · 2 illustrations

Illustrations

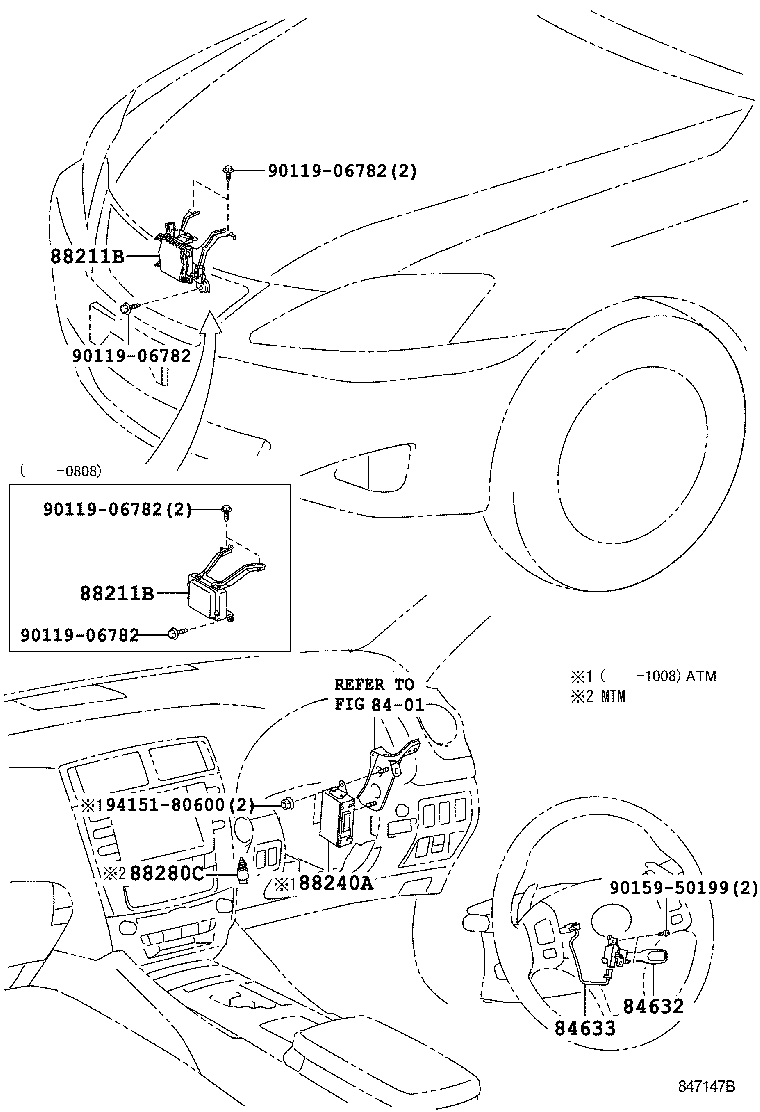

Figure 847148B 847148B 2005-08 → — Figure 847147B 847147B 2005-08 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
88211B Sensor Assy, Millimeter Wave Radar
88240A Computer Assy, Distance Control
88280C Switch Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
