Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

25 part groups · 3 illustrations

Illustrations

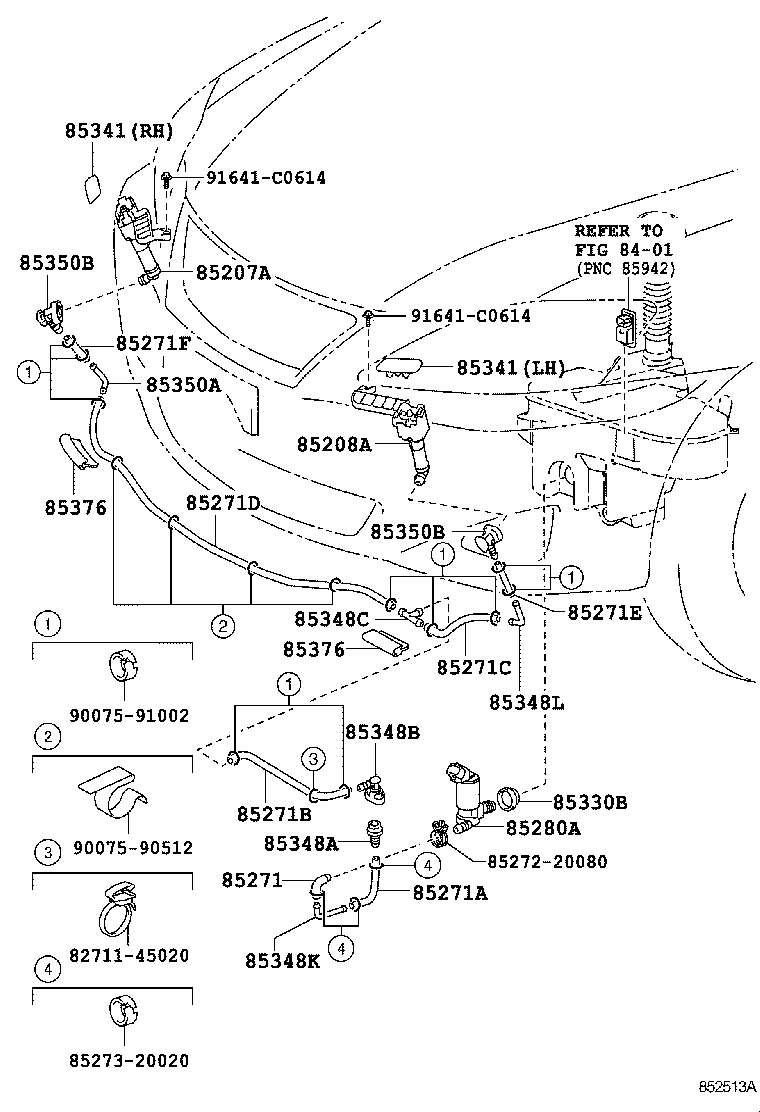

Figure 851610G 851610G 2005-08 → 2008-08 Figure 852198 852198 2008-08 → 2010-08 Figure 852513A 852513A 2010-08 → —

Part groups

PNCDescription
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85271E Hose, Headlamp Cleaner, NO.6
85271F Hose, Headlamp Cleaner, NO.7
85271G Hose, Head Lamp
85279A Joint, Headlamp Cleaner Hose
85280A Motor And Pump Assy, Headlamp Cleaner
85330B Bush, Headlamp Cleaner Washer Jar
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348H Joint, Headlamp Cleaner Hose, NO.4
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85348Z Joint, Headlamp Cleaner Hose, NO.5
85350A Joint, Headlamp Cleaner Elbow, NO.3
85350B Joint, Headlamp Cleaner Elbow, NO.4
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85376 Protector, Headlamp Cleaner Hose, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
